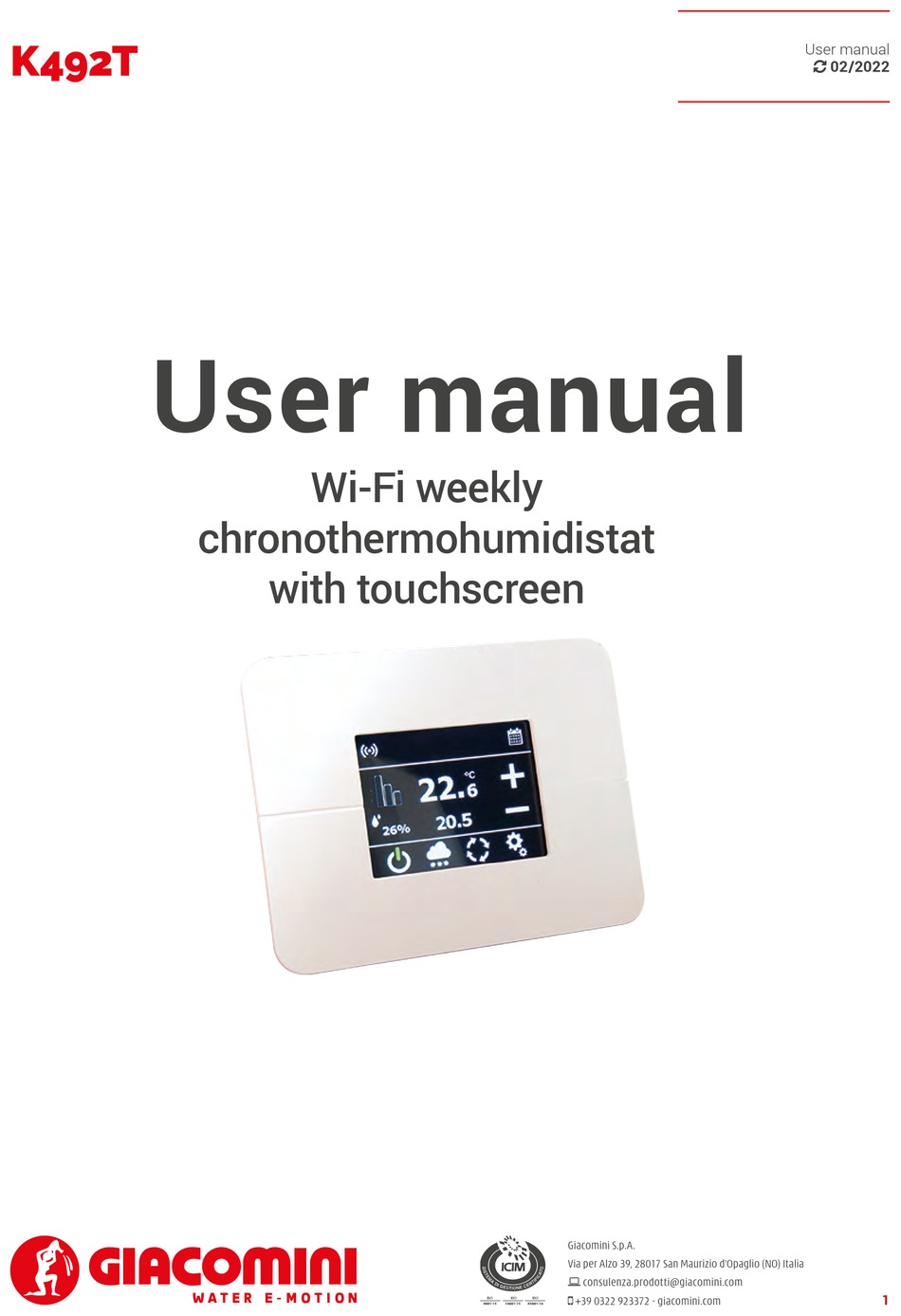

- Page 1 K492T User manual 02/2022 User manual Wi-Fi weekly chronothermohumidistat with touchscreen Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
-
Page 2: Table Of Contents
Humidity Offset Language ......................17 Temperature unit ..................17 Maximum heating setpoint limit ................17 Minimum heating setpoint limit ................17 Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... - Page 3 Device setting 8.4.4 Change network Management of systems ..................30 Account management ..................30 8.6.1 Change password 8.6.2 User invitation management Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
-
Page 4: Introduction

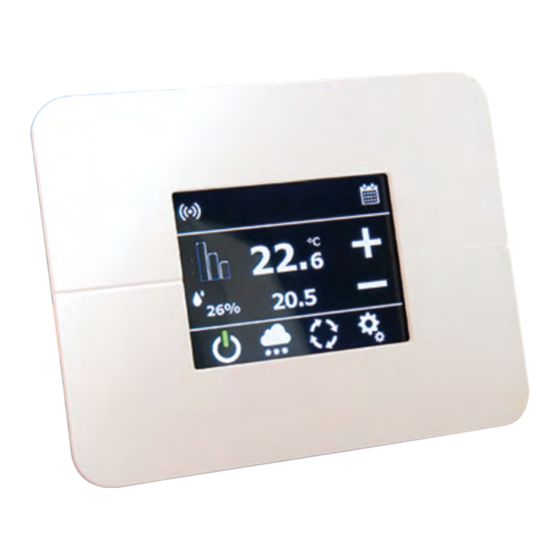

Classification of temperature control devices according to Reg.(EU) N.811/2013-813/2013: Energy class IV, 2%. The new WiFi chronothermostat K492T is available in two versions: the first has two output relays (K492TY002)*, the second instead has one relay and one analogue output (K492TY012)**. -
Page 5: Operating Modes
SETPOINT. Activated only from temporary manual mode by clicking on the active mode icon. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 6: Main Page
MANUAL OPERATION. Indicates a constant SETPOINT temperature for all hours of the day. Pressing this icon restores automatic operation. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 7: Stp - Stop
Notes: not to be confused STP with stop. STP (stop) is the temporary stop condition defined only in the band of the time schedule. Stop is an operating mode in which the time schedule is not considered. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 8: Chronothermostat Page
To exit saving the changes made, press the confirmation button otherwise press button Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 9: Settings Page
NOTES: if the chronothermostat is connected to the WiFi network, when the values are changed on this page, it is nec- essary to wait about 10 seconds for the plant to synchronize with the network. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 10: Display Settings
OFF you mantain the STD for all year long; if you turn it ON, the system will manage the switch, in the expected days, from STD to DTS and vice versa. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 11: Wifi Configuration
Select the icon to the side to enter the user configuration page through which it will be possible to access the submenus Temperatures, Updates, Zone Name and Programs described in the sections below. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 12: Temperature
The following temperatures can be selected in COOLING: Comfort plus Comfort Night Economy GEO Away Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 13: Device Info
Press the key to delete the last character entered or to exit. At the end, confirm with key Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 14: Programs
The type of program can be changed using the Heating or Cooling key. After making changes, use the confirmation key to save and exit, otherwise press the key Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 15: Updates
Temperature Unit, Language, Reset WiFi and Reset described in the following sections. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 16: Temperature Unit
Use the arrow keys to select On or Off. Press the button to exit by saving, otherwise press the button Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com... -
Page 17: Installer Configuration
Further settings differ according to the chronothermostat model if in configuration K492TY002 (with output with two bistable relays) or in configuration K492TY012 (with one relay output and one analogue). - Page 18 7. Chronothermostat versions The WiFi chronothermostat K492T is available in two versions: the first has two output relays (K492TY002)*, the second instead has one relay and one analogue output (K492TY012)**. Suitable for commanding thermo-electric actuators and dehumidifier. ** Suitable for commanding thermo-electric actuators and fan coil 0...10 V 7.1 K492TY002...
- Page 19 7.1.2.4 Boiler input signal Allows you to set the second relay output for temperature control. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 20 Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 21 N.B. In order for the registration to be successful, the password must contain at least one number and one capital letter.. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 22 Once the data has been entered, simply click on the appropriate key to save the con- figuration of the new plant. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 23 Once the plant has been selected, you are asked to connect to the chronothermo- stat's direct network if it has not already been done previously. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 24 At the end of the procedure, the new chronothermostat entered in the main screen of the APP (DASHBOARD) will appear. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 25 MENT, ADD A NEW THERMOSTAT, ACCOUNT MANAGEMENT page and the page that allows you to log out of your account. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 26 By selecting a drop-down menu appears on the side that allows you to access the pages described in the following paragraphs. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 27 There are different pages for setting the temperatures of the heating type and cooling type programs. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 28 All changes must be saved before exiting the screen using the ap- propriate key at the top right Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 29 Once the settings have been confirmed, the network modification procedure ends and the chronothermostat will connect to the new network entered. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 30 It is also possible to invite one or more users to their systems through the "INVITE A USER" function. Finally, the page displays the invited users that can be removed with Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 31 K-DOMO account in order to be able to share your systems with other people. On receipt of an invitation, the user will see a new shared plant on their DASHBOARD. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italia consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com...
- Page 32 Personal Protective Equipment, to ensure their safety and the safety of third parties. Incorrect pamphlet does not exempt the user from following carefully the existing regulations and norms installation may cause injury to people, animals or damage to property to which Giacomini S.p.A. on good workmanship.
