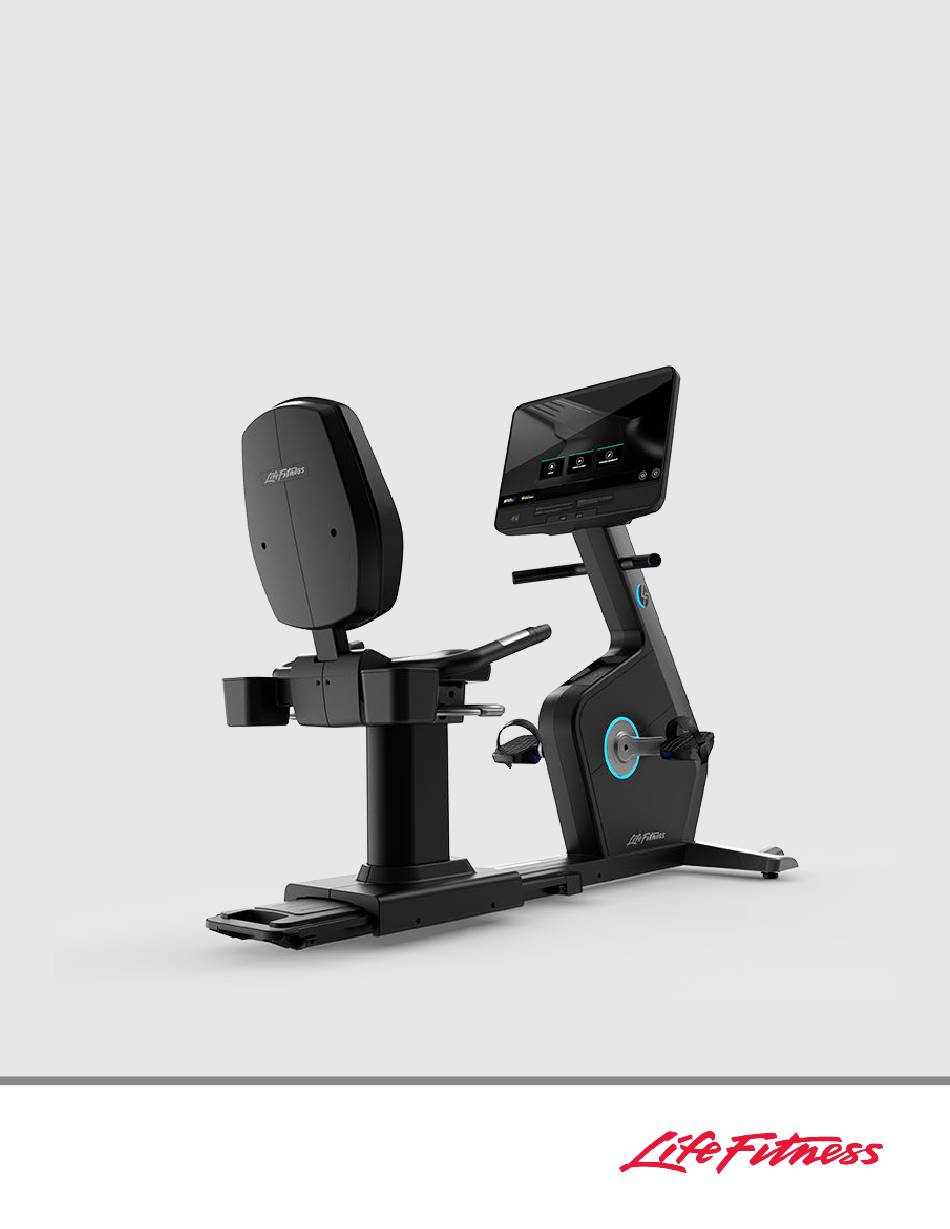

Symbio™ Recumbent Cycle
Assembly Instructions
1022783-0001 REV AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Symbio Recumbent Cycle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Life Fitness Symbio Recumbent Cycle

  • Page 1 Symbio™ Recumbent Cycle Assembly Instructions 1022783-0001 REV AB...
  • Page 3 Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD Columbia Centre III Neuhofweg 9 26/F, Global Trade Square 9525 Bryn Mawr Avenue 85716 Unterschleißheim 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
  • Page 4 User and Service Documents Link https://lfn.fit/KnowledgeBase https://lfn.fit/SupportDocuments Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
  • Page 5: Table Of Contents

    Copyright 2024, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change.
  • Page 6: Additional Information

    1. Additional Information Link to Additional Information Online In addition to the content provided in this manual, please scan the QR code for further and updated information. https://lfn.fit/SymbioRecumbentCycleInstall Page 4 of 32...
  • Page 7: Getting Started

    • Life Fitness Family of Brands does not warrant nor guarantee that component parts used in the manufacture of products offered under the Life Fitness Family of Brands are latex-free. Users of these products must take all necessary precautions to prevent accidental contact that could lead to an adverse latex reaction.
  • Page 8 • Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using. • When the product is not in use, Life Fitness recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts.
  • Page 9: Consignes De

    • Life Fitness Family of Brands ne garantit pas que les composants utilisés dans la fabrication des produits proposés dans la Life Fitness Family of Brands sont exempts de latex. Les utilisateurs de ces produits doivent prendre toutes les précautions nécessaires pour éviter un contact accidentel qui pourrait entraîner une réaction indésirable au...
  • Page 10 à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness Family of Brands n’est pas responsable des étiquettes manquantes ou endommagées.
  • Page 11: How To Stabilize The Recumbent

    How to Stabilize the Recumbent Cycle Read the entire manual before setting up the cycle. After following all Safety Instructions, move the cycle to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the cycle is accessed from and 3 ft. (1 m) between the front or rear of the cycle or any other objects.
  • Page 12: Electrical Power

    Electrical Power Requirements WARNING: Use only the supplied AC power line cord. Do not use any modification to connect to a 2-prong outlet. Product must be connected to a properly rated 3-prong outlet. Supply Voltage Frequency Input Current 100 - 240 VAC 50 - 60 Hz 2.0 A Outlet Voltage...
  • Page 13: Product Overview

    3. Product Overview Product Features Item Description Qty. Console Hand Grip ® Wireless Induction Charger Pedals Transport Wheel Leg Leveler Seat Back Recline Lever Seat Adjustment Bar Resistance Up / Down Controls Contact Heart Rate Sensors Media Controls Cup Holder Connections The following connection receptacle is located at the front of the cycle.
  • Page 14: How To Adjust Smart

    How To Adjust Smart Lighting The base is equipped with lighting that can be tuned On or Off, has three brightness setting, and 16 colors. 1. Select Language icon from Attract Screen to access the Select Language screen. 2. Tap the bottom part of the Select Language screen in the following sequence: Lower-Left, Lower-Right, Lower- Left, Lower-Right.
  • Page 15 3. Navigate through the System Options menu to Configuration > Manager. 4. Scroll down to Smart Lighting. 5. Toggle the Enabled button to turn lights On or Off. 6. Adjust the Brightness as needed. 7. Adjust the Color to your choice of 16 colors. Page 13 of 32...
  • Page 16: How To Adjust Pedal

    How to Adjust Pedal Straps The bike pedal straps keep the user’s shoes on the pedals during a workout. The straps should fit comfortably but tight enough to prevent shoes from slipping at any point in the pedaling rotation. A user should test and adjust the tightness of the straps before starting a workout.
  • Page 17: How To Adjust

    How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees.
  • Page 18 Adjust Seat Recline Position 1. Sit on the seat, then lift the seat back recline lever and hold. Item Description Qty. Seat Back Recline Lever Seat Adjustment Bar 2. Push back slowly on the seat back to the desired position. 3.
  • Page 19: How To Move The Recumbent

    How to Move the Recumbent Cycle 1. Lift the seat adjustment bar located underneath the seat. Item Description Qty. Seat Back Recline Lever Seat Adjustment Bar 2. Slide the seat all the way forward until it hits the front bumper. TIP: This will reduce the lifting force required at the lift handle.
  • Page 20: Qi ® Wireless Induction

    ® Wireless Induction Charger How to use: 1. Place your device on the wireless rubber charging station indicated with the charging symbol. Item Description Phone Wireless Charging Station Blue Indicator Light 2. If your device supports Qi Wireless Charging, the blue indicator light will turn blue along with a notification on your mobile phone that the device is charging.
  • Page 21: Assembly

    4. Assembly Link to Additional Information Online In addition to the content provided in this manual, please scan the QR code for further and updated information. https://lfn.fit/SymbioRecumbentCycleInstall Hardware Item Description Qty. Nut: M8 X 1.25, DIN, LOCKING, ST, ZN Screw: M5 x 0.8 x 14, PHL, PAN, MS, ST, BZ Tools Required •...
  • Page 22 Assembly Procedure Two people are recommended for this procedure. TIP: Read and understand all instructions thoroughly before assembling this unit. Check all items carefully. If there is damage, see the Customer Service section of this manual for proper procedure to return, replace, or reorder parts. Install Console Support Bracket 1.
  • Page 23 Install Console 1. Slide console down over console support bracket. Ensure tabs on console bracket slide into tabs on console support bracket. NOTE: Hold cables down through notch at top of console support bracket. Item Description Qty. Console Console Support Bracket Tab on Console Bracket Console Cables Tab on Console Support Bracket...
  • Page 24 Base to Console Cable Connections Item Description Ethernet HDMI Wireless Charger Coax Power Lifepulse / Handlebars Base Com CSAFE Remove Lower Front Shroud 1. Remove screw on right side of lower front shroud using a Phillips screwdriver. Item Description Qty. Tinnerman Clip Socket Frame Lower Front Shroud...
  • Page 25 2. Plug power cord into power input. NOTE: Power input is located vertically inside upright tube. 3. Slide and rotate power cord retention bracket under power cord and up against cord housing. Locate the upper or lower mounting holes that keeps power cord retention bracket against power cord housing. Item Description Qty.
  • Page 26 Install Lower Front Shroud 1. Install lower front shroud by pressing into tinnerman clip socket in frame by hand. Item Description Qty. Tinnerman Clip Socket Frame Lower Front Shroud Screw 2. Install screw on right side of lower front shroud using a Phillips screwdriver. Tighten hardware to 1.1 ft-lb (1.5 Nm).
  • Page 27 Install Console Rear Cover 1. Press console rear cover into console support bracket by hand. The console rear cover is held in place with two tinnerman clips. Item Description Qty. Console Tinnerman Clips Console Rear Cover Screws Tighten hardware to 1.4 ft-lb (1.9 Nm). 2.
  • Page 28: Specifications

    Pads Comfort+ seat and backpad with commercial grade vinyl and high contrast stitching. Gas assisted back pad recline. Lighting Crank ring, keypads, Life Fitness emblem, and back of console Lighting Colors 16 colors; 3 brightness levels Mobility Mobility wheels included with integrated lift handle at the back Console 24”...
  • Page 29: Service And Technical Data

    6. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame / Seat Post Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust...
  • Page 30: Troubleshooting - Smart

    Troubleshooting - Smart Lighting The base is equipped with lighting that can be tuned On or Off, has three brightness setting, and 16 colors. 1. Select Language icon from Attract Screen to access the Select Language screen. 2. Tap the bottom part of the Select Language screen in the following sequence: Lower-Left, Lower-Right, Lower- Left, Lower-Right.
  • Page 31: Troubleshoot The Lifepulse

    3. Navigate through the System Options menu to Configuration > Manager. 4. Scroll down to Smart Lighting. 5. Toggle the Enabled button to ensure the lights are turned on. 6. Adjust the Brightness setting to test visibility. 7. Adjust the Color to test the light color options. Troubleshoot the Lifepulse™...
  • Page 32: Troubleshooting - Wireless

    2. Locate and write down the serial number of the unit which is located on the back left of the seat adjust rail. 3. Contact Life Fitness Customer Support Services at http://www.lifefitness.com. Page 30 of 32...
  • Page 33: Warranty

    Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
  • Page 34: Changes In Warranty Not

    Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
