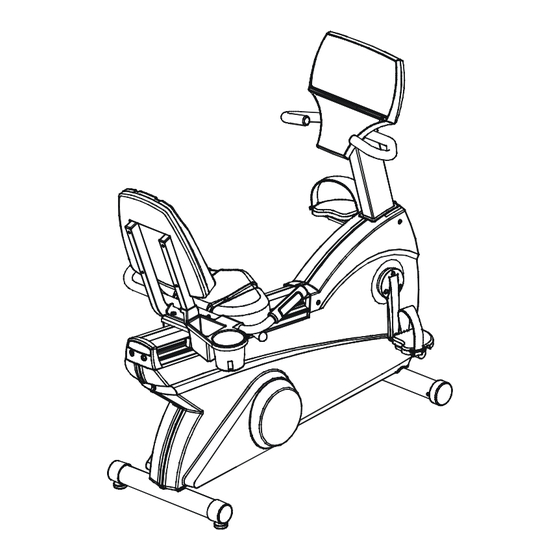

Arctic Silver 90R Recumbent Bike
Customer Support Services
PARTS MANUAL
revised 29 Apr 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recumbent Bike 90R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness Recumbent Bike 90R

Summary of Contents for Life Fitness Recumbent Bike 90R

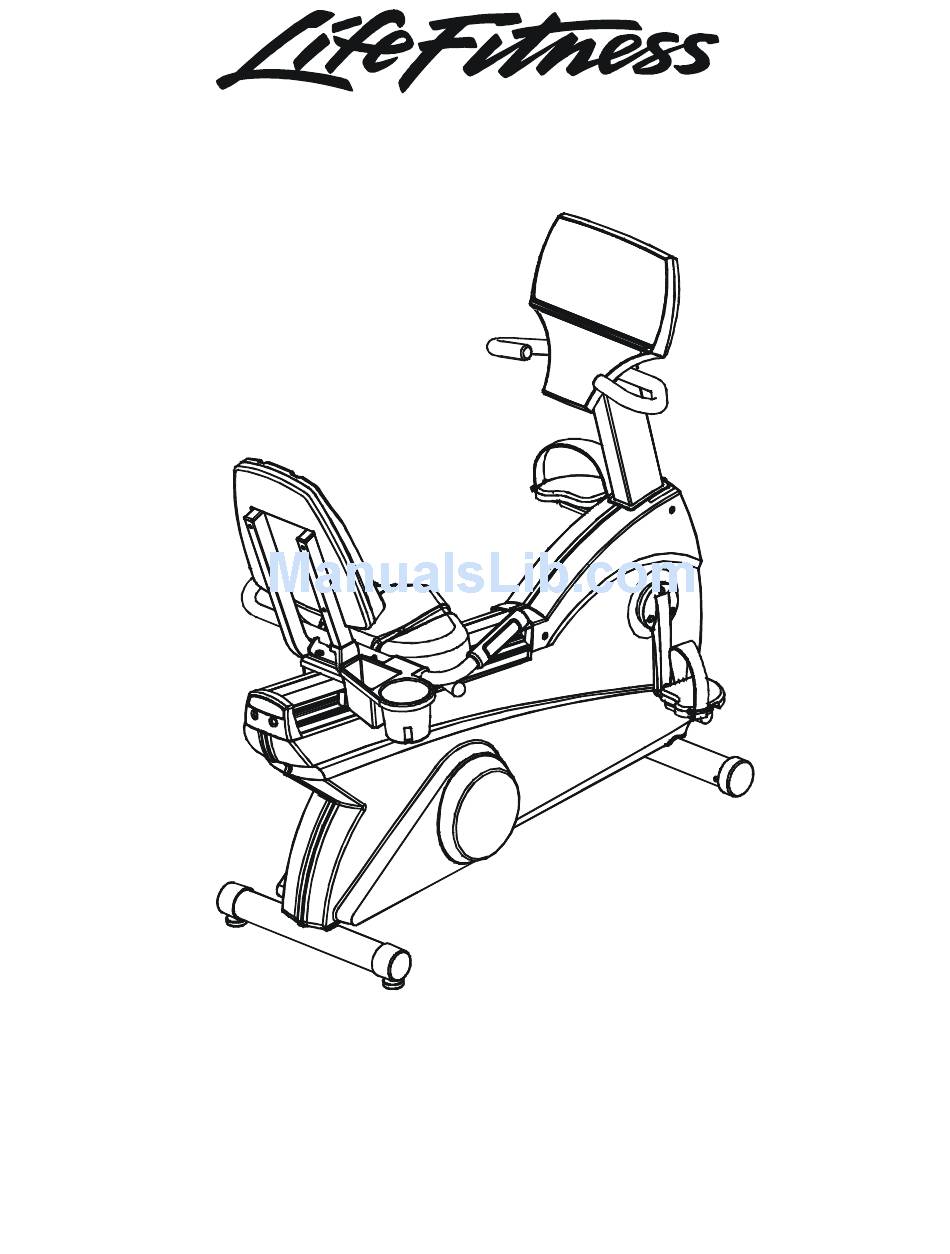

  • Page 1 Arctic Silver 90R Recumbent Bike Customer Support Services PARTS MANUAL revised 29 Apr 2008...
  • Page 2 ARCTIC SILVER 90R REFERENCES OPERATION MANUAL ACCESSORY TRAY KIT HARDWARE BAG POLAR UPGRADE KIT TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN SERVICE MANUAL S/N CCJ100000 and UP M051-00K39-A020 AK39-00052-0004 GK39-00002-0008 GK39-00002-0001 0017-00008-0204 0017-00008-0205 0017-00008-0206 M051-00K39-A012 90R-0XXX-02...

  • Page 3: Table Of Contents

    ARCTIC SILVER 90R 90R-0XXX-02 CONTENTS S/N CCJ100000 and UP Page CONSOLE COMPONENTS ...4 CONSOLE SUPPORT ASSEMBLY...5 SHROUDS, END CAP, CRANKARMS AND PEDALS ...6 BELTS...7 POWER CONTROL BOARD ...8 ALTERNATOR W/PULLEY ...9 CRANKSHAFT AND BEARING ASSEMBLY...10 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...11 IDLER BRACKET ASSEMBLY...12 SEAT ASSEMBLY…………….………………………………………………………………….13 SEAT BOTTOM ASSEMBLY..………………………………………………………………..…14...

  • Page 4: Console Components

    ARCTIC SILVER 90R Console Components Upper Overlay Lower Overlay Console Assembly AK63-00162-0001 Eng Met AK39-00072-0003 Ger Met AK39-00072-0004 Spn Met AK39-00072-0006 Jap Met AK39-00072-0007 Frn Met AK39-00072-0008 Itl Met AK39-00072-0009 Dut Met AK39-00072-0010 Por Met S/N CCJ100000 and UP Console Decal 0K63-01277-0000 Console Case Assembly AK63-00121-0001...

  • Page 5: Console Support Assembly

    ARCTIC SILVER 90R Console Support Assembly Grip(2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolt(4) 0017-00101-1756 S/N CCJ100000 and UP 4-Pin Heart Rate Cable 10-Pin Connector Main Wiring Cable Console Mounting Screw(4) 0017-00101-1744 Frame Post 90R-0XXX-02...

  • Page 6: Shrouds, End Cap, Crankarms And Pedals

    ARCTIC SILVER 90R Shrouds, End Cap and Pedals Shroud Screws(7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws(3) 0017-00101-1855 Right Pedal AK63-00123-0003 Pedal Strap (not shown) 0K63-01237-0003 Right Shroud AK39-00033-0007 Decal 0K39-01070-0000 Left Shroud AK39-00033-0008 Crank Arm, LT Decal 0K39-01042-0008 0K39-01070-0000 Screws(3) 0017-00101-1855 90R-0XXX-02 S/N CCJ100000 and UP...

  • Page 7: Belts

    ARCTIC SILVER 90R Belts Resistor 100E-00002-0084 Pan Screw(2) 0017-00101-1057 Mounting Rod 0K63-01166-0000 Mounting Bracket 0K39-01036-0000 90R-0XXX-02 S/N CCJ100000 and UP Washer(2) 0017-00104-0309 Resistor Retainer 0K39-01043-0000 Hex Nut(3) 0017-00103-0081 Hex Nut 0017-00103-0081...

  • Page 8: Power Control Board

    ARCTIC SILVER 90R Power Control Board Assembly Number - AK39-00022-0002 Belt Poly-V 490J6 0017-00009-0735 S/N CCJ100000 and UP V Belt-450J8 0K63-01066-0001 Plastic Grommet(4) 0017-00042-0821 90R-0XXX-02 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0823 Power Control Board B084-92064-A000...

  • Page 9: Alternator W/Pulley

    ARCTIC SILVER 90R Alternator w/Pulley Assembly Assembly Number – AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCJ100000 and UP Alternator 0017-00009-0841 Washer 0017-00104-0044 90R-0XXX-02 Bolt 0017-00101-0956...

  • Page 10: Crankshaft And Bearing Assembly

    ARCTIC SILVER 90R Crank Shaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 Pulley Assembly AK63-00051-0000 Pulley 0K63-01018-0000 Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) *Needle Bearing (2) 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 90R-0XXX-02 S/N CCJ100000 and UP...

  • Page 11: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 90R Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 S/N CCJ100000 and UP Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, available...

  • Page 12: Idler Bracket Assembly

    ARCTIC SILVER 90R Idler Bracket Assembly Idler Bracket Assembly – AK63-00021-0000 Lock Nut 0017-00103-0218 S/N CCJ100000 and UP Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 90R-0XXX-02...

  • Page 13: Seat Assembly

    ARCTIC SILVER 90R Seat Assembly Foam Grip 0K14-01926-0005 S/N CCJ100000 and UP End Cap 0K19-01208-0001 90R-0XXX-02 Seat Assembly AK51-00034-0003...

  • Page 14: Seat Bottom Assembly

    ARCTIC SILVER 90R Seat Assembly - Bottom Spacer(4) 0K51-01044-0000 Washer(4) 0017-00104-0462 Bolt(4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Roller (2), LT 0K51-01034-0002 Roller Shield(4) 0K51-01059-0001 Roller (2), RT 0K51-01034-0001 90R-0XXX-02 S/N CCJ100000 and UP Washer 0017-00104-0461 Locking Nut(4) 0017-00103-0326 Washer(4) 0017-00104-0463 Screw(2) 0017-00101-1748 Lock Assembly Locking Nut(8)

  • Page 15: Seat Frame Assembly

    ARCTIC SILVER 90R Seat Frame Assembly Screw(4) 0017-00101-1746 Washer(4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Complete Seat Assembly AK51-00027-0003 90R-0XXX-02 S/N CCJ100000 and UP...

  • Page 16: Seat Pads And Accessory Tray

    ARCTIC SILVER 90R Seat Pads and Accessory Tray Washer(4) 0017-00104-0462 Mounting Screw(4) 0017-00101-1743 S/N CCJ100000 and UP Seat Back 0K51-01056-0001 90R-0XXX-02 Seat Bottom 0K51-01054-0001...

  • Page 17: Extrusion Assembly

    ARCTIC SILVER 90R Extrusion Assembly – AK39-00027-0006 Screw 0017-00101-1750 Bolts 0017-00101-1183 Screws 0017-00101-1751 Locking Rack 0K51-01013-0002 Extrusion Seat Assy AK39-00027-0006 90R-0XXX-02 S/N CCJ100000 and UP Stop Bracket 0K51-01061-0001 Decal 0K51-01039-0001 Bumper 0017-00041-0654 Plastic Grommet 0017-00042-1055...

  • Page 18: Seat Locking Assembly

    ARCTIC SILVER 90R Locking Assembly – AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 S/N CCJ100000 and UP TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000 90R-0XXX-02...

  • Page 19: Wheel And Leveler

    ARCTIC SILVER 90R Wheel and Leveler Pan Screw(2) 0017-00101-1747 Wheel Screw 0017-00101-1747 S/N CCJ100000 and UP Rear Stabilizer GK39-00002-0012 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Wheel Assembly AK63-00016-0001 90R-0XXX-02 End Cap 0K63-01219-0001 Leveler 0017-00009-0795 Lock Nut 0017-00103-0273 Leveler Assembly AK61-00035-0000...

  • Page 20: Cables

    ARCTIC SILVER 90R Cables Cable (Alternator to control) AK39-00009-0000 S/N CCJ100000 and UP Cable Main AK39-00008-0000 90R-0XXX-02...
