Arctic Silver 93R Recumbent Bike
Customer Support Services
PARTS MANUAL
revised 29 Apr 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recumbent Bike 93R and is the answer not in the manual?

Questions and answers

Евгений
March 21, 2025

Как выглядит аккамулятор на панели управления?

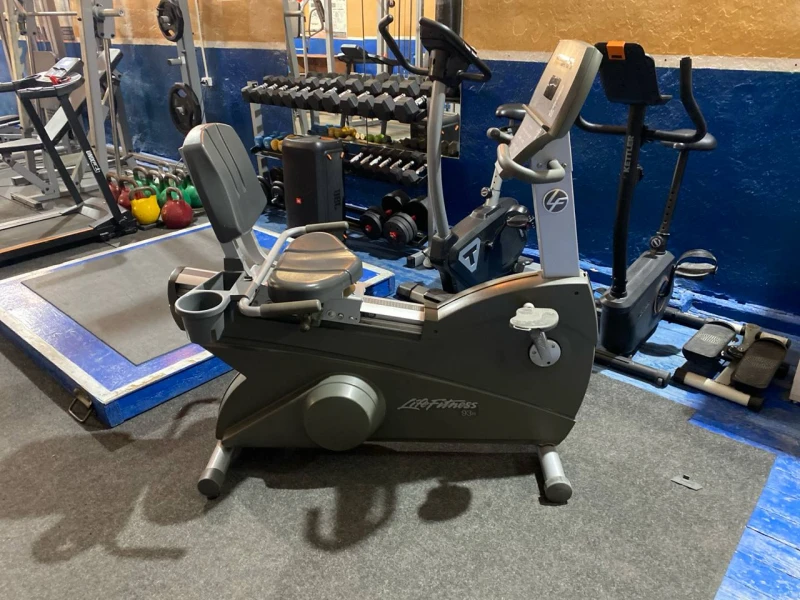

User image 67dd3e99bdc33
1 comments:
Mr. Anderson
May 14, 2025

The battery on the Life Fitness Recumbent Bike 93R control panel is located behind a battery door labeled as part number 0K63-01029-0001.

This answer is automatically generated

Summary of Contents for Life Fitness Recumbent Bike 93R

  • Page 1 Arctic Silver 93R Recumbent Bike Customer Support Services PARTS MANUAL revised 29 Apr 2008...
  • Page 2 ARCTIC SILVER 93R REFERENCES OPERATION MANUAL – (ENG) OPERATION MANUAL – (F,S,P) OPERATION MANUAL – (G,D,I) OPERATION MANUAL – (JAP) NETWORK C-SAFE KIT HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN ACCESS PANEL ASSEMBLY CONSISTS OF: 90”...
  • Page 3: Table Of Contents

    ARCTIC SILVER 93R 93R-0XXX-04 CONTENTS S/N 100000 and UP Page CONSOLE COMPONENTS ...4 CONSOLE SUPPORT ASSEMBLY...5 SHROUDS, END CAP, CRANKARMS AND PEDALS ...6 BELTS AND 6V BATTERY ...7 RESISTOR ASSEMBLY ...8 POWER CONTROL BOARD ...9 ALTERNATOR W/PULLEY ...10 CRANKSHAFT AND BEARING ASSEMBLY...11 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...12 IDLER BRACKET ASSEMBLY...13 SEAT ASSEMBLY…………….………………………………………………………………….14...
  • Page 4: Console Components

    ARCTIC SILVER 93R Console Components Overlay Bezel/Switch Assembly Double Sided tape 0K39-01044-0000 Console Assembly AK39-00111-0001 Eng/LED AK39-00111-0002 Eng/LED AK39-00111-0003 Ger/LED AK39-00111-0004 Spn/LED AK39-00111-0005 Jap/LCD AK39-00111-0006 Jap/LED AK39-00111-0007 Frn/LED AK39-00111-0008 Itl/LED AK39-00111-0009 Dut/LED AK39-00111-0010 Por/LED AK39-00111-0014 Tur/LED Polar Receiver AK39-00064-0000 and cable AK39-00063-0000 Console Board - Upper A084-92219-A027...
  • Page 5: Console Support Assembly

    ARCTIC SILVER 93R Console Support Assembly Grip(2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolt(4) 0017-00101-1756 S/N 100000 and UP Console Mounting Screw(4) 0017-00101-1744 Frame Post 93R-0XXX-04...
  • Page 6: Shrouds, End Cap, Crankarms And Pedals

    ARCTIC SILVER 93R Shrouds, End Cap and Pedals Shroud Screws(7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws(3) 0017-00101-1702 Right Pedal AK63-00263-0003 Pedal Strap (not shown) 0K63-01238-0003 Gasket 0K39-01002-0001 Right Shroud AK39-00115-0001 Decal 0K39-01093-0000 Left Shroud AK39-00115-0002 Crank Arm, LT Decal 0K39-01042-0008 0K39-01093-0000 Screws(3) 0017-00101-1702...
  • Page 7: Belts And 6V Battery

    ARCTIC SILVER 93R Belts Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 6V Battery 0017-00003-0685 S/N 100000 and UP Intermediate Pulley Belt 0K63-01066-0001 Screw 0017-00101-1193 Mounting Screw(2) 0017-00101-0975 Bracket 0K51-01036-0000 93R-0XXX-04...
  • Page 8: Resistor Assembly

    ARCTIC SILVER 93R Resistor Assembly – AK39-00020-0002 Resistor 100E-00002-0084 Pan Screw(2) 0017-00101-1282 Mounting Rod 0K63-01166-0000 Mounting Bracket 0K39-01036-0000 S/N 100000 and UP Washer(2) 0017-00104-0309 Resistor Retainer 0K39-01043-0000 Hex Nut(3) 0017-00103-0081 93R-0XXX-04 Power Cable AK39-00006-0000...
  • Page 9: Power Control Board

    ARCTIC SILVER 93R Power Control Board Assembly Number - AK39-00022-0001 S/N 100000 and UP Plastic Grommet(4) 0017-00042-0821 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0823 Power Control Board B084-92218-D002 93R-0XXX-04...
  • Page 10: Alternator W/Pulley

    ARCTIC SILVER 93R Alternator w/Pulley Assembly Assembly Number – AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 Alternator 0017-00009-0841 Alternator Brushes 0017-00009-0895 Washer 0017-00104-0044 93R-0XXX-04 S/N 100000 and UP Bolt 0017-00101-0956...
  • Page 11: Crankshaft And Bearing Assembly

    ARCTIC SILVER 93R Crank Shaft and Bearing Assembly Crank Arm Hub Pulley Assembly 0K63-01095-0001 AK63-00051-0000 Pulley 0K63-01018-0000 *Needle Bearing (2) Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 93R-0XXX-04...
  • Page 12: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 93R Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 S/N 100000 and UP Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, available...
  • Page 13: Idler Bracket Assembly

    ARCTIC SILVER 93R Idler Bracket Assembly Idler Bracket Assembly – AK63-00021-0000 Lock Nut 0017-00103-0218 S/N 100000 and UP Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 93R-0XXX-04...
  • Page 14: Seat Assembly

    ARCTIC SILVER 93R Seat Assembly Screw(4) 0017-00101-1745 Washer(8) 0017-00104-0461 Bushing Hole 0017-00042-0866 Screw(2) 0017-00101-1282 Upper Flex Cable Clamp 0K19-01221-0000 Cable Sleeve 0K19-01230-0000 Flat-Flex Cable AK19-00082-0001 Hex Bolt(4) 0017-00101-1749 Double-sided Foam Tape(2) 0K19-01222-0000 93R-0XXX-04 S/N 100000 and UP End Cap(4) 0K19-01208-0001 Heart Rate Electrode AK63-00014-0003 Handle Bar w/Insert...
  • Page 15: Seat Bottom Assembly

    ARCTIC SILVER 93R Seat Assembly - Bottom Spacer(4) 0K51-01044-0000 Washer(4) 0017-00104-0462 Bolt(4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Roller (2), LT 0K51-01034-0002 Washer Roller Shield(4) 0017-00104-0461 0K51-01059-0001 Roller (2), RT 0K51-01034-0001 93R-0XXX-04 S/N 100000 and UP Locking Nut(4) 0017-00103-0326 Washer(4) 0017-00104-0463 Screw(2) 0017-00101-1748 Lock Assembly Locking Nut(8)
  • Page 16: Seat Frame Assembly

    ARCTIC SILVER 93R Seat Frame Assembly Screw(4) 0017-00101-1746 Washer(4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Complete Seat Assembly AK39-00036-0002 93R-0XXX-04 S/N 100000 and UP...
  • Page 17: Seat Pads And Accessory Tray

    ARCTIC SILVER 93R Seat Pads and Accessory Tray Washer(4) 0017-00104-0462 Mounting Screw(4) 0017-00101-1743 Accessory Tray AK39-00052-0004 93R-0XXX-04 S/N 100000 and UP Seat Back 0K51-01056-0001 Seat Bottom 0K51-01054-0001...
  • Page 18: Extrusion Assembly

    ARCTIC SILVER 93R Extrusion Assembly – AK39-00027-0005 Screw 0017-00101-1750 Bolts 0017-00101-1183 Screws 0017-00101-1751 Locking Rack 0K51-01013-0002 Extrusion Seat Assy AK39-00027-0005 93R-0XXX-04 S/N 100000 and UP Stop Bracket 0K51-01061-0001 Decal 0K51-01039-0001 Bumper 0017-00041-0654 Plastic Grommet 0017-00042-1055...
  • Page 19: Seat Locking Assembly

    ARCTIC SILVER 93R Locking Assembly – AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 S/N 100000 and UP TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000 93R-0XXX-04...
  • Page 20: Wheel And Leveler

    ARCTIC SILVER 93R Wheel and Leveler Pan Screw(2) 0017-00101-1747 Wheel Screw 0017-00101-1747 Rear Stabilizer GK39-00002-0012 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Wheel Assembly AK63-00016-0001 93R-0XXX-04 S/N 100000 and UP End Cap 0K63-01219-0001 Leveler 0017-00009-0795 Lock Nut 0017-00103-0273 Leveler Assembly AK61-00035-0000...
  • Page 21: Cables

    ARCTIC SILVER 93R Cables Life Pulse Extension AK19-00081-0002 S/N 100000 and UP AK63-00050-0000 Reed Switch Cable 93R-0XXX-04...
