INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Do not remove the plaster guard from the valve body until instructed to.
3. Install valve 882T according to the rough-in dimensions of 75524T-4, install valve 880T according to the rough-in
dimensions of 75525T-4.
ROUGH-IN DIMENSIONS
Ø180
75524T-4
INSTALLATION
1250179-2A-A
75524T-4

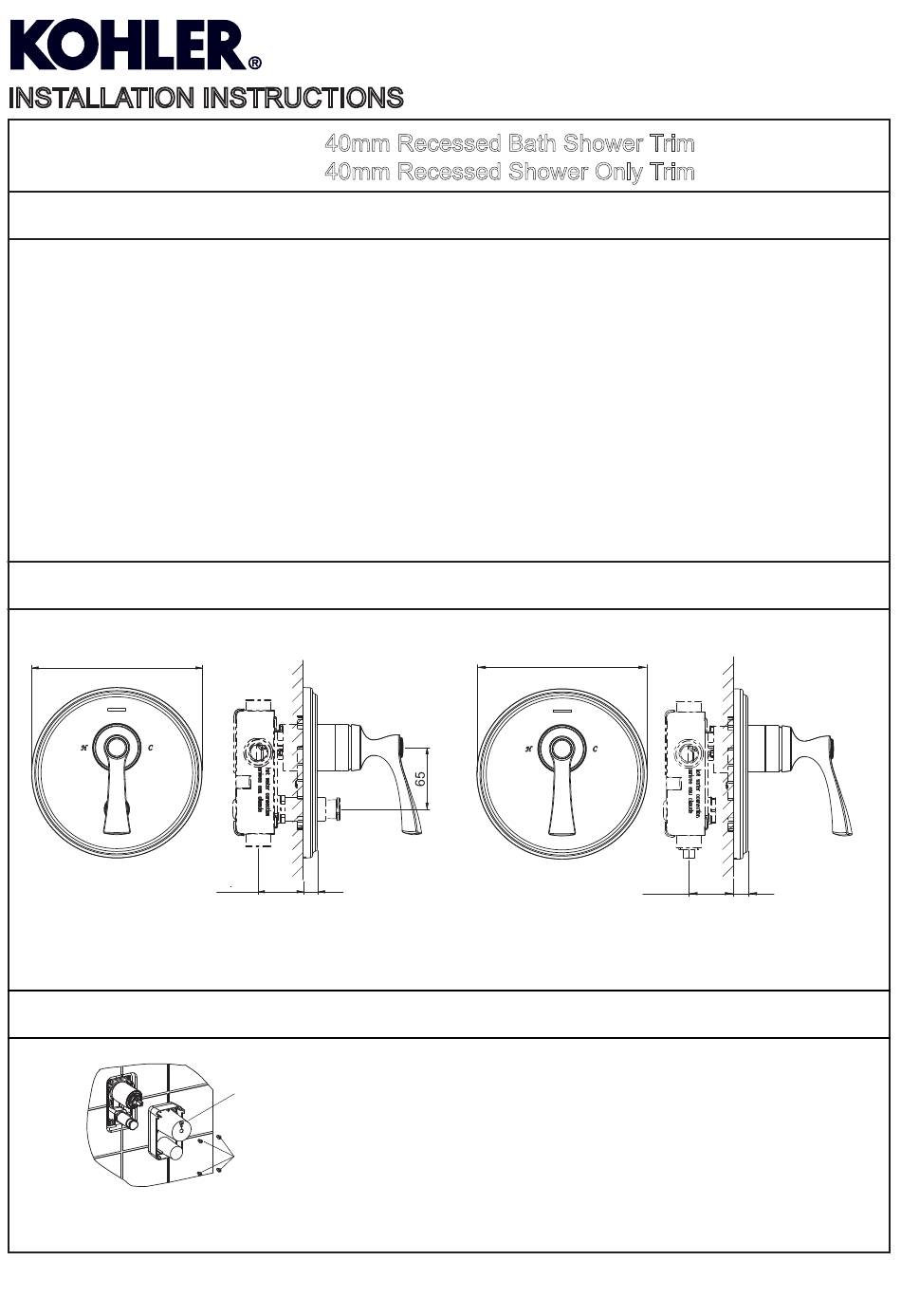

40mm Recessed Bath Shower Trim
75525T-4
40mm Recessed Shower Only Trim
The finished wall
34~50
15
NOTE: Install valve 882T according to the rough-in dimensions of
75524T-4, Install valve 880T according to the rough-in dimensions of
2
75525T-4.
Loosen the screws(1), and remove the plastic guard(2) after
1
completed the finished wall.
ELLISTON
Ø180
34~50
75525T-4
The finished wall
15
1
