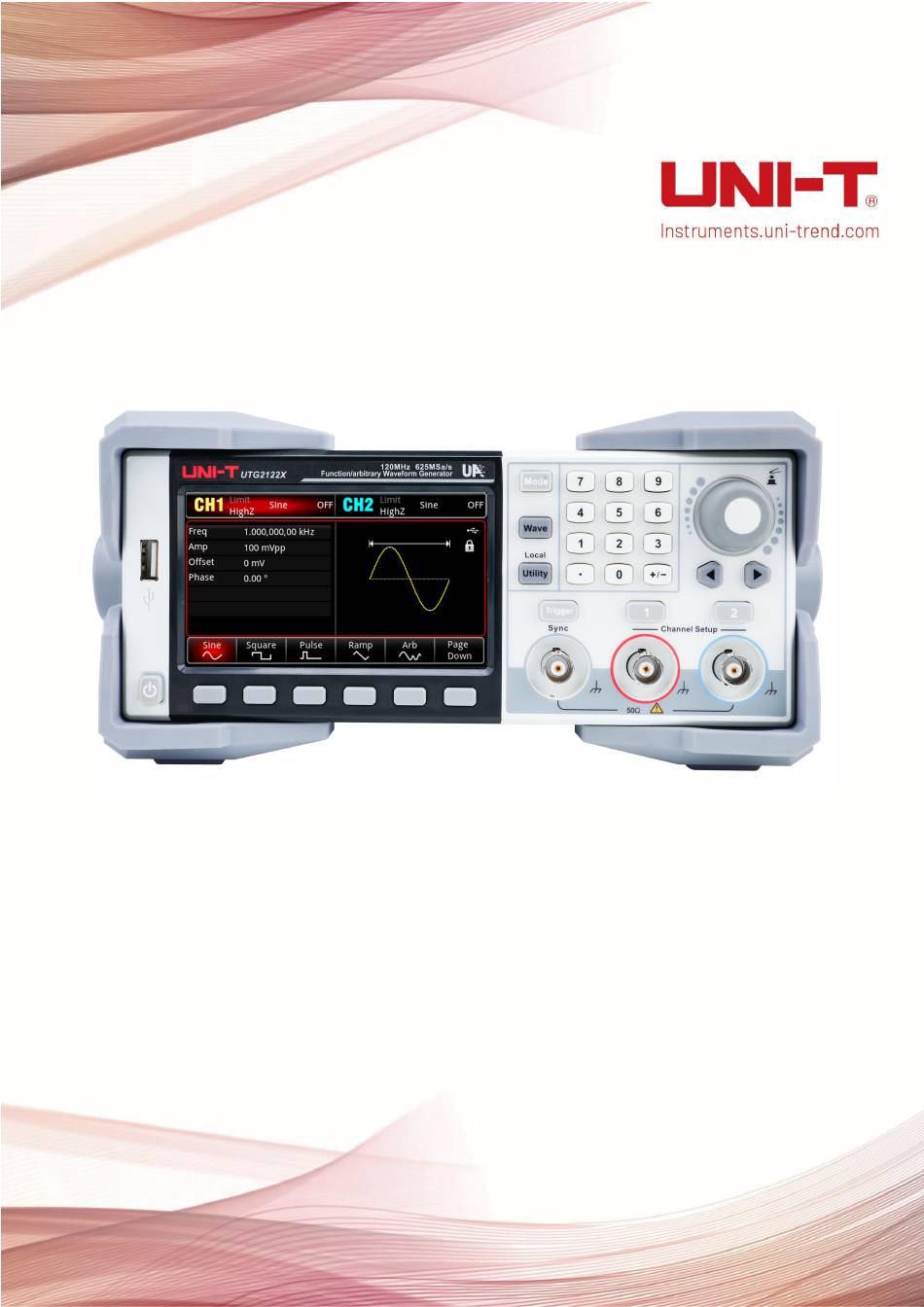

- Page 1 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide UTG2000X Series Function/Arbitrary Waveform Generator Quick Guide V1.0 2024.3 Instruments.uni-trend.com...
- Page 2 Foreword Dear Users, Hello! Thank you for choosing this brand new UNI-T instrument. In order to use this instrument safely and correctly, please read this manual thoroughly, especially the Safety Requirements part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
-
Page 3: Copyright Information
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Copyright Information Copyright is owned by Uni-Trend Technology (China) Limited. UNI-T products are protected by patent rights in China and foreign countries, including issued and pending patents. UNI-T reserves the rights to any product specification and pricing changes. -
Page 4: Warranty Service
This warranty is written by UNI-T for this product, and it is used to substitute any other express or implied warranties. UNI-T and its distributors do not offer any implied warranties for merchant ability or applicability purposes. -
Page 5: Chapter 1 Panel Introduction
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Chapter 1 Panel Introduction Front Panel The product has a front panel of simple, intuitive and easy to use, as shown in the following figure. 1. Display Screen 4.3 inch high resolution TFT color LCD is clearly distinguishes the output status of channel 1 and channel 2, function menu and other important information through different colors. - Page 6 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide is highlighted), press CH1 key to quickly turn on/off CH1 output, or press Utility key to pop out the bar and then press CH1 Setting softkey to set. When channel output is enabled, the indicator light will be illumined, the info bar will display the output mode (“Wave”, “Modulate”,...
-
Page 7: Rear Panel
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Rear Panel 1. External 10 MHz input interface Build synchronization between multiple function and arbitrary waveform generator or synchronizing with external 10 MHz clock signal. When the instrument detects a 10 MHz clock signal (input requirement: frequency is 10 MHz, amplitude is TTL), the signal will... - Page 8 Provides an electrical ground connection for connecting an anti-static wrist strap when moving the instrument or to reduce electrostatic damage (ESD) when connecting DUT. 9. AC power input AC power specification of UTG2000X series, refer to the section of Connecting Power Supply. 10. Main power switch When the power switch is “I”, indicating that the instrument is power on.
-
Page 9: Function Interface
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Function Interface CH1 info, the currently selected channel will be highlighted. “50 Ω” indicates the impedance 50 Ω to be matched at the output port (1 Ω to 999999 Ω, or high impedance, the default is HighZ). -
Page 10: Chapter 2 User's Guide
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal safety and Warning property loss caused by the user’s failure to follow the following safety precautions. - Page 11 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Safety Statements “Warning” indicates the presence of a hazard. It reminds users to pay attention to a certain operation process, operation method or similar. Personal injury or death may Warning occur if the rules in the “Warning” statement are not properly executed or observed.
- Page 12 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Main power off Main power on Standby power supply: when the power switch is turned off, this Power device is not completely disconnected from the AC power supply. Supply Secondary electrical circuit connected to wall sockets through...
- Page 13 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Safety Requirements Warning Please connect this device to AC power supply with the power cable provided; The AC input voltage of the line reaches the rated value of this device. See Preparation the product manual for specific rated value.
- Page 14 If this device may be faulty, please contact the authorized maintenance Abnormality personnel of UNI-T for testing. Any maintenance, adjustment or parts replacement must be done by the relevant personnel of UNI-T. Do not block the ventilation holes at the side and back of this device;...
-
Page 15: Environmental Requirements
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide 2.3 Environmental Requirements This instrument is suitable for the following environment. Indoor use Pollution degree 2 In operating: altitude lower than 2000 meters; in non-operating: altitude lower than 15000 meters Unless otherwise specified, operating temperature is 10 to +40℃; storage temperature is -20 to ﹢60... -
Page 16: Electrostatic Protection
SCPI. The detailed information about the installation, remote control mode and the programming, please refer to UTG2000X Series Programming Manual at the official website http:// www.uni-trend.com 2.8 Help Information UTG2000X series function/arbitrary waveform generator has built-in help system for each function key and menu control key. - Page 17 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Output Basic Waveform 3.1.1 Output Frequency Default waveform: a sine wave with frequency 1 kHz, amplitude 100 mV peak-to-peak (connect with 50 Ω port) The specific steps to change the frequency to 2.5 MHz are as follows.
-
Page 18: Auxiliary Function
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide 3.1.6 Symmetry of Ramp Wave The default frequency of pulse wave is 1 kHz. The specific steps to set the symmetry to 75 are as follows. Press Wave Ramp Symmetry key in turn, use the numerical keyboard to enter 75 and then ... - Page 19 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide functions are shown in the following table. Channel Setting 3.2.1 Function Menu Function Sub-menu Setting Description Channel output OFF, ON Channel reverse OFF, ON Sync output CH1, CH2, OFF 50 Ω, 70 Ω, Load 1Ω...
- Page 20 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Select the softkey Lower to set the lower limit range of the amplitude. Channel Duplication 3.2.2 Select Utility CH Copy key in turn to select the softkey CH1 Copy or CH2 Copy, which is to copy the parameter of the current channel into other channel.
- Page 21 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide When the parameter tracking is selected, frequency tracking, amplitude tracking and phase tracking should be set. When the channel tracking is selected, the phase deviation should be set. 3. Phase Deviation Select the softkey PhaseDeviation in the channel tracking menu, use numerical keyboard to enter the phase deviation of CH2-CH1.
- Page 22 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide CH2-CH1 When the softkey Deviation is selected, use numerical keyboard to enter the deviation value. When the softkey Rate is selected, use numerical keyboard to enter the ratio. 7. Icon When the channel tracking is enabled, the tracking icon will appear on the top right in the parameter list, as shown in the following figure.
- Page 23 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Frequency Meter 3.2.5 This function/arbitrary waveform generator can measure the frequency and duty cycle of compatible TTL signals. The range of measurement frequency is 100 mHz～200 MHz. When use the frequency meter, a compatible TTL signal is imported via the external digital modulation or frequency meter interface (FSK/Trig/Counter).
- Page 24 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide 7. Import the arbitrary wave Press UtilitySystem Manage ExternalConfirm key in turn, and select an arbitrary wave catalogue, press the rotary knob to open the arbitrary list, and then select the arbitrary wave “ABA_1_2.bsv”, press the softkey Import to import it to the user catalogue in arbitrary wave manager.
- Page 25 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide the numerical keyboard, rotary knob or arrow key to enter gateway. The instrument will automatically load the set IP address when the instrument is rebooted. 5. Physical address Physical addresses are numbered from 0 and sequentially incremented by 1 each time. Thus, the physical address space of the memory grows linearly.
- Page 26 UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide German. 2. Phase Synchronization Select the softkey Phase Sync to select “Independent” or “Sync”. Independent: The output phase of CH1 and CH2 is not related. Sync: The output phase of CH1 and CH2 is synchronizing.
-
Page 27: Chapter 4 Troubleshooting
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Chapter 4 Troubleshooting Possible faults in use of UTG2000X and troubleshooting methods are listed below. Please handle fault as the corresponding steps. If it cannot be fixed, please contact with the distributor or local... -
Page 28: Chapter 5 Appendix
UTG2000X Series Function/Arbitrary Waveform Generator-Quick Guide Chapter 5 Appendix Maintenance and Cleaning General Maintenance Keep the instrument away from the direct sunlight. Caution Keep sprays, liquids and solvents away from the instrument or probe to avoid damaging the instrument or probe. - Page 29 Service support: 8am to 5.30pm (UTC+8), Monday to Friday or via email. Our email address is infosh@uni-trend.com.cn For product support outside mainland China, please contact your local UNI-T distributor or sales center. Many UNI-T products have the option of extending the warranty and calibration period, please contact your local UNI-T dealer or sales center.
