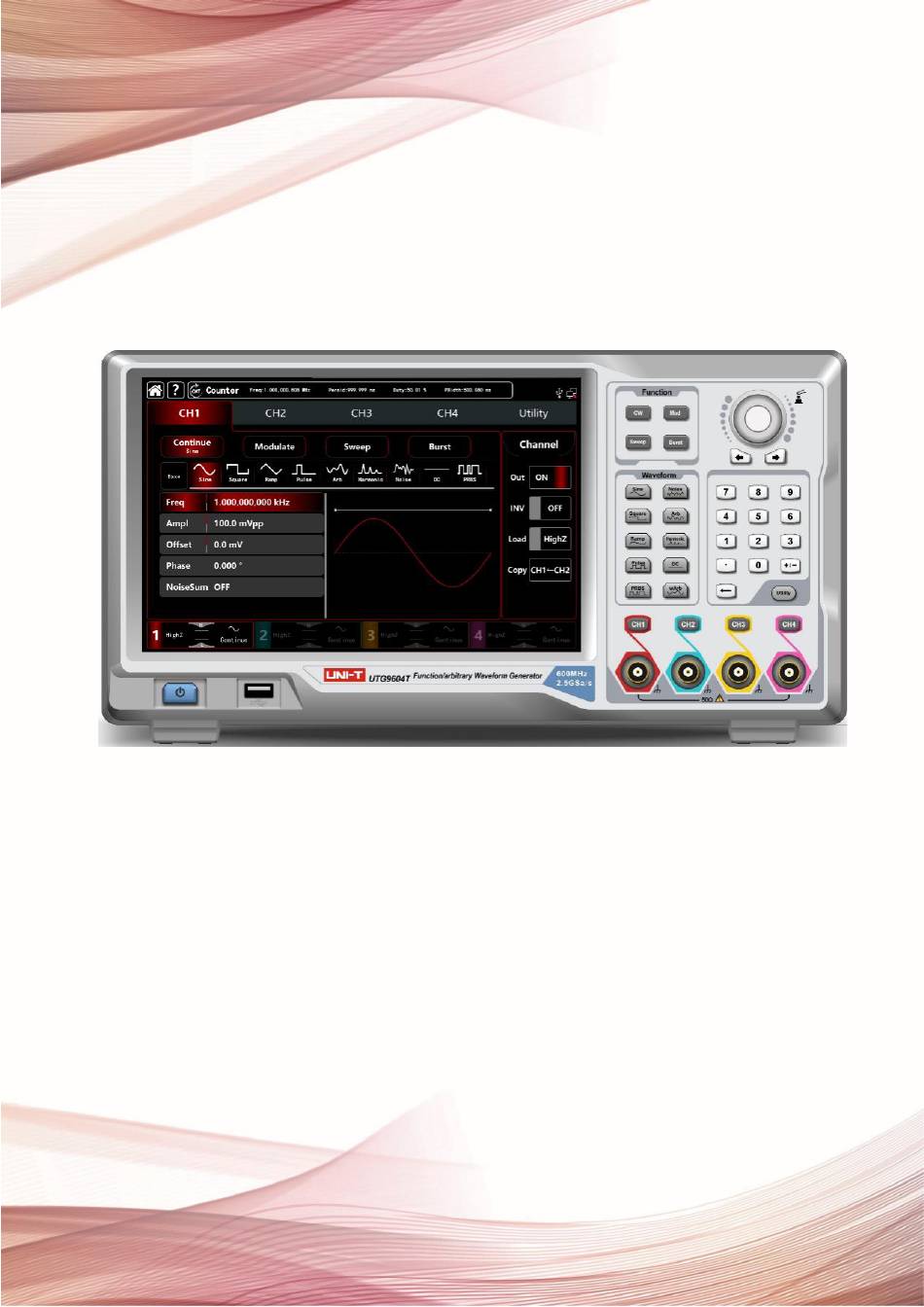

- Page 1 Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com Quick Guide UTG9000T Series Function/ Arbitrary Waveform Generator V 1.0 2024.07.17...
- Page 2 Quick Guide UTG9000T Series Perface Thank you for purchasing this brand new product. In order to use this product safely and correctly, please read this manual thoroughly, especially the safety notes. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
-
Page 3: Copyright Information
Customers should be responsible for packing of defective products and transport them to maintenance center designated by UNI-T, pay freight in advance and provide copy of proof of purchase of the original purchaser. If the product is transported to a place in the country where UNI-T maintenance center is, UNI-T should pay for returning the product to the customer. -
Page 4: Chapter 1 User's Guide
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal safety and property loss Warning caused by the user’s failure to follow the following safety precautions. This device is designed for professional users and responsible organizations for measurement purposes. - Page 5 Quick Guide UTG9000T Series Safety Sign It indicates possible danger of electric shock, which may cause personal injury Danger or death. It indicates that you should be careful to avoid personal injury or product Warning damage. It indicates possible danger, which may cause damage to this device or other Caution equipment if you fail to follow a certain procedure or condition.
- Page 6 Please use power fuse of specified specification. If the fuse needs to be Power fuse replaced, it must be replaced with another one that meets the specified specifications by the maintenance personnel authorized by UNI-T. There are no components available to operators inside. Do not remove the Disassembly and protective cover.
-
Page 7: Environmental Requirements
If this device may be faulty, please contact the authorized maintenance Abnormality personnel of UNI-T for testing. Any maintenance, adjustment or parts replacement must be done by the relevant personnel of UNI-T. Do not block the ventilation holes at the side and back of this device;... -
Page 8: Electrostatic Protection
1.7 Remote Control UTG9000T series function/arbitrary waveform generator supports communication with the computer via USB interface. User can use SCPI via USB interface and combined with programming language or NI-VISA to remote control the instrument and operating other programmable instrument which is also supports SCPI. -
Page 9: Chapter 2 Qick Guide
2.2. Introduction of Panels and Keys 2.2.1. Front Panel UTG9000T series function/arbitrary waveform generator front panel is sample, visual and easy to use. See Figure 2-1 Figure 2-1 Front Panel Structure ON/OFF Supply voltage of power source is 100 - 240 VAC (fluctuant ±... - Page 10 Quick Guide UTG9000T Series the screen enters function interface after displaying start-up interface. In order to prevent accidentally touching ON/OFF to turn off the instrument, this switch key needs to press about 1s to turn off the instrument. The backlight of the key and screen are simultaneously off after turning off the instrument.
- Page 11 Quick Guide UTG9000T Series 2.2.2. Back Panel Figure 2-2 Back Front Structure Heat Emission Hole To make sure that the instrument in good heat emission status, don’t block off these holes. External 10 MHz input terminal Establish synchronization of multiple function/arbitrary waveform generators or synchronization with external 10 MHz clock signal.
- Page 12 Quick Guide UTG9000T Series AC Power Input Terminal: 100-240 VAC (fluctuant ±10%), 50/60Hz; 100-120 VAC (fluctuant ± 10 %). Main Power Switch：Power on in “I” position; Power off in “O” position (The front panel ON/OFF button is unable to use.) Case Locker Open the case locker to activate the function of anti-theft.
- Page 13 System Settings: display USB connecting status, LAN symbol, external clock, etc. 2.3. Output the Carrier wave UTG9000T series function/arbitrary waveform generator can output the carrier wave by single channel or four channel, including sine wave, square wave, ramp wave, pulse wave, harmonic wave, noise, PRBS (pseudo random binary sequence), DC, arbitrary wave.
- Page 14 Quick Guide UTG9000T Series 2.3.1. Frequency Output Settings The instrument output of a sine wave is frequency 1 kHz, amplitude 100 mVpp (default setting) when activating the instrument. The step to set the frequency to 2.5 MHz: Tap the parameter list area of Frequency tab, pop-out the virtual numeric keyboard to enter 2.5 MHz (or rotate the knob and direction key to make the settings.)
- Page 15 Quick Guide UTG9000T Series Figure 2-6 DC Offset Voltage Settings 2.3.4. Square Wave Settings The duty ratio of square wave presents the time quantum of the square wave at a high level of each cycling (assuming that the waveform is not inverse.) The duty ratio default value is 50 % of the square wave.
- Page 16 Quick Guide UTG9000T Series Figure 2-8 Pulse Wave Settings 2.3.6. DC Voltage Settings The default value is 0 V of the DC voltage. The step to set DC offset voltage to 3 V: Tap Continue tab to select DC wave mode.
- Page 17 Quick Guide UTG9000T Series 2.3.8. Noise Wave Settings The default value of amplitude is 100 mVpp, DC offset is 0mV (standard gaussian noise). If other wave’s amplitude and DC offset function has changed, the default value of noise wave will also be change. So it can only set the amplitude and DC offset in noise wave mode.
- Page 18 Quick Guide UTG9000T Series Figure 2-12 Ramp Wave Settings 2.3.10. PRBS Wave Settings The step to set the PRBS wave to bit rate 50 kbps, amplitude 4 Vpp, code element PN7, and edge time 20 Tap Continue tab to select PRBS.
-
Page 19: Chapter 3 Troubleshooting
Quick Guide UTG9000T Series Figure 2-14 Noise Superposition Settings Chapter 3 Troubleshooting Possible faults in use of UTG9000T and troubleshooting methods are listed below.Please handle fault as the corresponding steps. If it can not be handled, contact with the dealer or local office and provide the model information (tap Utility →System ). -
Page 20: Chapter 4 Service And Support
1. Have a UTG9000T function /arbitrary waveform generator of UNI-T. Tap Utility → System to get the information of model, hardware and software version.
