SR 300 IEM
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Sennheiser SR 300 IEM

Summary of Contents for Sennheiser SR 300 IEM

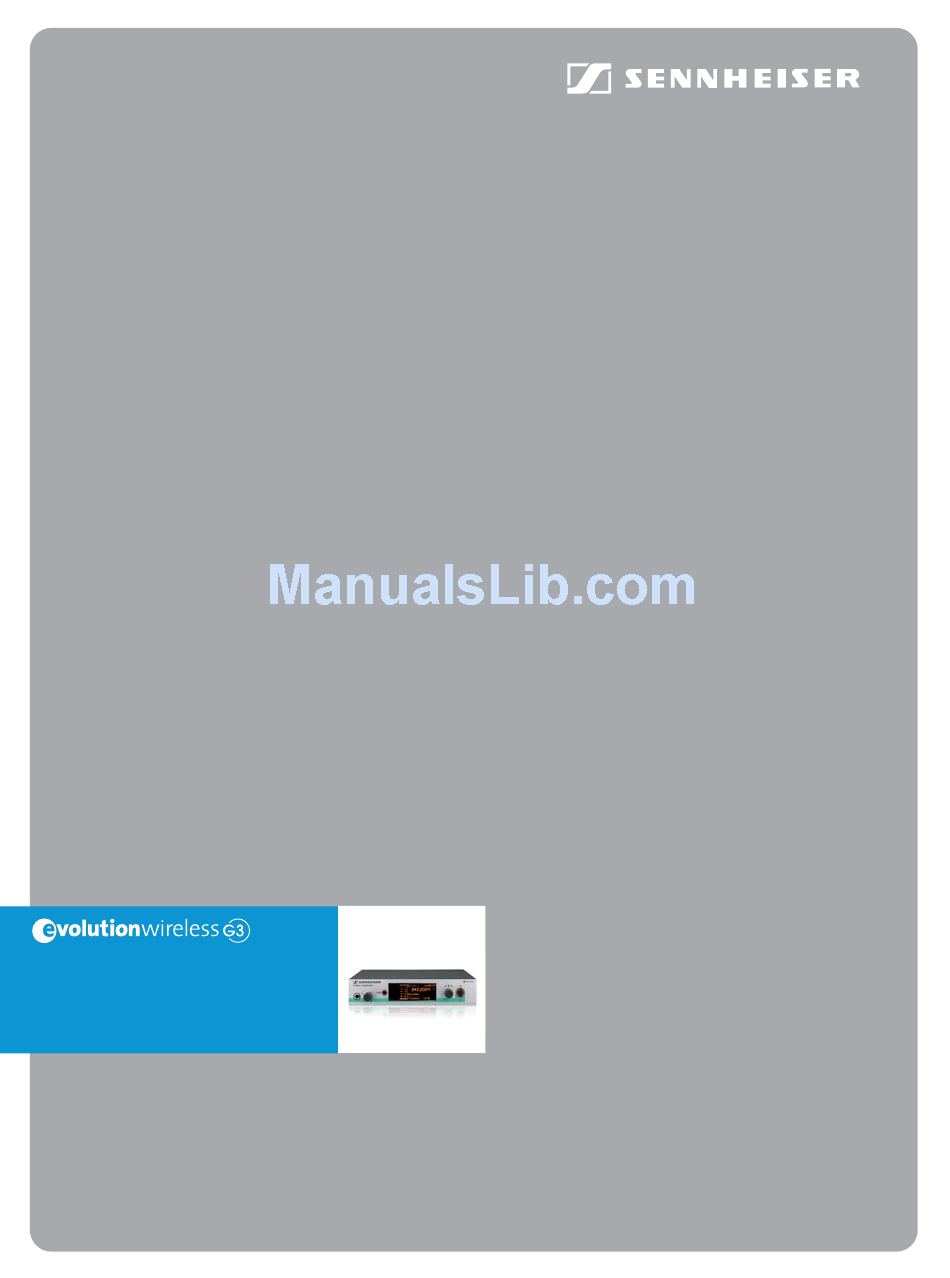

  • Page 1 SR 300 IEM Instruction manual...

  • Page 3: Table Of Contents

    Synchronizing the transmitter with an EK 300 IEM G3 receiver ............... 33 Synchronizing the transmitter with an EK 300 IEM G3 receiver – individual operation ......33 Synchronizing transmitters with EK 300 IEM G3 receivers – multi-channel operation ......33 Cleaning the transmitter ............................

  • Page 4: Important Safety Instructions

    • WARNING: To reduce the risk of fire or electric shock, do not use the product near water and do not expose it to rain or moisture. Do not place objects filled with liquids, such as vases or coffee cups, on the product.
  • Page 5 (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine. Higher volumes or longer durations can damage your hearing.

  • Page 6: The Evolution Wireless Series Ew 300 Iem G3

    The evolution wireless series ew 300 IEM G3 The evolution wireless series ew 300 IEM G3 This transmitter is part of the evolution wireless series generation 3 (ew G3). With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use.

  • Page 7: Delivery Includes

    Frequency bank U1 ... U6 Channel 16 – freely selectable frequency Each of the channels in the frequency banks “1” to “20” has been factory-preset to a fixed transmission frequency (frequency preset). The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed.

  • Page 8: Product Overview

    Product overview Product overview Overview of the SR 300 IEM G3 transmitter B.Ch: 20.24 PEAK ew300IEM Stereo Transmitter 531.375 Standard -18dB AF I AF II PUSH PUSH Stereo Transmitter SR 300 IEM FREQ Range-D 780-822 MHz IDENT NO 627925 0682...

  • Page 9: Overview Of The Displays

    B.Ch: 20.24 ew300IEM 531.375 Standard -18dB Display Meaning Audio level Modulation of the left (I) and right (II) audio “AF IN L(I)” and channel with peak hold function “AF IN R(II)” When the level displays for audio level show = Audio Frequency) full deflection, the audio input level is excessively high.

  • Page 10: Putting The Transmitter Into Operation

    G3 product page at www.sennheiser.com. Setting up the transmitter on a flat surface Place the transmitter on a flat, horizontal surface. Please note that the device feet can leave stains on delicate surfaces. The rack mount “ears” are designed to help protect the operating elements from damage or deformation, e.g.

  • Page 11: Mounting The Transmitter Into A 19" Rack

    Putting the transmitter into operation Mounting the transmitter into a 19" rack Do not fit the device feet when mounting the transmitter into a 19" rack. CAUTION! Risks when rack mounting the transmitter! When installing the device in a closed or multi-rack assembly, please consider that, during operation, the ambient temperature, the mechanical loading and the electrical potentials will be different from those of devices which are not mounted into a rack.
  • Page 12 (see diagram on page 9). – You can use the AM 2 antenna front mount kit (see “Accessories and spare parts” on page 36) and mount the rod antenna to the blanking plate –...

  • Page 13: Connecting An Audio Source To The Input Sockets

    Putting the transmitter into operation Connecting an audio source to the input sockets Use a suitable cable to connect the output of an audio source (e.g. a mixing console or an PUSH PUSH additional SR 300 IEM G3) to the input socket...

  • Page 14: Connecting A Remote Antenna To The Bnc Socket

    Connecting the AC 3 antenna combiner to the BNC socket To make multi-channel systems, you should use the AC 3 antenna combiner (see “Accessories and spare parts” on page 36). The AC 3 allows you to operate up to four transmitters with a single antenna without virtually any intermodulation.

  • Page 15: Connecting The Mains Unit

    Putting the transmitter into operation Connecting the mains unit Only use the supplied mains unit. It is designed for the transmitter and ensures safe operation. Insert the yellow connector of the NT 2-3 mains unit into the yellow socket of the transmitter.

  • Page 16: Using The Transmitter

    It is vital to observe the notes on frequency selection on page 33. If you cannot establish a transmission link between transmitter and receiver: Make sure that transmitter and receiver are set to the same frequency bank and to the same channel.

  • Page 17: Deactivating The Lock Mode Temporarily

    You can activate or deactivate the automatic lock mode via the “Auto Lock” menu item. If the lock mode is activated, you have to temporarily deactivate it In order to be able to operate the transmitter: Press the jog dial.

  • Page 18: Activating/Deactivating The Rf Signal

    Easy Setup Sync function (EK 300 IEM G3 -> SR 300 IEM G3) Once you have performed a frequency preset scan with your EK 300 IEM G3 receiver (see the instruction manual of the receiver), you can use the...
  • Page 19 Sync function to adjust settings for your EK 300 IEM G3 portable receiver directly on your SR 300 IEM G3 rack-mount transmitter and transfer these settings to the receiver via the infra-red interface (see page 30). When carrying out the Sync function, the transmitter’s current frequency bank and...
  • Page 20 Sync function can be carried out. – To cancel the transfer: Press the STANDBY button on the transmitter. “ ” appears on the display panel of the transmitter. “ ” also appears if no suitable receiver was found.

  • Page 21: Using The Operating Menu

    Using the operating menu Using the operating menu A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

  • Page 22: Overview Of The Operating Menu

    IP-Address Exit Software Revision Exit When the standard display is shown on the display panel, you can get into the main menu by pressing the jog dial. The extended menu “Advanced Menu” and the other menus can be accessed via the corresponding menu items.
  • Page 23 “Advanced Menu” and returns to the main menu “Sync Settings” Balance, Squelch, Mode, High Boost, Auto Lock, Limiter For a detailed overview of the settings, refer to page 30. Exit Exits “Sync Settings” and returns to the extended menu “Advanced Menu”...

  • Page 24: Working With The Operating Menu

    By briefly turning the jog dial to the left or right, the display jumps either forwards or backwards to the next menu item or setting. If you turn the jog dial to the left or right and hold it in this position, the display cycles continuously (“fast search”...
  • Page 25 Sensitivity Mode Easy Setup Confirm your selection. Frequency Preset You return to the next higher menu level or you exit the operating menu and Name Equalizer return to the standard display. Auto Lock To directly return to the standard display:...

  • Page 26: Adjusting Settings Via The Operating Menu

    Adjustment range: 0 to –48 dB, adjustable in steps of 3 dB Via the “Sensitivity” menu item, you can adjust the transmitter’s input sensitivity to the output signal of the audio source. The adjusted input sensitivity is common for both audio inputs of the transmitter.
  • Page 27 Auto Lock Advanced Exit “Stored” Select “Stereo” if you want to transmit the audio signals from the left and right audio input (BAL AF IN L (I) BAL AF IN R (II) Select “Mono” if you only want to transmit the audio signal from the left audio input...
  • Page 28 Exit “Stored” Via the “Name” menu item, you can enter a freely selectable name (e.g. the name of the performer) for the transmitter. The name is displayed on the standard display. The name can consist of up to 8 characters such as: •...
  • Page 29 Advanced Exit “Stored” Adjustment range: +/− 12 dB, adjustable in steps of 2.4 dB You can change the treble and bass of the audio output signal in 5 frequency ranges. Display Frequency range 20 to 100 Hz 100 to 300 Hz...

  • Page 30: The Extended Menu "Advanced Menu

    When you are in the “Tune” menu item, the RF signal is deactivated. Via the “Tune” menu item, you can: 1. set a transmission frequency to be stored in the current channel of the selected frequency bank (“U1” to “U6”) 2.
  • Page 31 Press the jog dial. Your settings are stored. You are back to the operating menu. It is vital to observe the notes on frequency selection on page 33. Selecting a frequency bank and a channel and assigning this channel a...
  • Page 32 (“active”/“inactive”) Limiter Limiter setting (“−18 dB”, “−12 dB”, “−6 dB”, “Off”) You can specify for each parameter whether it is to be transferred to the receiver during synchronization. Parameter Transfer is ..deactivated PEAK -60 dB Sync ... activated...
  • Page 33 When resetting the settings made in the operating menu, only the selected settings for the pilot tone and for the frequency banks “U1” to “U6” remain unchanged. For an overview of the factory-preset default settings, refer to the enclosed frequency information sheet.
  • Page 34 IP addresses. Displaying the software revision – “Software Revision” You can display the current software revision of the transmitter. For information on software updates, visit the SR 300 IEM G3 product page on our website at www.sennheiser.com.

  • Page 35: Synchronizing The Transmitter With An Ek 300 Iem G3 Receiver

    This establishes a transmission link between the transmitter and the receiver. Alternatively, you can set the channel on the transmitter manually: Make sure that you set the transmitter to the same frequency bank and the same channel as the receiver.
  • Page 36 This establishes a transmission link between the transmitter and the receiver. Using freely selectable transmission frequencies You can also freely select the frequencies and store these frequencies in the frequency banks “U1” to “U6”. If you want to use the frequency banks “U1” to “U6”: Make sure to use transmitters and receivers from the same frequency range (see page 4 and the type plates of the devices).

  • Page 37: Cleaning The Transmitter

    Keep all liquids away from the transmitter. Before cleaning, disconnect the transmitter from the mains. Use a cloth to clean the transmitter from time to time. Do not use any solvents or cleansing agents. Recommendations and tips ... for optimum reception •...

  • Page 38: Accessories And Spare Parts

    NT 2-3 UK: Mains unit for powering the SR 300 IEM G3; UK version 503159 NT 3-1 EU: Table top power supply for powering the AC 3 and four transmitters; EU version 503876 NT 3-1 US: Table top power supply for powering the AC 3 and four transmitters; US version 503877 NT 3-1 UK: Table top power supply for powering the AC 3 and four transmitters;...
  • Page 39 If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at...

  • Page 40: Specifications

    Specifications Specifications RF characteristics Frequency ranges 516–558, 566–608, 626–668, 734–776, 780–822, 823–865 MHz (A to E, G, see page 4) Transmission frequencies 1,680 frequencies, tuneable in steps of 25 kHz 20 frequency banks, each with up to 16 factory-preset channels...
  • Page 41 Safety EN 60065 47 CFR 15 subpart B Canada ICES 003 The mains unit is certified in accordance with the legal safety requirements of Europe, the United States, Canada, Russia and Japan. Connector assignment Audio Other connectors ¼" (6.3 mm) stereo jack plug,...

  • Page 42: Manufacturer Declarations

    (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 43: Index

    Index Index device feet, fitting activating/deactivating displays AF Peak (warning message) adjusting the contrast of the display panel lock mode (Auto Lock) (LCD Contrast) RF Mute (warning message) AF (audio level) warning messages (Warnings) equalizer setting frequency adjusting frequency bank and channel...
  • Page 44 (Sync Settings) Unlock (deactivating the lock mode) receiver, synchronizing with transmitter using buttons Reset (resetting the settings made in the equalizer operating menu) operating menu RF Mute (warning message) RF Mute Off (activating the RF signal) warning messages (Warnings)
  • Page 46 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 01/09 www.sennheiser.com 529680/A01...
