Playcore UPlay Today FELIX UPLAY-046 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
u
PLAY TODAY

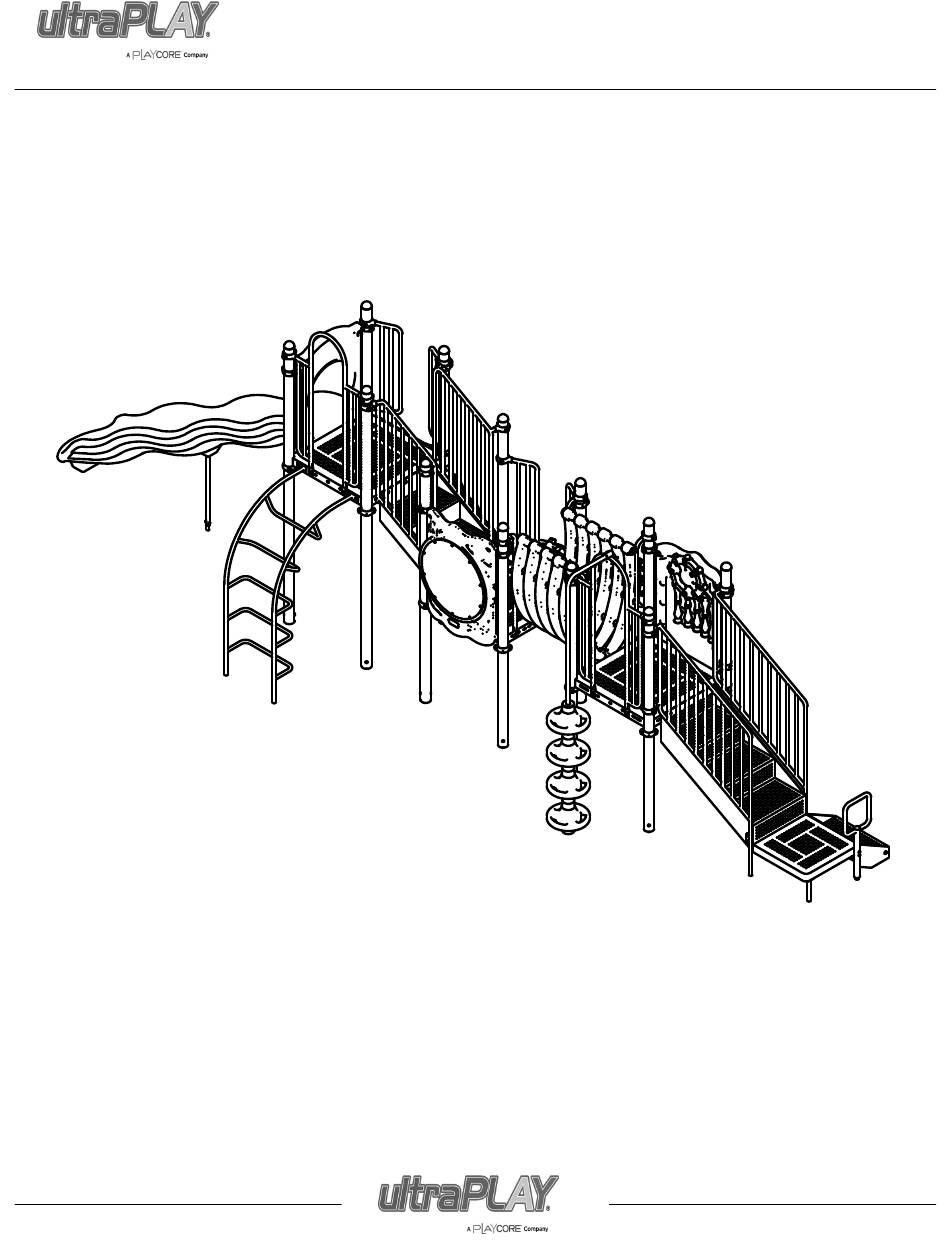

UPLAY-046 FELIX
MODEL # UPLAY-046-N
MODEL # UPLAY-046-P
6/15/2023
Issued/Revised:
www.ultraplay.com
800.458.5872
