u
PLAY TODAY

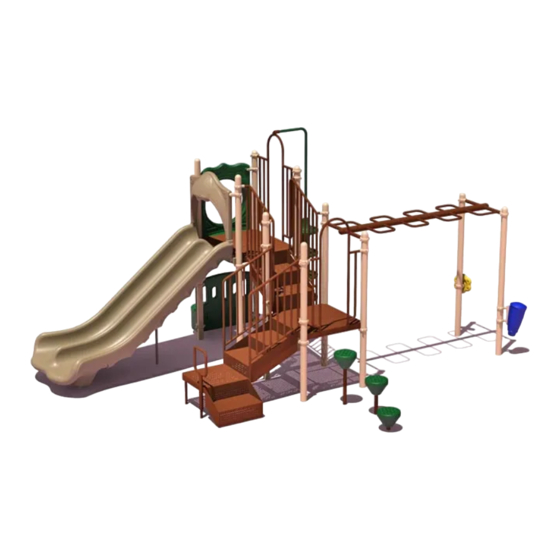

MADDIE'S CHASE
MODEL # UPLAY-006-N
MODEL # UPLAY-006-P
Issued/Revised:
4/12/2018
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ultraPLAY uPLAY TODAY MADDIE'S CHASE UPLAY-006-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Playcore ultraPLAY uPLAY TODAY MADDIE'S CHASE UPLAY-006-N

Summary of Contents for Playcore ultraPLAY uPLAY TODAY MADDIE'S CHASE UPLAY-006-N

  • Page 1 PLAY TODAY MADDIE'S CHASE MODEL # UPLAY-006-N MODEL # UPLAY-006-P Issued/Revised: 4/12/2018 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 4/12/2018 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.
  • Page 5 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.
  • Page 6 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made. If part is broken or worn it should be replaced immediately.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace. Issued/Revised: 4/12/2018 www.ultraplay.com...
  • Page 12 PLAY TODAY UPlay Today Warranty UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.
  • Page 13 PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.
  • Page 16 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompanying installation instructions.
  • Page 18 PLAY TODAY TOOLS REQUIRED Issued/Revised: 4/12/2018 www.ultraplay.com 800.458.5872...
  • Page 19 INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 100mm 40mm 45mm 50mm 70mm 25mm 30mm 35mm 13mm 20mm 4" 1-3/4" 2" 2-3/4" 1" 1-3/16" 1 3/8" 1-9/16" 1/2" 3/4" (33-11-0109) (33-11-0107) (33-11-0113) (33-11-0104) (33-11-0105) (33-11-0106) (33-11-0114) (33-11-0103) (33-11-0101) (33-11-0102) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 20 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 6'-11" UPRIGHT 02-07-5074 7'-6" UPRIGHT 02-07-5075 02-07-5076 8'-8" UPRIGHT 6'-11" UPRIGHT (02-07-5074) 7'-6" UPRIGHT (02-07-5075) 8'-8" UPRIGHT (02-07-5076) Issued/Revised: 4/12/2018 www.ultraplay.com 800.458.5872...
  • Page 21 PLAY TODAY USE ZONE 3FT STEP POD (02-07-5067) OVERHEAD LADDER (02-07-5042) SQUARE DECK (02-07-5001) BASS DRUM (02-07-5023) 3FT ADA STEPS RAINWHEEL (02-07-5039) (02-07-5022) 27'-7" 2FT STAIRS 6'-0" (02-07-5020) 5FT BEANSTALK CLIMBER -WIDE- (02-07-5060) RECTANGLE DECK (02-07-5038) 6'-0" BENCH PANEL WINDOW PANEL (02-07-5014) (02-07-5010) 5FT DOUBLE STRAIGHT SLIDE...
  • Page 22 PLAY TODAY FOOTING DETAIL - IN GROUND Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" FLAT WASHER 33-02-0002 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 23 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 24 PLAY TODAY MADDIE'S CHASE Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP 02-07-0040 02-07-5001 SQUARE DECK WINDOW PANEL 02-07-5010 BENCH PANEL 02-07-5014 2FT. STAIRS 02-07-5020 RAINWHEEL w/TUBE CLAMP 02-07-5022 BASS DRUM w/TUBE CLAMP 02-07-5023 02-07-5038 RECTANGLE DECK 3FT ADA STEPS 02-07-5039 OVERHEAD LADDER 02-07-5042...
  • Page 25 PLAY TODAY MADDIE'S CHASE PANEL CLAMP 2FT STAIRS (02-07-0040) (02-07-5020) 8'-8" UPRIGHT OVERHEAD LADDER (02-07-5076) 7'-6" UPRIGHT (02-07-5042) (02-07-5075) BASS DRUM (02-07-5023) 5F DOUBLE STRAIGHT SLIDE (02-07-5065) TUBE CLAMP (02-07-0039) SQUARE DECK (02-07-5001) 3FT STEP POD RECTANGLE DECK (02-07-5067) 3FT ADA STEP (02-07-5038) (02-07-5039) FINISHED ASSEMBLY...
  • Page 26 252 in [640.18 cm] FOOTING TABLE Hole No. Hor. Dim. Ver. Dim. Diagonal 36 3/4" 56 3/4" 22 1/2" 61" 39 1/2" 22 1/2" 45 1/4" 90 1/2" 11 1/4" 91 1/4" 90 1/2" 33 3/4" 96 1/2" 36 3/4" 45"...

  • Page 27: Installation Instructions

    PLAY TODAY 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 Parts List PART NUMBER DESCRIPTION 3 1/2" UPRIGHT, 6'-11" LG. 02-07-0196 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 28 PLAY TODAY 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 3-1/2" UPRIGHT, 6'-11" LG. (02-07-0196) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 29 INCH 6'-11" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5074 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 30 PLAY TODAY 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 7'-6" LG. 02-07-0197 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 31 PLAY TODAY 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 3-1/2" UPRIGHT, 7'-6" LG. (02-07-0197) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 32 INCH 7'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5075 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) TOP (2) HOLES USED M10 x 80mm (3 1/8") BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...

  • Page 33: Trim Out Slots With Utility Knife If Necessary

    PLAY TODAY SQUARE DECK 02-07-5001 Parts List PART NUMBER DESCRIPTION SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004* M10 FLATWASHER 33-11-0200* M10 LOCK NUT 33-11-0400* Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 34 PLAY TODAY SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 35 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 4/30/2013 800.458.5872 www.ultraplay.com...
  • Page 36 PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 37 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 6/3/2013...
  • Page 38 ENGINEERING REVISIONS −for− 02−07−5042 REMOVED ONGROUND AND SURFACE MOUNTING OPTION FROM INSTALL SHEET...
  • Page 39 PLAY TODAY OVERHEAD LADDER 02-07-5042 Parts List DESCRIPTION PART NUMBER OVERHEAD LADDER 02-07-0158 3 1/2" UPRIGHT w/OUT CLAMP, 6'-11" LG. 02-07-0159 TUBE CLAMP 02-07-0039 UPRIGHT FOOTER 02-07-0042 HARDWARE COMPLETE 33-12-1032 M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCKWASHER 33-11-0301* M8 LOCK NUT 33-11-0500* M10 x 80mm (3 1/8") BHCS BOLT...
  • Page 40 PLAY TODAY OVERHEAD LADDER 02-07-5042 UNDERNEATH OVERHEAD LADDER (02-07-0158) TUBE CLAMP (02-07-0039) UPRIGHT FOOTER (02-07-0042) 3 1/2" UPRIGHT w/OUT CLAMP 6-11" LG. (02-07-0159) COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY = INSTALLATION DETAIL Issued/Revised: 4/12/2018 www.ultraplay.com 800.458.5872...
  • Page 41 INCH OVERHEAD LADDER 02-07-5042 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 LOCKWASHER (33-11-0301) TUBE CLAMP CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT LARGE HOLE...
  • Page 42 PLAY TODAY 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 Parts List DESCRIPTION PART NUMBER 3 1/2" UPRIGHT, 8'-8" LG. 02-07-0198 UPRIGHT FOOTER 02-07-0042 33-12-0026 HARDWARE COMPLETE M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 43 PLAY TODAY 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 3-1/2" UPRIGHT, 8'-8" LG. (02-07-0198) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 44 INCH 8'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5076 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 45 PLAY TODAY RECTANGLE DECK 02-07-5038 Parts List DESCRIPTION PART NUMBER RECTANGLE DECK 02-07-0184 33-12-0019 HARDWARE COMPLETE 33-11-0004 M10 x 30mm (1 3/16") BHCS BOLT M10 FLATWASHER 33-11-0200 M10 LOCK NUT 33-11-0400 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 46 PLAY TODAY RECTANGLE DECK 02-07-5038 RECTANGLE DECK (02-07-0184) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN Issued/Revised: 6/12/2013 HIDDEN LINES ARE SOLD SEPARATELY www.ultraplay.com 800.458.5872...
  • Page 47 INCH RECTANGLE DECK 02-07-5038 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 6/12/2013 800.458.5872 www.ultraplay.com...

  • Page 48: Table Of Contents

    Play Systems 2FT. STAIRS 02-07-5020 Parts List DESCRIPTION PART NUMBER 02-07-0007 TOWER STAIR LEFT HANDRAIL 02-07-0009 RIGHT HANDRAIL 02-07-0096 TUBE CLAMP 02-07-0039 HARDWARE COMPLETE 33-12-0074 M10 x 25mm (1") BHCS BOLT 33-11-0003 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M10 FLATWASHER 33-11-0200 M10 LOCK NUT 33-11-0400...

  • Page 49: Play Systems

    Play Systems 2FT. STAIRS 02-07-5020 UNDERNEATH RIGHT HANDRAIL TUBE CLAMP (02-07-0096) (02-07-0039) LEFT HANDRAIL (02-07-0009) UNDERNEATH UNDERNEATH TOWER STAIR (02-07-0007) UNDERNEATH COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/20/13 800.458.5872 www.ultraplay.com...

  • Page 50: M10 X 25Mm (1") Bhcs Bolt

    INCH 2FT. STAIRS 02-07-5020 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 LOCKWASHER M8 x 25mm (1") BHCS (33-11-0301) CLAMP RIVET BOLT (33-11-0103) (33-11-0700) M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 51 INCH 2FT. STAIRS 02-07-5020 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010) Issued/Revised: 05/20/13 www.ultraplay.com 800.458.5872...

  • Page 52: Unless Otherwise Specified, All Units Of Measure Are Each

    PLAY TODAY 3FT. ADA STEPS 02-07-5039 Parts List DESCRIPTION PART NUMBER BARRIER LEFT 02-07-0157 BARRIER RIGHT 02-07-0156 1" FOOTER 02-07-0043 ADA TRANSFER STAIR 02-07-0155 ADA DECK 02-07-0004 ADA DECK SUPPORT POST 02-07-0047 ADA HANDHOLD 02-07-0011 ADA STEP 02-07-0006 8 1/4" EXTENSION POST 02-07-0060 15"...
  • Page 53 PLAY TODAY 3FT. ADA STEPS 02-07-5039 7. Attach ADA Transfer Step to Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.

  • Page 54: Barrier Left

    PLAY TODAY 3FT. ADA STEPS 02-07-5039 UNDERNEATH BARRIER LEFT BARRIER RIGHT (02-07-0157) (02-07-0156) UNDERNEATH ADA HANDHOLD (02-07-0011) ADA STEP (02-07-0006) ADA TRANSFER STAIR (02-07-0155) ADA DECK UNDERNEATH (02-07-0004) ADA DECK SUPPORT POST UNDERNEATH (02-07-0047) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN Issued/Revised: 8/23/2013...
  • Page 55 INCH 3FT. ADA STEPS 02-07-5039 BARRIER M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT TUBE CLAMP (33-11-0005) SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 LOCKWASHER (33-11-0301) FOOTER M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 LOCK NUT UPRIGHT (33-11-0400)

  • Page 56: 1/4" Extension Post

    INCH 3FT. ADA STEPS 02-07-5039 M10 LOCK NUT (33-11-0400) M10 FLATWASHER DECK M10 LOCK NUT (33-11-0200) (33-11-0400) M10 x 25mm (1") M10 FLATWASHER BHCS BOLT (33-11-0200) (33-11-0003) DECK SUPPORT STAIR BARRIER M10 FLATWASHER (33-11-0200) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT STEP...

  • Page 57: M10 Lock Nut

    INCH 3FT. ADA STEPS 02-07-5039 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE Issued/Revised: 8/23/2013 www.ultraplay.com 800.458.5872...
  • Page 58 ENGINEERING REVISIONS −for− 02−07−5067 IN PARTS LIST, REMOVED EXTENSION PIPE (02-07-0203), FOOTER PLATE (02-07-0046) AND M10 x 35mm (1 3/8") BHCS BOLT; CHANGED QTY OF M10 LOCK NUT (33-11-0400) FROM 8 TO 2; REMOVED DETAIL 036 AND 077; ADDED ELEVATION VIEW...

  • Page 59: M8 X 25Mm (1") Bhcs Bolt

    PLAY TODAY 3FT STEP POD 02-07-5067 Parts List DESCRIPTION PART NUMBER SMALL POD 02-07-0204 MEDIUM POD 02-07-0194 TALL POD 02-07-0195 ENTRY ARCHWAY 02-07-0031 33-12-1037 HARDWARE COMPLETE M8 x 25mm (1") BHCS BOLT 33-11-0103* M8 LOCK NUT 33-11-0500* M8 LOCKWASHER 33-11-0301* M10 x 25mm (1") BHCS BOLT 33-11-0003* M10 FLATWASHER...
  • Page 60 PLAY TODAY 3FT STEP POD 02-07-5067 BEHIND ENTRY ARCHWAY (02-07-0031) TALL POD (02-07-0195) MEDIUM POD (02-07-0194) SMALL POD (02-07-0204) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 04/27/15 www.ultraplay.com 800.458.5872...
  • Page 61 PLAY TODAY 3FT STEP POD 02-07-5067  12 in [30.48 cm]  12 in REF. 6 in [30.48 cm] [15.24 cm] (3 PLCS) 36 13/16 in [93.50 cm] 15 3/8 in 15 in [39.13 cm] [38.10 cm] 34 1/4 in [87.00 cm] 53 1/2 in [135.89 cm]...
  • Page 62 INCH 3FT STEP POD 02-07-5067 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS M8 LOCKWASHER BOLT (33-11-0103) (33-11-0301) DRILL THROUGH PRE-DRILLED...
  • Page 63 PLAY TODAY 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 Parts List DESCRIPTION PART NUMBER 5FT BEANSTALK CLIMBER 02-07-0165 ENTRY ARCHWAY WIDE w/SOCKET 02-07-0163 EXTENSION PIPE 02-07-0203 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-1034 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 20mm (3/4") BHCS BOLT...
  • Page 64 PLAY TODAY 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also Check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 65 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) M8 x 25mm (1") BHCS CLAMP RIVET BOLT (33-11-0103) M8 LOCKWASHER (33-11-0700) (33-11-0301) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103)
  • Page 66 INCH 5FT BEANSTALK CLIMBER -WIDE- 02-07-5060 PIPE w/INSERT M10 FLATWASHER (33-11-0200) ENTRY ARCHWAY w/SOCKET M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M12 LOCKWASHER (33-11-0203) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 9/5/2013 www.ultraplay.com 800.458.5872...
  • Page 67 PLAY TODAY PANEL CLAMP - SINGLE 02-07-0040 Parts List PART NUMBER DESCRIPTION PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 68 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 69 PLAY TODAY WINDOW PANEL 02-07-5010 Parts List DESCRIPTION PART NUMBER WINDOW PANEL 02-07-0019 HARDWARE COMPLETE 33-12-0034 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M12 LOCKWASHER 33-11-0203 33-11-0200 M10 FLATWASHER M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110 M8 LOCK NUT 33-11-0500...
  • Page 70 PLAY TODAY WINDOW PANEL 02-07-5010 WINDOW PANEL (02-07-0019) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 3/26/2013 www.ultraplay.com 800.458.5872...
  • Page 71 INCH WINDOW PANEL 02-07-5010 M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M10 FLATWASHER (33-11-0200) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M12 LOCKWASHER (33-11-0203) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS DECK BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 72 ENGINEERING REVISIONS −for− 02−07−5065 UPDATED SLIDE EXIT NOTE.
  • Page 73 PLAY TODAY 5FT DOUBLE SLIDE 02-07-5065 Parts List DESCRIPTION PART NUMBER 5FT DOUBLE STRAIGHT SLIDE 02-07-0173 DOUBLE SLIDEHOOD 02-07-0174 DOUBLE SLIDE DECK FILLER 02-07-0192 02-07-0193 CLAMP DOUBLE SLIDE MID SUPPORT BRACKET 02-07-0191 BOTTOM BRACKET 02-07-0190 EXTENSION TUBE 02-07-0202 FOOTER PLATE 02-07-0046 1"...
  • Page 74 PLAY TODAY 5FT DOUBLE SLIDE 02-07-5065 7. Insert Double Slide Hood into top holes in Double Slide, and attach Clamps Double Slide to Uprights using M8 x 25mm B.H.C.S. Bolt and M8 Lock Nut. See Detail 073. (Do not install Clamp Rivet until entire unit is assembled.) 8.
  • Page 75 INCH 5FT DOUBLE SLIDE 02-07-5065 M10 LOCK NUT M10 LOCK NUT (33-11-0400) (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT DECK (33-11-0005) M10 FLATWASHER (33-11-0200) LARGER HOLE M10 FLATWASHER (33-11-0200) CENTER SUPPORT POST M10 x 25mm (1") DECK FILLER BHCS BOLT (33-11-0003) FOOTER EXTENSION TUBE...
  • Page 76 INCH 5FT DOUBLE SLIDE 02-07-5065 UPRIGHT M8 LOCK NUT CLAMP DOUBLE SLIDE UPRIGHT (33-11-0500) (02-07-0193) M8 x 25mm (1") BHCS BOLT (33-11-0103) M8 x 25mm (1") BHCS BOLT (33-11-0103) CLAMP RIVET M8 x 30mm (1 3/16") SLIDE HOOD (33-11-0700) M8 LOCK NUT BHCS BOLT (33-11-0500) (33-11-0104)
  • Page 77 PLAY TODAY BENCH PANEL 02-07-5014 Parts List DESCRIPTION PART NUMBER BENCH PANEL 02-07-0015 PANEL CLAMP 02-07-0040 HARDWARE COMPLETE 33-12-0031 M8 x 30mm (1 3/16") BHCS BOLT 33-11-0104 M8 LOCKWASHER 33-11-0301 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCK NUT 33-11-0500 CLAMP RIVET 33-11-0700...
  • Page 78 PLAY TODAY BENCH PANEL 02-07-5014 PANEL CLAMP (02-07-0040) BENCH PANEL (02-07-0015) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN Issued/Revised: 4/22/2013 HIDDEN LINES ARE SOLD SEPARATELY www.ultraplay.com 800.458.5872...
  • Page 79 INCH BENCH PANEL 02-07-5014 M8 x 25mm (1") BHCS ROTOMOLD BOLT (33-11-0103) PANEL CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) M8 x 25mm (1") BHCS M8 x 30mm (1 3/16") BOLT (33-11-0103) BHCS BOLT (33-11-0104) DRILL THROUGH PRE-DRILLED...
  • Page 80 ENGINEERING REVISIONS −for− 02−07−5022 REMOVED HARDWARE AND UPDATED INSTRUCTIONS TO REFLECT ASSEMBLED RAINWHEEL...
  • Page 81 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER RAIN WHEEL ASS'Y 02-07-0012 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 82 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-07-0012) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 10/6/2015 www.ultraplay.com 800.458.5872...
  • Page 83 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 84 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM BRACKET 02-07-0091 TUBE CLAMP 02-07-0039 BASS DRUM 02-07-0013 HARDWARE COMPLETE 33-12-0021 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 FLATWASHER 33-11-0300...
  • Page 85 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH BASS DRUM TUBE CLAMP (02-07-0013) (02-07-0039) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 86 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT M8 x 25mm (1") BHCS (33-11-0500) BOLT (33-11-0103) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER CLAMP RIVET (33-11-0301) (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103)
