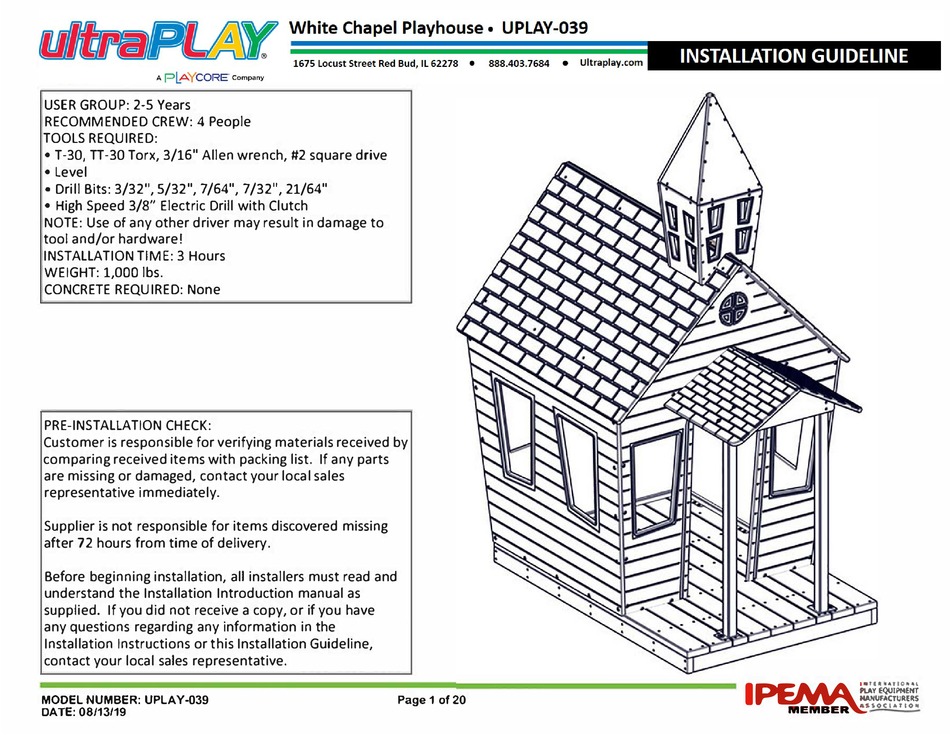

Playcore Ultraplay UPLAY-039 Installation Manual

White chapel playhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
USER GROUP: 2-5 Years
RECOMMENDED CREW: 4 People
TOOLS REQUIRED:
• T-30, TT-30 Torx, 3/16" Allen wrench, #2 square drive
• Level
• Drill Bits: 3/32", 5/32", 7 /64", 7 /32", 21/64"
• High Speed 3/8" Electric Drill with Clutch
NOTE: Use of any other driver may result in damage to
tool and/or hardware!
INSTALLATION TIME: 3 Hours
WEIGHT: 1,000 lbs.
CONCRETE REQUIRED: None
PRE-INSTALLATION CHECK:
Customer is responsible for verifying materials received by
comparing received items with packing list. If any parts
are missing or damaged, contact your local sales
representative immediately.
Supplier is not responsible for items discovered missing
after 72 hours from time of delivery.
Before beginning installation, all installers must read and
understand the Installation Introduction manual as
supplied. If you did not receive a copy, or if you have
any questions regarding any information in the
Installation Instructions or this Installation Guideline,
contact your local sales representative.
MODEL NUMBER: UPLAY-039
DA TE: 08/13119
Page 1 of20
1�
10l(l 1
uT1011•t.
PLAY EQUIPMENT
MANUFACTUJU:ltS
USOCIAtlOII
MEMBER
