PLAY TODAY

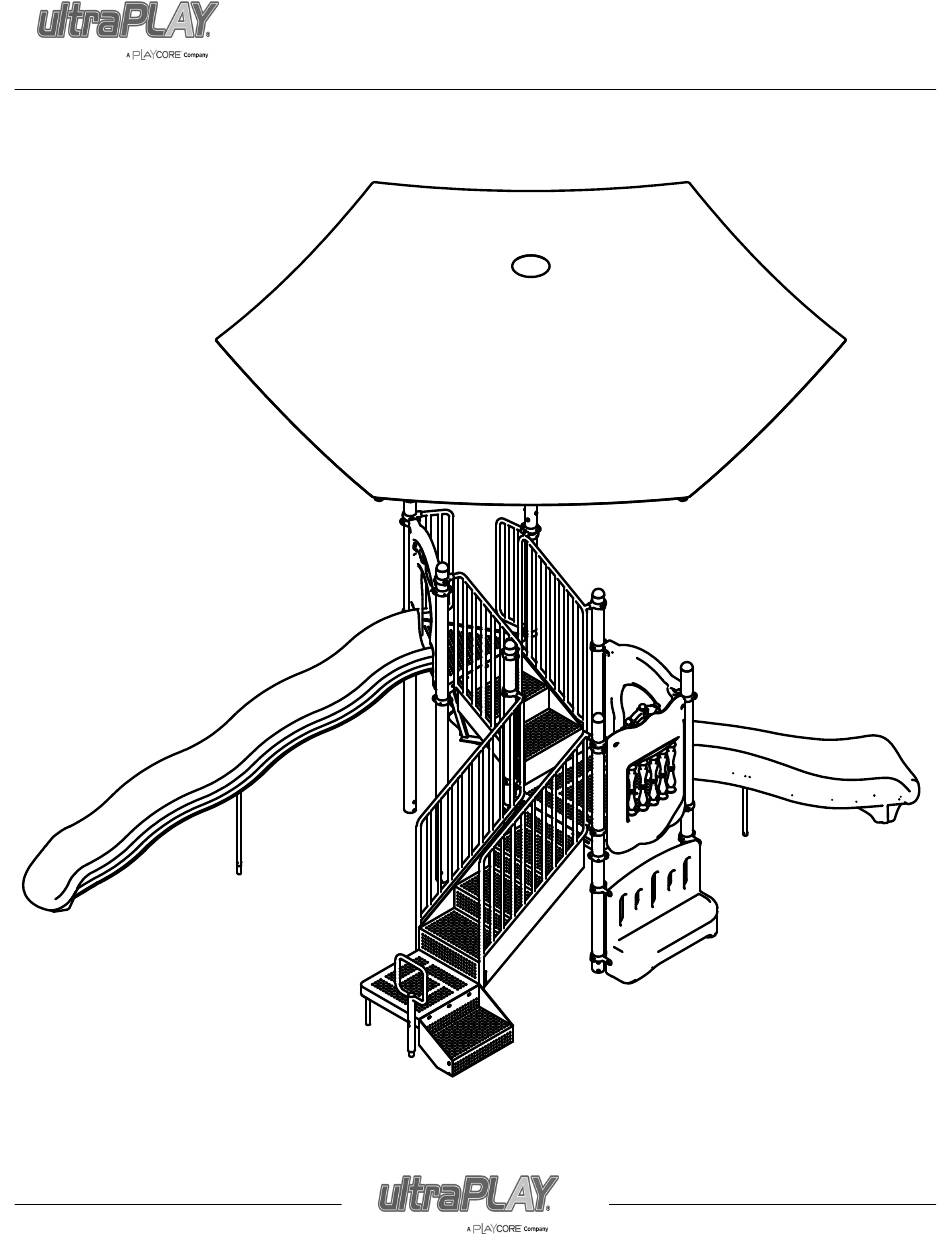

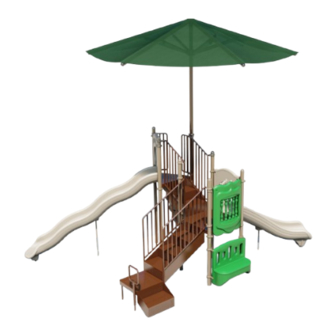

UPLAY-042 TIMBER GLEN WITH SHADE
MODEL # UPLAY-042-N
MODEL # UPLAY-042-P
Issued/Revised:
2/16/2021
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraPlay UPlayToday UPLAY-042 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Playcore UltraPlay UPlayToday UPLAY-042

Summary of Contents for Playcore UltraPlay UPlayToday UPLAY-042

  • Page 1 PLAY TODAY UPLAY-042 TIMBER GLEN WITH SHADE MODEL # UPLAY-042-N MODEL # UPLAY-042-P Issued/Revised: 2/16/2021 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 2/16/2021 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.

  • Page 5: Overhead Obstructions

    PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.

  • Page 6: Routine Maintenance

    PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Proper maintenance of UPlayToday equipment requires regular tightening of all bolts, nuts, set screws, and other hardware. -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for accessible sharp edges or points. Check for protruding bars, bolts, nuts, etc. Eliminate these conditions. -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace.
  • Page 12 PLAY TODAY UPLAY TODAY WARRANTY UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.

  • Page 13: Warranty Exclusions

    PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO PLAYGROUND INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.

  • Page 16: Safety During Installation

    PLAY TODAY GENERAL INTRODUCTION TO PLAYGROUND INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompying installatioin instructions.

  • Page 18: Tools Required

    PLAY TODAY TOOLS REQUIRED Issued/Revised: 2/16/2021 www.ultraplay.com 800.458.5872...

  • Page 19: Hardware Reference

    INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 40mm 45mm 50mm 70mm 100mm 20mm 25mm 30mm 35mm 13mm 1-9/16" 1-3/4" 2" 2-3/4" 4" 3/4" 1" 1-3/16" 1 3/8" 1/2" (33-11-0109) (33-11-0107) (33-11-0113) (33-11-0102) (33-11-0104) (33-11-0105) (33-11-0106) (33-11-0114) (33-11-0103) (33-11-0101) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)

  • Page 20: Qty Part Number

    PLAY TODAY UPRIGHT PLACEMENT Parts List DESCRIPTION PART NUMBER 7'-8" UPRIGHT 02-07-5025 8'-4" UPRIGHT 02-07-5026 9'-6" UPRIGHT 02-07-5027 3 1/2" HEAVY WALL PIPE W/O CAP 13' HSJWDA* * This is included with the UP159 Fabric Shade 13' UPRIGHT (HSJWDA) SEE UP159 8'-4" UPRIGHT (02-07-5026) 7'-8"...
  • Page 21 PLAY TODAY ASTM USE ZONE 4FT CURVED SLIDE BASS DRUM 2FT STAIRS (02-07-5005) (02-07-5023) (02-07-5020) BELOW DECK 6'-0" BENCH PANEL (02-07-5005) BELOW DECK HDPE CLIMBER (02-07-5018) SHIP'S WHEEL PANEL (02-07-5012) UMBRELLA FABRIC SHADE UP159 31'-3" SQUARE DECK TRIANGLE DECK (02-07-5000) (02-07-5006) 6FT WAVE SLIDE (02-07-5006)
  • Page 22 PLAY TODAY CSA USE ZONE 27'-5" BASS DRUM (02-07-5023) BELOW DECK 6'-0" HDPE CLIMBER (02-07-5018) 4FT CURVED SLIDE (02-07-5005) BENCH PANEL (02-07-5005) SHIP'S WHEEL PANEL BELOW DECK (02-07-5012) UMBRELLA FABRIC SHADE UP159 SQUARE DECK 36'-6" (02-07-5000) TRIANGLE DECK (02-07-5006) 2FT STAIRS (02-07-5020) 4FT ADA STEPS 12'-0"...
  • Page 23 PLAY TODAY ELEVATION VIEW 17'-0" 18'-11" Issued/Revised: 2/16/2021 www.ultraplay.com 800.458.5872...

  • Page 24: Site Preparation

    PLAY TODAY FOOTING DETAIL - SURFACE MOUNT (33-12-0177) Parts List PART NUMBER DESCRIPTION CONCRETE ANCHOR 33-11-0702 UPRIGHT POST UPRIGHT FOOTER CONCRETE ANCHOR 4" MINIMUM CONCRETE W/3,000 PSI GRAVEL IMPORTANT: Never install play equipment over hard, unresilient surfaces such as asphalt, concrete, or compacted earth.
  • Page 25 INCH FOOTING DETAIL - SURFACE MOUNT 1. Using Upright Footers as template, mark hole position on concrete. Drill 3/8" Dia. x 2" deep holes into concrete to receive anchor. 2. Attach Upright Footers to concrete using Concrete Anchor, Flat Washer, and Lock Nut. See Detail 067. LOCK NUT FLAT WASHER UPRIGHT...
  • Page 26 PLAY TODAY FOOTING DETAIL - ON GROUND (33-12-0178) Parts List DESCRIPTION PART NUMBER GROUND SPIKE 02-07-0048 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO UPRIGHT ACCOMODATE 2" OF POST SURFACING. WHEN INSTALLING 12" OF SURFACING, REMOVE BOLTS AND ADJUST UPRIGHT FOOTER...
  • Page 27 INCH FOOTING DETAIL - ON GROUND 1. With Upright Footers in position, secure each Upright Footer to the ground using Ground Spikes. NOTE: A 4lb. hammer may be required to drive spikes into the ground. Install ground spikes angled inward as shown in illustration. See Detail 068. IMPORTANT: Refer to Post Placement/Hole Locations diagram to mark locations of Upright Footers.
  • Page 28 PLAY TODAY FOOTING DETAIL - IN GROUND (33-12-0179) Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 33-02-0002 3/8" FLAT WASHER 3/8" HEX NUT 33-01-0002 IMPORTANT: UPRIGHT UPRIGHTS WILL COME POST PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 29 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 30 PLAY TODAY UPLAY-042 TIMBER GLEN WITH SHADE Parts List DESCRIPTION PART NUMBER 7'-8" UPRIGHT 02-07-5025 8'-4" UPRIGHT 02-07-5026 02-07-5001 SQUARE DECK 9'-6" UPRIGHT 02-07-5027 UMBRELLA FABRIC SHADE UP159 TRIANGLE DECK 02-07-5037 TUBE CLAMP 02-07-0039 4FT ADA STEPS 02-07-5000 PANEL CLAMP 02-07-0040 PANEL CLAMP 90°...

  • Page 31: Finished Assembly

    PLAY TODAY TIMBER GLEN WITH SHADE UMBRELLA FABRIC SHADE UP159 TUBE CLAMP 2FT. STAIRS 02-07-0039 02-07-5020 8'-4" UPRIGHT 02-07-5026 6FT. WAVE SLIDE 4FT RIGHT CURVED SLIDE 02-07-5006 02-07-5005 SHIP'S WHEEL PANEL 02-07-5012 BENCH PANEL 02-07-5014 4FT ADA STEPS FINISHED ASSEMBLY 02-07-5000 MODEL # UPLAY-042-N MODEL # UPLAY-042-P...
  • Page 32 15'-6" [186.28 in] SHADE FOOTER 24" O.D., 65 9/16" DEPTH 15'-6" See UP159 For Hole [186.28 in] Requirements 15'-3" [183.26 in] SHADE FOOTER 24" O.D., 65 9/16" DEPTH See UP159 For Hole Requirements 15'-4" HORIZONTAL [183.59 in] DIM. HORIZONTAL DIM. TOP VIEW TIMBER GLEN WITH SHADE (UPLAY-042) ASTM USE ZONE...

  • Page 33: Installation Instructions

    PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 Parts List DESCRIPTION PART NUMBER UPRIGHT FOOTER 02-07-0042 3 1/2" UPRIGHT, 7'-8" LG. 02-07-0144 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 34 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 3-1/2" UPRIGHT, 7'-8" LG. (02-07-0144) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/23/2013 www.ultraplay.com 800.458.5872...
  • Page 35 INCH 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 36 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 Parts List DESCRIPTION PART NUMBER 02-07-0042 UPRIGHT FOOTER 3 1/2" UPRIGHT, 8'-4" LG. 02-07-0148 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 37 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 3-1/2" UPRIGHT, 8'-4" LG. (02-07-0148) UPRIGHT FOOTER (02-07-0042) = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 38 INCH 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 39 PLAY TODAY SQUARE DECK 02-07-5001 Parts List PART NUMBER DESCRIPTION SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004 M10 FLATWASHER 33-11-0200 M10 LOCK NUT 33-11-0400 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 40 PLAY TODAY SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 41 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 42 PLAY TODAY 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 Parts List DESCRIPTION PART NUMBER UPRIGHT FOOTER 02-07-0042 3 1/2" UPRIGHT, 9'-6" LG. 02-07-0145 HARDWARE COMPLETE 33-12-0026 33-11-0011 M10 x 80mm (3 1/8") BHCS BOLT M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 43 PLAY TODAY 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 3-1/2" UPRIGHT, 9'-6" LG. (02-07-0145) UPRIGHT FOOTER (02-07-0042) = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 44 INCH 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 45 PLAY TODAY UMBRELLA FABRIC SHADE UP159 Parts List DESCRIPTION PART NUMBER 3 1/2" HEAVY WALL PIPE W/O CAP 13' HSJWDA UMBRELLA BRACE 179814 UMBRELLA ARM 179818 SHADE END CASTING 2 7/8" 179787 INGROUND EXTENSION 200911 CENTER MAST WELD ASS'Y 200913 FABRIC PACKAGE 214365 CABLE/CLAMP HARDWARE PACKAGE...
  • Page 46 PLAY TODAY UMBRELLA FABRIC SHADE UP159 INSTALLATION INSTRUCTIONS: 1. Installation of shade must be done after playground has been installed, and concrete has cured. Approximately 48 hrs. (Refer to Detail 370 for footing requirements of uprights that support shade). 2. Attach the Center Mast Assembly to the upright. See Detail 562. 3.
  • Page 47 PLAY TODAY UMBRELLA FABRIC SHADE UP159 FABRIC PACKAGE 214365 SHADE END CASTING 2 7/8" CENTER MAST WELD ASS'Y 179787 UMBRELLA BRACE 200913 179814 UMBRELLA ARM 179818 3 1/2" HEAVY WALL PIPE W/O CAP 13' HSJWDA DECK CLAMP 02-07-0038-BRN UNDERNEATH UNDERNEATH UNDERNEATH INGROUND EXTENSION UNDERNEATH...

  • Page 48: Plan View

    PLAY TODAY UMBRELLA FABRIC SHADE UP159  24 in  60.96 cm]  12 in  30.48 cm] REF. 160 13/16 in [408.53 cm] PLAN VIEW 185 5/16 in [470.70 cm] CONCRETE REQUIRED 0.49 CUBIC YARDS 0.37 [CUBIC METERS] 206 7/16 in [524.41 cm] 66 5/16 in [168.36 cm]...
  • Page 49 INCH UMBRELLA FABRIC SHADE UP159 M10 FLATWASHER M8 x 25mm (1") BHCS M10 LOCK NUT (33-11-0200) BOLT (33-11-0103) DECK (33-11-0400) CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT DECK (33-11-0500) FLANGE CLAMP RIVET M8 x 25mm (1") BHCS M10 x 30mm (1 3/16") (33-11-0700) BOLT (33-11-0103) BHCS BOLT...

  • Page 50: Ground Level

    INCH UMBRELLA FABRIC SHADE UP159 REINFORCED CONCRETE VERTICAL REBAR 1. CONCRETE WORK SHALL BE EXECUTED IN ACCORDANCE WITH THE LATEST EDITION OF THE AMERICAN CONCRETE INSTITUTE BUILDING CODE. CONCRETE SPECIFICATIONS, SHALL BE AS FOLLOWS: TOP VIEW -28 DAY STRENGTH: 2500PSI COLUMN -SLUMP: 3-5 GROUND LEVEL...
  • Page 51 INCH UMBRELLA FABRIC SHADE UP159 1/4-20 x 3/4" SS SELF DRILLING SCREW 810072 UMBRELLA SHADE END CENTER MAST 1/2" LOCKNUT CASTING ASSEMBLY (804355) 1/2" X 1 1/4" HEX FIELD DRILL 1/4" HOLE IN HEAD BOLT (801204) 1/2" LOCKWASHER BOTH SIDES OF SHADE END (817342) CASTING USING HOLES IN PIPE AS REFERENCE.
  • Page 52 INCH UMBRELLA FABRIC SHADE UP159 SECURE FABRIC OVER PIN ON SHADE END NOTE: ADD LOCTITE (SUPPLIED BY CASTING CABLING MUST PASS OTHERS) TO BOLTED CONNECTIONS. UNDER PIN ON SHADE NOTE: CABLE CLAMP MUST BE END CASTING INSTALLED WITH NUTS FACING DOWN. CLAMPS MUST BE TOUCHING EACH OTHER.
  • Page 53 PLAY TODAY TRIANGLE DECK 02-07-5037 Parts List DESCRIPTION PART NUMBER TRIANGLE DECK 02-07-0183 HARDWARE COMPLETE 33-12-1031 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004 M10 FLATWASHER 33-11-0200 M10 LOCK NUT 33-11-0400 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 54 PLAY TODAY TRIANGLE DECK 02-07-5037 TRIANGLE DECK (02-07-0183) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 6/12/2013 www.ultraplay.com 800.458.5872...
  • Page 55 INCH TRIANGLE DECK 02-07-5037 M10 FLATWASHER M10 LOCK NUT (33-11-0200) (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 6/12/2013 www.ultraplay.com 800.458.5872...
  • Page 56 PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 57 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) TUBE CLAMP CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 58 PLAY TODAY ADA STEPS 02-07-5000 Parts List DESCRIPTION PART NUMBER ADA DECK 02-07-0004 ADA TRANSFER STAIR 02-07-0005 ADA STEP 02-07-0006 ADA BARRIER LEFT 02-07-0008 ADA BARRIER RIGHT 02-07-0010 02-07-0011 ADA HANDHOLD 1" FOOTER 02-07-0043 FOOTER PLATE 02-07-0046 ADA DECK SUPPORT POST 02-07-0047 8 1/4"...
  • Page 59 PLAY TODAY ADA STEPS 02-07-5000 7. Attach ADA Transfer Step to ADA Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.
  • Page 60 PLAY TODAY ADA STEPS 02-07-5000 UNDERNEATH ADA BARRIER LEFT (02-07-0008) ADA BARRIER RIGHT (02-07-0010) ADA HANDHOLD ADA DECK (02-07-0011) (02-07-0004) ADA STEP ADA TRANSFER (02-07-0006) STAIR (02-07-0005) UNDERNEATH UNDERNEATH UNDERNEATH 15" EXTENSION POST 1" FOOTER (02-07-0061) UNDERNEATH (02-07-0043) UNDERNEATH UNDERNEATH ADA DECK SUPPORT POST FOOTER PLATE...
  • Page 61 INCH ADA STEPS 02-07-5000 M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BARRIER BHCS BOLT (33-11-0005) TUBE CLAMP SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) FOOTER M8 LOCKWASHER (33-11-0301) M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 LOCK NUT (33-11-0400) M10 FLATWASHER UPRIGHT...
  • Page 62 INCH ADA STEPS 02-07-5000 M10 LOCK NUT DECK (33-11-0400) M10 LOCK NUT (33-11-0400) M10 FLATWASHER (33-11-0200) STAIR M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) DECK SUPPORT M10 FLATWASHER (33-11-0200) BARRIER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT STEP...
  • Page 63 INCH ADA STEPS 02-07-5000 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE Issued/Revised: 4/22/2013 www.ultraplay.com 800.458.5872...
  • Page 64 PLAY TODAY PANEL CLAMP - SINGLE 02-07-0040 Parts List PART NUMBER DESCRIPTION PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 65 INCH PANEL CLAMP - SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) PANEL CLAMP M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 66 PLAY TODAY PANEL CLAMP 90° - DOUBLE 02-07-0041 Parts List DESCRIPTION PART NUMBER PANEL CLAMP 90° DOUBLE 02-07-0041 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 67 INCH PANEL CLAMP 90° - DOUBLE 02-07-0041 PANEL CLAMP 90° - DOUBLE (02-07-0041) M8 LOCK NUT (33-11-0500) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) Issued/Revised: 6/4/2013 www.ultraplay.com...
  • Page 68 PLAY TODAY SHIP'S WHEEL PANEL 02-07-5012 Parts List DESCRIPTION PART NUMBER 02-07-0016 SHIP'S WHEEL PANEL HARDWARE COMPLETE 33-12-0034 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110 M8 LOCK NUT 33-11-0500 M8 BARREL NUT 33-11-0501 M10 x 20mm (3/4") BHCS BOLT...

  • Page 69: Installation Detail

    PLAY TODAY SHIP'S WHEEL PANEL 02-07-5012 SHIP'S WHEEL PANEL (02-07-0016) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 4/12/2013 www.ultraplay.com 800.458.5872...
  • Page 70 INCH SHIP'S WHEEL PANEL 02-07-5012 M8 x 25mm (1") BHCS M10 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT M10 FLATWASHER UPRIGHT (33-11-0002) (33-11-0200) M12 LOCKWASHER (33-11-0203) M8 LOCK NUT (33-11-0500) DECK M8 LOCK NUT THREADED INSERT (33-11-0500) PANEL PANEL CLAMP CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700)
  • Page 71 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 Parts List DESCRIPTION PART NUMBER SLIDE HOOD 02-07-0025 CURVED SLIDE 02-07-0027 1" FOOTER 02-07-0043 EXTENSION TUBE 02-07-0044 MOUNTING BRACKET 02-07-0045 FOOTER PLATE 02-07-0046 CENTER SUPPORT POST 02-07-0062 33-12-0072 HARDWARE COMPLETE CLAMP RIVET 33-11-0700 33-11-0102 M8 x 20mm (3/4") BHCS BOLT M8 x 25mm (1") BHCS BOLT 33-11-0103...
  • Page 72 PLAY TODAY 4FT. CURVED SLIDE 02-07-5005 6. Clean out slots in Deck with utility knife if necessary. 7. Attach Slide to Deck using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 058. 8. Attach Slide Hood to Panel Clamp using M8 x 20mm B.H.C.S. and M8 Barrel Nut. See Detail 061. 9.
  • Page 73 INCH 4FT. CURVED SLIDE 02-07-5005 PLATFORM MOUNTING BRACKET M8 x 25mm (1") BHCS M10 x 35mm (1 3/8") BOLT (33-11-0103) BHCS BOLT (33-11-0005) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) M10 LOCK NUT (33-11-0400) PANEL CLAMP DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT...
  • Page 74 INCH 4FT. CURVED SLIDE 02-07-5005 SLIDE SLIDE DECK M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT MOUNTING BRACKET M10 FLATWASHER (33-11-0002) (02-07-0045) (33-11-0200) M10 FLATWASHER (33-11-0200) M12 LOCKWASHER M10 x 20mm (3/4") (33-11-0203) BHCS BOLT (33-11-0002) SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M8 FLATWASHER...
  • Page 75 INCH 4FT. CURVED SLIDE 02-07-5005 UPRIGHT M8 BARREL NUT (33-11-0501) PANEL PANEL M8 x 20mm (3/4") CLAMP BHCS BOLT (33-11-0102) SLIDE CENTER SUPPORT POST M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) Issued/Revised: 11/29/2022 www.ultraplay.com 800.458.5872...
  • Page 76 PLAY TODAY HDPE CLIMBER 02-07-5018 Parts List DESCRIPTION PART NUMBER HDPE CLIMBER 02-07-0029 GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 EXTENSION TUBE 02-07-0044 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-0076 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500...
  • Page 77 PLAY TODAY HDPE CLIMBER 02-07-5018 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 78 INCH HDPE CLIMBER 02-07-5018 M8 x 25mm (1") BHCS GRAB BAR BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) M8 LOCKWASHER TUBE CLAMP (33-11-0301) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 79 INCH HDPE CLIMBER 02-07-5018 M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) CLIMBER LARGER HOLE M10 LOCK NUT (33-11-0400) EXTENSION TUBE Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 80 PLAY TODAY 6FT. WAVE SLIDE 02-07-5006 Parts List DESCRIPTION PART NUMBER SLIDE HOOD 02-07-0025 6FT WAVE SLIDE 02-07-0028 02-07-0043 1" FOOTER EXTENSION TUBE 02-07-0044 MOUNTING BRACKET 02-07-0045 FOOTER PLATE 02-07-0046 CENTER SUPPORT POST 02-07-0063 HARDWARE COMPLETE 33-12-0073 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT...
  • Page 81 PLAY TODAY 6FT. WAVE SLIDE 02-07-5006 6. Clean out slots in Deck with utility knife if necessary. 7. Attach Slide to Deck using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 058. 8. Attach Slide Hood to Panel Clamp using M8 x 20mm B.H.C.S. and M8 Barrel Nut. See Detail 061. 9.
  • Page 82 INCH 6FT. WAVE SLIDE 02-07-5006 MOUNTING BRACKET M8 x 25mm (1") BHCS M10 x 35mm (1 3/8") BOLT (33-11-0103) BHCS BOLT (33-11-0005) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT (33-11-0400) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) EXTENSION TUBE DRILL THROUGH PRE-DRILLED...
  • Page 83 INCH 6FT. WAVE SLIDE 02-07-5006 SLIDE SLIDE DECK M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") MOUNTING BRACKET M10 FLATWASHER BHCS BOLT (02-07-0045 (33-11-0200) (33-11-0002) M10 FLATWASHER (33-11-0200) M12 LOCKWASHER M10 x 20mm (3/4") (33-11-0203) BHCS BOLT (33-11-0002) SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M12 LOCKWASHER...
  • Page 84 INCH 6FT. WAVE SLIDE 02-07-5006 UPRIGHT M8 BARREL NUT (33-11-0501) PANEL M8 x 20mm (3/4") PANEL CLAMP BHCS BOLT (33-11-0102) SLIDE CENTER SUPPORT POST M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) 11/29/2022 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 85 PLAY TODAY BENCH PANEL 02-07-5014 Parts List DESCRIPTION PART NUMBER BENCH PANEL 02-07-0015 PANEL CLAMP 02-07-0040 HARDWARE COMPLETE 33-12-0031 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 30mm (1 3/16") BHCS BOLT 33-11-0104 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 Unless Otherwise Specified, All Units of Measure are Each...
  • Page 86 PLAY TODAY BENCH PANEL 02-07-5014 PANEL CLAMP (02-07-0040) BENCH PANEL (02-07-0015) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN Issued/Revised: 4/22/2013 HIDDEN LINES ARE SOLD SEPARATELY www.ultraplay.com 800.458.5872...
  • Page 87 INCH BENCH PANEL 02-07-5014 M8 x 25mm (1") BHCS ROTOMOLD BOLT (33-11-0103) PANEL CLAMP M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER PANEL CLAMP CLAMP RIVET (33-11-0301) (33-11-0700) M8 x 30mm (1 3/16") M8 x 25mm (1") BHCS BHCS BOLT BOLT (33-11-0103) (33-11-0104)
  • Page 88 PLAY TODAY 2FT. STAIRS 02-07-5020 Parts List DESCRIPTION PART NUMBER 02-07-0007 TOWER STAIR LEFT HANDRAIL 02-07-0009 TUBE CLAMP 02-07-0039 RIGHT HANDRAIL 02-07-0096 HARDWARE COMPLETE 33-12-0074 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 20mm (3/4") BHCS BOLT 33-11-0002...
  • Page 89 PLAY TODAY 2FT. STAIRS 02-07-5020 UNDERNEATH RIGHT HANDRAIL TUBE CLAMP (02-07-0096) (02-07-0039) LEFT HANDRAIL (02-07-0009) UNDERNEATH UNDERNEATH TOWER STAIR (02-07-0007) UNDERNEATH COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/9/2013 www.ultraplay.com 800.458.5872...
  • Page 90 INCH 2FT. STAIRS 02-07-5020 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCKWASHER M8 LOCK NUT M8 x 25mm (1") BHCS (33-11-0301) CLAMP RIVET (33-11-0500) BOLT (33-11-0103) (33-11-0700) TUBE CLAMP M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 91 INCH 2FT. STAIRS 02-07-5020 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010) Issued/Revised: 05/20/13 www.ultraplay.com 800.458.5872...
  • Page 92 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM 02-07-0013 TUBE CLAMP 02-07-0039 BASS DRUM BRACKET 02-07-0091 HARDWARE COMPLETE 33-12-0021 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301...
  • Page 93 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH TUBE CLAMP (02-07-0039) BASS DRUM (02-07-0013) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 94 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) TUBE CLAMP M8 LOCKWASHER CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0301) (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT...
