Playcore uPLAY TODAY BIG SKY Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

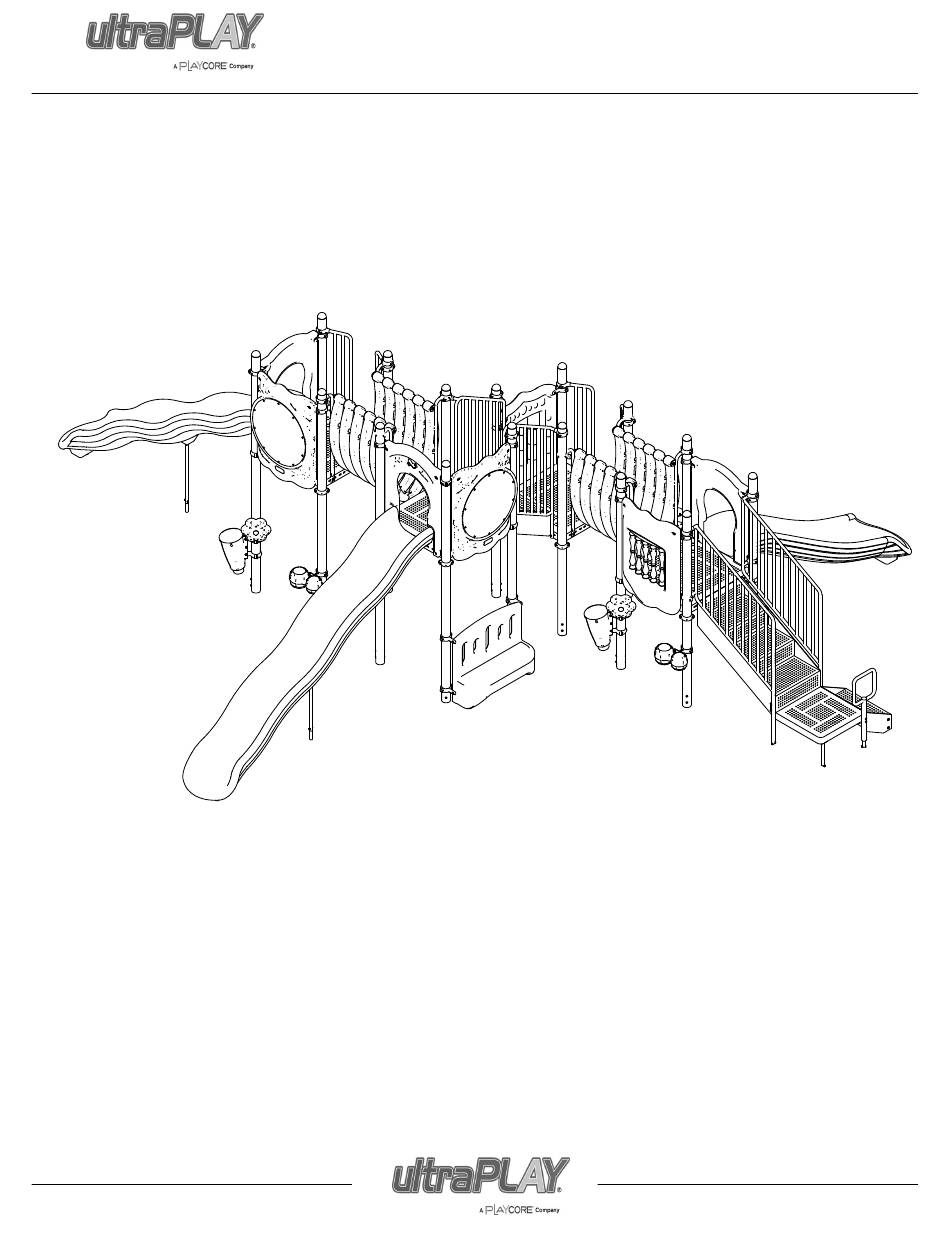

u
PLAY TODAY
BIG SKY
MODEL # UPLAY-080-N
MODEL # UPLAY-080-P
Issued/Revised: 8/12/2021
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uPLAY TODAY BIG SKY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Playcore uPLAY TODAY BIG SKY

Summary of Contents for Playcore uPLAY TODAY BIG SKY

  • Page 1 PLAY TODAY BIG SKY MODEL # UPLAY-080-N MODEL # UPLAY-080-P Issued/Revised: 8/12/2021 www.ultraplay.com 800.458.5872...
  • Page 3 For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com. Thank you for your business; we look forward to working with you on all of your future playground equipment projects! Sincerely, UPlayToday by UltraPlay A PlayCore® Company Issued/Revised: 8/12/2021 www.ultraplay.com 800.458.5872...
  • Page 4 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UPlayToday STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.
  • Page 5 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES Install Wood Mulch (EWF) at a depth of 12". Over time this mulch will compress to a depth of 9" as required by the U.S. Consumer Product Safery Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614.
  • Page 6 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES TRIPPING HAZARDS: There should be no exposed concrete footings, abrupt changes in surface elevations, tree roots, tree stumps, and rocks, which can trip children and adults. Check for trip hazards, such as the balance beam support posts, or environmental trip hazards, such as rocks or roots in the play area.
  • Page 7 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Proper maintenance of UPlayToday equipment requires regular tightening of all bolts, nuts, set screws, and other hardware. -All equipment should be free of rust and repainted with an appropriate lead-free paint whenever necessary to deter rusting. This should also be done for any chipped or peeling areas. -Regular checking of all parts, casting, etc., should be made.
  • Page 8 PLAY TODAY GENERAL COMMERCIAL PLAYGROUND SAFETY GUIDELINES -Check for accessible sharp edges or points. Check for protruding bars, bolts, nuts, etc. Eliminate these conditions. -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace.
  • Page 12 PLAY TODAY UPlayToday Warranty UltraPlay warrants its products to be free from defects in materials and/or workmanship, subject to normal usage and installation, for a period of 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer.
  • Page 13 PLAY TODAY WARRANTY EXCLUSIONS All warranties specifically exclude damage caused by man-made or natural disasters, vandalism, negligence, improper installation or improper use, modification, changes in appearance resulting from weathering, scratches, dents, discoloration, normal wear and tear, or marring as a result of public or private use.
  • Page 14 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS TOOLS REQUIRED: UltraPlay supplies only the special wrenches and bits required to fasten the "tamper-resistant" hardware and components. You will need common wrenches and an Allen key set as well as a drill, string line, level, shovels, post hole digger, pry bar, washable felt tip marker, phillips head screw driver, utility knife, rubber mallet, and a tape measure.
  • Page 16 PLAY TODAY GENERAL INTRODUCTION TO INSTALLATION INSTRUCTIONS 7. CPSC guidelines mandate that there shall be no gaps present in the playground equipment that fall between 3-1/2" and 9". The positioning of certain components by the installer can affect this criteria, so you should always measure distances created when attaching components in order to avoid these spaces which can cause entrapment of a child using the equipment.
  • Page 17 PLAY TODAY WARNING LABEL APPLICATION INSTRUCTIONS The enclosed Warning Labels must be affixed to your playground equipment. At least one Warning Label is needed per play structure, permanently affixed in a conspicuous location within easy view of users. INSTRUCTIONS: 1. Fully assemble and install your UPlayToday playground equipment per the accompying installatioin instructions.
  • Page 18 PLAY TODAY TOOLS REQUIRED Issued/Revised: 8/12/2021 www.ultraplay.com 800.458.5872...
  • Page 19 INCH HARDWARE REFERENCE M8 B.H.C.S. Bolts 45mm 50mm 70mm 100mm 20mm 25mm 30mm 35mm 40mm 13mm 1-3/4" 2-3/4" 4" 3/4" 1-3/16" 1 3/8" 1-9/16" 2" 1" 1/2" (33-11-0109) (33-11-0113) (33-11-0102) (33-11-0105) (33-11-0106) (33-11-0114) (33-11-0107) (33-11-0103) (33-11-0104) (33-11-0101) M8 Barrel Nut (33-11-0501) M8 Flat Washer (33-11-0300)
  • Page 20 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 7'-8" UPRIGHT 02-07-5025 02-07-5026 8'-4" UPRIGHT 9'-6" UPRIGHT 02-07-5027 7'-8" UPRIGHT (02-07-5025) 7'-8" UPRIGHT (02-07-5025) 8'-4" UPRIGHT (02-07-5026) 9'-6" UPRIGHT (02-07-5027) 7'-8" UPRIGHT (02-07-5025) 9'-6" UPRIGHT (02-07-5027) 9'-6" UPRIGHT (02-07-5027) Issued/Revised: 8/12/2021 www.ultraplay.com 800.458.5872...
  • Page 21 PLAY TODAY ASTM USE ZONE 6'-0" 4FT. ROCKY TOP STRAIGHT MOUTAIN TOP VIEW SLIDE BONE BRIDGE (02-07-5040) (02-07-5004) (02-07-5016) SQUARE DECK (02-07-5001) GAME PANEL ADA STEPS (02-07-5013) (02-07-5000) 2FT. TOWER STAIRS (02-07-5020) HDPE CLIMBER (02-07-5018) BONGO DRUMS 6FT WAVE SLIDE (02-07-5024) (02-07-5006) 38'-11"...
  • Page 22 PLAY TODAY CSA USE ZONE 4FT. STRAIGHT SLIDE (02-07-5004) BONE BRIDGE (02-07-5016) SQUARE DECK (02-07-5001) ROCKY TOP MOUNTAIN (02-07-5040) GAME PANEL ADA STEPS (02-07-5013) 6FT WAVE SLIDE (02-07-5000) (02-07-5006) 2FT. TOWER STAIRS (02-07-5020) HDPE CLIMBER BONGO DRUMS (02-07-5018) (02-07-5024) BELOW DECK BARRIER PANEL 44'-11"...
  • Page 23 PLAY TODAY ELEVATION VIEW 9'-7'' 26'-8'' ELEVATION VIEW Issued/Revised: 8/12/2021 www.ultraplay.com 800.458.5872...
  • Page 24 PLAY TODAY FOOTING DETAIL - SURFACE MOUNT (33-12-0083) Parts List DESCRIPTION PART NUMBER CONCRETE ANCHOR 33-11-0702 UPRIGHT POST UPRIGHT FOOTER CONCRETE ANCHOR CONCRETE 4" MINIMUM w/3000 PSI GRAVEL IMPORTANT: Never install play equipment over hard, unresilient surfaces such as asphalt, concrete, or compacted earth.
  • Page 25 INCH FOOTING DETAIL - SURFACE MOUNT 1. Using Upright Footers as template, mark hole position on concrete. Drill 3/8" Dia. x 2" deep holes into concrete to receive anchor. 2. Attach Upright Footers to concrete using Concrete Anchor, Flat Washer, and Lock Nut. See Detail 067. LOCK NUT FLAT WASHER UPRIGHT...
  • Page 26 PLAY TODAY FOOTING DETAIL - ON GROUND (33-12-0126) Parts List PART NUMBER DESCRIPTION GROUND SPIKE 02-07-0048 IMPORTANT: UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER UPRIGHT POSITIONED IN THE POST BOTTOM (2) HOLES TO ACCOMODATE 2" OF SURFACING. WHEN INSTALLING 12" OF SURFACING, REMOVE BOLTS AND ADJUST UPRIGHT FOOTER...
  • Page 27 INCH FOOTING DETAIL - ON GROUND 1. With Upright Footers in position, secure each Upright Footer to the ground using Ground Spikes. NOTE: A 4lb. hammer may be required to drive spikes into the ground. Install ground spikes angled inward as shown in illustration. See Detail 068. IMPORTANT: Refer to Post Placement/Hole Locations diagram to mark locations of Upright Footers.
  • Page 28 PLAY TODAY FOOTING DETAIL - IN GROUND (33-12-0129) Parts List DESCRIPTION PART NUMBER INGROUND FOOTER 02-07-0049 3/8" x 1 1/4" P.B.H.C.S. w/PATCH 33-05-0019 3/8" HEX NUT 33-01-0002 3/8" FLAT WASHER 33-02-0002 IMPORTANT: UPRIGHT UPRIGHTS WILL COME PRE-ASSEMBLED WITH UPRIGHT FOOTER POSITIONED IN THE BOTTOM (2) HOLES TO ACCOMODATE 2"...
  • Page 29 INCH FOOTING DETAIL - IN GROUND 1. Attach Inground Footer to Upright Post using 3/8" x 1 1/4" P.B.H.C.S., 3/8" Flat Washer, and 3/8" Hex Nut. Refer to Footing Table and Footing Layout page for Hole/Footer location. See Detail 069. 2.
  • Page 30 PLAY TODAY BIG SKY Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 PANEL CLAMP - SINGLE 02-07-0040 PANEL CLAMP 90° - DOUBLE 02-07-0041 4FT ADA STEPS 02-07-5000 02-07-5001 SQUARE DECK 4FT. STRAIGHT SLIDE 02-07-5004 6FT. WAVE SLIDE 02-07-5006 WINDOW PANEL 02-07-5010 BARRIER PANEL 02-07-5011...
  • Page 31 PLAY TODAY BIG SKY 8'-4" UPRIGHT (02-07-5026) PANEL CLAMP 90° - DOUBLE (02-07-0041) 7'-8" UPRIGHT (02-07-5025) WINDOW PANEL (02-07-5010) BASS DRUM w/TUBE CLAMP (02-07-5023) ADA STEPS BONE BRIDGE (02-07-5000) (02-07-5016) BONGO DRUMS BARRIER PANEL (02-07-5024) (02-07-5011) 9'-6" UPRIGHT (02-07-5027) BONGO DRUMS (02-07-5024) WINDOW PANEL (02-07-5010)
  • Page 32 ASTM USE ZONE TOP VIEW CSA USE ZONE 16'-1 7/8" 22'-1 3/4" [193.82 in] [265.73 in] HORIZONTAL DIM. HORIZONTAL DIM. 16'-2 1/4" BIG SKY (UPLAY-080) [194.30 in] FOOTING TABLE Hole No. Hor. Dim. Ver. Dim. Diagonal 22'-2 1/4" 0" 0" 0"...
  • Page 33 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 Parts List DESCRIPTION PART NUMBER UPRIGHT FOOTER 02-07-0042 3 1/2" UPRIGHT, 7'-8" LG. 02-07-0144 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 34 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 3-1/2" UPRIGHT, 7'-8" LG. (02-07-0144) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 5/23/2013 www.ultraplay.com 800.458.5872...
  • Page 35 INCH 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 36 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 Parts List DESCRIPTION PART NUMBER 02-07-0042 UPRIGHT FOOTER 3 1/2" UPRIGHT, 8'-4" LG. 02-07-0148 HARDWARE COMPLETE 33-12-0026 M10 x 80mm (3 1/8") BHCS BOLT 33-11-0011 M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 37 PLAY TODAY 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 3-1/2" UPRIGHT, 8'-4" LG. (02-07-0148) UPRIGHT FOOTER (02-07-0042) = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 38 INCH 8'-4" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5026 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 39 PLAY TODAY 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 Parts List DESCRIPTION PART NUMBER UPRIGHT FOOTER 02-07-0042 3 1/2" UPRIGHT, 9'-6" LG. 02-07-0145 HARDWARE COMPLETE 33-12-0026 33-11-0011 M10 x 80mm (3 1/8") BHCS BOLT M10 BARREL NUT 33-11-0401 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 40 PLAY TODAY 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 3-1/2" UPRIGHT, 9'-6" LG. (02-07-0145) UPRIGHT FOOTER (02-07-0042) = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 5/24/2013 www.ultraplay.com 800.458.5872...
  • Page 41 INCH 9'-6" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5027 UPRIGHT LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised:...
  • Page 42 PLAY TODAY SQUARE DECK 02-07-5001 Parts List PART NUMBER DESCRIPTION SQUARE DECK 02-07-0003 HARDWARE COMPLETE 33-12-0019 M10 x 30mm (1 3/16") BHCS BOLT 33-11-0004 M10 FLATWASHER 33-11-0200 M10 LOCK NUT 33-11-0400 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children.
  • Page 43 PLAY TODAY SQUARE DECK 02-07-5001 SQUARE DECK (02-07-0003) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 44 INCH SQUARE DECK 02-07-5001 M10 FLATWASHER (33-11-0200) M10 LOCK NUT (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 45 PLAY TODAY 2FT. STAIRS 02-07-5020 Parts List DESCRIPTION PART NUMBER 02-07-0007 TOWER STAIR LEFT HANDRAIL 02-07-0009 TUBE CLAMP 02-07-0039 RIGHT HANDRAIL 02-07-0096 HARDWARE COMPLETE 33-12-0074 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 M10 x 25mm (1") BHCS BOLT 33-11-0003...
  • Page 46 PLAY TODAY 2FT. STAIRS 02-07-5020 UNDERNEATH RIGHT HANDRAIL TUBE CLAMP (02-07-0096) (02-07-0039) LEFT HANDRAIL (02-07-0009) UNDERNEATH UNDERNEATH TOWER STAIR (02-07-0007) UNDERNEATH COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/9/2013 www.ultraplay.com 800.458.5872...
  • Page 47 INCH 2FT. STAIRS 02-07-5020 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCKWASHER M8 LOCK NUT M8 x 25mm (1") BHCS (33-11-0301) CLAMP RIVET (33-11-0500) BOLT (33-11-0103) (33-11-0700) TUBE CLAMP M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 48 INCH 2FT. STAIRS 02-07-5020 M10 FLATWASHER (33-11-0200) HANDRAIL M10 LOCK NUT (33-11-0400) DECK M10 x 50mm (2") BHCS BOLT (33-11-0010) Issued/Revised: 05/20/13 www.ultraplay.com 800.458.5872...
  • Page 49 PLAY TODAY TUBE CLAMP 02-07-0039 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0039 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 50 INCH TUBE CLAMP 02-07-0039 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT M8 LOCK NUT (33-11-0500) (33-11-0500) TUBE CLAMP CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 51 PLAY TODAY PANEL CLAMP SINGLE 02-07-0040 Parts List PART NUMBER DESCRIPTION PANEL CLAMP 02-07-0040 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 52 INCH PANEL CLAMP SINGLE 02-07-0040 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) PANEL CLAMP M8 x 25mm (1") BHCS BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 53 PLAY TODAY PANEL CLAMP 90° DOUBLE 02-07-0041 Parts List DESCRIPTION PART NUMBER PANEL CLAMP 90° DOUBLE 02-07-0041 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 54 INCH PANEL CLAMP 90° DOUBLE 02-07-0041 PANEL CLAMP 90° - DOUBLE (02-07-0041) M8 LOCK NUT (33-11-0500) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) UPRIGHT CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) Issued/Revised: 6/4/2013 www.ultraplay.com...
  • Page 55 PLAY TODAY BONE BRIDGE 02-07-5016 Parts List DESCRIPTION PART NUMBER BONE BRIDGE 02-07-0023 BRACKET 02-07-0024 HARDWARE COMPLETE 33-12-0006 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 M10 x 25mm (1") BHCS BOLT 33-11-0003 M10 FLATWASHER 33-11-0200...
  • Page 56 PLAY TODAY BONE BRIDGE 02-07-5016 BONE BRIDGE (02-07-0023) UNDERNEATH BRACKET (02-07-0024) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/6/2013 www.ultraplay.com 800.458.5872...
  • Page 57 INCH BONE BRIDGE 02-07-5016 HANDRAIL M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER M8 x 25mm (1") BHCS (33-11-0301) TUBE CLAMP BOLT (33-11-0103) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS DRILL THROUGH PRE-DRILLED BOLT (33-11-0103) HOLE IN CLAMP INTO UPRIGHT...
  • Page 58 INCH BONE BRIDGE 02-07-5016 BRACKET M12 LOCKWASHER (33-11-0203) BONE BRIDGE M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 5/6/2013 www.ultraplay.com 800.458.5872...

  • Page 59: Table Of Contents

    PLAY TODAY ADA STEPS 02-07-5000 Parts List DESCRIPTION PART NUMBER ADA DECK 02-07-0004 ADA TRANSFER STAIR 02-07-0005 ADA STEP 02-07-0006 ADA BARRIER LEFT 02-07-0008 ADA BARRIER RIGHT 02-07-0010 02-07-0011 ADA HANDHOLD 1" FOOTER 02-07-0043 FOOTER PLATE 02-07-0046 ADA DECK SUPPORT POST 02-07-0047 8 1/4"...
  • Page 60 PLAY TODAY ADA STEPS 02-07-5000 7. Attach ADA Transfer Step to ADA Barriers using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 032. 8. Attach Barrier Footer to ADA Deck Support using M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 028. 9.

  • Page 61: Ada Deck

    PLAY TODAY ADA STEPS 02-07-5000 UNDERNEATH ADA BARRIER LEFT (02-07-0008) ADA BARRIER RIGHT (02-07-0010) ADA HANDHOLD ADA DECK (02-07-0011) (02-07-0004) ADA STEP ADA TRANSFER (02-07-0006) STAIR (02-07-0005) UNDERNEATH UNDERNEATH UNDERNEATH 15" EXTENSION POST 1" FOOTER (02-07-0061) UNDERNEATH (02-07-0043) UNDERNEATH UNDERNEATH ADA DECK SUPPORT POST FOOTER PLATE...

  • Page 62: Clamp Rivet

    INCH ADA STEPS 02-07-5000 M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BARRIER BHCS BOLT (33-11-0005) TUBE CLAMP SUPPORT POST M8 x 25mm (1") BHCS BOLT (33-11-0103) FOOTER M8 LOCKWASHER (33-11-0301) M8 x 25mm (1") BHCS BOLT (33-11-0103) M10 LOCK NUT (33-11-0400) M10 FLATWASHER UPRIGHT...

  • Page 63: M10 X 50Mm (2") Bhcs Bolt

    INCH ADA STEPS 02-07-5000 M10 LOCK NUT DECK (33-11-0400) M10 LOCK NUT (33-11-0400) M10 FLATWASHER (33-11-0200) STAIR M10 FLATWASHER (33-11-0200) M10 x 25mm (1") BHCS BOLT (33-11-0003) DECK SUPPORT M10 FLATWASHER (33-11-0200) BARRIER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT STEP...

  • Page 64: M10 Lock Nut

    INCH ADA STEPS 02-07-5000 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE Issued/Revised: 4/22/2013 www.ultraplay.com 800.458.5872...

  • Page 65: Unless Otherwise Specified, All Units Of Measure Are Each

    PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 Parts List DESCRIPTION PART NUMBER SLIDE HOOD 02-07-0025 STRAIGHT SLIDE 02-07-0026 EXTENSION TUBE 02-07-0044 MOUNTING BRACKET 02-07-0045 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-0071 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 40mm (1 9/16") BHCS BOLT 33-11-0106...
  • Page 66 PLAY TODAY 4FT. STRAIGHT SLIDE 02-07-5004 8. Attach Slide Hood to Panel Clamp using M8 x 20mm B.H.C.S. and M8 Barrel Nut. See Detail 061. 9. Close Panel Clamps around Uprights and secure using M8 x 25mm B.H.C.S. and M8 Lock Nut. See Detail 025. (Do not install Clamp Rivet until entire unit is assembled.) 10.
  • Page 67 INCH 4FT. STRAIGHT SLIDE 02-07-5004 MOUNTING BRACKET M8 x 25mm (1") M10 x 35mm (1 BHCS BOLT 3/8") BHCS BOLT (33-11-0103) (33-11-0005) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT (33-11-0400) CLAMP RIVET PANEL CLAMP (33-11-0700) M8 x 25mm (1") DRILL THROUGH PRE-DRILLED BHCS BOLT...
  • Page 68 INCH 4FT. STRAIGHT SLIDE 02-07-5004 SLIDE SLIDE DECK LOCKWASHER (33-11-0203) LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) M10 x 60mm (2 M10 FLATWASHER 3/8") BHCS BOLT SLIDE HOOD (33-11-0200) (33-11-0007) M10 FLATWASHER (33-11-0200) UPRIGHT M8 BARREL NUT (33-11-0501) PANEL M8 FLATWASHER (33-11-0300)
  • Page 69 PLAY TODAY ROCKY TOP MOUNTAIN 02-07-5040 Parts List DESCRIPTION PART NUMBER GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 FOOTER PLATE 02-07-0046 ROCKY TOP MOUNTAIN CLIMBER 02-07-0277 MOUNTING BRACKET 02-07-0278 02-07-0279 EXTENSION TUBE HARDWARE COMPLETE 33-12-0175 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301...
  • Page 70 PLAY TODAY ROCKY TOP MOUNTAIN 02-07-5040 NOTE: THE VERTICAL POSITION OF THE GRAB BARS MUST BE A MINIMUM OF 38" ABOVE THE DECK. THE CLAMP POSITION CAN BE ADJUSTED HIGHER TO AVOID INTERFERENCE WITH OTHER CLAMPS. 7. Attach Tube Clamp to Grab Bar. See Detail 029. 8.

  • Page 71: Grab Bar

    PLAY TODAY ROCKY TOP MOUNTAIN 02-07-5040 TUBE CLAMP 02-07-0039 UNDERNEATH GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 ROCKY TOP MOUNTAIN CLIMBER 02-07-0277 1063 UNDERNEATH UNDERNEATH MOUNTING BRACKET 02-07-0278 UNDERNEATH EXTENSION TUBE UNDERNEATH 02-07-0279 UNDERNEATH FOOTER PLATE UNDERNEATH 02-07-0046 UNDERNEATH COMPONENTS SHOWN IN = INSTALLATION DETAIL FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY...

  • Page 72: M8 X 25Mm (1") Bhcs Bolt

    INCH ROCKY TOP MOUNTAIN 02-07-5040 GRAB BAR M8 x 25mm (1") BHCS BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) TUBE CLAMP CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) BOLT (33-11-0103) M8 LOCKWASHER...

  • Page 73: M10 X 50Mm (2") Bhcs Bolt

    INCH ROCKY TOP MOUNTAIN 02-07-5040 ROCK CLIMBER DECK MOUNTING BRACKET ROTOMOLD M10 FLATWASHER M10 LOCK NUT 33-11-0200 33-11-0400 M10 FLATWASHER 33-11-0200 M10 FLATWASHER M12 LOCKWASHER 33-11-0200 M10 x 50mm (2") BHCS BOLT 33-11-0203 33-11-0010 1063 M10 x 20mm (3/4") BHCS BOLT 33-11-0002 Issued/Revised: 11/13/2020...

  • Page 74: Clamp Rivet

    PLAY TODAY HDPE CLIMBER 02-07-5018 Parts List DESCRIPTION PART NUMBER HDPE CLIMBER 02-07-0029 GRAB BAR 02-07-0033 TUBE CLAMP 02-07-0039 EXTENSION TUBE 02-07-0044 FOOTER PLATE 02-07-0046 HARDWARE COMPLETE 33-12-0076 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500...
  • Page 75 PLAY TODAY HDPE CLIMBER 02-07-5018 MAINTENANCE PROCEDURE: Periodically check hardware for tightness, and tighten as necessary. Always check all parts for breakage or wear, and immediately put equipment out of service until any faulty parts found are repaired or replaced. Also check all metal parts for rust, paint loss and touch-up if necessary with paint.
  • Page 76 INCH HDPE CLIMBER 02-07-5018 M8 x 25mm (1") BHCS GRAB BAR BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) M8 LOCKWASHER TUBE CLAMP (33-11-0301) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET.
  • Page 77 INCH HDPE CLIMBER 02-07-5018 M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) CLIMBER LARGER HOLE M10 LOCK NUT (33-11-0400) EXTENSION TUBE Issued/Revised: 4/30/2013 www.ultraplay.com 800.458.5872...
  • Page 78 PLAY TODAY 6FT. WAVE SLIDE 02-07-5006 Parts List DESCRIPTION PART NUMBER SLIDE HOOD 02-07-0025 6FT WAVE SLIDE 02-07-0028 02-07-0043 1" FOOTER EXTENSION TUBE 02-07-0044 MOUNTING BRACKET 02-07-0045 FOOTER PLATE 02-07-0046 CENTER SUPPORT POST 02-07-0063 HARDWARE COMPLETE 33-12-0073 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT...
  • Page 79 PLAY TODAY 6FT. WAVE SLIDE 02-07-5006 6. Clean out slots in Deck with utility knife if necessary. 7. Attach Slide to Deck using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 058. 8. Attach Slide Hood to Slide using M10 x 60mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 059. 9.
  • Page 80 INCH 6FT. WAVE SLIDE 02-07-5006 MOUNTING BRACKET M10 x 35mm (1 3/8") M8 x 25mm (1") BHCS BHCS BOLT BOLT (33-11-0103) (33-11-0005) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M10 LOCK NUT (33-11-0400) CLAMP RIVET (33-11-0700) M8 x 25mm (1") BHCS BOLT (33-11-0103) EXTENSION TUBE DRILL THROUGH PRE-DRILLED...
  • Page 81 INCH 6FT. WAVE SLIDE 02-07-5006 SLIDE SLIDE DECK M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") M10 FLATWASHER MOUNTING BRACKET BHCS BOLT (33-11-0200) (33-11-0002) (02-07-0045 M10 FLATWASHER (33-11-0200) M12 LOCKWASHER M10 x 20mm (3/4") (33-11-0203) BHCS BOLT (33-11-0002) SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M8 FLATWASHER...
  • Page 82 INCH 6FT. WAVE SLIDE 02-07-5006 UPRIGHT M8 BARREL NUT (33-11-0501) PANEL M8 x 20mm (3/4") PANEL CLAMP BHCS BOLT (33-11-0102) SLIDE CENTER SUPPORT POST M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) Issued/Revised: 5/18/2020 www.ultraplay.com 800.458.5872...
  • Page 83 PLAY TODAY WINDOW PANEL 02-07-5010 Parts List DESCRIPTION PART NUMBER WINDOW PANEL 02-07-0019 HARDWARE COMPLETE 33-12-0034 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 33-11-0110 M8 x 55mm (2 3/16") BHCS BOLT M8 LOCK NUT 33-11-0500 M8 BARREL NUT 33-11-0501 M10 x 20mm (3/4") BHCS BOLT 33-11-0002...
  • Page 84 PLAY TODAY WINDOW PANEL 02-07-5010 WINDOW PANEL (02-07-0019) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 3/26/2013 www.ultraplay.com 800.458.5872...
  • Page 85 INCH WINDOW PANEL 02-07-5010 M8 x 25mm (1") BHCS M10 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT (33-11-0002) M10 FLATWASHER (33-11-0200) UPRIGHT M12 LOCKWASHER M8 LOCK NUT (33-11-0203) (33-11-0500) M8 LOCK NUT (33-11-0500) DECK PANEL CLAMP CLAMP RIVET THREADED (33-11-0700) INSERT M8 x 25mm (1") BHCS PANEL...
  • Page 86 PLAY TODAY BARRIER PANEL 02-07-5011 Parts List DESCRIPTION PART NUMBER BARRIER PANEL 02-07-0018 HARDWARE COMPLETE 33-12-0034 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110 M8 LOCK NUT 33-11-0500 M8 BARREL NUT 33-11-0501 M10 x 20mm (3/4") BHCS BOLT 33-11-0002...
  • Page 87 PLAY TODAY BARRIER PANEL 02-07-5011 BARRIER PANEL (02-07-0018) UNDERNEATH COMPONENTS SHOWN IN = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY Issued/Revised: 3/26/2013 www.ultraplay.com 800.458.5872...
  • Page 88 INCH BARRIER PANEL 02-07-5011 M8 x 25mm (1") BHCS M10 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT M12 LOCKWASHER (33-11-0002) (33-11-0203) UPRIGHT M10 FLATWASHER M8 LOCK NUT (33-11-0200) (33-11-0500) M8 LOCK NUT (33-11-0500) PANEL CLAMP CLAMP RIVET DECK M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED...
  • Page 89 PLAY TODAY GAME PANEL 02-07-5013 Parts List DESCRIPTION PART NUMBER ACORN - LEAF PANEL 02-07-0020 33-12-0034 HARDWARE COMPLETE M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 55mm (2 3/16") BHCS BOLT 33-11-0110 M8 LOCK NUT 33-11-0500 M8 BARREL NUT 33-11-0501 M10 x 20mm (3/4") BHCS BOLT 33-11-0002...
  • Page 90 PLAY TODAY GAME PANEL 02-07-5013 ACORN-LEAF PANEL (02-07-0020) UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 3/26/2013 www.ultraplay.com 800.458.5872...
  • Page 91 INCH GAME PANEL 02-07-5013 M8 x 25mm (1") BHCS UPRIGHT BOLT (33-11-0103) M12 LOCKWASHER (33-11-0203) M10 x 20mm (3/4") BHCS BOLT M10 FLATWASHER (33-11-0002) (33-11-0200) M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) PANEL CLAMP DECK CLAMP RIVET THREADED M8 x 25mm (1") BHCS (33-11-0700) INSERT BOLT (33-11-0103)
  • Page 92 PLAY TODAY BENCH PANEL 02-07-5014 Parts List DESCRIPTION PART NUMBER BENCH PANEL 02-07-0015 PANEL CLAMP 02-07-0040 HARDWARE COMPLETE 33-12-0031 CLAMP RIVET 33-11-0700 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 x 30mm (1 3/16") BHCS BOLT 33-11-0104 M8 LOCKWASHER 33-11-0301 M8 LOCK NUT 33-11-0500 Unless Otherwise Specified, All Units of Measure are Each...
  • Page 93 PLAY TODAY BENCH PANEL 02-07-5014 PANEL CLAMP (02-07-0040) BENCH PANEL (02-07-0015) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN Issued/Revised: 4/22/2013 HIDDEN LINES ARE SOLD SEPARATELY www.ultraplay.com 800.458.5872...
  • Page 94 INCH BENCH PANEL 02-07-5014 M8 x 25mm (1") BHCS ROTOMOLD BOLT (33-11-0103) PANEL CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) M8 LOCKWASHER PANEL CLAMP CLAMP RIVET (33-11-0301) (33-11-0700) M8 x 30mm (1 3/16") M8 x 25mm (1") BHCS BHCS BOLT BOLT (33-11-0103) (33-11-0104)
  • Page 95 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 Parts List DESCRIPTION PART NUMBER TUBE CLAMP 02-07-0056 RAINWHEEL 02-08-0026 Unless Otherwise Specified, All Units of Measure are Each Items listed below Hardware Complete line are included with Hardware Complete Number Warning: During Installation, Hardware And Small Parts Are Choking Hazards For Young Children. Store Unused Parts Appropriately Until Assembly Is Completed.
  • Page 96 PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-08-0026) TUBE CLAMP (02-07-0056) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 10/1/2018 www.ultraplay.com 800.458.5872...
  • Page 97 INCH RAIN WHEEL w/TUBE CLAMP 02-07-5022 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) TUBE CLAMP CLAMP RIVET (33-11-0700) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT BOLT (33-11-0103) TO INSTALL CLAMP RIVET.
  • Page 98 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 Parts List DESCRIPTION PART NUMBER BASS DRUM 02-07-0013 TUBE CLAMP 02-07-0039 BASS DRUM BRACKET 02-07-0091 HARDWARE COMPLETE 33-12-0021 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 M8 x 25mm (1") BHCS BOLT 33-11-0103 M8 LOCKWASHER 33-11-0301...
  • Page 99 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH TUBE CLAMP (02-07-0039) BASS DRUM (02-07-0013) FINISHED ASSEMBLY = INSTALLATION DETAIL COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 100 INCH BASS DRUM w/TUBE CLAMP 02-07-5023 M8 x 25mm (1") BHCS HANDRAIL BOLT (33-11-0103) TUBE CLAMP UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) TUBE CLAMP M8 LOCKWASHER CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0301) (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED M8 x 25mm (1") BHCS HOLE IN CLAMP INTO UPRIGHT...
  • Page 101 PLAY TODAY BONGO DRUMS 02-07-5024 Parts List DESCRIPTION PART NUMBER BONGO DRUMS 02-07-0014 02-07-0056 TUBE CLAMP BONGO DRUMS BRACKET 02-07-0092 MOUNTING BAR 02-07-0093 HARDWARE COMPLETE 33-12-0020 CLAMP RIVET 33-11-0700 M8 x 20mm (3/4") BHCS BOLT 33-11-0102 33-11-0103 M8 x 25mm (1") BHCS BOLT M8 FLATWASHER 33-11-0300 M8 LOCK NUT...
  • Page 102 PLAY TODAY BONGO DRUMS 02-07-5024 UPRIGHT BONGO DRUMS BRACKET (02-07-0092) MOUNTING BAR (02-07-0093) BONGO DRUMS TUBE CLAMP (02-07-0056) BONGO DRUMS (02-07-0014) FINISHED ASSEMBLY COMPONENTS SHOWN IN = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 5/7/2013 www.ultraplay.com 800.458.5872...
  • Page 103 INCH BONGO DRUMS 02-07-5024 M8 x 25mm (1") BHCS M8 x 20mm (3/4") BOLT (33-11-0103) BHCS BOLT BONGOS (33-11-0102) (02-08-0025) M10 LOCKWASHER UPRIGHT (33-11-0201) M8 FLATWASHER (33-11-0300) MOUNTING BAR M8 LOCK NUT (02-08-0126) (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET (33-11-0700) M8 LOCK NUT (33-11-0500)

This manual is also suitable for:

Uplay-080-nUplay-080-p
