Assa Abloy Norton CloserPlus Ramp CLP8101R Installation Instructions Manual

ASSA ABLOY
Additional Closer Options:
- "DA" indicates Delayed Action closing
- "R" indicates Ramp Hold-Open function, not handed
Optional Accessories:
- 8148 Drop Plate
- 2019L, 6890, 6891 Soffit Plate Accessories
NOTE: For special applications a separate door and frame preparation template is packed with these instructions. In those
cases, use this instruction sheet for installation sequence and closer adjustments only.
Right Hand Door – RH
Left Hand Reverse – LHR
Right Hand Door – RH
Left Hand Reverse – LHR
Right Hand Door – RH
Left Hand Reverse – LHR
Copyright © 2013, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
CloserPlus Ramp™ Door Closers (CLP-R)
An incorrectly installed or improperly
adjusted door closer can cause property
damage or personal injury. These
instructions should be followed to avoid
the possibility of misapplication or
misadjustment.

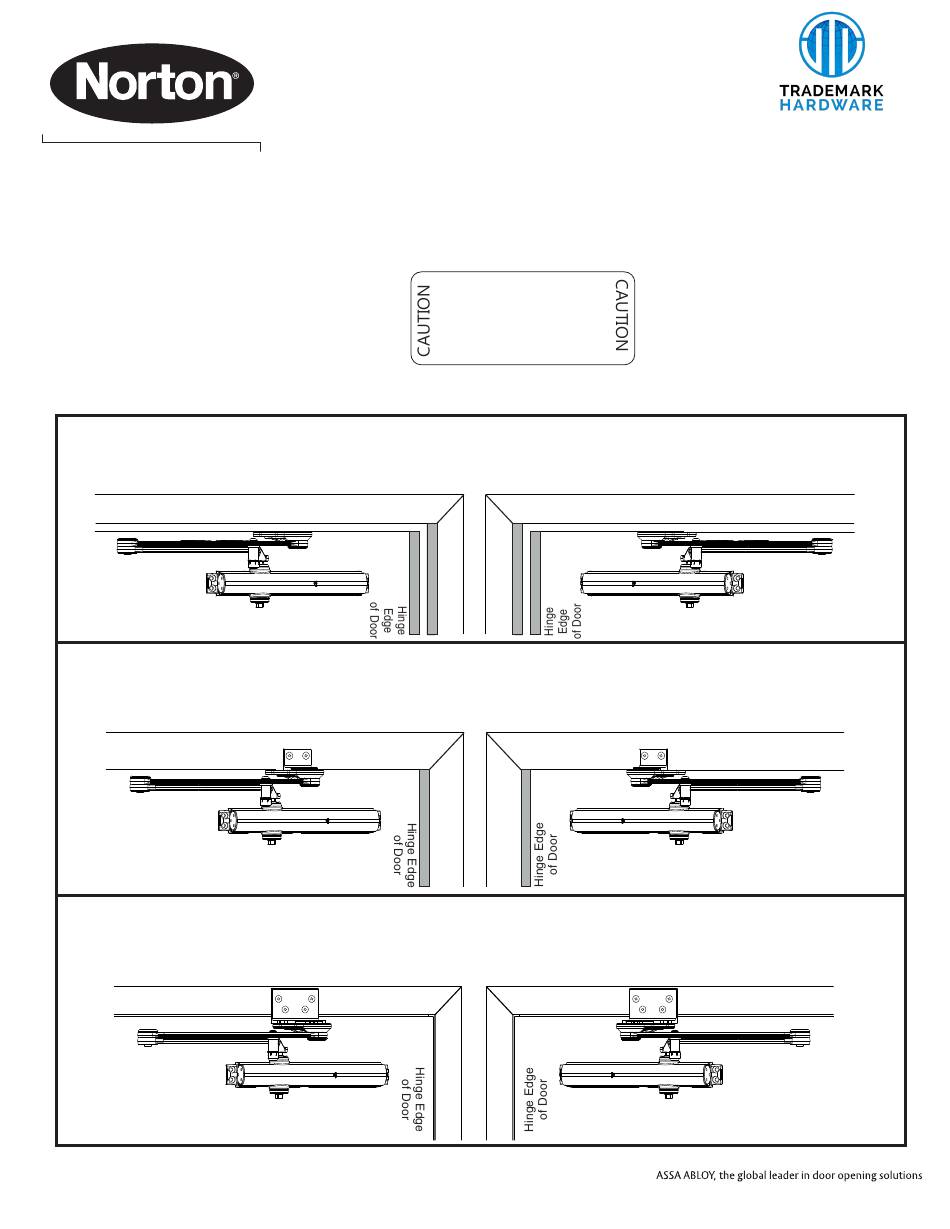

Standard Frame Installation
Closer mounts on opposite to hinge (push) side of door.
See Pages 3 and 4
6890 and 6891 accessories required for this application (supplied separately).
Flush Partition Installation
Closer mounts on opposite to hinge (push) side of door.
2019L accessory required for this application (supplied separately).
See Pages 3 and 4
Narrow Frame Installation
Closer mounts on opposite to hinge (push) side of door.
See Pages 3 and 4
1
Model Numbers Included:
Series Function Sizing
CloserPlus Ramp™ Hold Open
Arm Units
CLP8101R HO
CLP8301R HO
CLP8501R HO
CLP810XR HO 2 THRU 6
CLP830XR HO 2 THRU 6
CLP850XR HO 2 THRU 6
"X" Designates closer size 2, 3, 4, 5, or 6
Left Hand Door – LH
Right Hand Reverse – RHR
Left Hand Door – LH
Right Hand Reverse – RHR
Left Hand Door – LH
Right Hand Reverse – RHR
80-9380-2216-020 (05-14)
1-6
1-6
1-6
