USER MANUAL
SMART EVO
Wireless Multiroom Streaming Amplifi er
Thank your for buying our SMART EVO. We hope you'll enjoy it for years to come. Please read these
instructions carefully and keep this manual for later reference.
TABLE OF CONTENTS
2
2
2
2
3
4
4
6
Mac and Windows PC
6
7
7
7
8
8
9
9
10
10
Multi
Room
10
10
11
11
11
11
12
12
12
12
13
14
14
15
1
Advertisement
Table of Contents
Related Manuals for Artsound SMART EVO
Summary of Contents for Artsound SMART EVO
-
Page 1: Table Of Contents
Wireless Multiroom Streaming Amplifi er Multi Room Thank your for buying our SMART EVO. We hope you’ll enjoy it for years to come. Please read these instructions carefully and keep this manual for later reference. TABLE OF CONTENTS 1 Warnings and safety 8.5 Left and right channel... -
Page 2: Warnings And Safety
TV ARC input for use with TV. You can control SMART EVO with remote controller or with our free mobile application for both Android and iOS system, which lets you have full control on the device plus user friendly EQ system. With SMART EVO you can easily build your home audio system. -

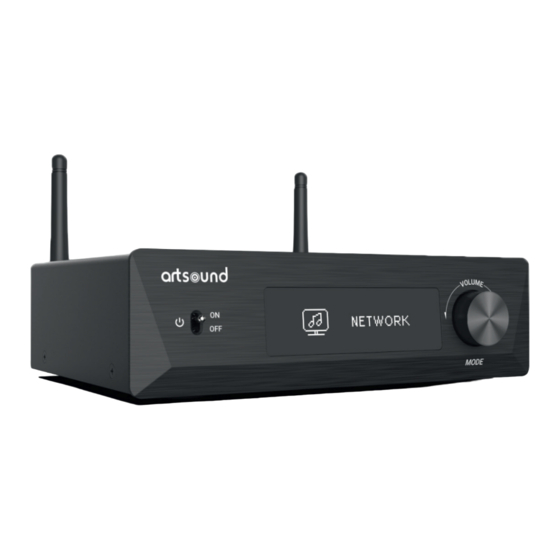

Page 3: Interface
SMART EVO 5. INTERFACE AND FUNCTIONS A FRONT PANEL 1. Power Switch: Turn on/off device 4. Volume Knob + Mode Button: Rotate to change 2. IR Receiver: For remote controller volume / Press to change source input mode / 3. Display Panel: Display the current source input,... -
Page 4: Remote Controller
SMART EVO 6. REMOTE CONTROLLER ON/OFF Mute Phono in Mode Line in Mode Volume + Play/Pause Previous/Next Volume – (Bluetooth and USB) Optical Mode ARC Mode BT Receive Mode USB / DAC Mode Treble and Bass control Treble and Bass reset Preset Play list 7. - Page 5 SMART EVO 7.1 PASSIVE SPEAKERS Use speaker cable to connect the device to your passive speakers. 7.2 PHONO IN Connect the turntable Audio out to the Phono in RCA connectors. If your turntable has GND socket, you can connect it to the GND socket on the device. This is optional, if your turntable doesn’t have GND socket, you can ignore it.
-
Page 6: How To Use
Line in SMART EVO 7.3 LINE IN Line in Connect any playback device with Audio out/Line out/AUX out to Line in using an RCA cable. 7.4 OPTICAL IN Connect any playback device with Optical out to Optical in using an optical cable. -
Page 7: Connection
The app will prompt you to select the 6. For Android device, the system will ask for permission router SSID you want your SMART EVO device to use GPS data & File storage, please click ac- connect to (enter password if required) and select cept to continue. -
Page 8: Bluetooth
You can connect any analog device with line out to the Music ready there. SMART EVO. You will need to switch to Line in mode NOTES: The iOS based devices have blocked the with the Mode button on the device, use the remote access to iTunes library. -
Page 9: Streaming Services
TV without disturbing others. You can connect any device with digital optical output to SMART EVO. You can press the Mode button on the 8.3.8 USB Disk Drive Playback Mode device, use the remote controller or in the 4Stream If you have many music files and you want to play APP to switch to Optical in mode. -
Page 10: Group With Amazon Echo Or Other Amazon Products
SMART EVO 8.4.2 Group with Amazon Echo or other Amazon products 1. In the 4Stream app, enter Amazon Alexa in the source menu and login to your Amazon account. 2. Open Amazon Alexa app and login to the same Amazon account. -
Page 11: Source Mode Change
SMART EVO 8.7 SOURCE MODE CHANGE • Method 1: Change on Application Users can change play mode on the application, Wi-Fi, Bluetooth, Line input and USB. To change from Blue- tooth/line input/USB to Wi-Fi, only need choose the online streaming services such as Qobuz or cell phone local storage music or any music via DLNA or UPnP streaming. -
Page 12: To Play Music From Windows Pc Via Foobar2000
10. ACPWORKBENCH SOLD SEPARATELY Connect the SMART EVO device to your PC with USB cable (make sure it’s a data cable including the signal wires). And open the program ACPWorkbench (only support Windows.), and you can tune audio eff ects conve- niently, including Music Noise Suppressor, Virtual Bass, Stereo Widener, Exciter, 10 bands EQ, Confi gure output channel and PIN confi gs. -
Page 13: Technical Specifications
SMART EVO 11. TECHNICAL SPECIFICATIONS AMPLIFIER Amplifi er Power 80Wx2 @ 4Ω RMS, 160Wx2 @ 4Ω PEAK Speaker Impedance 4-8Ω Frequency Response 20Hz to 20kHz THD+N <0.1% @ 1W 1kHz >93dB @ Max Power NETWORK Wi-Fi IEEE802.11 b/g/n 2.4 GHz / 5 GHz... -
Page 14: Faq
2 year warranty from date of purchase. The warranty is limited to the repair of replacement of the defective material insofar as this defect is a result of normal use and the device has not been damaged. Artsound is not responsible for any other costs that ensue as a result of the defect (e.g. -
Page 15: Legal Notice
The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed. ArtSound assumes no responsibility for any differences between the product mentioned in this guide and the product you... - Page 16 SPEAK SPEAK SPEAK SOUND SOUND...
