USER MANUAL

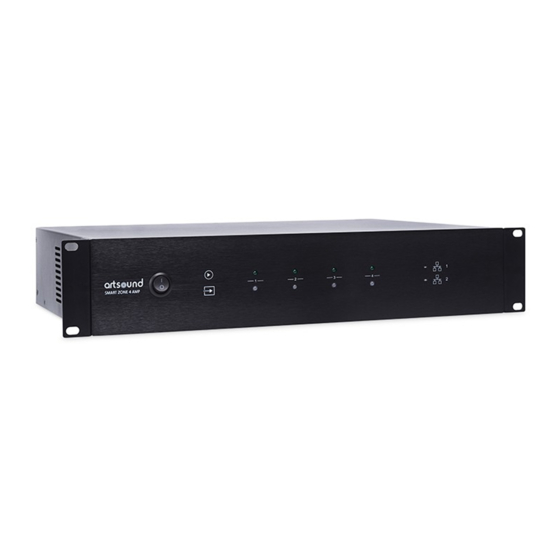

Smart Zone 4 AMP
Table of contents
Thank your for buying our Smart Zone 4 AMP multi-room system. We hope you'll enjoy it for years to come.
Please read these instructions carefully and keep this manual for later reference. .
1. WARNINGS AND SAFETY
• To prevent fire or electric shocks, the device must not be exposed to rain or humidity.
• For your own safety: to prevent electric shocks do not remove the housing.
• Do not try to repair any malfunctioning parts of the device yourself. Ask a professional expert to do this for you.
• When plugged into the mains, the device remains electrically charged even when switched off.
2. WHAT'S IN THE BOX
Check that the packaging contains the following parts:
• Smart Zone 4 AMP
• User Manual
3. INTRODUCTION
The Smart Zone 4 AMP is a multi-room system that enables you to enjoy your favorite music anywhere in your
home. Smart Zone 4 AMP contains 4 amplified audio streamers for you to use as a complete audio system. You
can easily play music from various online music services, your phone or tablet, NAS and other sources by using
the 4Stream app on your iOS or Android device.
1
1
2
2
2
2
2
3
3
3
4
4
4
4
5
5
5
6
6
7
• Rack Mount Brackets x2
• 12V/2A Power Cable
7
7
7
7
7
8
8
8
8
9
9
9
10
10
10
11
11
11
1
Advertisement
Table of Contents
Related Manuals for Artsound Smart Zone 4 AMP
Summary of Contents for Artsound Smart Zone 4 AMP
-
Page 1: Table Of Contents
9.3 Listen to online music 15. Warranty conditions Thank your for buying our Smart Zone 4 AMP multi-room system. We hope you’ll enjoy it for years to come. Please read these instructions carefully and keep this manual for later reference. . -
Page 2: Introduction
WIRELESS ROUTER: In order to use the Smart Zone 4 AMP, you will need to have a working Wi-Fi network in your home, since the control app on your mobile device needs to be in the same network as the streamer. -
Page 3: Side Panel
6. PLACING THE SMART ZONE 4 AMP Smart Zone 4 AMP is designed to fit in a 2U equipment rack for easy installation. Attach the included rack mount- ing brackets on each side of the unit if you want to mount it in a standard 19 inch equipment rack. -
Page 4: Connect To Speakers
SMART ZONE 4 AMP Stereo（ST）Mode Bridge（BR）Mode 7.1 CONNECT TO SPEAKERS Connect your stereo speaker to the speaker output using the phoenix connector. You can also switch to Bridge mode (BR) to connect to a Mono speaker. Mono 4 - 8 Ω... -
Page 5: Connect To Audio Playback Device
7.6 RS232 SERIAL PORT RS232 serial port is reserved for connection to smart home control unit to control the Smart Zone 4 AMP. You can use the Pass-Through port to connect to another Smart Zone 4 AMP for group control. The Switches on the side are used to assign a device ID for each zone to let the control unit distinguish each zone. -
Page 6: Using Smart Zone 4 Amp
SMART ZONE 4 AMP 9. USING THE SMART ZONE 4 AMP Once you have connected your Smart Zone 4 AMP to your network and have installed the 4Stream app on your mobile device, you can start playing music to different rooms. You can listen to different music in different room or the same music in all rooms in sync. -
Page 7: Listen To Online Music
9.4 SPOTIFY To use Spotify, you need to have a Spotify premium account. You will find the different zones from the Smart Zone 4 AMP in the device list in the Spotify application. 9.5 AIRPLAY The device supports Airplay1, you can choose Airplay in iOS device and play music. -
Page 8: Play Music From Optical/Coaxial In
SMART ZONE 4 AMP 9.9 PLAY MUSIC FROM OPTICAL/COAXIAL IN • Connect an external audio source to Optical in of a zone or Optical, Coaxial in of the master input source. • Choose OPT1 (zone), OPT2 (master) or COX in the 4Stream application to switch to the corresponding mode. -
Page 9: Web Player Interface
SMART ZONE 4 AMP 11 WEB PLAYER INTERFACE You can access the web player interface by entering the ip address of the device to a web browser. *You can find the device ip address by clicking on device setup icon, then select Speaker Info. -
Page 10: Radio Station Interface
SMART ZONE 4 AMP 11.3 RADIO STATION INTERFACE In the Radio Station Menu, you can add your own internet radio station if you have the URL. Once you added your own internet radio station, you can check it’s info and change the settings. -
Page 11: Specifications
2 year warranty from date of purchase. The warranty is limited to the repair of replacement of the defective material insofar as this defect is a result of normal use and the device has not been damaged. Artsound is not responsible for any other costs that ensue as a result of the defect (e.g. - Page 12 I, House Of Music NV, hereby declare that the type of radio equipment ARTSOUND complies with Direc- tive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at the following internet address: http://www.artsound.be/en/support/downloads...
