Please follow the instructions in this manual to obtain the optimum
results from this unit.
We also recommend that you keep this manual handy for future reference
Check our website for any updates of this manual: www.artsound.be

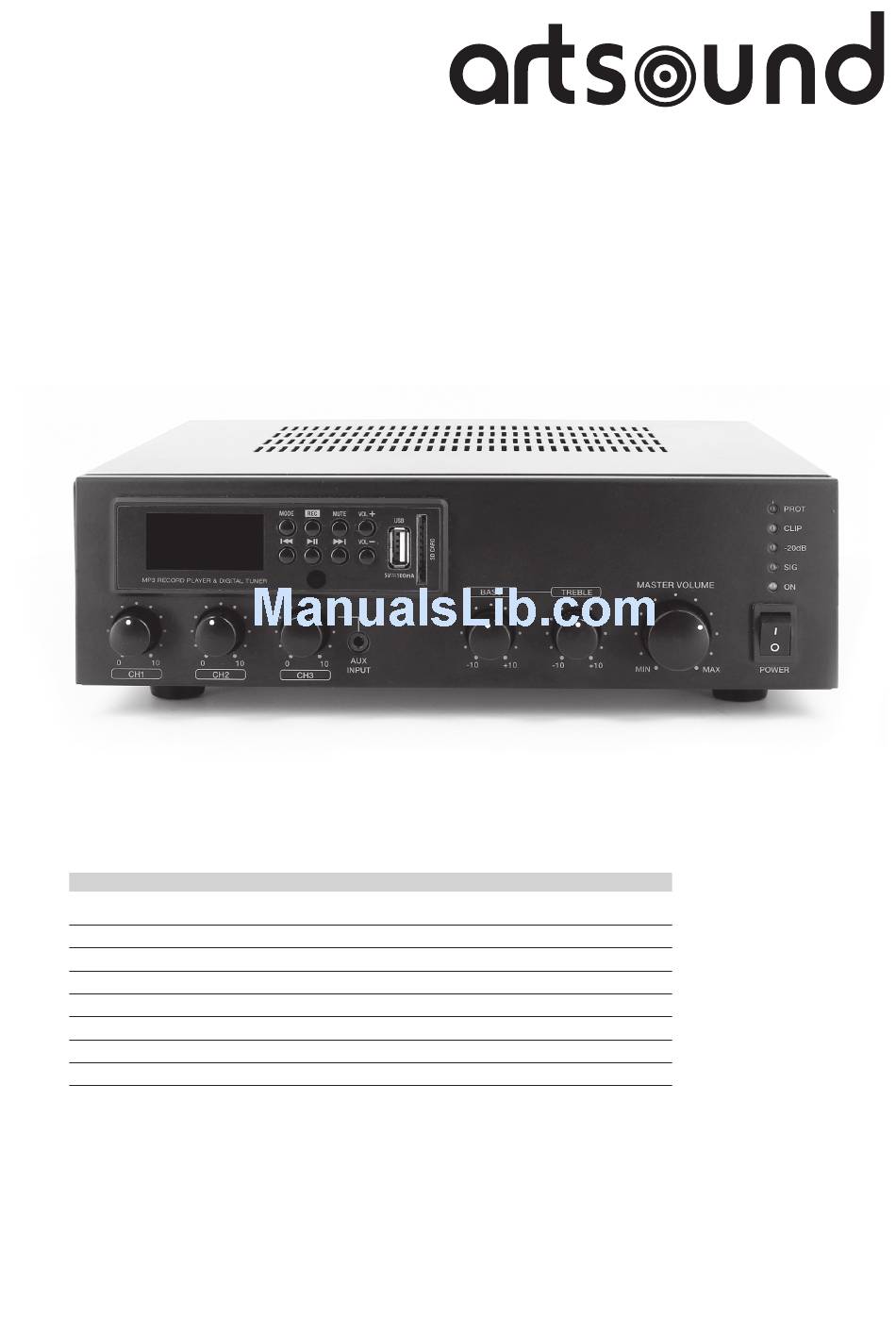

OPERATING MANUAL
MIXER ZONE AMPLIFIER
MX-60(M)
2
3
3
4
4
5
7
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-60(M) and is the answer not in the manual?

Questions and answers

Related Manuals for Artsound MX-60(M)

Summary of Contents for Artsound MX-60(M)

  • Page 1 Specifi cations Dimensional diagram Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference Check our website for any updates of this manual: www.artsound.be...

  • Page 2: Safety Precautions

    AC outlet and contact your nents inside the unit. Refer all servicing to your near- nearest ArtSound dealer. Make no further attempt to est ArtSound dealer. • Do not place cups, bowls, or other containers of liquid operate the unit in this condition as this may cause fire or electric shock.

  • Page 3: General Description

    WHEN THE UNIT IS IN USE. • Do not place heavy objects on the unit as this may • Contact your ArtSound dealer as to the cleaning. If cause it to fall or break which may result in personal dust is allowed to accumulate in the unit over a long injury and/or property damage.

  • Page 4: Nomenclature And Functions

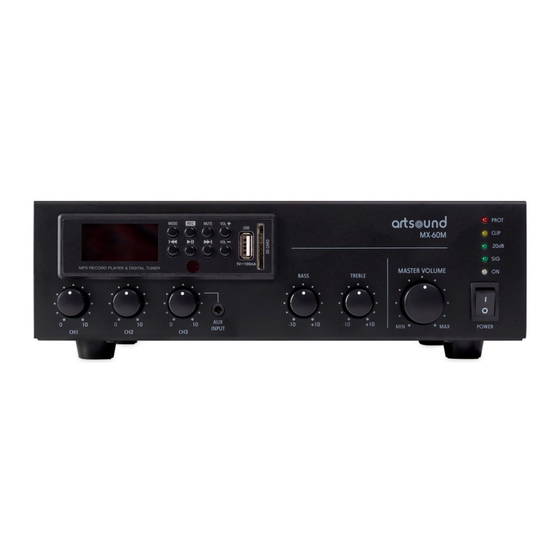

    MX-60(M) 4. Nomenclature and functions. 4.1 FRONT PANEL CHANNEL VOLUME Turn the buttons clockwise to increase volume, counter clockwise to decrease volume. BASS & TREBLE CONTROL MASTER VOLUME INDICATOR LEDS Protection, ouput level, power. ON/OFF SWITCH BUILT IN SOURCE SD/USB, FM TUNER, BT (REF. MX-60M) 9 10 Display 7 VOL+/VOL- Short press to step...

  • Page 5: Rear Panel

    MX-60(M) 4.2 REAR PANEL POWER CABLE INLET SPEAKER CONNECTOR TERMINALS (COM, 4 Ohm, 8 Ohm, 70V, 100V) CAUTION - Never use both the low impedant output (4Ω / 8Ω)and high impedant output (70V, 100V) terminals at the same time. - Do not overload the speaker outputs. The total switched power of the speakers should be lower or equal to the output power of the amplifier.
  • Page 6 MX-60(M) LINE-IN (RCA) OR MIC INPUT (6,3MM) Below an illustration of the different connection possibilities BALANCED UNBALANCED SOURCE TO DESTINATION 6,3mm BALANCED 6,3mm UNBALANCED straln rellef clamp straln rellef clamp sleeve sleeve ground/shleld ground/shleld signal sleeve sleeve rlng rlng cold For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug XLR BALANCED...

  • Page 7: Specifi Cations

    MX-60(M) 5. Technical specifications 100V MIXER-AMPLIFIER Model MX-60[M] Rated output power (THD 0,5%) 1 x 60W Loudspeaker terminals 4 Ohm / 8 Ohm / 70V / 100V Input Sensitivity for full output at maximum gain Bal. microphone input -50dB ± 3dB Unbal. AUX input -30dB ±...
  • Page 8 Designed in Europe - Made in China House of Music nv Ronse, Belgium +32 9 380 81 80 www.artsound.be Ontdek het volledige aanbod op www.artsound.be   +32 9 386 12 35 @Art_Sound   Découvrez la gamme complète sur www.artsound.be ...
