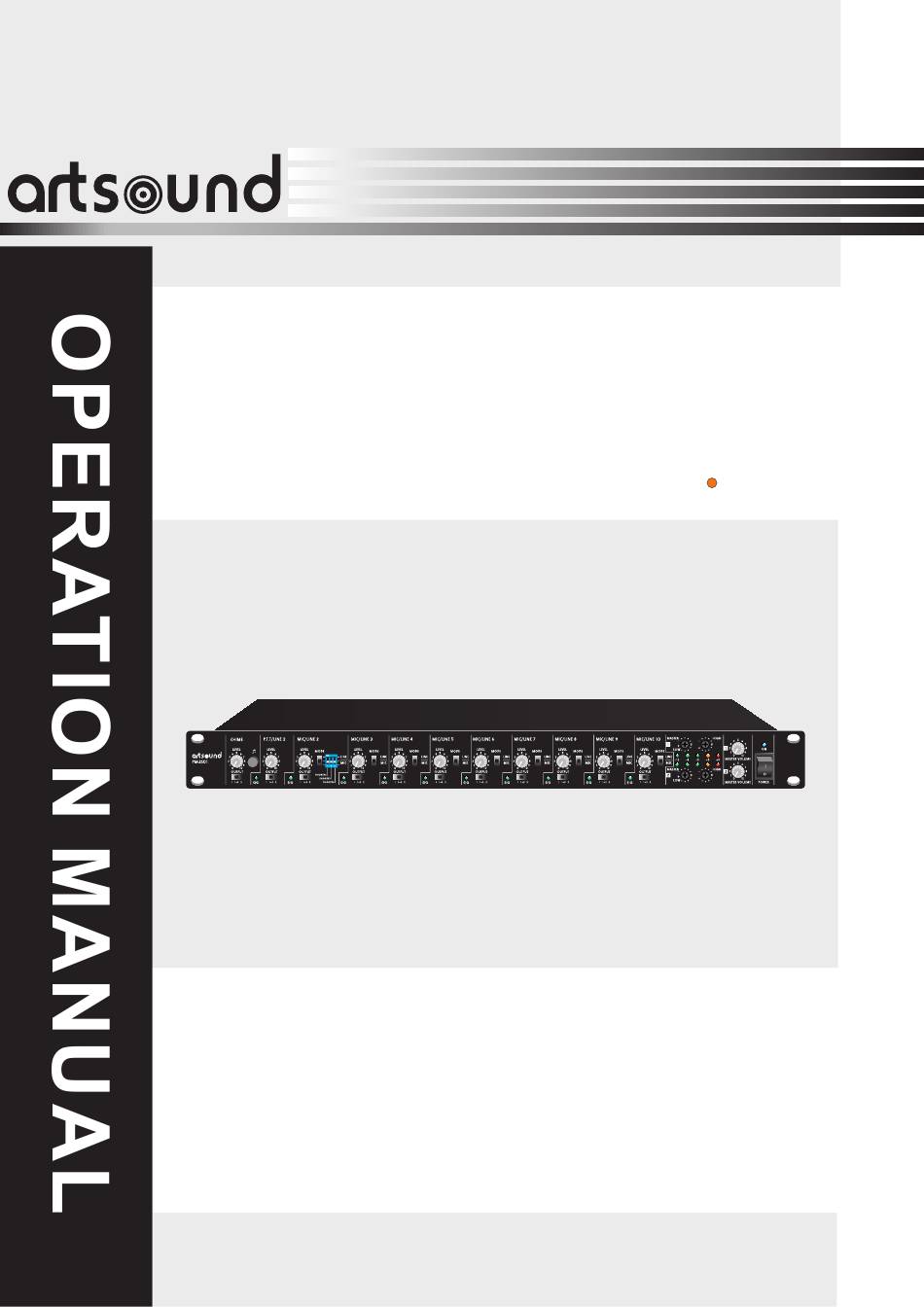

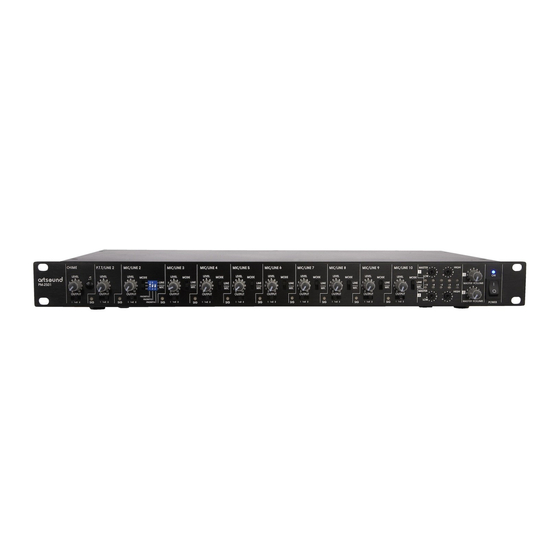

- Page 1 PUBLIC ADDRESS SYSTEM PM-2S01 PRE AMPLIFIER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel......................7 5. APPLICATIONS ...................... 8 6.SPECIFICATIONS ....................9 7.BLOCK DIAGRAM ....................10 8.DIMENSIONAL DIAGRAM ................... 11... -
Page 3: Safety Precautions
AC outlet and contact your nearest artsound dealer. Make no Use the unit only with the voltage specified on the further attempt to operate the unit in this condition unit. - Page 4 When removing the power cord, be sure to hold its plug to pull. Contact your artsound dealer as to the cleaning. If dust is allowed to accumulate in the unit over Do not block the ventilation slots in the unit's cover.
-
Page 5: General Description
2. GENERAL DESCRIPTION The PM-2S01 series is equiped with pre-amplifier. They are designed to suit all PA system application in schools. Home. Offices and stores. 3. FEATURES CHIME SIGNAL 1 Selective two tone/four tone chime(Internal setting) 2 Automatic priority 3 Permissible external chime remote and p.t.t remote... -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL PRIORITY 2~4 1. CHIME When you switch “on”, priority is Pressing chime switch, chime signal activated and will closed input 5~10. will be activated as a pre signal. You 4. INPUT 5~10 CONTROLS can adjust level. -
Page 7: Rear Panel
NOMENCLATURE AND FUNCTIONS 4.2 REAR PANEL 14 15 2--OUTPUTS--1 MIC INPUTS MIC/LINE INPUTS LINE 10 LINE 9 LINE 8 LINE 7 PRIORITY CHIME LED PWR MIC INPUT ~230V 50Hz CHIME P.T.T 1 POWER CAUTION:RISK OF ELECTRIC SHOCKDO NOT OPEN REMOTE T1AL 250V AVIS:RISQUE DE CHOC ELECTRIQUE -NE PAS OUVRIR 8. -
Page 8: Applications
5. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 9: Specifications
6. SPECIFICATIONS PRE-AMPLIFIER MODEL PM-2S01 MIC/LINE: -5dBu(2.45mV)/5Kohms BAL -10dBu(245mV)/5Kohms BAL INPUT SENSITIVITY/IMPEDANCE LINE RCA IN:-10dBu(245mV)/10Kohms UNBAL MASTER 1,2:NOR +4dBu(21.23V)/200ohms BAL OUTPUT LEVEL/IMPEDANCE REC: NOR 0dBu(0.775mV)/10KΩ UNBAL MASTER 1,2:NOR +4dBu(21.23V)/200ohms BAL OUTPUT LEVEL/IMPEDANCE REC: NOR 0dBu(0.775mV)/10KΩ UNBAL Less Than -0.5dB(20Hz~20KHz) FREQUENCY RESPONSE... -
Page 10: Block Diagram
7. BLOCK DIAGRAM... -
Page 11: Dimensional Diagram
8. DIMENSIONAL DIAGRAM UNIT:mm 2--OUTPUTS--1 MIC INPUTS MIC/LINE INPUTS LINE 10 LINE 9 LINE 8 LINE 7 PRIORITY CHIME LED PWR MIC INPUT ~230V 50Hz CHIME P.T.T 1 POWER CAUTION:RISK OF ELECTRIC SHOCKDO NOT OPEN REMOTE T1AL 250V AVIS:RISQUE DE CHOC ELECTRIQUE -NE PAS OUVRIR UNIT:mm Over Over... - Page 12 PUBLIC ADDRESS SYSTEM VersionV0.1...
