Ruckus Wireless E510 Quick Setup Manual

E510 Access Point
USB Module
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how
to field-install the Ruckus Wireless E510 access point (AP) USB
Module (Ruckus Part #902-2003-0000). For detailed information
on planning the installation, performing a site survey and
operating the E510, refer to the Ruckus Wireless Outdoor Access
Point User Guide, available at https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm (3"-5")
drip loop in any cable that is attached to the AP or the building.
This will prevent water from running along the cable and
entering the AP or the building where the cable terminates.
CAUTION! Be sure that grounding is available and that it meets
local and national electrical codes. For additional lightning
protection, use lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! Ruckus Wireless strongly recommends that you
wear eye protection before mounting the AP.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-71694-001 Rev B
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
• Release Notes and other user documentation are available at
http://support.ruckuswireless.com/documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Open source information is available at
opensource.ruckuswireless.com.
• Software license and limited warranty information are available
at http://support.ruckuswireless.com/warranty.
Before deploying your Ruckus Wireless Access Point, verify that
all items listed in Package Contents are included in the package.
If any item is damaged or missing, notify your authorized
Ruckus Wireless sales representative. Also, make sure that you
have the required hardware and tools.
Package Contents - E510 USB Module
The E510 USB Module package includes all of the following:
• E510 USB Module
• This Quick Setup Guide
Assembling the USB Module
1. Remove the four M2.5 Torx screws with flat/lock washers
using a Torx screwdriver.
2. Insert the USB dongle into the USB Module.
NOTE: The maximum dimensions of the USB dongle that
can be inserted are: 6 cm x 2 cm x 1.1 cm.
3. Replace the screws and tighten to 6 in-lbs. (0.678 Nm). Make
sure the sealing gasket is properly installed to ensure proper
IP67 waterproof protection.
https://
(https://
https://

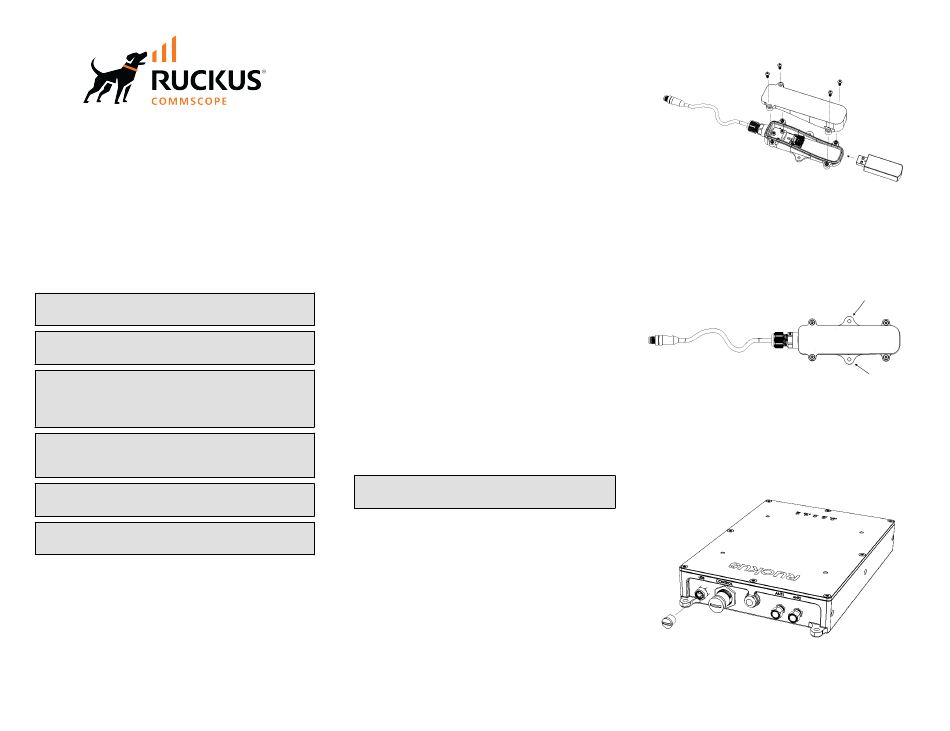

FIGURE 1 Assembling the USB Module
http://
http://
Mounting the USB Module
Mount the USB Module to a flat surface using the two mounting
flanges and customer-supplied mounting hardware.
FIGURE 2 Flat surface mounting flanges
Connecting the USB Module to the AP Module
1. Remove the USB port cap on the AP Module using a flat
screwdriver.
FIGURE 3 Remove the USB port cap
2. Connect the USB Module cable to the AP Module using the
M8 connector.
