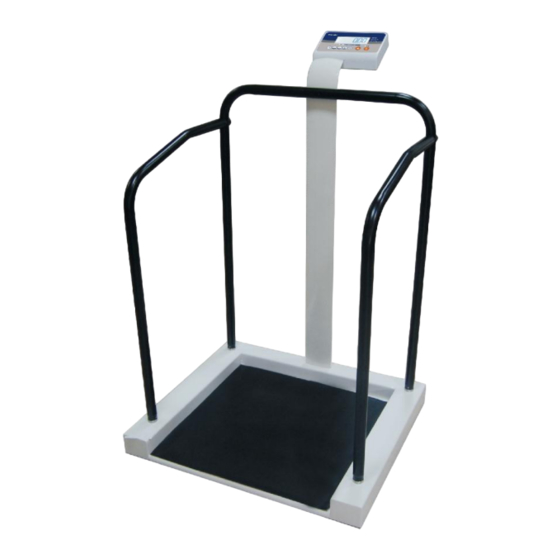

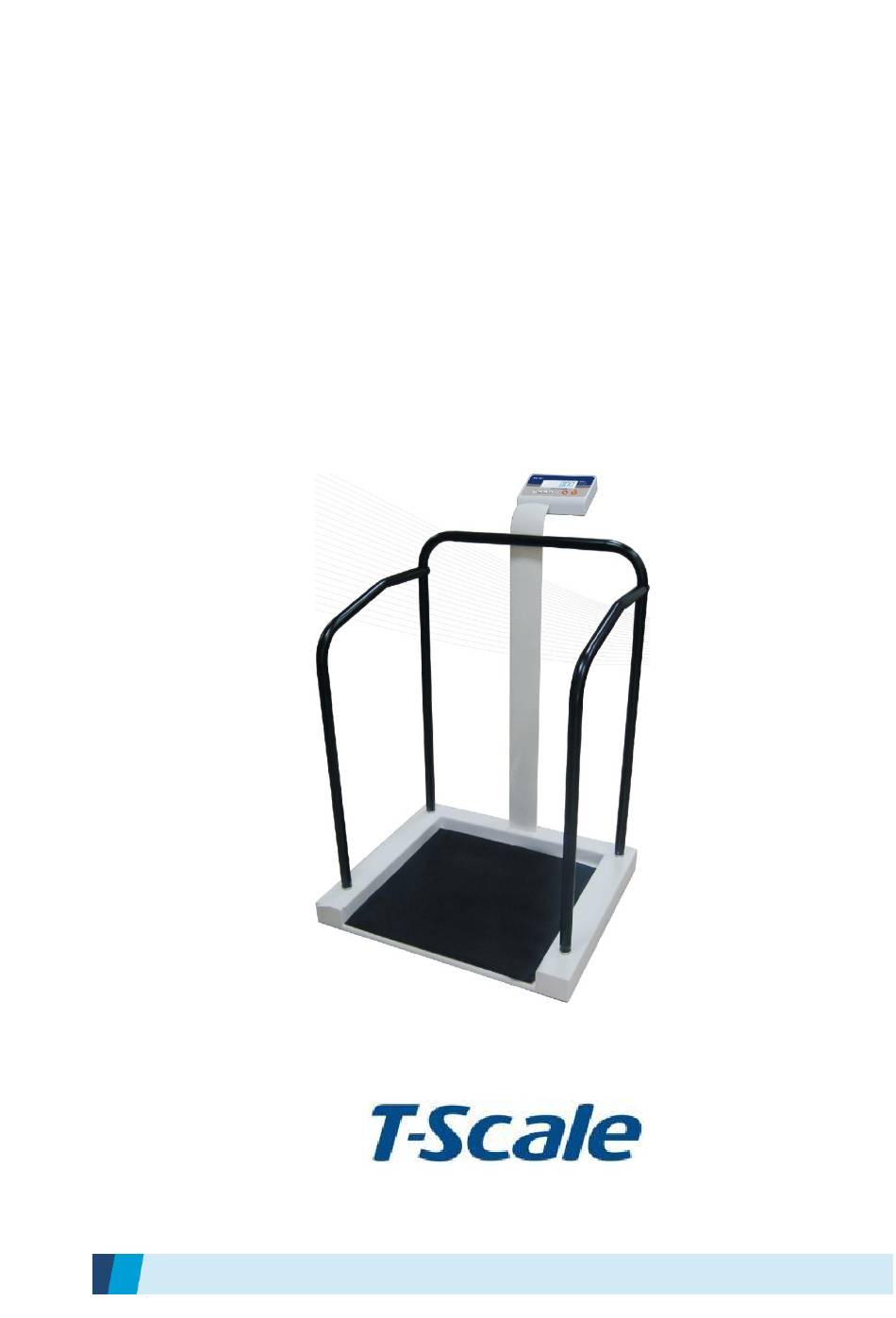

- Page 1 M701 HANDRAIL SCALE QUICK INSTALLATION GUIDE...
-
Page 2: Required Tools
REQUIRED TOOLS Allen Key Star Screw Driver... - Page 3 1. Insert Load cell cable correctly in to the platform Pole Slot Note: Please taking care load cell cable while handling platform and Indicator Pole.
- Page 4 2. Insert Indicator Pole into the Platform slot correctly, Please insert load cell cable Ensure platform holes correctly while fixing pole matching as per the pole hole 3. Fix Indicator Pole to the Platform, Fix screws by using Allen...
- Page 5 4. Fix 4 nos handrail locks into the four corners of the Platform frame.
- Page 6 5. Fix handrails to the platform Ensure holes be there in the as per direction Insert Center rail to the locks...
- Page 7 Insert Handrail to the locks Fix Hand rails by using allen screws and allen key...
- Page 8 6. Fix hand rails to the center rail Screw and Washer’s Insert Screw and washers...
- Page 9 Tighten screw to fix the rails Alain Hand rail and center rail Fix both of the Center rode sides...
- Page 10 7. Fix center rail to the Pole Tighten screw to the Pole 8. Finished Handrail scale Installation...
