Summary of Contents for FONESTAR FCS-10100D

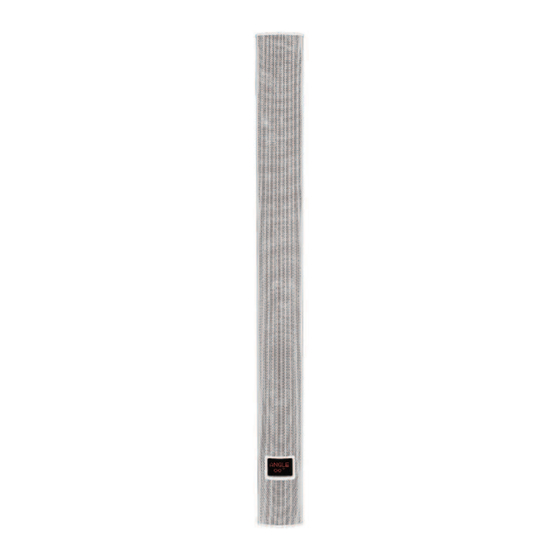

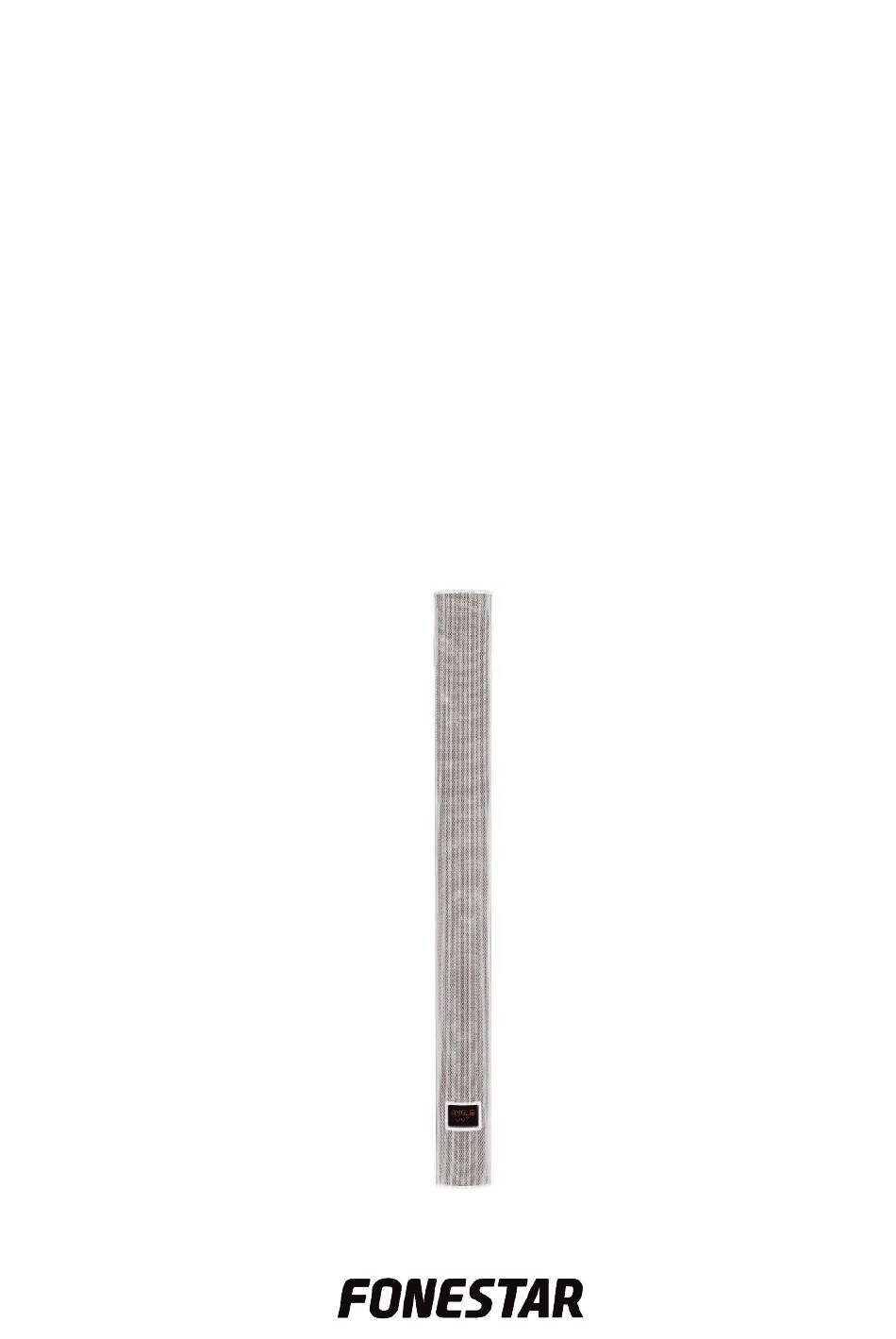

- Page 1 FCS-10100D, FCS-10150D COLUMN SPEAKER WITH CONFIGURABLE STEERING PATTERN INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. - Page 4 D multichannel amplifier. High quality audio and high s/n ratio. Configuration using remote control. Suitable for PA installations, professional audio or PAVA systems. CONTROLS AND FUNCTIONS COLUMN SPEAKERS FCS-10100D, FCS-10150D 1.- Information display. 2.- Reserved technical service. 3.- SIGNAL OUTPUT: balanced line output 300 mV, male XLR connector.
-
Page 5: Remote Control
REMOTE CONTROL 1.- Switch on/put the column speaker in standby mode. 2.- Activate/deactivate the audio output. 3.- V-, V+: device volume controls. 4.- S: line input sensitivity adjustment. Press once to show the value of this parameter in the information display. Press and hold to vary the sensitivity (0 dB, -6 dB or -10 dB). - Page 6 CONNECTION - Connect the mixer or audio source output to the column speaker’s input SIGNAL INPUT. - If you have more than one column speaker, connect the SIGNAL OUTPUT of the first column to the SIGNAL INPUT of the next. - Should you wish to connect a 100 V line amplifier, connect the 100 V output of the amplifier to the column terminals 100 V SIGNAL IN, respecting the polarity.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS FCS-10100D FCS-10150D CHARACTERISTICS Column speaker with configurable steering pattern. Class D 10-channel amplifier. Digital signal processor (DSP). Input for connecting to PA system. Configuration using remote control. Protected against accidental programming. Uniform dispersion in the whole listening area. -
Page 8: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out This document adds information, and never decreases the consumers’...
