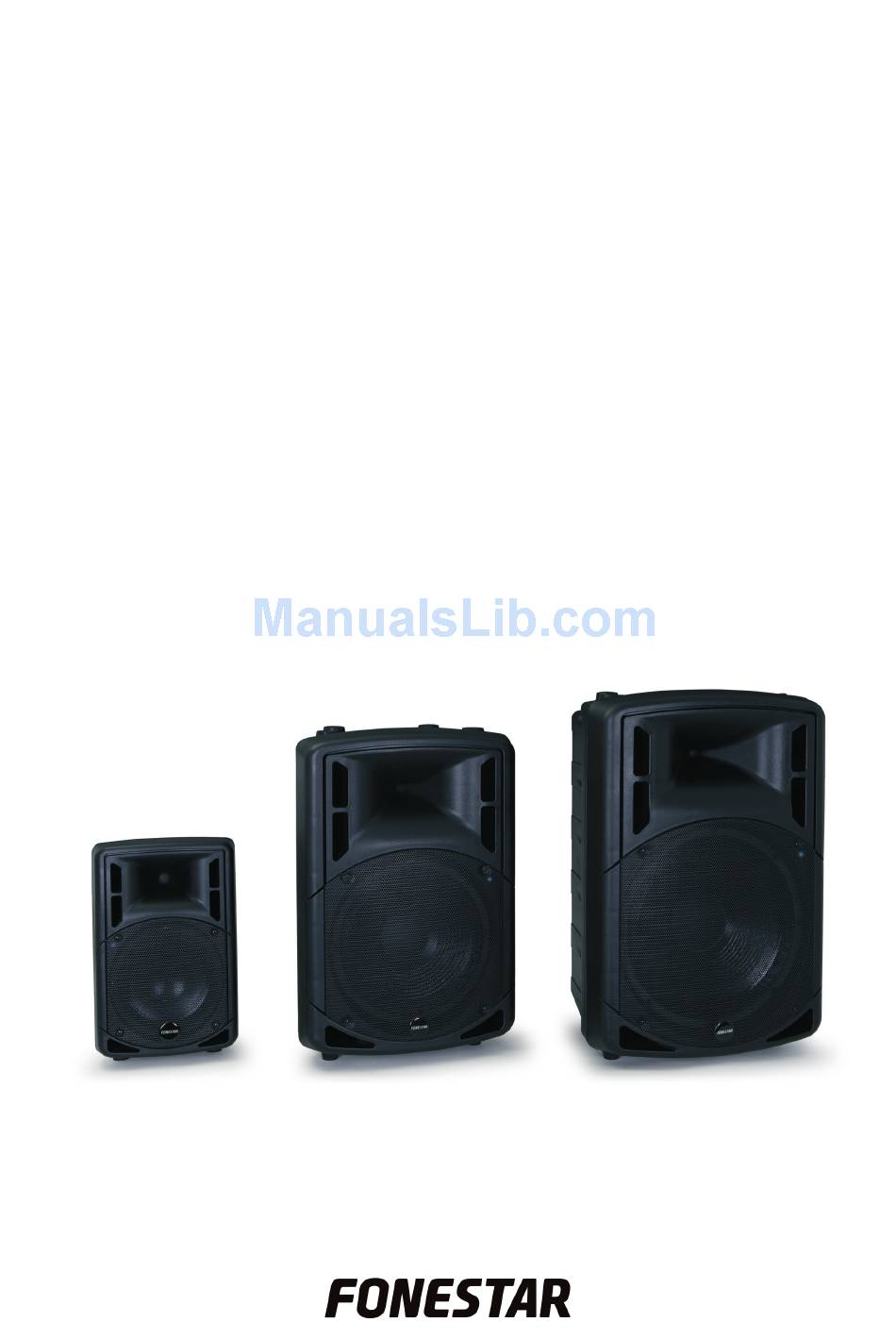

- Page 1 ASB-8105, ASB-12300, ASB-15300 BIAMPLIFIED LOUDSPEAKER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions

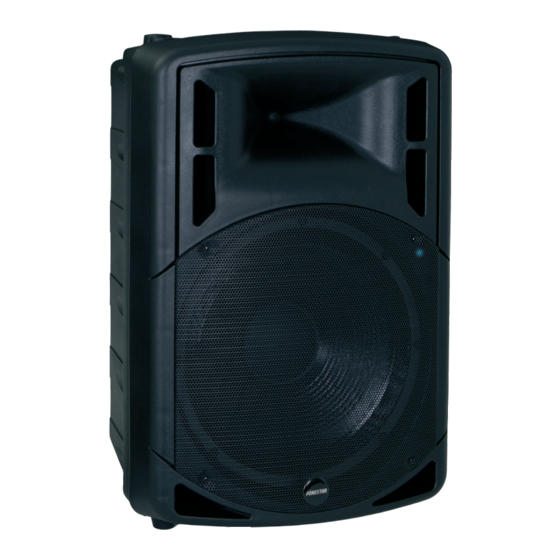

DESCRIPTION - Biamplified loudspeaker with injection-moulded, extra-resistant ABS case. - Woofer protected by front metal grille. - Hole in the base for 35 mm tube. CONTROLS AND FUNCTIONS ASB-8105 1.- GND LIFT: selector for disconnecting the earth mass from the equipment to avoid mass loops when connecting the audio source. - Page 5 ASB-12300, ASB-15300 1.- LED power indicator. It lights up green when the loudspeaker is on. 2.- INPUT: balanced line input, combo connector (XLR and 6.3 mm stereo jack). 3.- OUTPUT: balanced line level output, male XLR connector. 4.- SIGNAL LIMIT: LED excess signal indicator. It lights up red when there is a surge or excess power peaks.
- Page 6 CONNECTION - Before connecting the power supply, make sure that the volume control is at its minimum and the POWER switch is off. - Connect the equipment power supply cable to the mains. - Connect a line level signal, from a mixer output, CD player, etc., to the speaker input. - Switch the loudspeaker on using the POWER switch on the back panel.
-
Page 7: Technical Specifications
CARACTERÍSTICAS Pantalla acústica biamplificada con caja de inyección ABS extra resistente. Woofer protegido con rejilla metálica frontal. Asas de transporte (mods. ASB-12300 y ASB-15300), patas para suelo y forma de monitor. Orificio en la base para tubo de 35 mm. - Page 8 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
