Summary of Contents for FONESTAR ASB-880U

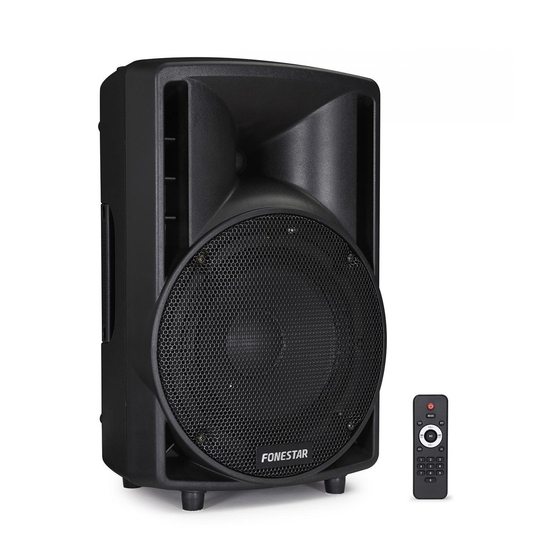

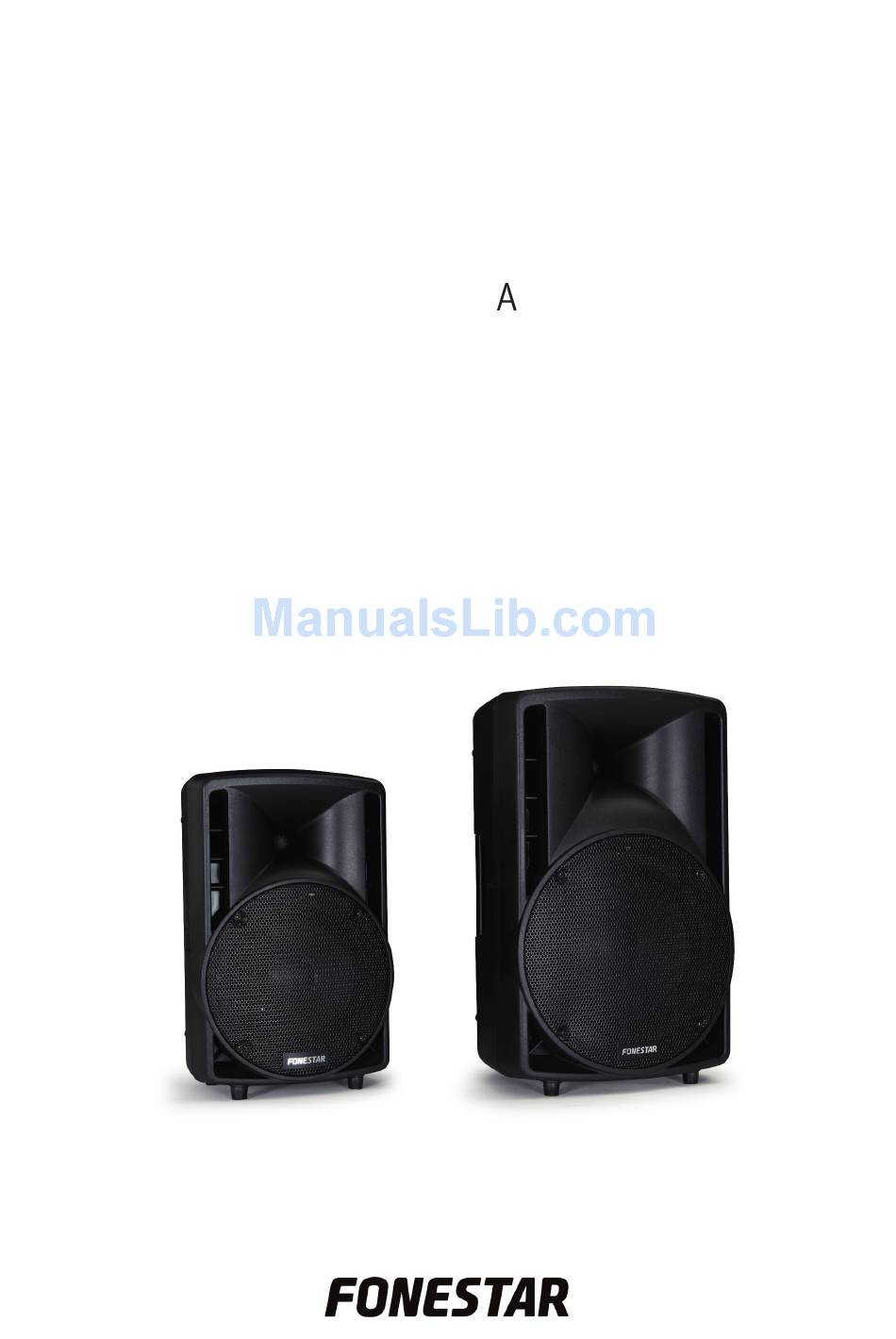

  • Page 1 ASB-880U, ASB-10120U SB-3608, SB-3611 LOUDSPE KER INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
  • Page 4 DESCRIPTION THIS MANUAL CORRESPONDS TO THE FOLLOWING MODELS: ASB-880U, ASB-10120U - Biamplified loudspeaker with extra-resistant PP injection-moulded case. - USB/SD/MP3 player with remote control. - Output for passive loudspeaker. - Woofer protected by front metal grille. - Carrying handles, suspension points, floor supports and monitor shaped.
  • Page 5 13.- AC SELECT: power supply voltage selector 115/230 V AC. Note: in the model ASB-880U this selector is internal. 14.- POWER: on/off switch for the loudspeaker. 15.- AC socket. To connect the mains cable.
  • Page 6: Remote Control

    REMOTE CONTROL 1.- STOP: on/off button for the USB/SD/MP3 player. 2.- MODE: allows selection of the audio source between the USB storage device or the SD memory card. 3.- MUTE: activates/deactivates the audio output. 4.- 7/8: allows selection of the previous/next audio track on the USB/SD/MP3 player.
  • Page 7 SB-3608, SB-3611 CONTROLS AND FUNCTIONS INPUT: 4-contact loudspeaker connector. The loudspeaker line must be connected in the following way: Terminal 1+ = positive Terminal 1- = negative Loudspeaker connector seen from the side of the connection terminal OUTPUT: 4-contact loudspeaker connector, to connect more biamplified loudspeakers in cascade. - 7 -...
  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS ASB-880U ASB-10120U CHARACTERISTICS Biamplified loudspeaker with extra-resistant, PP injection-moulded case. USB/SD/MP3 player with remote control. Output for passive loudspeaker. Woofer protected by front metal grille. Monitor shaped loudspeaker with carrying handles, suspension points and floor supports. Hole in the base for a 35 mm tube.
  • Page 9 SB-3608 SB-3611 CHARACTERISTICS Loudspeaker with extra-resistant, PP injection-moulded case. Woofer protected by front metal grille. Monitor shaped loudspeaker with carrying handles, suspension points and floor supports. Hole in the base for 35 mm tube. POWER 200 W maximum, 100 W RMS 300 W maximum, 150 W RMS LOUDSPEAKERS 1 x 8”...
  • Page 10: Warranty

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
  • Page 11 - 11 -...
  • Page 12 www.fonestar.com...

This manual is also suitable for:

Asb-10120uSb-3608Sb-3611
