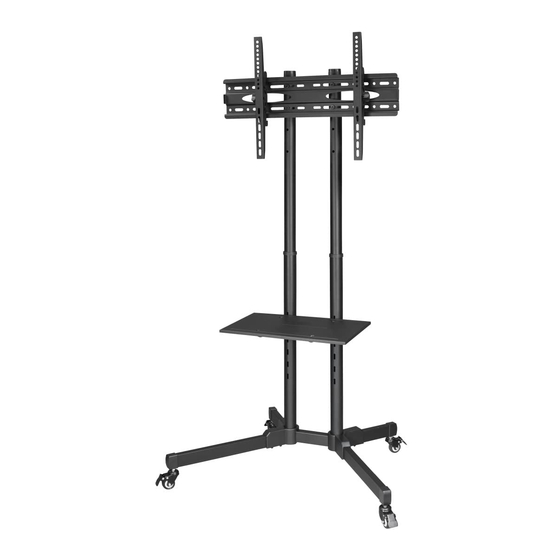

- Page 1 220874 TV TROLLEY G Operating Instructions...
-
Page 2: Table Of Contents
Contents 1. Explanation of warning symbols and notes ......3 2. Package contents ..........4 3. -
Page 3: Explanation Of Warning Symbols And Notes
G Operating Instructions Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, pass on the illustrated quick start guide and the safety instructions in printed form to the new owner. -
Page 4: Package Contents
2. Package contents • TV bracket (1x) • Fixing rods (2x) • Shelf (1x) • Mounting kit • Safety instructions, illustrated quick start guide Mounting kit M8x70 (x8) M8x20 (x4) M8x60 (x4) M8x30 (x4) M10x35 (x2) M8x50 (x4) M10 (x2) M4x12 (x4) M8 (x4) M4x20 (x4) -
Page 5: Additionally Required Tools
3. Additionally required tools Note Never install the bracket alone. Seek assistance and help! 4. Safety instructions Warning • Given the multitude of terminal devices available on the market, the supplied mounting kit is unable to cover every option. • It occasionally happens that the screws for attaching the device to the bracket are too long. •... -
Page 6: Application And Specifications
5. Application and specifications • The bracket is intended only for use inside buildings. • Use the bracket only for the intended purpose. 6. Preparation and assembly Note • Never install the bracket alone. Seek assistance and help! • Different end devices have different connections for cabling and other devices. Before commencing the installation, check whether the necessary connections can still be reached after mounting. -
Page 7: Assembly Preparation
6.1 Assembly preparation 6.1.1 Assembling the feet • Remove the plastic cover from the connecting piece. • First fit the feet to the connecting piece. Please note that the two shorter feet must be fitted at the rear and the two longer feet at the front of the connecting piece. •... -
Page 8: Extension Of The Fixing Rods
6.1.2 Extension of the fixing rods • First press in the button as shown above and pull out the inner segment of the rod to extend it. • Now attach the cable managers [F1] to the openings provided. 6.1.3 Mounting the fixing rods •... -
Page 9: Mounting The Mounting Plate
6.1.4 Mounting the mounting plate • Position the mounting plate [H1] at the desired height*. Use a spirit level to check the horizontal alignment. • Fix the plate as shown above using the screws [A2], washers [A5] and nuts [A6]. Use an Allen key [G1] and hexagon ring spanner [G3] for this assembly step. -
Page 10: Fitting The Shelf
6.1.5 Fitting the shelf 1. Attach the two corresponding support elements to the underside of the shelf as shown above. 2. Select the desired height for positioning the shelf and anchor it to the fixing rods by hooking it into the insertion holes. -
Page 11: Mounting On The Tv Set
6.2 Mounting on the TV set Note • Given the multitude of terminal devices structures available on the market, we cannot describe all possible mounting options here. • Please ensure that the bracket lays flat and evenly on the back of the television. •... -
Page 12: Mount The Vesa Arms On The Back Of The Tv Set
6.2.1 Mount the VESA arms on the back of the TV set C1, C2, D1, D2, D3, D4, E1, E2 B2, B3 Flat TV back Curved TV back C1, D1, D4, E1 C2, D2, D4, E2 D3, D4 * You do not need a washer for the D-screws M8x50 Ø... -
Page 13: Mounting The Tv On The Tv Trolley
6.3 Mounting the TV on the TV trolley Get support and help from other people for the following assembly step. 1. Make sure that the locking screw is not screwed in so that the television can be hung on the bracket with the VESA arms fitted. -
Page 14: Cable Management
6.4 Cable management Guide the cables through the fixing rods as shown in the diagram above. -
Page 15: Adjustment & Maintenance
7. Adjustment & maintenance Note Never adjust the bracket alone. Seek assistance and help! Note - tiltable / full-motion brackets • Ensure that no electrical cables are crushed or damaged during installation or adjustment. • During adjustment, ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded. -
Page 16: Setting Options
8. Setting options – / + 10° TV 3x Shelf 5x Tilting height-adjustable height-adjustable • To adjust the tilt angle, open the handle screws slightly, set the required tilt, and then secure them again. The handle screws are located on the outside of the VESA arms. •... -
Page 17: Technical Data
9. Technical data Screen diagonal: 81.0 - 191.0 cm (US: 32" - 75") Wall bracket load capacity: 40 kg Shelf load capacity: 10 kg Tilt: -/+10° (device-dependent) Shelf dimensions: 48.5 x 29.5 cm Height: 154.7 cm Compliant with VESA standard: 200 x 200 200 x 300 300 x 100... -
Page 18: Warranty Disclaimer
In the event of a warranty claim, please contact us at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany, enclosing proof of purchase. You are also welcome to contact us at www.hama.de or by phone on...
