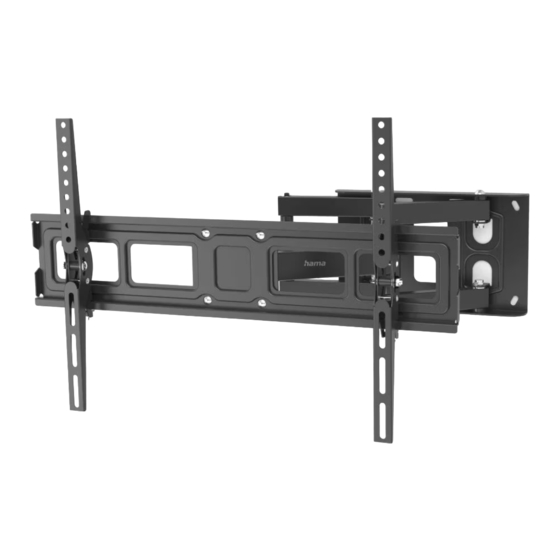

Summary of Contents for Hama 00 220831

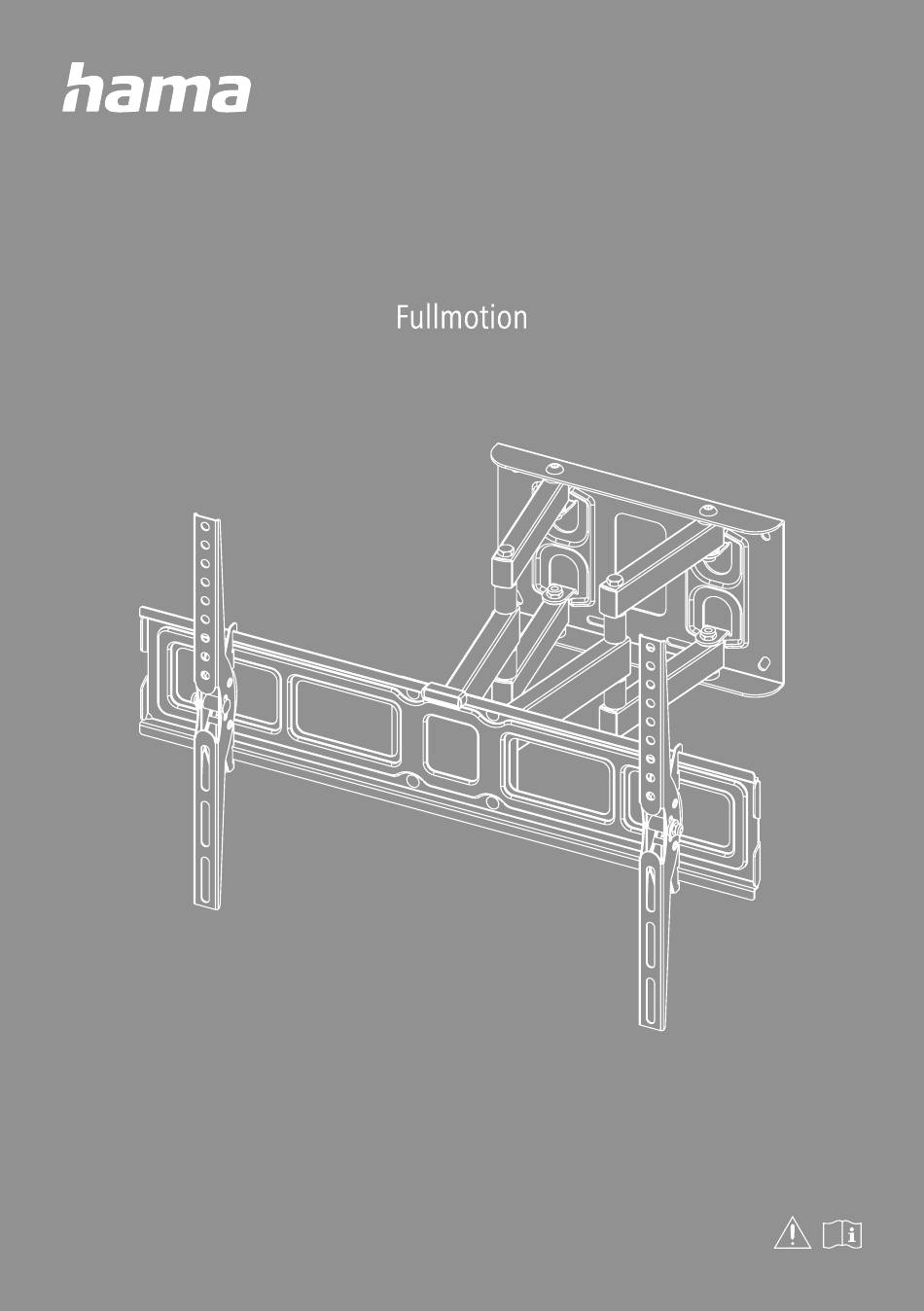

  • Page 1 220831 TV WALL BRACKET G Operating Instructions...
  • Page 2: Table Of Contents

    Contents 1. Explanation of warning symbols and notes ......3 2. Package contents ..........4 3.
  • Page 3: Explanation Of Warning Symbols And Notes

    G Operating Instructions Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, pass on the illustrated quick start guide and the safety instructions in printed form to the new owner.
  • Page 4: Package Contents

    2. Package contents • TV wall bracket • VESA arms (2x) • Drilling template • Cable ties • Mounting kit • Safety instructions, illustrated quick start guide Mounting kit 8x60 (x4) M6x20 (x4) Ø10x60 (x4) M8x12 (x4) M8 (x4) M8x20 (x4) M6 (x4) M8x30 (x4) Ø8x10 (x4)
  • Page 5: Safety Instructions

    4. Safety instructions Warning • Given the multitude of terminal devices and wall structures available on the market, the supplied mounting kit is unable to cover every option. • It occasionally happens that the screws for attaching the device to the bracket are too long. •...
  • Page 6: Preparation And Assembly

    6. Preparation and assembly Note • Never install the bracket alone. Seek assistance and help! • Different end devices have different connections for cabling and other devices. Before commencing the installation, check whether the necessary connections can still be reached after mounting. •...
  • Page 7: Mounting On The Wall

    6.1 Mounting on the wall 6.1.1 Preparing the intended mounting surface Get support and help from other people for the following assembly steps. 10 mm 70 mm Ø 10 mm • Use the enclosed drilling template to determine the desired position of your bracket. Use a spirit level to check the horizontal and vertical alignment of the bracket on the wall.
  • Page 8: Attaching The Wall Bracket

    6.1.2 Attaching the wall bracket • Attach the wall bracket to the wall as shown above using the enclosed mounting material ([A2] plug, [A3] M8 washer, [A1] 8x60 mm screw and the [F2] spirit level).
  • Page 9: Mounting On The Tv Set

    6.2 Mounting on the TV set Note • Given the multitude of terminal devices structures available on the market, we cannot describe all possible mounting options here. • Please ensure that the bracket lays flat and evenly on the back of the television. •...
  • Page 10: Mounting The Vesa Plate On The Back Of The Tv Set

    6.2.1 Mounting the VESA plate on the back of the TV set C1, C2, B2, B3 D1, D2, D3, D4, E1, E2 Flat TV back C1, D1, D4, E1 M8x50 Ø 8x5 M8x45 (D4) Curved TV back C2, D2, D4, E2 D3, D4 You do not need a washer for the D-screws •...
  • Page 11: Mounting The Tv On The Wall Bracket

    6.3 Mounting the TV on the wall bracket Get support and help from other people for the following assembly step. During installation, the joints must be adjusted so that lateral movement of the TV set is possible. • Hang the TV set with the mounted VESA arms on the wall bracket as shown above. •...
  • Page 12: Adjustment & Maintenance

    7. Adjustment & maintenance Note Never adjust the bracket alone. Seek assistance and help! Note - tiltable / full-motion brackets • Ensure that no electrical cables are crushed or damaged during installation or adjustment. • During adjustment, ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded.
  • Page 13: Technical Data

    9. Technical data Maximum load: 50 kg Screen diagonal: 81.0 - 213.0 cm (US: 32" - 84") Depth: 8.4 cm - 42.0 cm Tilt: -/+15° (device-dependent) Swivel range: Up to 150° (depending on device) at 3 joints Dimensions of the wall mounting plate: 29.7 x 17.8 cm Compliant with VESA standard: 100 x 100...
  • Page 14: Warranty Disclaimer

    In the event of a warranty claim, please contact us at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany, enclosing proof of purchase. You are also welcome to contact us at www.hama.de or by phone on...
