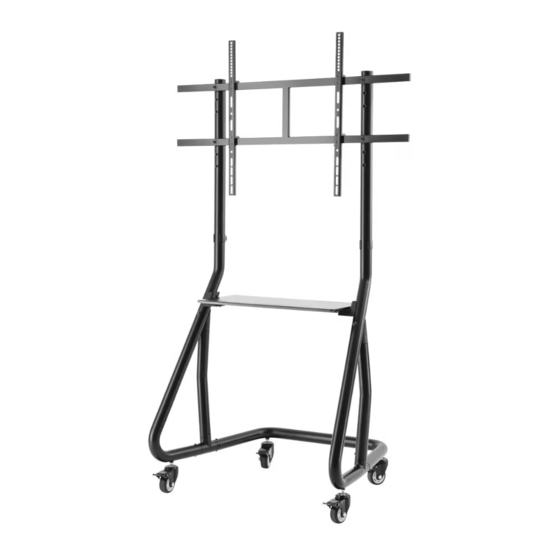

- Page 1 220875 TV TROLLEY G Operating Instructions...
-
Page 2: Table Of Contents
Contents 1. Explanation of warning symbols and notes ......3 2. Package contents ..........4 3. -
Page 3: Explanation Of Warning Symbols And Notes
G Operating Instructions Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, pass on the illustrated quick start guide and the safety instructions in printed form to the new owner. -
Page 4: Package Contents
2. Package contents • TV trolley (1x) • Cable clips (3x) • Shelf (1x) • Mounting kit • Safety instructions, illustrated quick start guide Mounting kit M8x35 (x6) M6x20 (x4) M8x15 (x1) M8x12 (x4) M6x10 (x6) M8x20 (x4) M6x16 (x2) M8x30 (x4) M8 (x4) M8x50 (x4) -
Page 5: Additionally Required Tools
3. Additionally required tools Note Never install the bracket alone. Seek assistance and help! 4. Safety instructions Warning • Given the multitude of terminal devices available on the market, the supplied mounting kit is unable to cover every option. • It occasionally happens that the screws for attaching the device to the bracket are too long. •... -
Page 6: Application And Specifications
5. Application and specifications • The bracket is intended only for use inside buildings. • Use the bracket only for the intended purpose. 6. Preparation and assembly Note • Never install the bracket alone. Seek assistance and help! • Different end devices have different connections for cabling and other devices. Before commencing the installation, check whether the necessary connections can still be reached after mounting. -
Page 7: Assembly Preparation
6.1 Assembly preparation 6.1.1 Fastening the shelf supports • Attach the shelf supports [F1] and [F2] to the two feet using the screws [A1]. Use the Allen key [E2] for this. -
Page 8: Assembling The Feet
6.1.2 Assembling the feet • Attach the lower connecting piece by placing it on the two feet. Make sure that the shelf supports are facing inwards. Use the screws [A3] and the enclosed Allen key [E1] for fastening. 6.1.3 Attaching the swivel castors Attach the castors [G] to the underside of the TV trolley and secure them using the enclosed spanner [E3]. -
Page 9: Mounting The Mounting Plate
6.1.4 Mounting the mounting plate A5 A1 • Position the mounting plate at the desired height*. Use a spirit level to check the horizontal alignment. • Fix the plate as shown above with the screws [A1] and washers [A5]. Use an Allen key [E2] for this assembly step. -
Page 10: Assembly Of The Shelf
6.1.5 Assembly of the shelf 1. Place the shelf on the holders provided. 2. Secure the attached shelf as shown above using [A4] screws and the enclosed Allen key [E1]. -
Page 11: Mounting On The Tv Set
6.2 Mounting on the TV set Note • Given the multitude of terminal devices structures available on the market, we cannot describe all possible mounting options here. • Please ensure that the bracket lays flat and evenly on the back of the television. •... -
Page 12: Mount The Vesa Arms On The Back Of The Tv Set
6.2.1 Mount the VESA arms on the back of the TV set C1, C2, D1, D2, D3, D4 B2, B3 Flat TV back C1, D1, D4 Curved TV back C2, D2, D4 D3, D4 M8x50 Ø 8x5 M8x45 (D4) • Mount the VESA arms [I] to the back of your TV set. •... -
Page 13: Mounting The Tv On The Tv Trolley
6.3 Mounting the TV on the TV trolley Get support and help from other people for the following assembly step. • Hang the TV set with the mounted VESA arms on the bracket as shown above. • Turn the locking lever upwards to fix the TV to the bracket. - Page 14 You now have two options for securing the TV to the bracket: 1. Secure the TV set by fixing the locking lever with the screw [A2]. Use the Allen key [E2] for this. 2. Secure the TV with a padlock (optional). * The shackle diameter of the padlock must be 4 to 6 mm.
-
Page 15: Cable Management
6.4 Cable management Attach the enclosed cable clips [H] to the support leg of the bracket. Guide the cables through the clips as shown above. -
Page 16: Adjustment & Maintenance
7. Adjustment & maintenance Note Never adjust the bracket alone. Seek assistance and help! Note - tiltable / full-motion brackets • Ensure that no electrical cables are crushed or damaged during installation or adjustment. • During adjustment, ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded. -
Page 17: Setting Options
8. Setting options TV 3x height-adjustable • To change the height of the TV set, the TV set including the support arms must be removed from the TV trolley. To do this, first unplug the TV set from the mains socket. Then loosen the securing screws or the padlock and remove the TV from the TV trolley. -
Page 18: Technical Data
9. Technical data Screen diagonal: 124.0 - 254.0 cm (US: 49" - 100") Wall bracket load capacity: 80 kg Shelf load capacity: 25 kg Shelf dimensions: 63.4 x 28.0 Height: 183.8 cm Compliant with VESA standard: 200 x 200 400 x 400 Mount: 600 x 400 800 x 400... -
Page 19: Warranty Disclaimer
In the event of a warranty claim, please contact us at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany, enclosing proof of purchase. You are also welcome to contact us at www.hama.de or by phone on...
