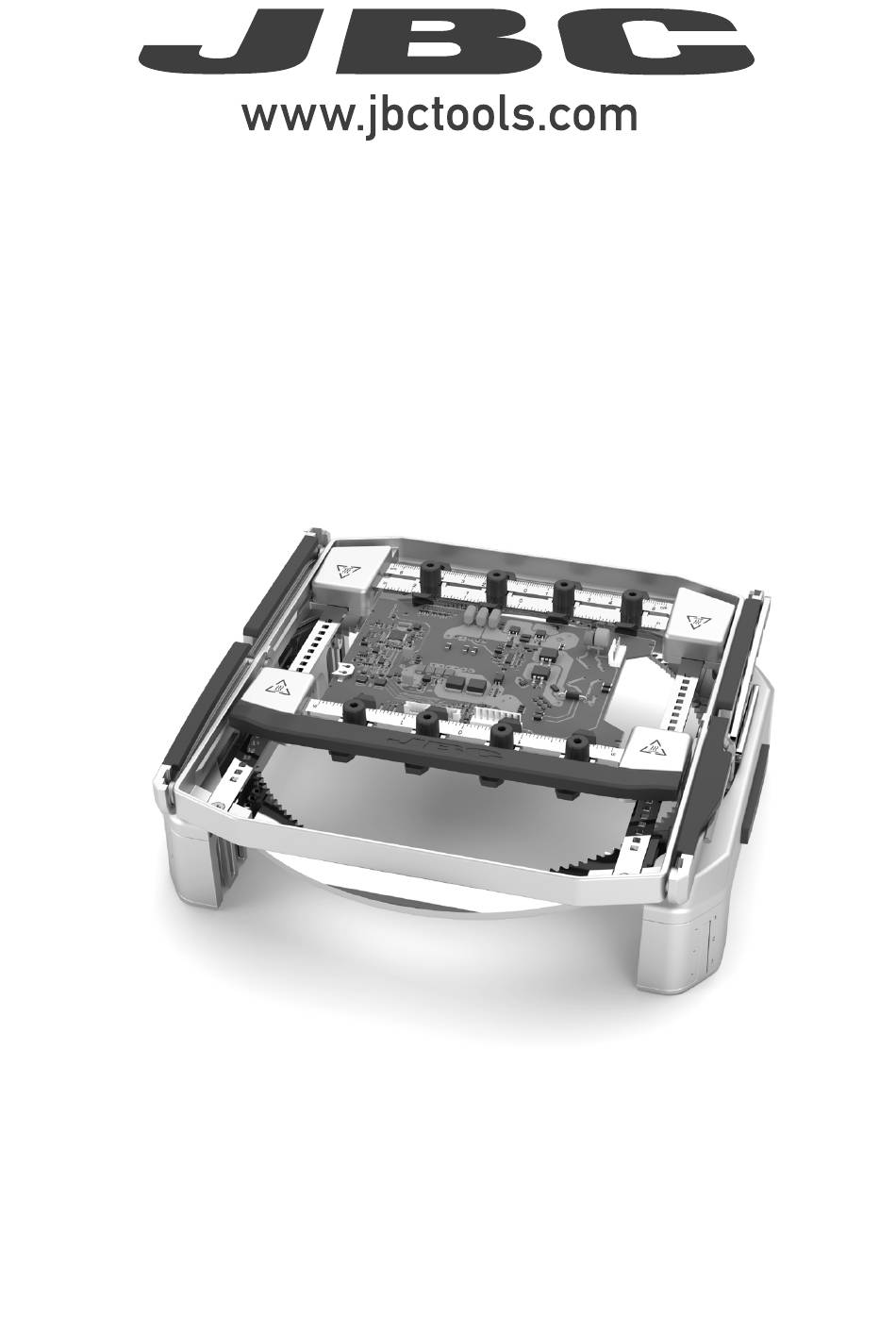

  • Page 1 INSTRUCTION MANUAL Multiaxis Rotative PCB Support...

  • Page 2: Packing List

    Ref. 0032070 Application PSS is designed to support and fix PCBs to perform soldering and desoldering jobs with or without preheaters. JBC’s rotary support can work with JBC’s PHSE Preheater. Caution: Be careful not to pinch your fingers and take care when working with preheaters since metal surfaces of the support can be hot - especially the sliding guide and the spring guide.

  • Page 3: Horizontal Position

    para manuales - color gris para manuales - color gris 200 mm 200 mm Features - Horizontal Position 130 mm 130 mm 130 mm 130 mm Slot Clamps Spring Guide Clamp Knob 100 mm 100 mm 80 mm 80 mm Pushbutton for PCB Rotation 60 mm...
  • Page 4 Features - Inclined and Rotated Position Positioning Arm (4 Tilt Positions) PCB Holder: rotating, tilting and flipping area Support: with 3 adjustable height levels Positioning Push Tabs for Support Lever Height Adjustment ESD Connections ESD Connector (connect to ESD Common Grounding Point)
  • Page 5 para manuales - color gris para manuales - color gris 200 mm 200 mm Support Height Adjustment 130 mm 130 mm 130 mm 130 mm The support incorporates a height adjustment mechanism inside the support legs. Choose between 3 different height levels. 100 mm 100 mm Level 1...
  • Page 6 Holder Positions Default Position - without elevation and without rotation By default, the sliding guide realease lever is located at the front and the push button for holder rotation on the right side. Holder Pushbutton for Holder Rotation Sliding Guide Realease Lever Height- Adjustable Feet...
  • Page 7 It is possible to choose between 4 different angular positions: 25º, 35º, 45º and 55º. Note: When working at 55º and level 3 height, the total height of PSS reaches 24.5 cm (up to 30 cm at 90º). 80 mm...

  • Page 8: Pcb Placement

    PCB Placement Loosen the knobs of the spring guide clamps (1), adjust their distance according to the PBC width (2) and tighten the knobs again. Clamps that are not needed can be slided to the side (3), or disassembled. PCB PLACEMENT 1 Loosen the knobs of the sliding guide clamps (4) and slide unneeded clamps aside (5).
  • Page 9 para manuales - color gris para manuales - color gris 200 mm 200 mm 130 mm 130 mm 130 mm 130 mm Now adjust the positions of the other sliding guide clamps to the PCB shape (11) and tighten their clamp knobs (12) after the adjustment.
  • Page 10 Turning the PCB upside down The PCB holder can be rotated by 180°. This makes it possible to turn the PCB over in the clamped state without removing it, so that its underside is now pointing upwards. This has the advantage that the PCB does not have to be repositioned if soldering is to be carried out on the top and on the bottom side of the PCB.
  • Page 11 para manuales - color gris para manuales - color gris 200 mm 200 mm Inclined PCB position 130 mm 130 mm 130 mm 130 mm PCB is facing When the holder is in an inclined position, upwards: proceed as follows to turn the PCB facing upside down: 100 mm 100 mm...
  • Page 12 Fast PCB Replacement Removing the PCB Push the PCB against the spring guide clamps (1) until the spring guide moves back slightly (2). Now the PCB can be taken out of the clamps at the front end (3). Spring Guide Clamps Spring Guide...

  • Page 13: Maintenance

    - Replace any defective or damaged piece. Use original JBC spare parts only. 60 mm 60 mm - Repairs should only be performed by a JBC Sliding Guide Axes authorized technical service. 50 mm 50 mm...
  • Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off. Handle with care. - Be careful not to pinch your fingers when operating the support.
  • Page 15 para manuales - color gris para manuales - color gris 200 mm 200 mm Notes 130 mm 130 mm 130 mm 130 mm 100 mm 100 mm 80 mm 80 mm 60 mm 60 mm 50 mm 50 mm 40 mm 40 mm...

  • Page 16: Specifications

    14.49 x 14.49 x 4.92 in / 6.5 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
