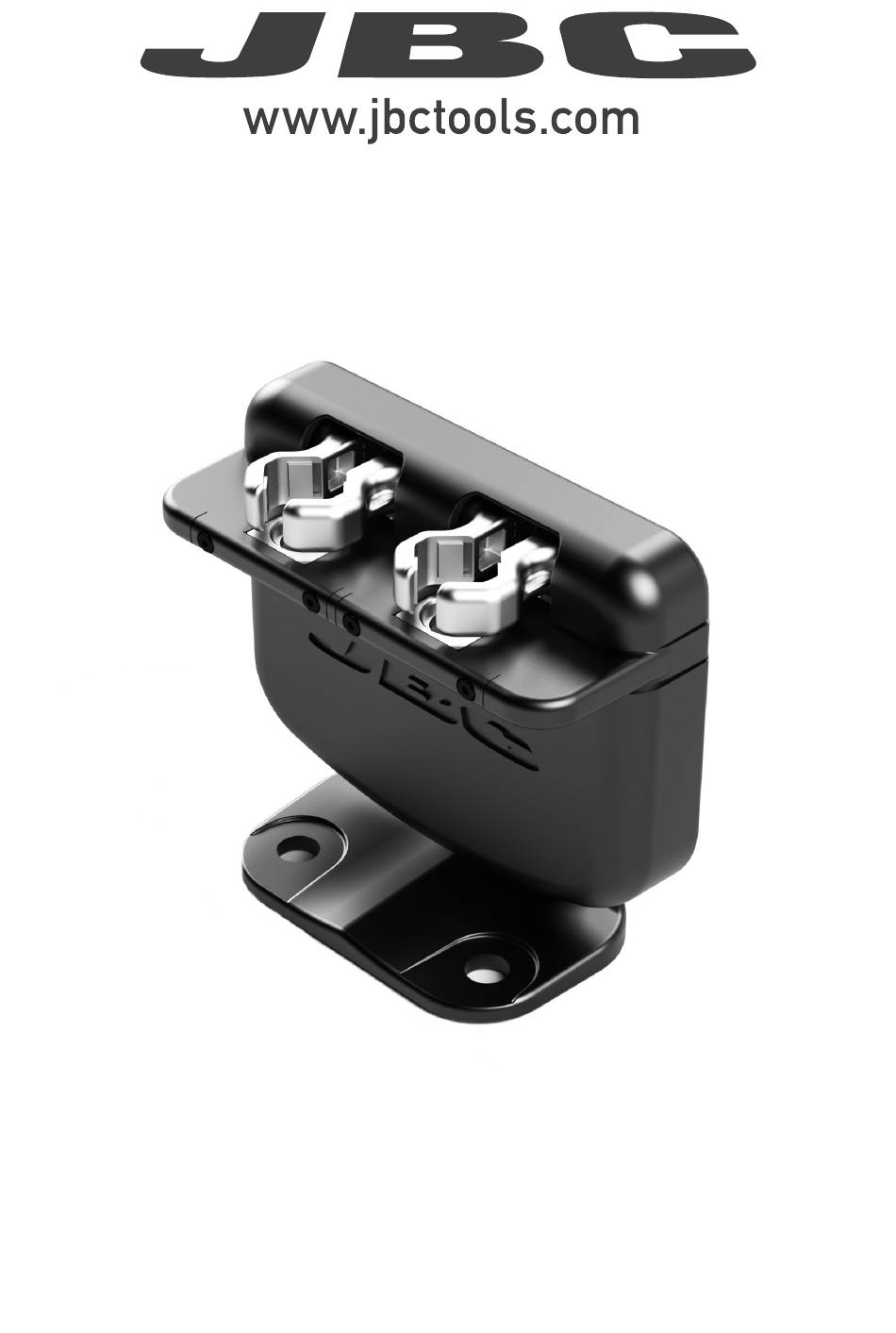

  • Page 1 INSTRUCTION MANUAL CSR245/CSR470 General/Heavy Duty Cartridge Exchanger for Robot...

  • Page 2: Packing List

    This manual corresponds to the following references: - CS2R245-B for R245 cartridges - CS2R470-B for R470 cartridges Packing List Either Ref. CS2R245-B or Ref. CS2R470-B is included: Upper Center Jig ......1 unit General/Heavy Duty Cartridge Exchanger for Robot ..... 1 unit Ref.
  • Page 3 Assembly 40 mm CSR245 and CSR470 need to be fixed to the robot work place area. Use a DIN912 M6 screw and the mounting hole as shown bellow. The grippers must be connected to an air-circuit, by using the tube connections A and B, to be actuated.

  • Page 4: Compatible Cartridges

    Work Position Adjustment CSR245 and CSR470 bodies can be pivoted 35º to both sides to suit the inclination of your soldering head in every job necessities. Use a 5mm allen key to loosen the bolt and pivot the cartridge exchanger body manually.
  • Page 5 para manuales - color gris 200 mm Tool Position Adjustment 130 mm 130 mm The cartridge plate can be set to four different Use an 1,5 mm allen key to loosen the three positions. indicated screws. The flat faces of the plate and the cartridge Evenly pull the plate holder and revome the 100 mm must match.
  • Page 6 Centering Jig In order to align CSR245 and CSR470 to the soldering tool and set the cartridge pick-up points use JBC´s centering jigs. Instal, as shown, the lower centering jig into Adjust the soldering tool position until the the gripper of CSR245/CSR470 and the and centering jigs are aligned.
  • Page 7 para manuales - color gris 200 mm CS2R470-B CARTRIDGE STAND FOR ROBOT Dimensions 130 mm 130 mm 1.97 100 mm 80 mm 60 mm 50 mm 40 mm 0.06 53,6 3.94 2.11 74,5 2.93 1.45 (in)
  • Page 8 Workplace Example Work Place Examples HA Automatic Soldering Set for Robot HM Soldering Set for Robot...

  • Page 9: Maintenance

    - Periodically check that the metal parts of the equipment are clean. - Periodically check all cables and tube connections. 80 mm - Replace any defective or damaged part. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. 60 mm - Under normal operating conditions, the air gripper lifespan is 10 million cycles.
  • Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any other purpose. - Do not leave the appliance unattended when it is on. - Be sure that the power supply is disconnected before changing any spare part. - The temperature of accessible surfaces may remain high after the unit is turned off.
  • Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 12: Specifications

    8.70 x 5.35 x 4.96 in / 2.30 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.

This manual is also suitable for:

Csr470
