jbc PSS Instruction Manual

Multiaxis rotative pcb support
Hide thumbs Also See for PSS:

Advertisement

Table of Contents

INSTRUCTION MANUAL
PSS
Multiaxis Rotative PCB Support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc PSS

Summary of Contents for jbc PSS

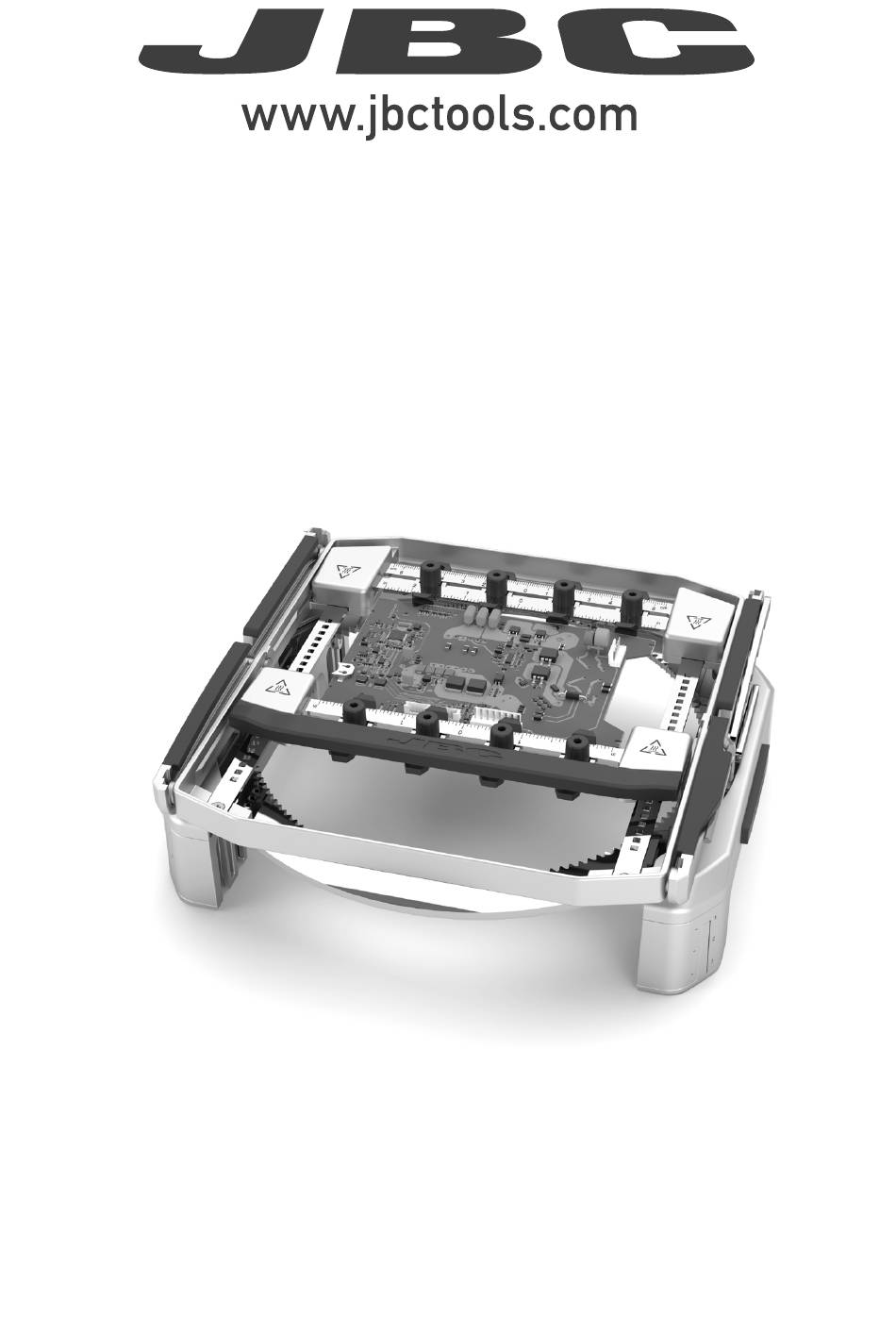

  • Page 1 INSTRUCTION MANUAL Multiaxis Rotative PCB Support...

  • Page 2: Packing List

    Ref. 0032070 Application PSS is designed to support and fix PCBs to perform soldering and desoldering jobs with or without preheater. JBC’s rotary support can work with JBC’s PHSE Preheater. Caution: Be careful not to pinch your fingers and take care when working with preheaters since metal surfaces of the support can be hot - especially the sliding guide and the spring guide.

  • Page 3: Horizontal Position

    para manuales - color gris para manuales - color gris 200 mm 200 mm 130 mm 130 mm 130 mm 130 mm Features - Horizontal Position Slot Clamps 100 mm 100 mm Spring-Loaded Guide Clamp Knob "Push-Push" Button for PCB Rotation 80 mm 80 mm 60 mm...
  • Page 4 Features - Inclined Position and Height Adjustment Positioning Arm (4 Tilt Positions) Positioning Lever Push Tabs for Support Height Adjustment ESD Connections ESD Connector (connect to ESD Common Grounding Point)
  • Page 5 para manuales - color gris para manuales - color gris 200 mm 200 mm Support Height Adjustment 130 mm 130 mm 130 mm 130 mm The support incorporates a height adjustment mechanism inside the support legs. Choose between 3 different height levels. 100 mm 100 mm Level 1...

  • Page 6: Pcb Placement

    PCB Placement Loosen the knobs of the spring guide clamps (1), adjust their distance according to the PBC width (2) and tighten the knobs again. Clamps that are not needed can be slided to the side (3), or disassembled. Loosen the knobs of the sliding guide clamps (4) and slide unneeded clamps aside (5). Spring Guide Note: The position of the spring-loaded guide is not...
  • Page 7 para manuales - color gris para manuales - color gris 200 mm 200 mm 130 mm 130 mm 130 mm 130 mm Now adjust the positions of the other sliding guide clamps to the PCB shape (11) and tighten their clamp knobs (12) after the adjustment.
  • Page 8 Fast PCB Replacement Removing the PCB Push the PCB against the spring-loaded guide clamps (1) until the spring guide moves back slightly (2). Now the PCB can be removed from the clamps at the front end (3). Spring Guide Clamps Spring Guide Clamps...
  • Page 9 para manuales - color gris para manuales - color gris 200 mm 200 mm Holder Positions 130 mm 130 mm 130 mm 130 mm Default Position - without elevation and without rotation By default, the sliding guide realease lever is located at the front and the push button for holder rotation on the right side.
  • Page 10 It is possible to choose between 4 different angular positions: 25º, 35º, 45º and 55º. Note: When working at 55º and level 3 height, the total height of PSS reaches 24.5 cm (up to 30 cm at 90º). To return the holder to the horizontal position, set the lever to its horizontal position (4) - for a holder angle of 0º.
  • Page 11 para manuales - color gris para manuales - color gris 200 mm 200 mm Turning the PCB upside down 130 mm 130 mm 130 mm 130 mm The PCB holder can be turned 180°. This allows turning the PCB upside down while being clamped, so that its underside faces upwards.

  • Page 12: Maintenance

    - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should only be performed by a JBC Sliding Guide Axes authorized technical service.
  • Page 13 para manuales - color gris para manuales - color gris 200 mm 200 mm Safety 130 mm 130 mm 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.
  • Page 14 Notes...
  • Page 15 para manuales - color gris para manuales - color gris 200 mm 200 mm Notes 130 mm 130 mm 130 mm 130 mm 100 mm 100 mm 80 mm 80 mm 60 mm 60 mm 50 mm 50 mm 40 mm 40 mm...

  • Page 16: Specifications

    14.49 x 14.49 x 4.92 in / 6.5 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.

This manual is also suitable for:

Pss-a
