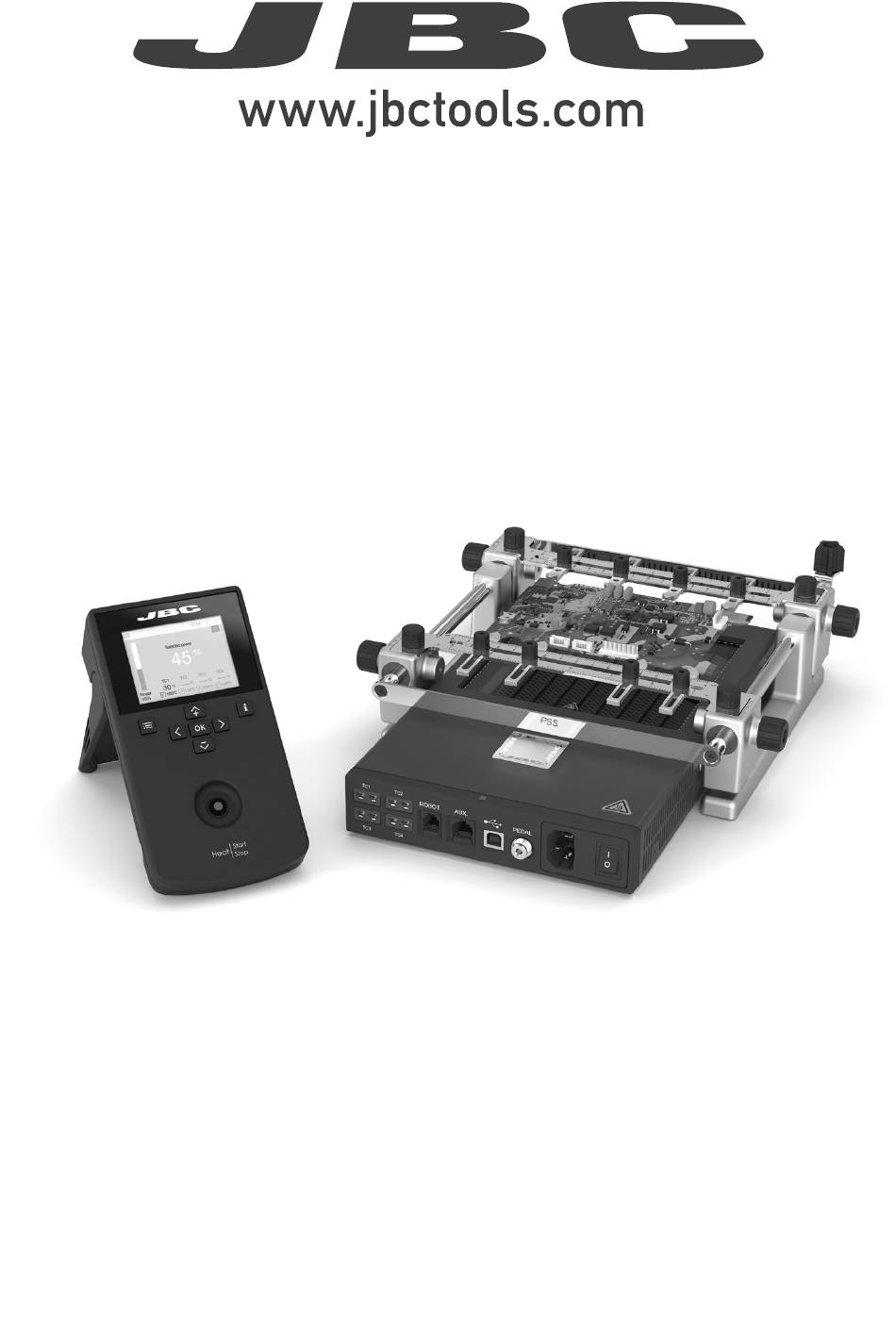

- Page 1 INSTRUCTION MANUAL PHSK Small Preheater Set...
-
Page 2: Packing List
This manual corresponds to the following references: PHSE-9KB (100V) PHSE-1KB (120V) PHSE-2KB (230V) Packing List The following items are included: Small Preheater Unit ......1 unit Small PCB Support ........ 1 unit Ref. PHS-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Preheater Unit Heating Areas Zone B Zone A Fixing Brackets for Small PCB Support Thermocouple Connectors x4 Main Switch (Type K) RJ12 Connector Power Socket to Robot RJ45 Connector Pedal Connector to Console USB-B Connector Console Button for Foot Folding... -
Page 4: Height Adjustment
Height Adjustment PSS, the Small PCB Support, allows to change the heigth between the PCB and the preheater heating area. It can be choosen between 3 positions for the working height adjustment. Unscrew these knobs to place the support in the lowest level Low level 22 mm /... - Page 5 w w w.jbctools.com Fast PCB Replacement The Small PCB Support lets you replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. Removing the PCB Placing another PCB Loosen one sliding guide, push the Position it and tighten the sliding guide knobs.
-
Page 6: Work Screen
º º º º Power C 100 P 100 P 100 º º º P 100 º Work Screen The Console offers an intuitive user interface which provides quick access to station parameters. 14:15 Status Indicator 14:15 14:15 Max. Rate Status Bar º... -
Page 7: Recommended Guidelines
w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three diferent ways depending on what is needed. · Control: the unit mantains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 8: Work Mode
Max. Rate º 1.6ºC/s Selected 120 º 14:15 Work Mode º º º º Power Max. Rate C 100 P 100 P 100 º º º P 100 º º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected Selected 120 º... - Page 9 Work Mode w w w.jbctools.com Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 10 º º º Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
-
Page 11: Profile Editor
JBC Set Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 12: Process Analysis
Process Analysis By pressing Graphics in the main MENU, temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Lorem ipsum Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar. - Page 13 Insert a USB flash drive into the USB-A connector to export / import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive to the console. www.jbctools.com/software.html and save The icon is diplayed while updating.
- Page 14 - Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
-
Page 15: Specifications
- Temperature Range: 50 - 250 °C / 120 - 482 ºF - Temperature Measurement: Thermocouple type K - JBC Set Temperature Profiles: 3 profiles (2, 3 or 4 steps) - User Profiles: 20 (up to 6 steps for each) - Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
