- Page 1 User Manual Off-Grid Inverter HESS-OF-S-5.0K Empowering Energy Clean And Affordable.
- Page 2 HESS-OF-S-5.0K Please keep this manual for future use. This manual contains all safety, installation and operating instructions for the HESS Series all-in-one solar charge inverter. Please read all instructions and precautions in the manual carefully before installation and use. Non-safety voltage exists inside the all-in-one solar charge inverter. To avoid personal injury, users shall not disassemble the all-in-one solar charge inverter themselves.
-
Page 3: Table Of Contents
HESS-OF-S-5.0K Table of Contents 1. Basic Information ....................................1 1.1 Product overview and characteristics ..........................1 1.2 Basic system introduction ..............................2 1.3 Product characteristics ................................3 1.4 Dimension drawing ................................4 2. Installation Instruction ..................................5 2.1 Installation notice ................................... 5 2.2 Wire specification and breaker type ............................6 2.3 Installation and Wiring ................................ -
Page 4: Basic Information

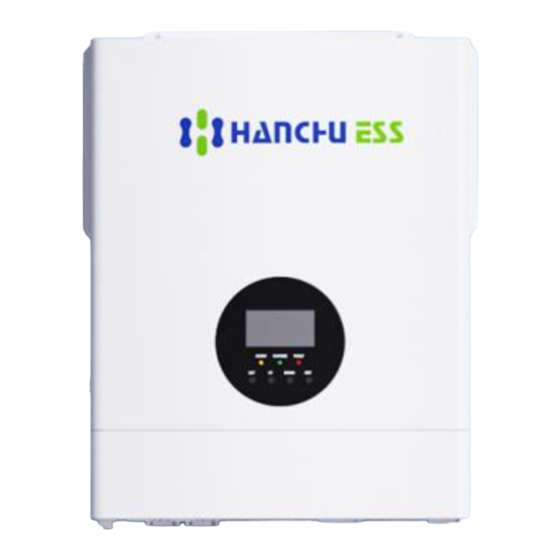

1.1 Product overview and characteristics HESS series is a new type of mixed solar energy storage inverting & control all-in-one machine integrating solar energy storage & municipal power charge storage and AC sine wave output. It adopts DSP control and advanced control algorithm to achieve characteristics of high response speed, high reliability and high industrial standard. -
Page 5: Basic System Introduction
HESS-OF-S-5.0K 1.2 Basic system introduction The figure below shows the system application scenario of this product. A complete system includes the following parts: 1. Photovoltaic module: convert the light energy into direct current energy and then charge the battery via the all-in-one machine, or directly invert the light energy into alternating current to supply power to the load. -
Page 6: Product Characteristics
HESS-OF-S-5.0K 1.3 Product characteristics ⑩ Overload protector Cooling fan ② ⑪ ON/OFF rocker switch Battery port ③ ⑫ AC input port Cooling fan ④ ⑬ AC output port PV port ⑤ ⑭ Grounding screw hold Touch the key lightly ⑥... -
Page 7: Dimension Drawing
HESS-OF-S-5.0K 1.4 Dimension drawing Empowering Energy Clean And Affordable... -
Page 8: Installation Instruction
HESS-OF-S-5.0K 2. Installation Instruction 2.1 Installation notice Before installation, please carefully read the manual and get familiar with the installation step. Take care while installing the battery. When installing the lead-acid liquid battery, it is required to wear goggles. Any body ... -
Page 9: Wire Specification And Breaker Type
HESS-OF-S-5.0K 2.2 Wire specification and breaker type For wiring and installation ways,it is required to observe national and local electrical specification requirements. Recommended wiring specification and breaker type for photovoltaic array: the output current of the photovoltaic array is affected by the form, connection way and illumination angle of photovoltaic array, therefore the minimum wire diameterof the photovoltaic array is calculated based on the short circuit currentof photovoltaic array. -
Page 10: Installation And Wiring
HESS-OF-S-5.0K 2.3 Installation and Wiring Installation step: Step 1: confirm the installation position and heat dissipation space, confirm the installation position of all-in-one machine, such as wall surface; to install the all-in-one machine, guarantee there is sufficient air flowing through the cooling fins of all-in-one machine. - Page 11 HESS-OF-S-5.0K Remove the terminal protection cover Step 2: wiring Step 3: AC input/output wiring method: 1．Before AC input/output wiring, disconnect the external breaker at first and then confirm whether the cable used is thick enough. Please refer to chapter “ 2.2 Wiring Specification and Breaker type”; 2．Correctly connect AC input wire in accordance with cable sequence and terminal position shown in the figure below.
- Page 12 HESS-OF-S-5.0K Correctly connect AC output wire in accordance with cable sequence and terminal position shown in the figure below. 3． Please connect the ground wire at first, and then live wire and null wire. The ground wire is connected to the ground screw hold through Oshaped terminal.
- Page 13 HESS-OF-S-5.0K Warning notice: 1. Input from mains supply, AC output and photovoltaic array may generate high voltage. Before wiring, make sure to break the breaker or fuse; 2. During wiring process, make sure to pay attention to the safety; during the wiring process, please don’t close the breaker or fuse.
-
Page 14: Operating Mode
HESS-OF-S-5.0K 3.Operating Mode 3.1 Charge mode Photovoltaic priority: in photovoltaic priority charge mode, mains charge is started only when photovoltaics is out of work. Make full use of solar energy for power generation in the daytime and transfer to the mains supply for charge to maintain electric quantity of the battery. -
Page 15: Output Mode
HESS-OF-S-5.0K 3.2 Output mode 1. Photovoltaic priority mode: Photovoltaic and battery supply power to the load. With diversified charge mode and optional output mode, when photovoltaic priority mode is selected, the green solar energy can be used as far as possible so as to achieve energy conservation and emission reduction. -
Page 16: Operation Instruction For Lcd Screen
HESS-OF-S-5.0K 4. Operation Instruction for LCD Screen 4.1 Operation and display panel 4.2 Introduction to operation keys Function Key Description Enter/exit setting menu Last option DOWN Next option Confirm/enter option under setting menu 4.3 Introduction to indicator light Indicator light Color Description Constant on: mains supply output... -
Page 17: Introduction To Lcd Screen
HESS-OF-S-5.0K 4.4 Introduction to LCD screen Icon Function Icon Function Indicating that AC input end has Indicating that inverter circuit is in been connected to power working. grid Indicates that the AC input mode Indicating that the machine is in mains in APL mode (wide voltage supply bypass work mode... - Page 18 HESS-OF-S-5.0K Middle parameter display of screen, 1. In non-setting mode, displaying alarm Indicating that AC output end has or fault code; AC voltage output 2. In setting mode, displaying code of parameter item under current setting. Parameter display at left side of screen: input parameter Indicating AC input Indicating PV input Indicating inverter circuit...
-
Page 19: Setting Parameter
HESS-OF-S-5.0K AC input frequency AC output load frequency AC input voltage AC output load current Input voltage Output load KVA INV temperature INV output load KW APP software version Bootloader software version Model Battery Voltage Rating Model Output Power Rating Model PV Voltage Rating Model PV Current Rating 4.5 Setting parameter... - Page 20 HESS-OF-S-5.0K When parameter【01】=SOL/SBU, battery voltage is higher [05] 57.6V Bypass to battery than the set value, the output is switched to battery from mains default or generator at 48V~60V setting range. For photovoltaics priority charge, the AC charge is started only [06] CSO when photovoltaics is invalid.
- Page 21 HESS-OF-S-5.0K So as to overdischarge delay time, when the battery voltage is lower than parameter【12】, the inverter output is turned off Overdischarge delay [13] 5S default after delaying the time set with the parameter. 5S~50S setting time range at 5S step is valid in case of a self-defined and lithium battery.
- Page 22 HESS-OF-S-5.0K [25] DIS Disabling alarm Buzzer alarm [25] ENA default Enabling alarm [26] DIS No alarm prompt in case of any change in main input source Mode conversion Alarm prompt is enabled if state of main input source is reminding [26] ENA default changed.
-
Page 23: Battery Type Parameters
HESS-OF-S-5.0K Switches to inverter output mode when capacity is greater than Switch to inverter [62] 100％ default or equal to this setting (valid when BMS communication is output SOC Settings normal) 4.6 Battery type parameters Lead-acid batteries: Battery type Sealed Flood lead Gel lead User-defined... - Page 24 HESS-OF-S-5.0K Lithium Battery : Battery type Lithium Lithium Lithium Ternary Ternary iron iron iron lithium lithium parameter phospha adjustable phosphat phosphat (N13) (N14) e (LF15) e (LF14) (LF16) Overvoltage disconnect voltage Recharge recovery voltage 50.4V 54.8V 53.6V 50.4V 47.6V √ after charging (37 items) Equalize charging voltage √...
-
Page 25: Other Function
HESS-OF-S-5.0K 5.Other Function 5.1 Dry node function Working principle: this dry node can control the switch of diesel generator to charge the battery. 1. Under normal conditions, in this terminal, NC-N point is closed and NO-N point is opened; 2. When the battery voltage reaches the low-voltage disconnection voltage point, the coil of the relay is energized and NO-N point is closed and NC-N point opened. -
Page 26: Meaning Of Fault Code
HESS-OF-S-5.0K When the battery voltage reaches the overvoltage breaking voltage point, charge from PV and AC power to the battery shall be Battery overvoltage protection automatically stopped to prevent the battery from being damaged due to overcharge. When the battery voltage reaches the low-voltage breaking voltage Battery low- voltage protection point, the discharge to the battery will automatically stopped to prevent the battery from damage owing to overdischarge. - Page 27 HESS-OF-S-5.0K 【13】 OverloadBypass Bypass overload protection 【14】 OverloadInverter Inverter overload protection 【15】 AcOverCurrHw Inverter overcurrent hardware protection 【16】 【17】 InvShort Inverter short-circuit protection 【18】 【19】 OverTemperMppt PV radiator overtemperature protection 【20】 OverTemperInv Overtemperature protection of inverter radiator 【21】 FanFail Fan fault 【22】...
-
Page 28: Some Fault Troubleshooting
HESS-OF-S-5.0K 6.3 Some fault troubleshooting Fault Solving Measures Check whether the battery air switch or PV air switch is closed; whether No display on screen the switch is in "on" state; press any key on the screen to exit from the screen sleep mode. -
Page 29: System Maintenance
HESS-OF-S-5.0K 7.System Maintenance In order to maintain the optimum and permanent operation performance, it is suggested to check the following items semiannually. Confirm that the air flow around the all-in-one machine will not be blocked. In addition, remove any dirt or debris from the radiator. -
Page 30: Technical Parameter
HESS-OF-S-5.0K 8. Technical Parameter HESS-OF-S-5.0K Model AC mode Rated input voltage 220/230Vac (170Vac~280Vac) ±2% Input voltage range (90Vac-280Vac) ±2% Frequency 50Hz/ 60Hz (auto-sensing) 47±0.3Hz ~ 55±0.3Hz (50Hz); Frequency range 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection Breaker Efficiency >92% Conversion time 10ms (Typical value) (Bypass and inverting) AC reverse flowing protection... - Page 31 HESS-OF-S-5.0K Maximum charge current Charge current error ± 5Adc Charge voltage range 40–60Vdc Short-circuit protection Breaker and blown fuse Breaker specification Overcharge protection Turn off charge after 1min alarm Solar charge Maximum PV open-circuit voltage 500Vdc PV operation voltage range 120-500Vdc MPPT voltage range 120-450Vdc...
- Page 32 Jiangsu Hanchu Energy Technology Co., Ltd. No.588.Jinhui Road, Huishan Economic Development District, Wuxi City, Jiangsu Province, China Hotline:+86-51088876668/+86-51088865288 Email:service@hanchuess.com Web:www.hanchuess.com...
