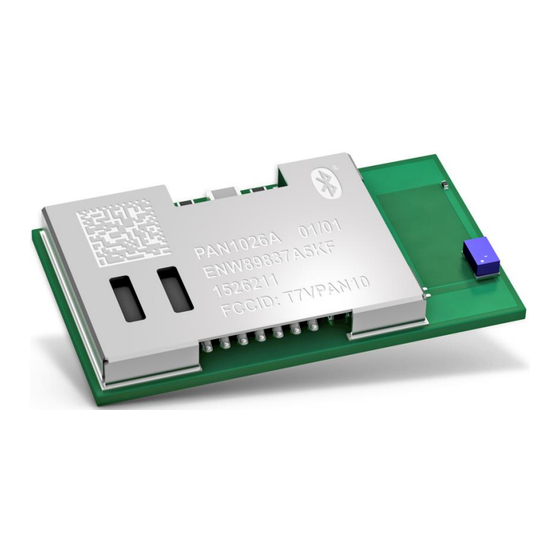

PAN1026A
®
Bluetooth
Basic Data Rate and Low Energy Module
Product Specification
Rev. 1.9
Wireless Connectivity

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAN1026A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic PAN1026A

Summary of Contents for Panasonic PAN1026A

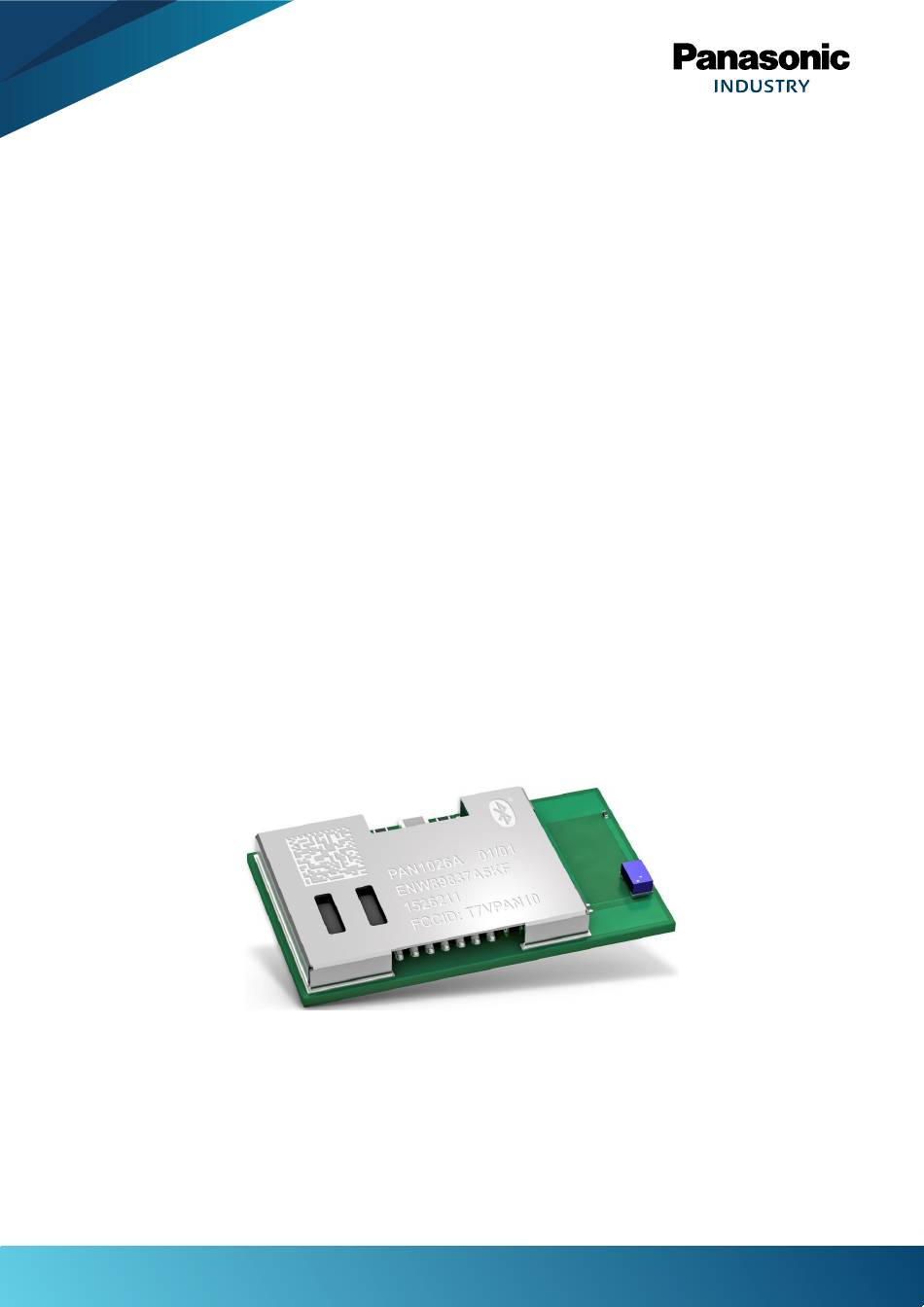

  • Page 1 PAN1026A ® Bluetooth Basic Data Rate and Low Energy Module Product Specification Rev. 1.9 Wireless Connectivity...
  • Page 2 PAN1026A Bluetooth Module Overview Basic Data Rate Features • Faster SPP classic connection and disconnection The PAN1026A is a Class 2 Bluetooth 4.2 Basic times Data Rate and Low Energy (LE) module based on • ® Support for interlaced inquiry and page scan the Toshiba TC35661 single-chip controller.
  • Page 3 If the signed version of the Product Specification has not been returned to Panasonic within 30 days after receipt of the product, the specification or approval sheet shall be deemed to be accepted by you.

  • Page 4: Table Of Contents

    PAN1026A Bluetooth Module Table of Contents About This Document ......................... 6 Purpose and Audience ......................6 Revision History ......................... 6 Use of Symbols ......................... 6 Related Documents ........................7 Overview .............................. 8 Block Diagram ........................... 9 Pin Configuration ........................10 UART Interface ........................
  • Page 5 PAN1026A Bluetooth Module Contact Details ........................36 Product Specification Rev. 1.9 Page 5 of 36...

  • Page 6: About This Document

    1.1 Purpose and Audience This Product Specification provides details on the functional, operational, and electrical characteristics of the Panasonic PAN1026A module. It is intended for hardware design, application, and Original Equipment Manufacturers (OEM) engineers. The product is referred to as “the PAN1026A” or “the module” within this document.

  • Page 7: Related Documents

     PAN1026A Bluetooth Module 1 About This Document 1.4 Related Documents  7.2.2 Product For related documents please refer to the Panasonic website Information. Product Specification Rev. 1.9 Page 7 of 36...

  • Page 8: Overview

    2 Overview 2 Overview The PAN1026A is a Bluetooth 4.2 Basic Data Rate and LE module based on the Toshiba TC35661 single-chip controller. It has both a Bluetooth Basic Data Rate Serial Port Profile (SPP) and a Bluetooth LE GATT profile stack integrated.

  • Page 9: Block Diagram

     PAN1026A Bluetooth Module 2 Overview 2.1 Block Diagram Total capacitor value: 6.7 µF ±10 % 2 nH ±10 % Total inductance: 220 kΩ ±10 % Total resistance: Product Specification Rev. 1.9 Page 9 of 36...

  • Page 10: Pin Configuration

     PAN1026A Bluetooth Module 2 Overview 2.2 Pin Configuration Pin Assignment Top View Pin Functions No. Pin Name Pin Type Description A1 GND Ground Pin Connect to ground A2 NC Not connected, leave open A3 Reset Digital Input Reset, active low...
  • Page 11  PAN1026A Bluetooth Module 2 Overview No. Pin Name Pin Type Description B5 NC Not connected, leave open B6 NC Not connected, leave open B7 NC Not connected, leave open B8 NC Not connected, leave open B9 NC Not connected, leave open...

  • Page 12: Uart Interface

     PAN1026A Bluetooth Module 2 Overview No. Pin Name Pin Type Description F2 EEPROM_WP Digital Input Internal EEPROM Write Protect (active high) F3 GND Ground Pin Connect to ground F4 GND Ground Pin Connect to ground F5 UART CTS Digital Input...

  • Page 13: Detailed Description

     PAN1026A Bluetooth Module 3 Detailed Description 3 Detailed Description 3.1 Dimensions All dimensions are in millimeters. Top View UNLESS OTHERWISE SPECIFIED: DEBUR AND FINISH: DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP SURFACE FINISH: EDGES TOLERANCES:...

  • Page 14: Footprint

     PAN1026A Bluetooth Module 3 Detailed Description 3.2 Footprint Top View 1.00 1.20 0.60 2.40 5.00 15.60 Product Specification Rev. 1.9 Page 14 of 36...

  • Page 15: Packaging

     PAN1026A Bluetooth Module 3 Detailed Description 3.3 Packaging The module is a mass production status product and will be delivered in the package described below. 3.3.1 Tape Dimensions 3.3.2 Packing in Tape Direction of unreeling (for customer) Top cover tape more...
  • Page 16  PAN1026A Bluetooth Module 3 Detailed Description 3.3.3 Component Direction 3.3.4 Reel Dimension Product Specification Rev. 1.9 Page 16 of 36...
  • Page 17  PAN1026A Bluetooth Module 3 Detailed Description 3.3.5 Package Label Example: (1T) Lot code (1P) Customer order number, if applicable (2P) Order number (9D) Date code Quantity (HW/SW) Hardware/software version 3.3.6 Total Package Product Specification Rev. 1.9 Page 17 of 36...

  • Page 18: Case Marking

     PAN1026A Bluetooth Module 3 Detailed Description 3.4 Case Marking Example: MIC ID Brand name Hardware/software version Engineering Sample marking, if applicable Order number Lot code FCC ID Marking for Pin 1 2D barcode, for internal usage only Bluetooth logo Product Specification Rev.

  • Page 19: Specification

     PAN1026A Bluetooth Module 4 Specification 4 Specification All specifications are over temperature and process, unless indicated otherwise. 4.1 Default Test Conditions 25 °C ± 10 °C Temperature: 40 % to 85 % RH Humidity: 3.3 V Supply Voltage: 4.2 Absolute Maximum Ratings The maximum ratings may not be exceeded under any circumstances, not even momentarily or individually, as permanent damage to the module may result.

  • Page 20: Recommended Operating Conditions

     PAN1026A Bluetooth Module 4 Specification 4.3 Recommended Operating Conditions The maximum ratings may not be exceeded under any circumstances, not even momentarily or individually, as permanent damage to the module may result. Symbol Parameter Condition Min. Typ. Max. Units Ambient °C...

  • Page 21: Bluetooth

     PAN1026A Bluetooth Module 4 Specification 4.5 Bluetooth Parameter Condition Min. Typ. Max. Units Operation 2 402 2 480 Frequency Range Channel Basic Data Rate Spacing Low Energy Output Power Maximum setting, measured at chip output. Sensitivity Symbol Parameter Condition Min.

  • Page 22: Recommended Soldering Profile

     PAN1026A Bluetooth Module 4 Specification 4.7 Recommended Soldering Profile • Reflow permissible cycles: 2 • Opposite side reflow is prohibited due to module weight • More than 75 percent of the soldering area shall be coated by solder •...

  • Page 23: Cautions

     PAN1026A Bluetooth Module 5 Cautions 5 Cautions Failure to follow the guidelines set forth in this document may result in degrading of the module functions and damage to the module. 5.1 Design Notes 1. Follow the conditions written in this specification, especially the control signals of this module.

  • Page 24: Usage Condition Notes

     PAN1026A Bluetooth Module 5 Cautions 5.3 Usage Condition Notes 1. Take measures to protect the module against static electricity. If pulses or transient loads (a large load, which is suddenly applied) are applied to the modules, check and evaluate their operation before assembly of the final products.

  • Page 25: Other Cautions

     7.2.2 Product For further information please refer to the Panasonic website Information. Product Specification Rev. 1.9 Page 25 of 36...

  • Page 26: Restricted Use

    Panasonic customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panasonic Industrial Devices Europe GmbH for any damages resulting.

  • Page 27: Regulatory And Certification Information

     PAN1026A Bluetooth Module 6 Regulatory and Certification Information 6 Regulatory and Certification Information The following chapters are only valid for PAN1026A (with antenna). 6.1 Federal Communications Commission (FCC) for US 6.1.1 FCC Notice  6.1.5 Approved The PAN1026A including the antennas, which are listed in Antenna List, complies with Part 15 of the FCC Rules.
  • Page 28 Panasonic FCC identifier for this product as well as the FCC Notice above. The FCC identifier is FCC ID: T7VPAN10. This FCC identifier is valid for the PAN1026A. The end product must in any case be labelled on the exterior with: "Contains FCC ID: T7VPAN10".

  • Page 29: Innovation, Science, And Economic Development (Ised) For Canada

    Any notification to the end user of installation or removal instructions about the integrated radio module is not allowed. The radiated output power of the PAN1026A with a mounted ceramic antenna (FCC ID: T7VPAN10) is below the FCC radio frequency exposure limits.
  • Page 30  PAN1026A Bluetooth Module 6 Regulatory and Certification Information French PAN1026A est garanti conforme aux dispositions règlementaires d’Industry Canada (ISED). License: IC: 216Q-PAN10 Il est recommandé aux fabricants d’appareils fixes, mobiles ou portables de consulter la réglementation en vigueur et de vérifier la conformité de leurs produits relativement aux limites d’exposition aux rayonnements radiofréquence ainsi qu’au débit d’absorption spécifique...

  • Page 31: Japanese Radio Law Compliance

    The OEM must ensure that IC labelling requirements are met. This includes a clearly visible label on the outside of the OEM enclosure specifying the appropriate Panasonic IC identifier for this product as well as the IC Notice above. The IC identifier is IC: 216Q-PAN10.

  • Page 32: European Conformity According To Red (2014/53/Eu)

    The end customer equipment must meet the actual Safety/Health requirements according to RED. PAN1026A in the specified reference design can be used in all countries of the European Economic Area (Member States of the EU, European Free Trade Association States [Iceland, Liechtenstein, Norway]), Monaco, San Marino, Andorra, and Turkey.

  • Page 33: China (Label Requirements)

    The module is not labeled with its own KC mark. The final product requires the KC mark and MSIP certificate number of the module: Format of the ID is as follows: “MSIP: R-C-Pid-PAN1026A”, where • MSIP: Ministry of Science, ICT & Future Planning •...

  • Page 34: Bluetooth

    PAN1026A D046843 131084 Bluetooth Marks According to the Bluetooth SIG, the PAN1026A fulfills the criteria to label your product as a Bluetooth device: For further information please refer to the Bluetooth website www.bluetooth.com. 6.8 RoHS and REACH Declaration The latest declaration of environmental compatibility (Restriction of Hazardous Substances, RoHS and Registration, Evaluation, Authorisation and Restriction of Chemicals, REACH) for supplied products can be found on the Panasonic website in the “Downloads”...

  • Page 35: Appendix

     PAN1026A Bluetooth Module 7 Appendix 7 Appendix 7.1 Ordering Information The PAN1016A (without antenna) has no regulatory certification! Variants and Versions Order Number Brand Name Description ENW89837A5KF PAN1026A Bluetooth 4.2 Basic Data Rate and Low Energy module 1 500...
  • Page 36  PAN1026A Bluetooth Module 7 Appendix 7.2 Contact Details 7.2.1 Contact Us Please contact your local Panasonic Sales office for details on additional product options and services: For Panasonic Sales assistance in the EU, visit https://eu.industrial.panasonic.com/about-us/contact-us Email: wireless@eu.panasonic.com For Panasonic Sales assistance in North America, visit the Panasonic website “Sales &...
