- Page 1 COMPLETE LIVE ST EAMING & VIDEO CAPTU E INTE FACE WITH P OG AMMABLE CONT OL KEYS OWNE ’S MANUAL www.mackie.com...
-
Page 2: Important Safety Instructions
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Important Safety Instructions 1. Read these instructions. 20. NOTE: This device complies with Part 15 of the FCC Rules [and contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, 2. -
Page 3: Table Of Contents
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Table of Contents Important Safety Instructions ................................2 Table of Contents ......................................3 Chapter 1 : Welcome ....................................5 Introduction ........................................5 Features .........................................5 Things to Remember ....................................6 About This Guide .......................................6 Getting Started ......................................6... - Page 4 MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Chapter 3 : MainStream Top Panel Features............................12 Introduction ......................................12 PC Audio Return Level Control Knob ..............................12 Mic Level Control Knob (+Sig/OL LED) ............................... 13 Aux Mute Button ...................................... 13 Mic Mute Button ......................................
-
Page 5: Chapter 1 : Welcome
Hello everyone! This is the MainStream Owner’s Manual. This document contains detailed information about the MainStream... we hope you like it! Mackie MainStream is the easiest way to start a pro-quality stream by integrating video, audio and stream control into a single, powerful device. -
Page 6: Things To Remember
This guide is designed to be accessible, with subsections as complete as practical to minimize having to electronically leaf back and forth looking for the whole story. The entire manual does not need to be read to figure out how to use MainStream. -
Page 7: Chapter 2 : Mainstream Rear Panel Features
Audio/Video Interface and Power Connector This 2x2 USB-C port is MainStream’s only source of power... but it does oh so much more than that! That said, we’ll start there. Simply connect one end of the included cable to this MainStream USB-C port and the other end to a computer’s USB-C port. -
Page 8: Xlr And 1/4" Combo Input Jack
The input level is controlled via the mic level control knob, located on the front of MainStream. [It’s the big one located on the left-hand side of MainStream; for reference, the silkscreen printed underneath the knob displays a microphone and headset.]. -
Page 9: 48V Phantom Power Switch
It is mono mic-level input and a stereo output of the headphone mix. The input level is controlled via the mic level control knob, located on the front of MainStream. [It’s the big one located on the left-hand side of MainStream; for reference, the silkscreen printed underneath the knob displays a microphone and headset.]. -
Page 10: 1/8" Smartphone Stereo Jack [Channel 2]
This includes channel 1 unless the direct monitor switch is disengaged. The output level is controlled via the monitor output level knob, located on the front of MainStream. [It’s the small one located on the right-hand side of MainStream;... -
Page 11: Hdmi Passthrough Jack
These inputs are then sent through to the USB-C output (located just to the left of these inputs; and because this connector is also used to power up MainStream, a cable should already be connected to the USB-C output.). These inputs will appear as independent devices on the receiving computer. -
Page 12: Chapter 3 : Mainstream Top Panel Features

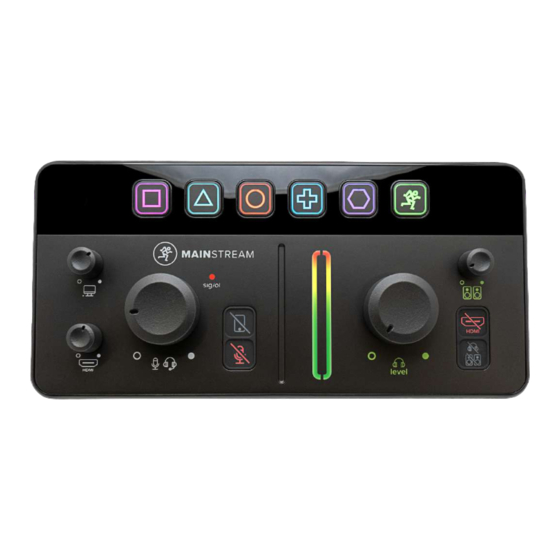

Introduction From top to bottom and left to right, each MainStream is outfitted with a bunch of knobs, buttons, LEDs, and more. So much more, in fact, that we will call out and describe each one, starting near the upper-left corner with the PC audio return level control knob. -
Page 13: Mic Level Control Knob (+Sig/Ol Led)
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Mic Level Control Knob (+Sig/OL LED) This knob is used to adjust the channel 1 volume – microphone and headset – to the headphones and mix minus. It ranges from: (off) to maximum gain (+60 dBu) XLR/TRS input –... -
Page 14: Monitor Level Control Knob
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Monitor Level Control Knob This knob controls the output volume for the monitors with the level ranging from a low of (off, far-left) to maximum gain (max, far-right). The signal at this output is a stereo mix of all inputs. This includes channel 1 unless the direct monitor switch is disengaged. -
Page 15: Multifunction Keys
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Multifunction Keys These six multifunction keys (aka F1-F6) have a dual purpose. For starters, they are programmable and may be assigned tasks of your choosing, such as scene switching, triggering virtual sample pads, and more. -
Page 16: Hookup Diagrams
Hookup Diagrams > Gaming Console Streaming Setup MainStream acts as a capture card for Switch, Xbox, PlayStation and other gaming consoles. Just connect your console to HDMI in and the HDMI passthrough to your television. You can stream with a lightweight laptop and your headset... -
Page 17: Hookup Diagrams > Gaming Pc Streaming Setup
Hookup Diagrams > Gaming PC Streaming Setup Run a professional live streaming battle station through Mackie MainStream, including a high-end DSLR camera through the HDMI, USB webcam for an extra angle, plus a high-quality XLR broadcast mic and headphones. It all connects to your... -
Page 18: Hookup Diagrams > Just Chatting Streaming Setup
Hookup Diagrams > Just Chatting Streaming Setup The flexibility of Mackie MainStream makes it the perfect interface for any type of stream. This “Just Chatting” setup uses a DSLR camera, USB mic, and a smartphone for chatting with a call-in guest. (Mix Minus ensures the caller doesn’t hear an echo). -
Page 19: Appendix A : Service Information
Troubleshooting If you think your Mackie product has a problem, please check out the following troubleshooting tips and do your best to confirm the problem. Visit the Support section of our website (www.mackie.com) to get some ideas or contact our technical support heroes. -
Page 20: Appendix B : Technical Information
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Appendix B : Technical Information Specifications Acoustic Performance Frequency Response of all inputs and outputs (–10 dB): ........................ 20 Hz – 20 kHz Dynamic Range: Mic / Line inputs, Monitor / Headphone outputs: (gain @min, volume @max, level @ 0 dBFS): .........................>94 dB... -
Page 21: Mainstream Dimension Drawings
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS Power Requirements USB Bus-Powered ................................7.5W – 15W (USB-C 3.1) Operating Temperature: ................................0–45˚ C // 32–113˚ F Dimensions Size (H x W x D): ............................2.4 × 8.4 × 3.7 in // 62 × 214 × 95 mm Weight: .....................................1.3 lb // 0.6 kg... -
Page 22: Mainstream Block Diagram
MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS MainStream Block Diagram Gain/Vol +48V 0ff - +60dBu DIRECT MONITOR Mic 1 COMBO MUTE Channel 1 (Mono) CITA/AHJ Compatible Headset USB_IN_L USB_IN_L USB Return Vol 3.5mm 0ff - +10dBu... -
Page 23: Warranty Statement
You will need it to obtain any warranty service. For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com/warranty. The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com/warranty constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. - Page 24 MAINSTREAM COMPLETE LIVE STREAMING & VIDEO CAPTURE INTERFACE WITH PROGRAMMABLE CONTROL KEYS • USA Phone: 425.487.4333 • Toll-free: 800.898.32 Fax: 425.487.4337 • www.mackie.com...
