Summary of Contents for Mackie MOBILE MIX
- Page 1 8-CHANNEL USB-POWE ABLE MIXE FO A/V P ODUCTION, LIVE SOUND & ST EAMING OWNE ’S MANUAL www.mackie.com...
-
Page 2: Important Safety Instructions
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Important Safety Instructions 1. Read these instructions. 19. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. 2. -
Page 3: Table Of Contents
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Table of Contents Important Safety Instructions ................................2 Table of Contents ......................................3 Chapter 1 : Welcome ....................................5 Introduction ........................................5 Features .........................................5 Things to Remember ....................................5 About This Guide .......................................6 Getting Started ......................................6 Chapter 2 : MobileMix Rear Panel Features ............................7 Introduction ........................................7 USB-C Power Connector ..................................7... - Page 4 MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Bluetooth Switch and LED [Channel 7/8] ............................15 1/8" Headphone Output Jack ................................15 1/8" (Primary) Input Jack and Pad Switch............................16 Primary Level Knob ....................................16 Mix 1 and Mix 2 Level Knobs ................................. 16 The Great Outdoors Switches ................................
-
Page 5: Chapter 1 : Welcome
Hello everyone! This is the MobileMix Owner’s Manual. This document contains detailed information about the MobileMix hardware... we hope you like it! MobileMix is a fully featured small audio mixer that brings legendary Mackie sound to DSLR cameras, PA systems and smartphone streaming setups. -
Page 6: About This Guide
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING About This Guide This guide is designed to be accessible, with subsections as complete as practical to minimize having to electronically leaf back and forth looking for the whole story. The entire guide does not need to be read to figure out how to use this console. As the saying goes, “a picture tells a 1000 words”. -
Page 7: Chapter 2 : Mobilemix Rear Panel Features
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Chapter 2 : MobileMix Rear Panel Features Introduction The top panel of MobileMix may be where all the magic happens, but nothing will happen if it can’t be powered up, so let’s start there! The rear panel of each MobileMix is outfitted with a power connector, a power switch, and a variety of input and output choices. -
Page 8: Xlr And 1/4" Combo Input Jacks [Channels 1 And 2]
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING XLR and 1/4" Combo Input Jacks [Channels 1 and 2] The first two input channels may accept a balanced mic or line-level signal using an XLR connector. They are wired as follows, according to standards specified by the AES (Audio Engineering Society). XLR Balanced Wiring: SHIELD Pin 1 = Shield (ground) -
Page 9: 1/4" Stereo Line Input Jacks [Channel 3/4]
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING 1/4" Stereo Line Input Jacks [Channel 3/4] The stereo line inputs are designed for 1/4" TRS balanced or 1/4" TS unbalanced signals. They may accept any line-level instrument, effects device, CD player, etc. If you are connecting a mono source, use the left (mono) input, and the mono signals will appear on both sides of the main mix. -
Page 10: 1/4" Main Output Jacks
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING 1/4" Main Output Jacks The main outputs provide a line-level signal that represents the end of the mixer chain, where the fully mixed stereo signal enters the real world. Connect these to the left and right inputs of your main power amplifiers, powered speakers, or serial effects processor (like a graphic equalizer or compressor/limiter). -
Page 11: Chapter 3 : Mobilemix Top Panel Features

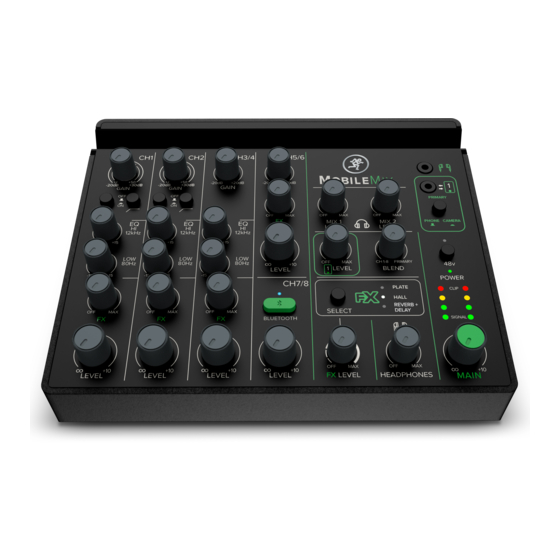

MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Chapter 3 : MobileMix Top Panel Features Introduction From top to bottom and left to right, the top panel of each MobileMix is outfitted with a bunch of knobs, buttons, jacks, and more. So much more, in fact, that we will call out and describe each one... -
Page 12: Line / Hi-Z Switches [Channels 1 And 2]
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING If you haven’t already, please read the “Getting Started” section on page 6. Setting the gain correctly will ensure that the preamplifier’s gain is not too high, where distortion could occur, and not too low, where the quieter, exquisitely-delicate passages might be lost in background noise. -
Page 13: Channel Equalization (Eq)
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Channel Equalization (EQ) MobileMix has shelving hi and low EQ knobs on channels 1-4. The 2-band equalization has low shelving at 80 Hz and high shelving at 12 kHz. Shelving means that the circuitry boosts or cuts all frequencies past the specified frequency. For example, the low EQ boosts bass frequencies below 80 Hz and continuing down to the lowest note you never heard. -
Page 14: Fx Knobs
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING FX Knobs These knobs tap a portion of each channel’s signal to set up a nice FX mix feeding the internal FX processor. The FX may be added to the 1/4" main output jacks, the mix 1 and mix 2 output jacks, and the headphones output. The controls are off when fully turned down, deliver unity gain at the center detent, and can provide up to 10 dB of gain turned fully up (MAX). -
Page 15: Bluetooth Switch And Led [Channel 7/8]
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Bluetooth Switch and LED [Channel 7/8] Mixers can only accept one input per channel and MobileMix is no different. This switch will engage the channel’s pairing mode, allowing the mixer to be seen by other Bluetooth devices such as a phone or tablet. Pairing and Connecting –... -
Page 16: 1/8" (Primary) Input Jack And Pad Switch
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING 1/8" (Primary) Input Jack and Pad Switch Connect a phone, tablet, or DSLR camera to this connector using an 1/8" TRRS cable. The connected device may be used as a line source and/or destination. This jack utilizes standard hands-free protocols, so the phone/tablet interprets MobileMix as a headset and routes the audio appropriately. -
Page 17: Blend Knob
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Blend Knob This knob may be rotated to create a unique blend of inputs 1-8 with the primary source to the outputs. Use this knob while recording overdubs, for example. Knob position (L, C, R): •... -
Page 18: Fx Select Switch
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING FX Select Switch This is a momentary switch that cycles between three unique FX modes: Plate, Hall, and Reverb + Delay. Simply press this switch to cycle between the FX modes. Effect Description Plate... -
Page 19: Main Meters
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Main Meters These peak meters are made up of two columns of four LEDs, with three colors to indicate different ranges of signal level, traffic light style. Most amplifiers clip at about +10 dBu, and some recorders aren’t so forgiving either. For best real-world results, try to keep your peaks in the green with the occasional yellow bump. - Page 20 MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING BATTERY / COVER REMOVAL INSTRUCTIONS: Unplug MobileMix and set it down with the knobs facing down on a soft, flat surface. Using your thumbs, push the two locking tabs towards the rear panel first (as seen below), then up towards the sky once released.
-
Page 21: Angled Phone / Tablet Slot
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING BATTERY INSTALLATION INSTRUCTIONS: 1. As seen in the drawing above, a short USB-C to USB-A cable needs to be attached to the mixer. This cable is included in the packaging. Plug the USB-C side to the mixer as seen in the drawing below. 2. -
Page 22: Hookup Diagrams
Hookup Diagrams > Camping A family loves to go camping... but they also love to play music together. With Mackie MobileMix, both are a possibility! After pitching a tent and grabbing firewood – but before snipe hunting – we would like to get everything connected. -
Page 23: Hookup Diagrams > Live Streaming
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING LINE PHONE/ LEVEL CAMERA Hookup Diagrams > Live Streaming A popular use of MobileMix is for live streaming (and/or podcasting). This is an easy setup starting with two microphones connected to the channel 1 and channel 2 inputs. -
Page 24: Appendix A : Service Information
Troubleshooting If you think your Mackie product has a problem, please check out the following troubleshooting tips and do your best to confirm the problem. Visit the Support section of our website (www.mackie.com) to get some ideas or contact our technical support heroes. -
Page 25: Repair
For warranty service, refer to the warranty information on page 30. Non-warranty service for Mackie products is available at a factory-authorized service center. To locate the nearest service center, visit www.mackie.com, click “Support” and select “Service Center Locater”. Service for Mackie products living outside the United States can be obtained through local dealers or distributors. -
Page 26: Appendix B : Technical Information
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Appendix B : Technical Information Specifications Noise Characteristics Equivalent Input Noise (EIN) (150 Ω Source Impedance, 20 Hz to 20 kHz) Mic in to main out, max gain: ................................–125 dBu Residual Output Noise All outputs, master levels and channel levels off: ..........................–97 dBu All outputs, master levels unity, one channel level unity: ........................–87 dBu... - Page 27 MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING Maximum Levels All inputs: .......................................+10 dBu Main Mix XLR:......................................+10 dBu All other outputs: ......................................+10 dBu Impedances Mic in: ........................................ 3.3 kΩ All other inputs: ......................................≥20 kΩ Phones out / Mix out: ....................................... 25 Ω All other outputs: ..................................120 Ω...
-
Page 28: Mobilemix Dimensions
All other brand names mentioned are trademarks or registered trademarks of their respective holders, and are hereby acknowledged. Please check our website for any updates to this Owner's Manual: www.mackie.com. ©2023 LOUD Audio, LLC. All right All right All rights reserved. -
Page 29: Mobilemix Block Diagram
MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING MobileMix Block Diagram Main L Main L Main R Main R Mix Minus 5/6 Mix Minus 5/6 Mix Minus BT Mix Minus BT Mix Minus Primary Mix Minus Primary... -
Page 30: Warranty Statement
You will need it to obtain any warranty service. For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com/warranty. The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com/warranty constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. - Page 31 MOBILEMIX 8-CHANNEL USB-POWERABLE MIXER FOR A/V PRODUCTION, LIVE SOUND AND STREAMING • USA Phone: 425.487.4333 • Toll-free: 800.898.32 Fax: 425.487.4337 • www.mackie.com...
