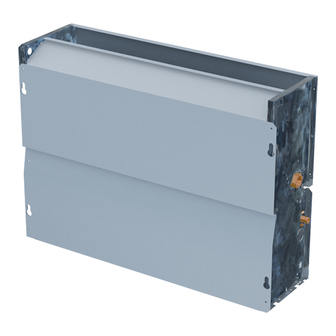

INDOOR FLOOR CONCEALED-STANDING UNITS
SDV5-XXFCA
C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDV5-22FCA and is the answer not in the manual?

Questions and answers

Related Manuals for Sinclair SDV5-22FCA

Summary of Contents for Sinclair SDV5-22FCA

  • Page 1 INDOOR FLOOR CONCEALED-STANDING UNITS SDV5-XXFCA C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5...

  • Page 2: Important Note

    Original instructions IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
  • Page 3 Floor Standing Specifications ..................4 Dimensions .................... 6 Unit Placement ..................7 Piping Diagram ..................9 Wiring Diagram ..................10 Capacity Tables ..................12 Electrical Characteristics ..............20 Sound Levels ..................21...

  • Page 4: Specifications

    1 Specifications Table 1.3: SDV5-22(28, 36, 45)FCA specifications SDV5-22FCA SDV5-28FCA SDV5-36FCA SDV5-45FCA Model Power supply 1 phase, 220-240V, 50Hz Capacity Cooling kBtu/h 12.3 15.4 Power input Capacity Heating kBtu/h 10.9 13.6 17.1 Power input Model WZDK100-38GS-2 Type Fan motor Brand...
  • Page 5 Table 1.2: SDV5-56(71, 80)FCA specifications SDV5-56FCA SDV5-71FCA SDV5-80FCA Model Power supply 1 phase, 220-240V, 50Hz Capacity Cooling kBtu/h 19.1 24.2 27.3 Power input Capacity Heating kBtu/h 21.5 27.3 30.7 Power input Model WZDK100-38GS-3 Type Fan motor Brand Panasonic /Match-well 900/840/800/760/730 1100/1060/1030/990 1130/1110/1080/1040 Speed...

  • Page 6: Unit Dimensions

    Figure 2.3: Concealed Floor Standing dimensions (unit: mm) Connecting point of refrigerant pipe (Liquid side ΦA) Connecting point of refrigerant pipe (Gas side ΦB) Table 2.3: F3 series Concealed Floor Standing dimensions Dimensions (mm) Model names SDV5-22FCA Φ6.35 Φ12.7 SDV5-28FCA SDV5-36FCA Φ6.35 Φ12.7 SDV5-45FCA SDV5-56FCA SDV5-71FCA Φ9.53...

  • Page 7: Unit Placement

    3 Unit Placement 3.1 Placement Considerations Unit placement should take account of the following considerations:  Units should not be installed in the following locations:  Where exposure to direct radiation from a high-temperature heat source or to interference from a source of electromagnetic radiation may occur.
  • Page 8 ≥1 5 0 ≥1 5 0 Figure 3.3: Concealed Floor Standing space requirements (unit: mm) ≥ 200 ≥ 200 ≥ 80 Notes: Vertical unit for building-in, with air intake from below and air outlet on top, for installation on a wall. Additionally, it is required to keep 20mm between the rear and wall;...

  • Page 9: Piping Diagram

    4 Piping Diagram Figure 4.1: Floor Standing piping diagram motor flare nut gas side heat exchanger flare nut liquid side Legend Indoor ambient temperature sensor Indoor heat exchanger mid-point temperature sensor Indoor heat exchanger outlet temperature sensor...

  • Page 10: Wiring Diagram

    5 Wiring Diagram Figure 5.1: Floor Standing wiring diagram...
  • Page 11  Notes for installers and service engineers Caution  All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified and accredited professionals and in accordance with all applicable legislation.  Units should be grounded in accordance with all applicable legislation. Metal and other conductive components should be insulated in accordance with all applicable legislation.

  • Page 12: Capacity Tables

    6 Capacity Tables 6.1 Cooling Capacity Table Table 6.1: Floor Standing cooling capacity Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0...
  • Page 13 Table 6.1: Floor Standing cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
  • Page 14 Table 6.1: Floor Standing cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
  • Page 15 Table 6.1: Floor Standing cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 10.4 12.0 10.2 14.0 10.2 16.0 10.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0...
  • Page 16 6.2 Heating Capacity Table Table 6.2: Floor Standing heating capacity Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 1.34 1.34 1.34 1.34 1.34 1.34 -18.8 1.44 1.44 1.44 1.44 1.44 1.44 -16.7 1.51 1.51 1.51 1.51 1.51 1.51 -14.7...
  • Page 17 Table 6.2: Floor Standing heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 2.24 2.24 2.24 2.24 2.24 2.24 -18.8 2.40 2.40 2.40 2.40 2.40 2.40 -16.7 2.52 2.52 2.52 2.52 2.52 2.52 -14.7 2.60 2.60 2.60...
  • Page 18 Table 6.2: Floor Standing heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 3.53 3.53 3.53 3.53 3.53 3.53 -18.8 3.78 3.78 3.78 3.78 3.78 3.78 -16.7 3.97 3.97 3.97 3.97 3.97 3.97 -14.7 4.10 4.10 4.10...
  • Page 19 Table 6.2: Floor Standing heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 5.04 5.04 5.04 5.04 5.04 5.04 -18.8 5.40 5.40 5.40 5.40 5.40 5.40 -16.7 5.67 5.67 5.67 5.67 5.67 5.67 -14.7 5.85 5.85 5.85...

  • Page 20: Electrical Characteristics

    7 Electrical Characteristics Table 7.1: Floor Standing electrical characteristics Power supply Indoor fan motors Model Rated motor Volts Min. volts Max. volts output (kW) SDV5-22FCA 0.39 220-240 0.49 SDV5-28FCA 220-240 0.55 0.44 SDV5-36FCA 220-240 0.55 0.44 SDV5-45FCA 220-240 0.55 0.44...

  • Page 21: Sound Levels

    8 Sound Levels 8.1 Overall Table 8.1: Floor Standing sound pressure levels Figure 8.1: Floor Standing sound pressure level measurement Sound pressure levels dB(A) Model name SDV5-22FCA SDV5-28FCA SDV5-36FCA SDV5-45FCA SDV5-56FCA SDV5-71FCA SDV5-80FCA Notes: Sound pressure levels are measured at 1m in front of the unit at a height of 1.5m in a semi-anechoic chamber.
  • Page 22 Figure 8.5: SDV5-56FCA octave band levels Figure 8.6: SDV5-71(80)FCA octave band levels NC65 NC65 NC60 NC60 NC55 NC55 NC50 NC50 NC45 NC45 NC40 NC40 NC35 NC35 NC30 NC30 NC25 NC25 NC20 NC20 NC15 NC15 1000 2000 4000 8000 1000 2000 4000 8000 Octave band center frequency (Hz) Octave band center frequency (Hz)

  • Page 23: Exploded View

    Exploded View SDV5-22FCA...
  • Page 24 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 25 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander 12226000000632 Baffle...
  • Page 26 Exploded View SDV5-28FCA...
  • Page 27 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 28 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander 12226000000632 Baffle...
  • Page 29 Exploded View SDV5-36FCA...
  • Page 30 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 31 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander...
  • Page 32 Exploded View SDV5-45FCA...
  • Page 33 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 34 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander...
  • Page 35 Exploded View SDV5-56FCA...
  • Page 36 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 37 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander 12226000000632 Baffle 12918000001319 Coupling 12600401000176 rubber base 12926200000006 Connecting shaft 12926200000011 Bearing Fixing board 12222500000254 Supporting board 12122000007617 Bearing 12622000000013 Bearing base...
  • Page 38 Exploded View SDV5-71FCA...
  • Page 39 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 40 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander 12226000000632 Baffle 12918000001319 Coupling 12600401000176 rubber base 12926200000006 Connecting shaft 12926200000011 Bearing Fixing board 12222500000254 Supporting board 12122000007617 Bearing 12622000000013 Bearing base...
  • Page 41 Exploded View SDV5-80FCA...
  • Page 42 EX_ID Spare Parts Code Part Name(EN) Qty. Remarks 12226000003493 Cover of electronic control box 17226000002654 E-part box assembly 17126000005139 Indoor unit main control board 17400306000783 Reactance 17400401000026 Terminal 17400401001516 Wire joint 12226000003534 E-part box base 12226000000631 Right seal board assembly 12226000000635 Evaporator connection board ass'y 12226000000626...
  • Page 43 12100509000120 Accessory- Drainage hose 12200201000001 Throat bander 12918000001319 Coupling 12600401000176 rubber base 12926200000006 Connecting shaft 12926200000011 Bearing Fixing board 12222500000254 Supporting board 12122000007617 Bearing 12622000000013 Bearing base...

This manual is also suitable for:
