Sinclair SDV5-HA Series Service Manual

Full dc inverter systems indoor wall mounted units
Hide thumbs

Advertisement

Quick Links

Download this manual
INDOOR WALL MOUNTED UNITS SDV5-XXHA
C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDV5-HA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sinclair SDV5-HA Series

Summary of Contents for Sinclair SDV5-HA Series

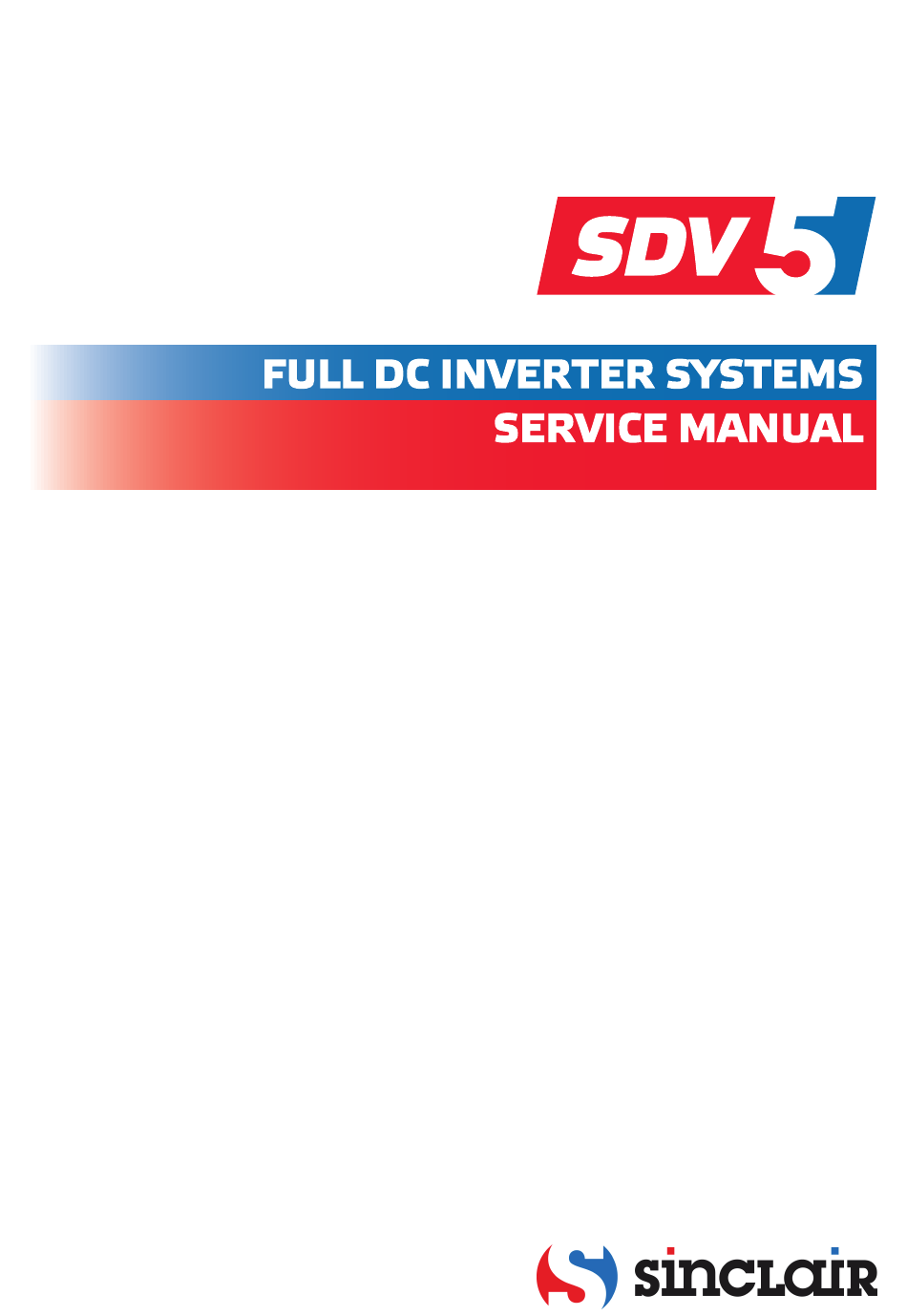

  • Page 1 INDOOR WALL MOUNTED UNITS SDV5-XXHA C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5...
  • Page 2 Original instructions IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

  • Page 3: Table Of Contents

    Specifications ..................4 Dimensions .................... 6 Unit Placement ..................7 Piping Diagram ..................8 Wiring Diagram ..................9 Capacity Tables ..................12 Electrical Characteristics ..............20 Sound Levels ..................21...

  • Page 4: Specifications

    1 Specifications SDV5-22HA / SDV5-28HA / SDV5-36HA / SDV5-45HA Table 1.1: SDV5-22-28-36-45HA specifications Model SDV5-22HA SDV5-28HA SDV5-36HA SDV5-45HA Power supply 1 phase, 220-240V, 50Hz Capacity Cooling kBtu/h 12.3 15.4 Power input Capacity Heating kBtu/h 10.9 13.6 17.1 Power input Model ZKFP-20-8-6 ZKFP-20-8-6 ZKSP-58-8-1...
  • Page 5 SDV5-56HA / SDV5-71HA / SDV5-80HA / SDV5-90HA Table 1.2: SDV5-56-71-80-90HA specifications Model SDV5-56HA SDV5-71HA SDV5-80HA SDV5-90HA Power supply 1 phase, 220-240V, 50Hz Capacity Cooling kBtu/h 19.1 24.2 27.3 30.7 Power input 10.0 Capacity Heating kBtu/h 21.5 27.3 30.7 34.1 Power input Model ZKSP-58-8-1 ZKSP-60-8-3...

  • Page 6: Dimensions

    2 Dimensions 2.1 Unit Dimensions Figure 2.1: Wall mounted dimensions (unit: mm) SDV5-22HA, SDV5-28HA SDV5-36HA, SDV5-45HA, SDV5-56HA SDV5-71HA, SDV5-80HA, SDV5-90HA...

  • Page 7: Unit Placement

    3 Unit Placement 3.1 Placement Considerations Unit placement should take account of the following considerations:  Units should not be installed in the following locations:  Where exposure to direct radiation from a high-temperature heat source or to interference from a source of electromagnetic radiation may occur.

  • Page 8: Piping Diagram

    4 Piping Diagram Figure 4.1: Wall mounted piping diagram motor flare nut gas side heat exchanger flare nut liquid side Legend Indoor ambient temperature sensor Indoor heat exchanger mid-point temperature sensor Indoor heat exchanger outlet temperature sensor...

  • Page 9: Wiring Diagram

                          Wiring Dia gram  Figu ure 5.1: 2.2/2.8 8kW Wall moun n ted wiring diag gram                                    9 ...
  • Page 10                   Figu ure 5.2: 3.6/4.5 5 /5.6kW Wall m mounted wiring  diagram                                  10   ...
  • Page 11                       gure 5.3: 7.1/8. .0/9.0kW Wall  mounted wiring g diagram         otes for inst tallers and  service eng gineers aution    All  install ation,  servici ing  and  main ntenance  mu ust  be  carried d  out  by  com mpetent and ...

  • Page 12: Capacity Tables

    6 Capacity Tables 6.1 Cooling Capacity Table Table 6.1: Wall mounted cooling capacity Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0...
  • Page 13 Table 6.1: Wall mounted cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
  • Page 14 Table 6.1: Wall mounted cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0...
  • Page 15 Table 6.1: Wall mounted cooling capacity (continued) Indoor air temperature (°C WB/DB) Outdoor air Capacity 14/20 16/23 18/26 19/27 20/28 22/30 24/32 temperature (kW) (°C DB) 10.0 10.4 12.0 10.2 14.0 10.2 16.0 10.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0...
  • Page 16 6.2 Heating Capacity Table Table 6.2: Wall mounted heating capacity Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 1.34 1.34 1.34 1.34 1.34 1.34 -18.8 1.44 1.44 1.44 1.44 1.44 1.44 -16.7 1.51 1.51 1.51 1.51 1.51 1.51 -14.7...
  • Page 17 Table 6.2: Wall mounted heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 2.24 2.24 2.24 2.24 2.24 2.24 -18.8 2.40 2.40 2.40 2.40 2.40 2.40 -16.7 2.52 2.52 2.52 2.52 2.52 2.52 -14.7 2.60 2.60 2.60...
  • Page 18 Table 6.2: Wall mounted heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 3.53 3.53 3.53 3.53 3.53 3.53 -18.8 3.78 3.78 3.78 3.78 3.78 3.78 -16.7 3.97 3.97 3.97 3.97 3.97 3.97 -14.7 4.10 4.10 4.10...
  • Page 19 Table 6.2: Wall mounted heating capacity (continued) Indoor air temperature (°C DB) Outdoor air Capacity temperature (°C) (kW) -19.8 5.04 5.04 5.04 5.04 5.04 5.04 -18.8 5.40 5.40 5.40 5.40 5.40 5.40 -16.7 5.67 5.67 5.67 5.67 5.67 5.67 -14.7 5.85 5.85 5.85...

  • Page 20: Electrical Characteristics

    7 Electrical Characteristics Table 7.1: Wall mounted electrical characteristics Power supply Indoor fan motors Model Rated motor Volts Min. volts Max. volts output (kW) SDV5-22HA 220-240 0.32 0.02 0.25 SDV5-28HA 220-240 0.32 0.02 0.25 SDV5-36HA 220-240 0.45 0.058 0.36 SDV5-45HA 220-240 0.47 0.058...

  • Page 21: Sound Levels

    8 Sound Levels 8.1 Overall Table 8.1: Wall mounted sound pressure levels Sound pressure levels dB(A) Model name SDV5-22HA SDV5-28HA SDV5-36HA SDV5-45HA SDV5-56HA SDV5-71HA SDV5-80HA SDV5-90HA Notes: Sound pressure levels are measured in a semi-anechoic chamber. During in-situ operation, sound pressure levels may be higher as a result of ambient noise.
  • Page 22 Figure 8.4: SDV5-45HA octave band levels Figure 8.5: SDV5-56HA octave band levels NC65 NC65 NC60 NC60 NC55 NC55 NC50 NC50 NC45 NC45 NC40 NC40 NC35 NC35 NC30 NC30 NC25 NC25 NC20 NC20 NC15 NC15 1000 2000 4000 8000 1000 2000 4000 8000 Octave band center frequency (Hz) Octave band center frequency (Hz) Figure 8.6: SDV5-71-80HA octave band levels...
  • Page 23 Exploded View SDV5-22-28HA...
  • Page 24 Exploded View SDV5-36-45HA...
  • Page 25 Exploded View SDV5-71-80-90HA...
  • Page 26 WALL-MOUNTED UNITS SDV5-22-90HA C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5...
  • Page 27 SDV5-22HA...
  • Page 28 Description Part Code Note Qty Price Code MODEL: SDV5-22HA WALL-MOUNTED UNIT Panel 12122000A02212 Panel frame assembly 12122000001983 Horizontal louver assembly 12122000005101 Evaporator assembly 15826000002334 11201007003022 Pipr temp sensor assembly Evaporator input pipe ass'y 15426000000519 Evaporator output pipe ass'y 15126000001225 Evaporator 15826000000392 VRF IDU display box assembly 17226000002938...
  • Page 29 SDV5-28HA...
  • Page 30 Description Part Code Note Qty Price Code MODEL: SDV5-28HA WALL-MOUNTED UNIT Panel 12122000A02212 Panel frame assembly 12122000001983 Horizontal louver assembly 12122000005101 Evaporator assembly 15826000002333 11201007003022 Pipr temp sensor assembly Evaporator input pipe ass'y 15426000000476 Evaporator output pipe ass'y 15126000001231 Evaporator 15826000000359 Evaporator 15826000000358...
  • Page 31 SDV5-36HA...
  • Page 32 Description Part Code Note Qty Price Code MODEL: SDV5-36HA WALL-MOUNTED UNIT Panel 12122000A02213 Panel frame assembly 12122000001746 Horizontal louver 12126000001283 Evaporator assembly 15826000002335 11201007003022 Pipr temp sensor assembly Evaporator input pipe ass'y 15426000000477 Evaporator output pipe ass'y 15126000001238 Evaporator 15826000000393 Cross flow fan 12100102000007 Brushless DC Motor...
  • Page 33 SDV5-45HA...
  • Page 34 Description Part Code Note Qty Price Code MODEL: SDV5-45HA WALL-MOUNTED UNIT Panel 12122000A02213 Panel frame assembly 12122000001746 Horizontal louver 12126000001283 Evaporator assembly 15826000002336 11201007003022 Pipr temp sensor assembly Evaporator input pipe ass'y 15426000000478 Evaporator output pipe ass'y 15126000001247 Evaporator 15826000000367 Evaporator 15826000000365 Evaporator...
  • Page 35 SDV5-56HA...
  • Page 36 Description Part Code Note Qty Price Code MODEL: SDV5-56HA WALL-MOUNTED UNIT Panel 12122000A02213 Panel frame assembly 12122000001746 Horizontal louver 12126000001283 Evaporator assembly 15826000002337 11201007003022 Pipr temp sensor assembly Evaporator input pipe ass'y 15426000000479 Evaporator output pipe ass'y 15126000001255 Evaporator 15826000000367 Evaporator 15826000000365 Evaporator...
  • Page 37 SDV5-71HA...
  • Page 38 Description Part Code Note Qty Price Code MODEL: SDV5-71HA WALL-MOUNTED UNIT Panel 12122000A02171 Panel frame assembly 12122000A08690 Horizontal louver 12122000006181 Horizontal louver 12122000008085 15826000002338 Evaporator assembly Pipr temp sensor assembly 11201007003022 Evaporator input pipe ass'y 15426000000480 Evaporator output pipe ass'y 15126000001256 Evaporator 15826000000372...
  • Page 39 SDV5-80HA...
  • Page 40 Description Part Code Note Qty Price Code MODEL: SDV5-80HA WALL-MOUNTED UNIT Panel 12122000A02171 Panel frame assembly 12122000A08690 Horizontal louver 12122000006181 Horizontal louver 12122000008085 15826000002338 Evaporator assembly Pipr temp sensor assembly 11201007003022 Evaporator input pipe ass'y 15426000000480 Evaporator output pipe ass'y 15126000001256 Evaporator 15826000000372...
  • Page 41 SDV5-90HA...
  • Page 42 Description Part Code Note Qty Price Code MODEL: SDV5-90HA WALL-MOUNTED UNIT Panel 12122000A02171 Panel frame assembly 12122000A08690 Horizontal louver 12122000006181 Horizontal louver 12122000008085 15826000002338 Evaporator assembly Pipr temp sensor assembly 11201007003022 Evaporator input pipe ass'y 15426000000480 Evaporator output pipe ass'y 15126000001256 Evaporator 15826000000372...
  • Page 43 SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic TECHNICAL SUPPORT SINCLAIR Global Group s.r.o. Purkynova 45...
