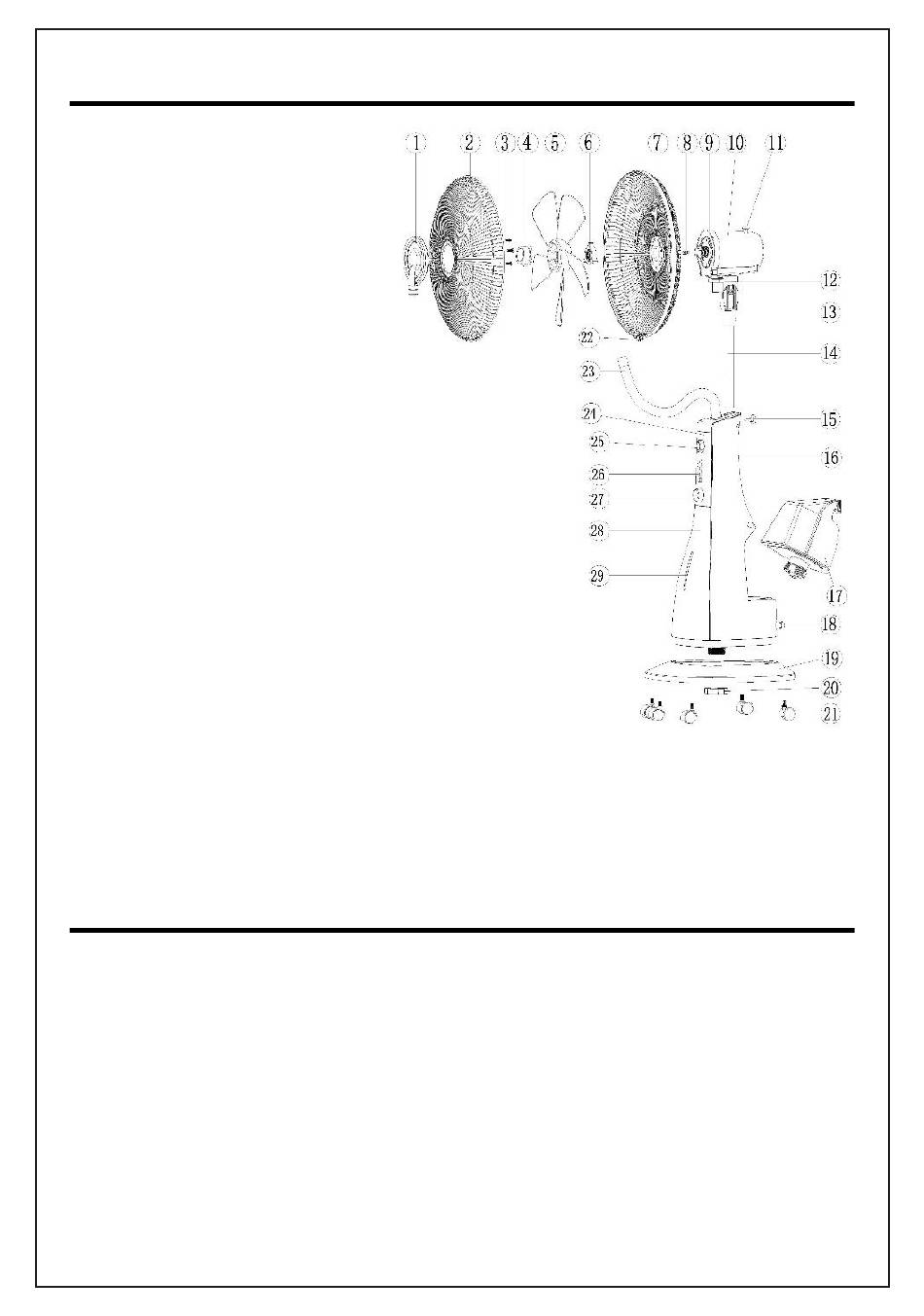

Component list

1. Misting Board
2. Front Grill
3. Misting Board Lock Screws
4. Blade Lock Nut
5. Blades
6. Grill Lock Nut
7. Back Grill
8. Motor Shaft
9. Motor Front Cover
10. Motor Back Cover
11. Oscillation Button
12. Motor Holder
13. Connection Holder
14. Main Holder
15. Holder Fixed Screw
16. Main Body
17. Water Tank
18. Water Outlet Lock nut
19. Base
20. Base Lock Net
21. Wheels
22. Grill Ring
23. Misting Tube
24. Control Panel
25. Timer Control
26. Wind Level Control
27. Misting Control
28. Lower Panel
29. Water Indicator
Instructions for use
1. Insert the main holder (15) into the main body (17), and tight up by the holder fixed
screw (16).
2. Insert the 5 pcs wheels (22) into the base (20), and tighten up by the base lock nut
(21).
3. Put the back grill (7) on the motor shaft (8), and tighten up by the grill lock nut (6) to the
motor cover (9) Insert the blades (5) on the motor shaft (8), and tighten up by the blade
lock nut (4).
4. Fixed the misting board (1) on the front grill (2), and tight up by misting board lock
screws.
5. Connection the front grill (2) and back grill (7) by grill lock screw (11), and tighten up by
grill lock nut (12).
6. Insert the misting tube (23), connection to the misting board (1).
