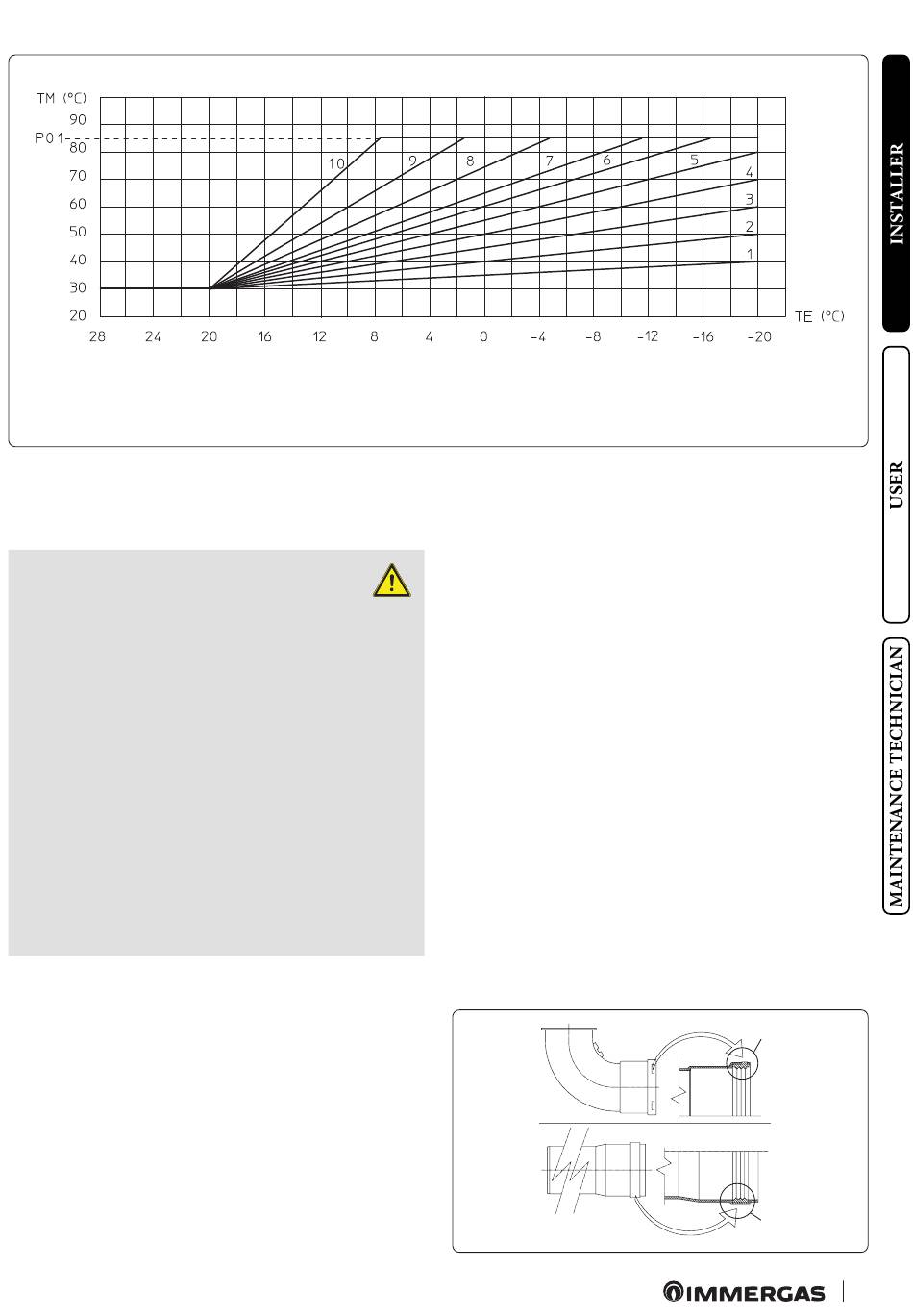

Note: this graph is prepared with the offset value (P15) at 30°C (default value). By changing the offset value, the origin of the flow
temperature curve will also change accordingly and not the inclination.
Ex: with Offset = 40 the graph origin is 40 and not 30 °C and curve 5 with TE = -4°C, TM goes from 60°C to 70°C.

1.13 IMMERGAS FLUE SYSTEMS.

Immergas supplies various solutions separately from the boilers
regarding the installation of air intake terminals and flue exhaust,
which are fundamental for boiler operation.
ATTENTION:
the boiler must be installed exclusive-
ly with an original Immergas "Green
Range" inspectionable air intake system and
flue gas extraction system made of plastic,
with the exception of the C6 configuration, as
required by the regulations in force and by the
product's approval.
This flue can be identified by an identification
mark and special distinctive marking bearing
the note "only for condensation boilers".
The plastic pipes cannot be installed outdoors,
for tracts longer than 40 cm, without suitable
protection from UV rays and other atmos-
pheric agents.
• Configuration type B, open chamber and fan assisted. The
boiler leaves the factory with type "B
Air intake takes place directly from the environment in which
the boiler is installed via relevant slots made in the back of the
boiler and flue exhaust in the individual flue or to the outside.
Boiler with this type of configuration are classified as type B
(in accordance with standard EN 297 and relative standards in
force).
With this configuration:
- air intake takes place directly from the room in which the
appliance is installed;
- the flue exhaust must be connected to its own individual flue
or channelled directly into the external atmosphere.
" configuration.
23
23
- Type B open chamber boilers must not be installed in places
where commercial, artisan or industrial activities take place,
which use products that may develop volatile vapours or sub-
stances (e.g. acid vapours, glues, paints, solvents, combustibles,
etc.), as well as dusts (e.g. dust deriving from the working of
wood, coal fines, cement, etc.), which may be harmful for the
components of the appliance and jeopardise operation.
• Type C configuration, sealed chamber and fan assisted. The
boiler leaves the factory with "B
configuration of the boiler to type "C" (sealed chamber and fan
assisted), disassemble the 80 Ø adapter, the bracket and the gasket
present on the boiler cover and install the designated flue.
• Positioning of the gaskets (black) for "green range" flue ex-
traction systems. Position the gasket correctly (for bends and
extensions) (Fig. 10):
- gasket (A) with notches, to use for bends;
- gasket (B) without notches, to use for extensions;
N.B.: if component lubrication (already carried out by the man-
ufacturer) is not sufficient, remove the residual lubricant using
a dry cloth, then to ease fitting coat the parts with talc, supplied
in the kit.
" configuration, to change the
23
(A)
(B)
9
10
15
