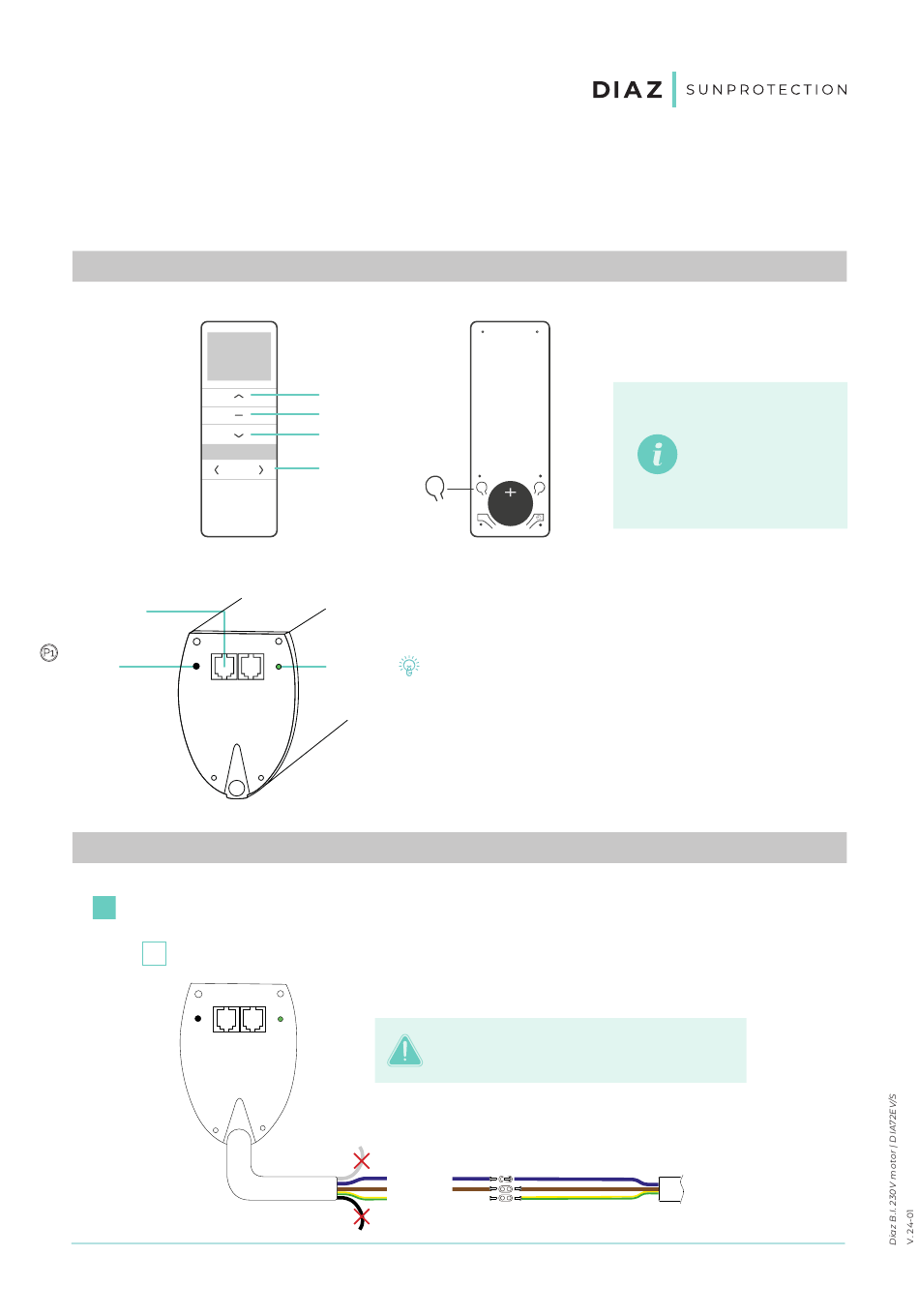

Manual
Diaz B.I. Allegro 230V motor
Introduction
Dry contact switch
control interface
Programming
button
Quick start guide
Connecting the power
1
230V motor with remote control
1.1
www.diaz.be
Up
Stop
Down
Choose
channel
P2
P2
P2
P2
P2
Lithium Cell
3V
M
M
Indicator
Attention! Do not connect multiple
motors simultaneously, but one by one.
230V AC
BLUE: NEUTRAL
230V AC
2 3 0 V A C
230V AC
BROWN: PHASE
2 3 0 V A C
YELLOW/GREEN: GROUND
2 3 0 V A C
P2
Lithium Cell
3V
MOTOR
MOTOR
M O T O R
MOTOR
M O T O R
230V AC
M O T O R
If your motor
does not respond
as described
in this manual,
please proceed to
troubleshooting.
(pg 5).
1
Advertisement
Related Manuals for Diaz B.I. Allegro
Summary of Contents for Diaz B.I. Allegro
- Page 1 Manual Diaz B.I. Allegro 230V motor Introduction If your motor Stop does not respond Down as described in this manual, Choose please proceed to channel troubleshooting. Lithium Cell Lithium Cell (pg 5). Dry contact switch control interface Programming Indicator button...
- Page 2 BLUE: NEUTRAL Pair the first remote <10 sec. 2 sec 2 sec release Program endpoints * Allow the motor to run completely to both ends. The motor will detect the endpoints automatically 1 sec 1 sec and memorize them. www.diaz.be...
- Page 3 To reverse the direction of rotation, we change the connection of the black and grey cables in the switch. BROWN: PHASE BROWN: PHASE GREY: OPEN BLACK: OPEN BLACK: CLOSE 230V AC GREY: CLOSE 230V AC YELLOW/GREEN: GROUND YELLOW/GREEN: GROUND BUE: NEUTRAL BUE: NEUTRAL www.diaz.be...
- Page 4 This function is only possible with a product with remote control. 2 sec Pair/remove additional remote/channel Lithium Cell Lithium Cell PAIRED ADDITIONAL Troubleshooting Reset motor After the reset of the motor you need to go through the quick start guide again. 14 sec www.diaz.be...
