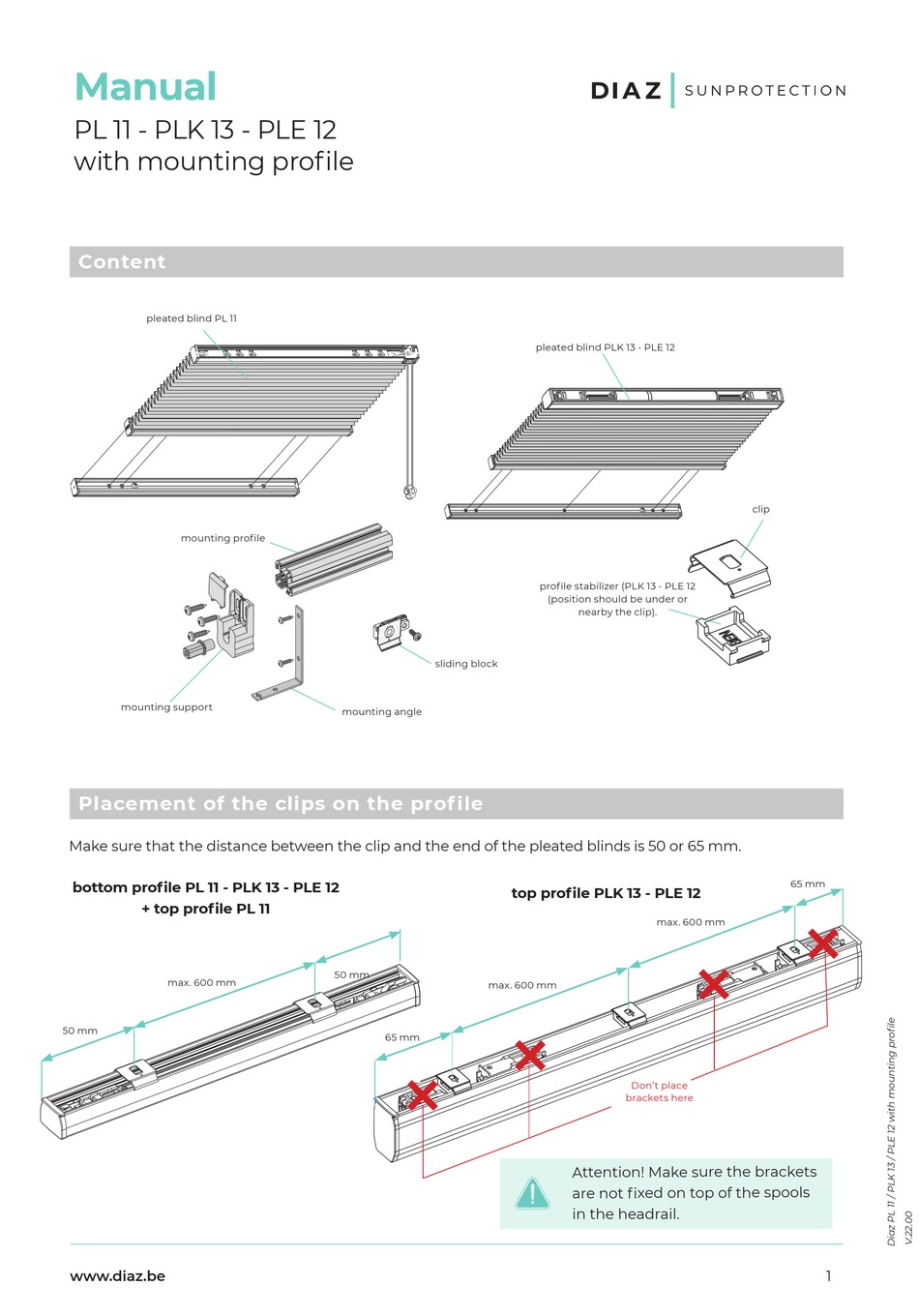

Manual
PL 11 - PLK 13 - PLE 12
with mounting profile
Content
pleated blind PL 11
mounting profile
mounting support
Placement of the clips on the prof ile
Make sure that the distance between the clip and the end of the pleated blinds is 50 or 65 mm.
bottom profile PL 11 - PLK 13 - PLE 12
+ top profile PL 11
max. 600 mm
50 mm
www.diaz.be
sliding block
mounting angle
50 mm
max. 600 mm
65 mm
pleated blind PLK 13 - PLE 12
profile stabilizer (PLK 13 - PLE 12
(position should be under or
nearby the clip).
top profile PLK 13 - PLE 12
max. 600 mm
Don't place
brackets here
clip
65 mm
1
Advertisement
Table of Contents
Related Manuals for Diaz PL 11
Summary of Contents for Diaz PL 11
- Page 1 Placement of the clips on the prof ile Make sure that the distance between the clip and the end of the pleated blinds is 50 or 65 mm. bottom profile PL 11 - PLK 13 - PLE 12 65 mm...
- Page 2 Attach the mounting profile to the mounting support or mounting angle. Add the sliding blocks to the mounting profile. Use the screw to fit the sliding block into the mounting profile. Insert the profile in the bottom edge of the clip and press it upwards (untill it clicks). CLICK www.diaz.be...
- Page 3 Tension the wire (by hand or use pliers). Tighten the screw (turn clockwise). Cut off the excess cord ends. Operation PL 11 The PL 11 system is opened and closed by moving the operating handle, using the control rod if necessary. www.diaz.be...
- Page 4 The PLK 13 system is opened or closed by turning the crank handle. Attach the crank handle to the crank gear box. Operation PLE 12 The PLE 12 system is a motorised system. Consult the electric installation instruction for a correct installation. www.diaz.be...
