Manual
VS2

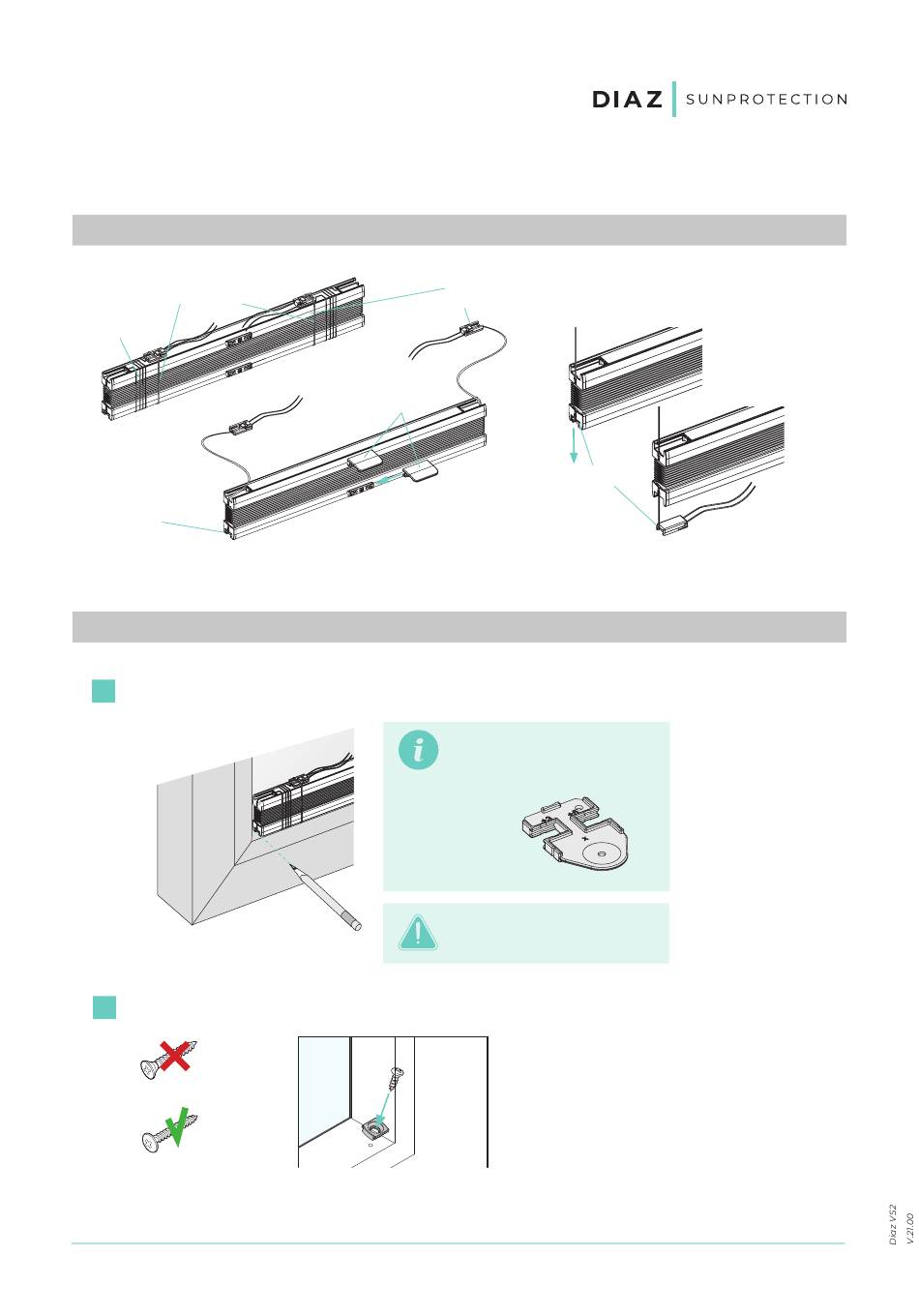

General information
Rubber band
Cord
Lower tension
cord bracket
Mounting of the pleated blind in the glazing bead
1
Determine the position of the tension cord bracket and mark it on the window frame.
2
Screw the fixing plates to the marked position.
DIN 7982 Ø 3,9 x 13 mm
DIN 7981 Ø 2,9 x 9,5 mm
www.diaz.be
Upper tension
cord bracket
Operating
handles
Lower tension cord
You can also use the fixing
template (green) to mark
the position. (see separate
sheet)
outer edge of the blind
= ordered width
bracket
1
Advertisement
Related Manuals for Diaz VS2
Summary of Contents for Diaz VS2
- Page 1 (green) to mark the position. (see separate sheet) outer edge of the blind = ordered width Screw the fixing plates to the marked position. DIN 7982 Ø 3,9 x 13 mm DIN 7981 Ø 2,9 x 9,5 mm www.diaz.be...
- Page 2 DIN 7981 Ø 2,9 x 9,5 mm outer edge of the blind Mount the bottom brackets and push the tension cord brackets over it. Alternative mounting DIN 7982 Ø 3,9 x 13 mm DIN 7981 Ø 2,9 x 9,5 mm outer edge of the blind www.diaz.be...
- Page 3 Click the operation profile over the tension cord bracket. Mount handles: slide both handles sideways. CLICK operation profile tension cord bracket. Cut off the excess cord ends. Adjustment of the cord tension must be uniform and can only be done by a professional. www.diaz.be...
