Measurement
height
hoogte

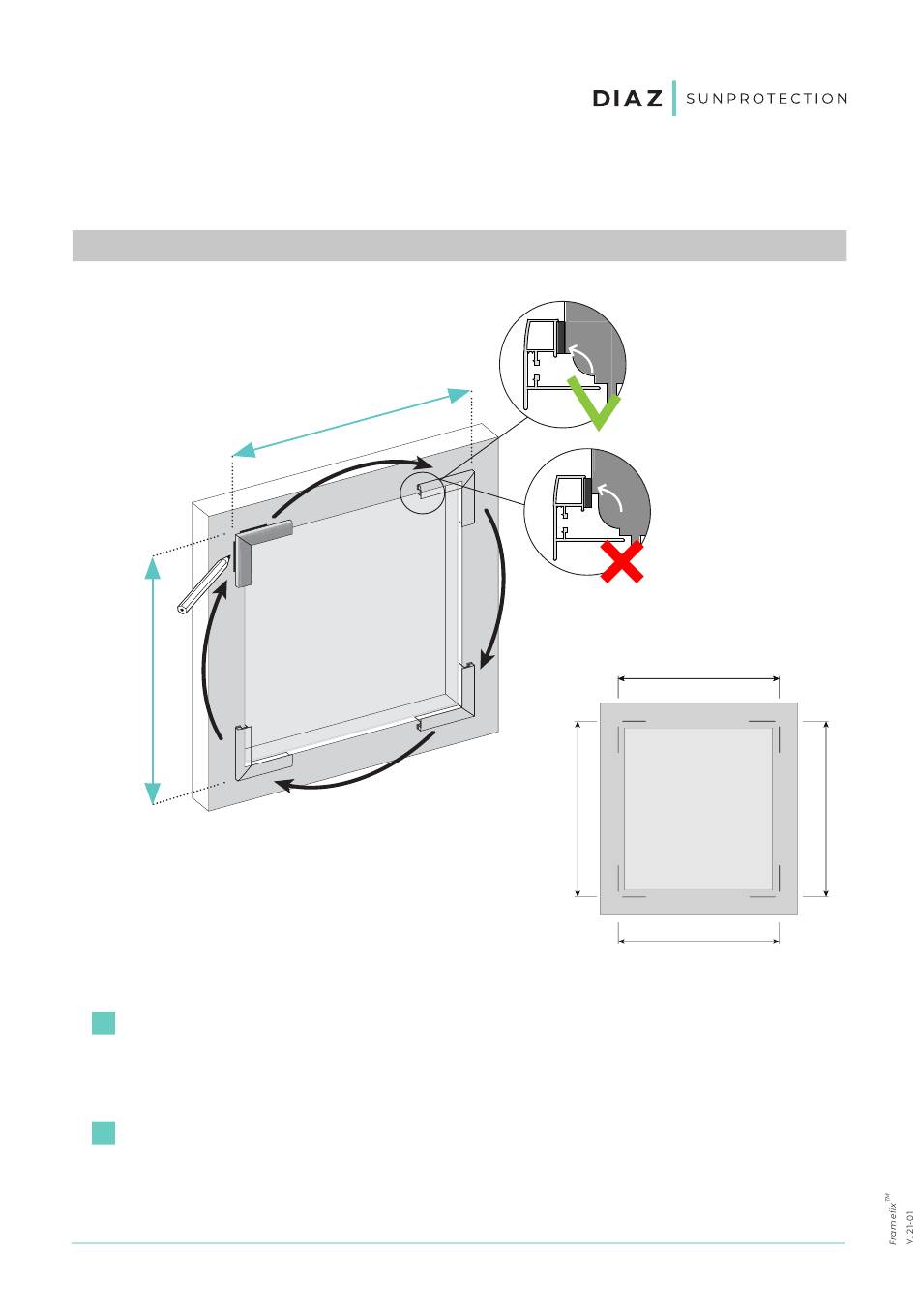

Use our measuring tool to mesure a window for a Framefix
1
magnetic tape covers the window frame completely. If this isn't the case,
the window isn't appropriate for the Framefix
Put the measuring tool in all four corners and mark the outsides.
2
Measure the window from line to line.
* Always take the smallest size.
www.diaz.be
width
breedte
TM
H1*
. Make sure the
TM
.
W1*
H2*
W2*
1
Advertisement
Table of Contents
Related Manuals for Diaz Framefix
Summary of Contents for Diaz Framefix
- Page 1 Use our measuring tool to mesure a window for a Framefix . Make sure the magnetic tape covers the window frame completely. If this isn’t the case, the window isn’t appropriate for the Framefix Put the measuring tool in all four corners and mark the outsides.
- Page 2 <1 mm Attach the magnetic strips to one another Do NOT remove the green coloured protection foil of the upper magnetic strip! Attach the 2nd magnetic strip to the already attached strip, with the protection foil directed to you. www.diaz.be...
- Page 3 Horizontal blind with side guidance Attach the blind in the supports. Pull the cable through the predrilled whole and fix the fixation ring onto the cable. Push the fixation ring through the profile and put tension on the cable. www.diaz.be...
- Page 4 Horizontal blind Top-Down-Bottom-Up ‘ CL I CK ’ ‘C LI CK ’ www.diaz.be...
- Page 5 Plissé (type VS) www.diaz.be...
- Page 6 Installation Framef ix Remove the green coloured protection foil of the magnetic strip and put the frame onto the window frame. Start at the bottom, and work your way up. Fix the frame by pushing the entire frame evenly. www.diaz.be...
