Panamorph ALPHA 133 Installation Manual

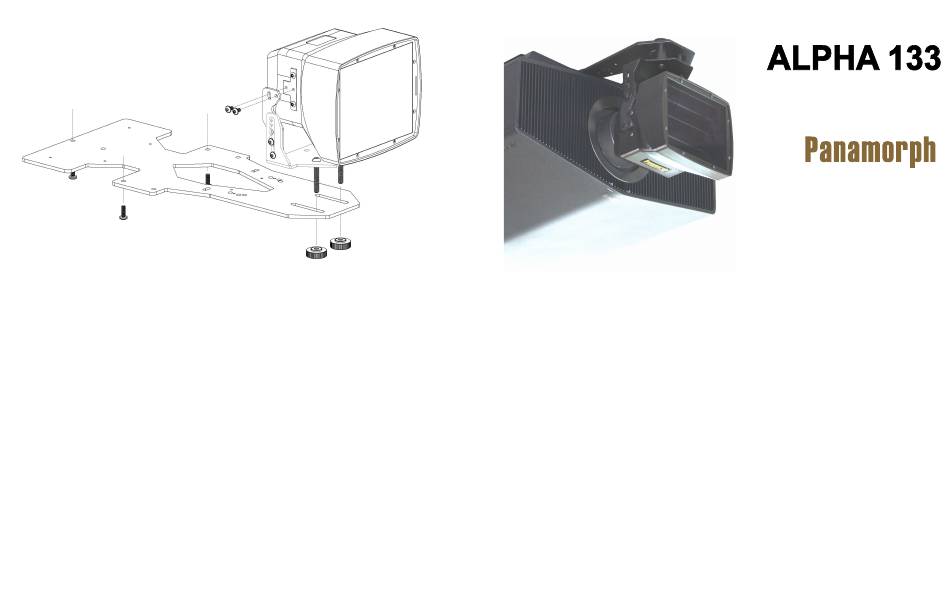

Alpha mounting configuration for a high,
shelf-mounted projector. XM3 plate
mounts to the ceiling mount holes
in the bottom of the projector. Note the
bracket is inverted so that the Panamorph
logo is toward the floor.
CLEANING. Small amounts of dust and wipe marks are very noticeable on
lens surfaces with a high brightness projection beam but typically will not
impact the image as much as damage from excessive cleaning in pursuit of
a "perfect" optical surface. Occasionally blowing off the lens surfaces with
clean air is the best way to keep long term performance. If there is any
excessive residue or build-up then it is recommended that you clean the
optics with professional lens cleaning supplies such as from a camera store
while the lens is in front of the lit beam of the projector. This will allow you to
quickly see if the cleaning process is causing any damage.
LIMITED WARRANTY. Panamorph, Inc. warrants this product against any
change in performance or functionality for a period of twenty-four months
from our ship date. During this period, a unit may be repaired or replaced, at
the discretion of Panamorph, Inc., by returning it in its original packaging
with a copy of your receipt. This warranty does not cover damage resultant
from lack of prudent care, accident or misuse (including use with other
products in ways not intended); any cosmetic damage not reported within 15
days of purchase; or any performance change caused by the environment in
which it is used. All damages are limited to the cost of the product.
Alpha 133 Installation Guide Version 1.0
Confirm theater compatibility with the Alpha calculator at
www.panamorph.com/alpha.
 Over 2 million more pixels on your screen for stunning detail and 30% higher
brightness when showing content in the 2.4:1 format.
 Sealed, precision all-glass optical system supports distortion-free 8K projection. The
first of its kind in the history of theater (patents pending).
 Instant aspect ratio changes. No need for lens adjustments in shift/zoom/focus.
 Optimized for vertical position of the projector in typical home theaters from -6" to
+16" from screen top and +/- 4" from screen horizontal center (greater with higher
throw ratios).
 Optional UltraWide 2.4:1 mode for 16:9 content to fill a cinema-format 2.4:1 screen.
 Universal ceiling- or shelf-mount attachment system for all compatible projectors.
Likely compatibility with future projectors (not guaranteed, new mount may be
required).
 Weight: Lens and bracket: 4.7 pounds (2.14Kg). XM3 plate: 5 pounds (1.8Kg).
 Dimensions: Lens only: 6.6" (168mm) W X 5.6" (140mm) H X 5.9" (150mm) D. Allow
6.5" (165mm) in front of the projector for mounting and adjustments.
Anamorphic Lens
Installation Guide
We bring cinema home
For all JVC 4K/8K D-ILA
and Sony VPL-XW5000ES,
VPL-XW6000ES and VPL-
XW7000ES projectors
®
