- Page 1 Paladin and Paladin DCR LENS SYSTEM WITH XM2 ATTACHMENT KIT INSTALLATION GUIDE Panamorph Paladin (and DCR) Lens System Installation Guide, V1.0 Page | 1...

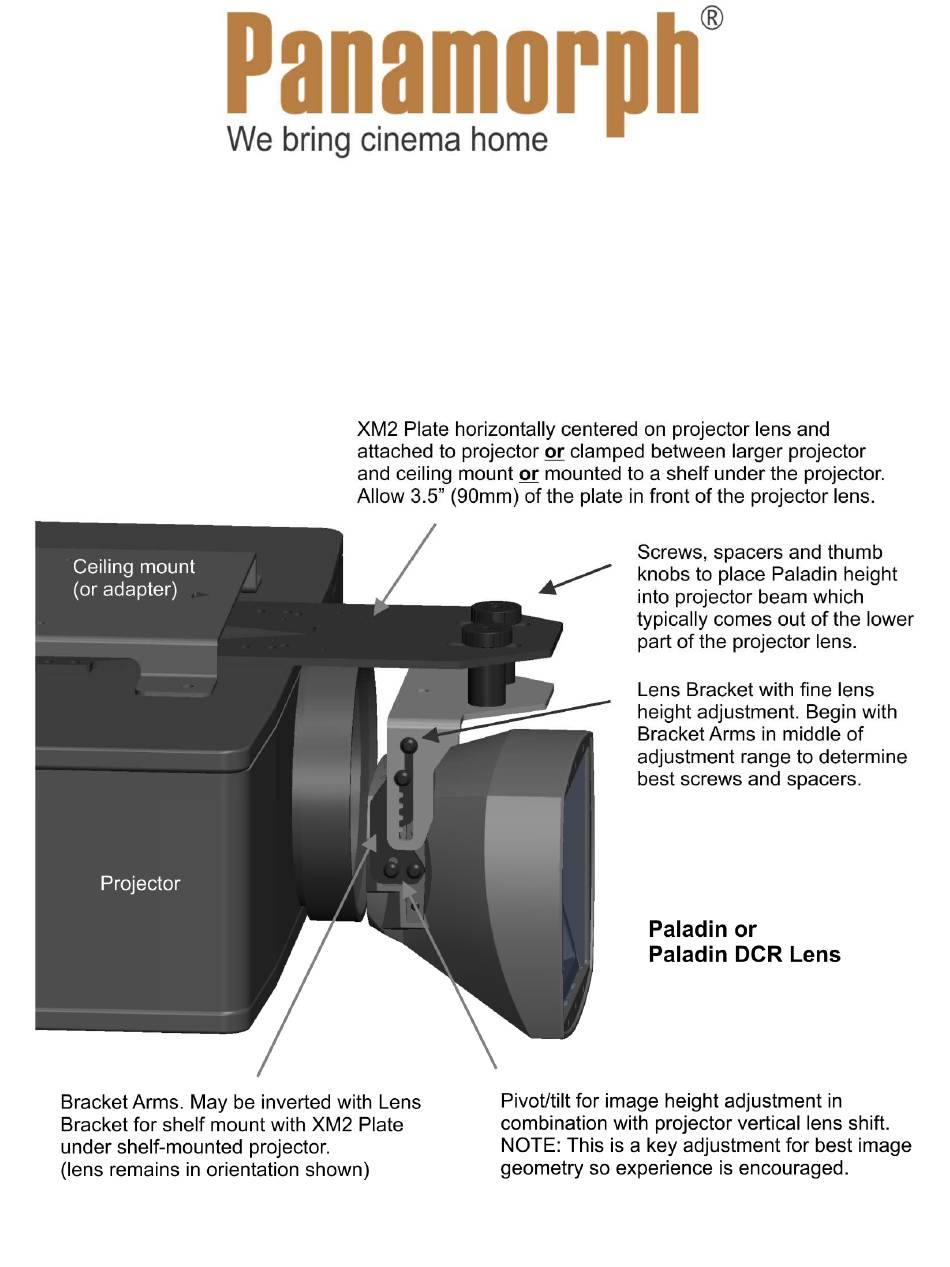

- Page 2 STEP 1 - INSTALL THE XM2 ATTACHMENT PLATE The XM2 attachment kit includes the XM2 steel plate to position Panamorph lenses in front of the projector lens. Since the plate is completely flat it can be inserted between the projector and its ceiling mount or attached to a shelf under the projector or attached directly to certain projector models (see Direct Attachment section).
- Page 3 B. EPSON PROJECTORS ONLY. Set the XM2 Plate aside. For Epson 10XXXLS projectors place a 3/16” spacer over each Panamorph mounting hole. For the Epson 6040UB projector, place a 1/2" spacer over each Panamorph mounting hole. Replace the XM2 Plate over the inverted projector without disturbing the spacers.
- Page 4 Most UltraWide movies since 1971 are in the 2.4:1 (or 2.39:1) aspect ratio but check the back of a Blu-ray movie container to make sure. For the Paladin DCR set Sony projectors to 1.24x (1.32x for standard Paladin) and use the Anamorphic C mode (Anamorphic A for standard Paladin) with JVC projectors.
- Page 5 Image geometry adjustments. If the image is higher or taller on one side than the other but it did not have this issue before lens installation then the Panamorph lens is either higher on one side than the other or is more forward/back on one side than the other.
- Page 6 During this period, a unit may be repaired or replaced, at the discretion of Panamorph, Inc., by returning it in its original packaging with a copy of your receipt. This warranty does not cover damage resultant from lack of prudent care, accident or misuse (including use with other products in ways not intended);...
