FIXED LENS
INSTALLATION
GUIDE
Patented cylindrical-
prism technology
Throw distance range
Min throw distance
Vertical projector
position
Horizontal projector
position
Mounting orientation
Max edge distortion (at
lowest throw ratio)
Electronic Convergence
Correction (Sony, Epson
and JVC HT projectors)
Optimum screen aspect
ratio
Attachment kit
Projector resolutions
supported
UltraWide UHD movie
enhancement vs. native
letterbox
Mode I required for
UltraWide UHD movies
Mode II required for 16:9
and 1.85:1 UHD movies
in native format in center
of screen
Mode for stretching
smaller content to fit
2.4:1 screen
Size (lens only)
Weight (lens + bracket)
Warranty
Phoenix
1.33x Horizontal
Expansion
12' – 24' (3.6m – 7.3m)
1.6 x screen width
Any screen height +/-
15% of screen height
Centered with minimal or
no horizontal lens shift
Suspended or shelf
mount
0.005 x screen diag. at
1.6:1 UW throw ratio
Recommended for throw
distance / screen width
ratio under 2.2:1
2.4:1 flat or curved
Panamorph standard
bracket with XM2 or XMU
kit included
Up to 4K (UHD) in the
16:9 format
20% increase in
brightness from 2+ million
more pixels
4/3 vertical stretch
3/4 horizontal squeeze
"off" or "normal" mode
(no anamorphic
conversion)
5.1" W x 4.5" H x 5.8" D
(129 x 114 x 146 mm)
2.8 pounds (1.3 Kg)
Two years

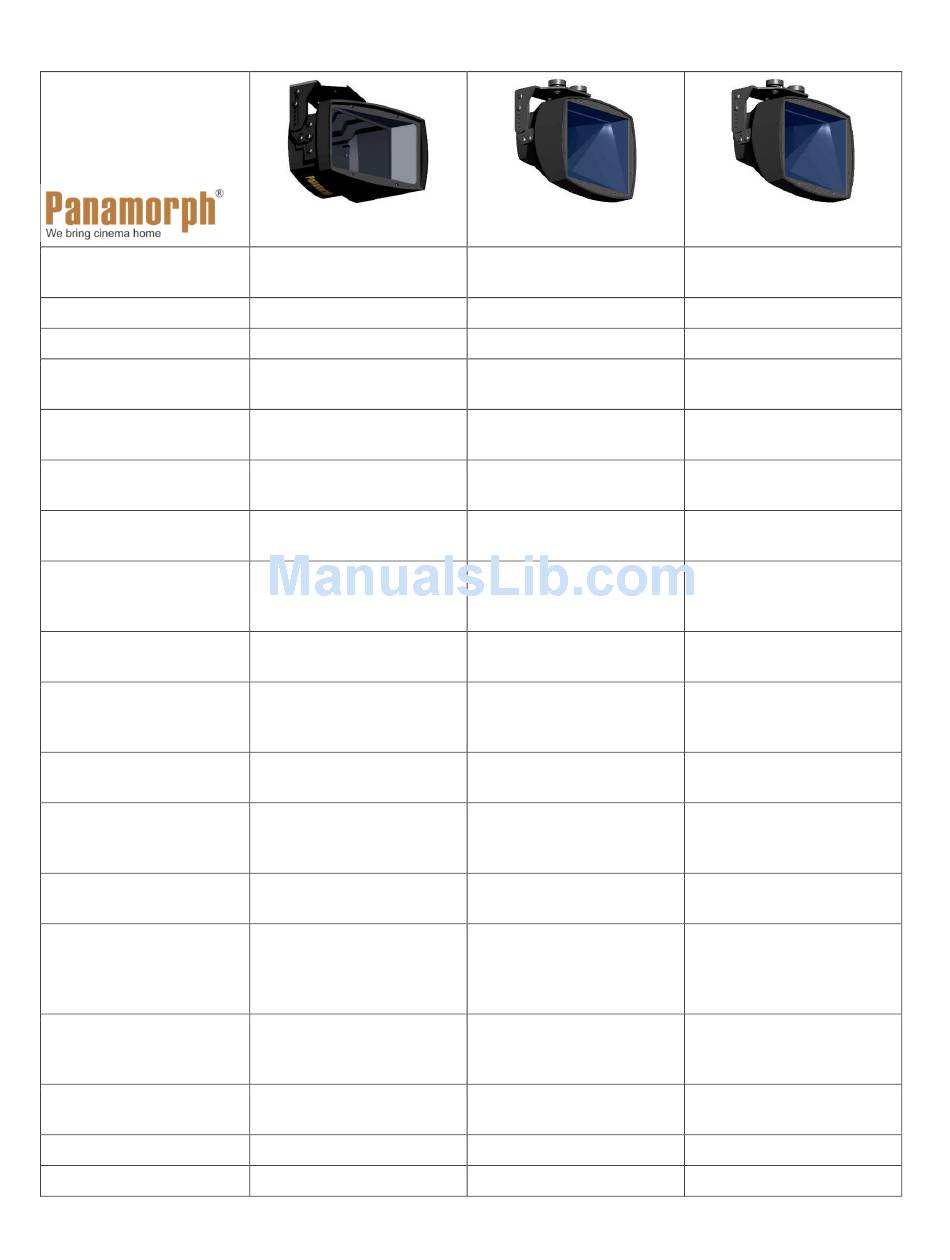

Panamorph Paladin and Phoenix Lens Installation Guide, V1.5
Paladin
0.75x Vertical
Compression
12' to 36' (3.6m – 11m)
1.6 x screen width
Top or bottom of screen
+/ 15% of screen height
Centered with minimal or
no horizontal lens shift
Suspended or shelf
mount
0.005 x screen diag. at
1.6:1 UW throw ratio
Unnecessary
2.4:1 flat (adjustment for
2.35:1)
Panamorph standard
bracket with XM2 or XMU
kit included
4K (UHD) up to 8K in the
16:9 format
29% increase in
brightness from 2+ million
more pixels
4/3 vertical stretch
3/4 horizontal squeeze
"off" or "normal" mode
(no anamorphic
conversion)
6.5" W x 5.7" H x 4.5" D
(165 x 145 x 114mm)
3.6 pounds (1.63 Kg)
Two years
Paladin DCR
0.80x Vertical
compression
12' to 36' (3.6m – 11m)
1.4 x screen width
Top or bottom of screen
+/ 15% of screen height
Centered with minimal or
no horizontal lens shift
Suspended or shelf
mount
0.005 x screen diag. at
1.4:1 UW throw ratio
Unnecessary
2.4:1 flat (adjustment for
2.35:1)
Panamorph standard
bracket with XM2 or XMU
kit included
4K (4096) to 8K in the
17:9 cinema format
38% increase in
brightness from 2.5+
million more pixels
4/3 vertical stretch +
16/15 horizontal stretch
4/5 horizontal squeeze
16:15 horizontal stretch
6.5" W x 5.7" H x 4.13" D
(165 x 145 x 105mm)
3.6 pounds (1.63 Kg)
Two years
Page | 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panamorph Phoenix
Summary of Contents for Panamorph Phoenix
- Page 1 (165 x 145 x 114mm) (165 x 145 x 105mm) Weight (lens + bracket) 2.8 pounds (1.3 Kg) 3.6 pounds (1.63 Kg) 3.6 pounds (1.63 Kg) Warranty Two years Two years Two years Panamorph Paladin and Phoenix Lens Installation Guide, V1.5 Page | 1...
-
Page 2: Installing The Lens
Attachment Screws and Spacers for your projection system. Note that ceiling mounted projectors project the beam out of the lower area of the projection lens so the Panamorph lens will also be aligned lower than the projection lens to properly pass the beam. - Page 3 Arms. See the “Other Tips” section for inverting the Lens Bracket. NOTE: If the projector is toward the top of the screen the Paladin lens should have the Panamorph logo facing down and if at the bottom of the screen the logo should be facing up.
- Page 4 Attachment Plate can be slid back to minimize the distance between the Lens and projector lens. The final distance is not important. Check to make sure the image alignment on the screen has not changed then tighten all adjustments. Panamorph Paladin and Phoenix Lens Installation Guide, V1.5 Page | 4...
-
Page 5: Other Tips
ELECTRONIC CONVERGE CORRECTION The Phoenix Lens can create color fringing which increases toward the right and left edges of the image when a projection system has a relatively small ratio of throw distance to screen width. If noticeable, this color fringing can be corrected by the Electronic Convergence... -
Page 6: Limited Warranty
During this period, a unit may be repaired or replaced, at the discretion of Panamorph, Inc., by returning it in its original packaging with a copy of your receipt. This warranty does not cover damage resultant from lack of prudent care, accident or misuse (including use with other products in ways not intended);...
