Panamorph DCR-J1 Installation Manual

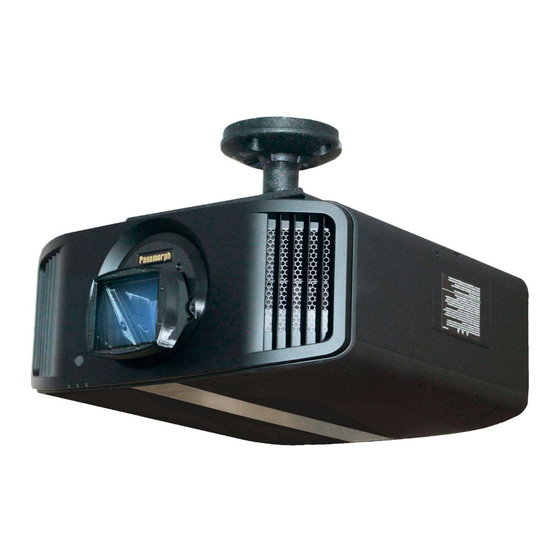

CEILING OR SHELF MOUNTING. Regardless of the projector
orientation the DCR retainer should be installed with the prongs closer
to the ceiling so the Panamorph logo is upright after installation.
ABOUT GEOMETRIC DISTORTION. Anamorphic vertical
compression lenses create a slight "barrel" shaped curvature
especially at the edges of the image. The amount of this distortion
decreases as the projection distance is increased for a given
screen size. See the Image Geometry estimator in the Lens Selector
at www.panamorph.com for approximate distortion to expect. Masking
the edges of the image by the screen border makes this distortion
much less noticeable especially for dramatic content.
CLEANING. Small amounts of dust and wipe marks are very
noticeable on lens surfaces with a high brightness projection beam but
typically will not impact the image as much as damage from excessive
cleaning in pursuit of a "perfect" optical surface. Occasionally blowing
off the lens surfaces with clean air is the best way to keep long term
performance. If there is any excessive residue or build-up then it is
recommended that you clean the optics with professional lens cleaning
supplies such as from a camera store while the lens is in front of the lit
beam of the projector. This will allow you to quickly see if the cleaning
process is causing any damage.
LIMITED WARRANTY. Panamorph, Inc. warrants this product against
any change in performance or functionality for a period of twenty-four
months from our ship date. During this period, a unit may be repaired
or replaced, at the discretion of Panamorph, Inc., by returning it in its
original packaging with a copy of your receipt. This warranty does not
cover damage resultant from lack of prudent care, accident or misuse
(including use with other products in ways not intended); any cosmetic
damage not reported within 15 days of purchase; or any performance
change caused by the environment in which it is used. All damages are
limited to the cost of the product. This warranty is not transferable.
See www.panamorph.com
settings with illustrations for various content.
for projector viewing mode
DCR-J1 Instruction Guide Version 1.1
We bring cinema home
DCR-J1
Anamorphic Lens System
INSTALLATION GUIDE
(Phillips #2 screwdriver required)
See www.panamorph.com
Specifications: 6.3" (160mm) diam x 4.25" (108mm) depth. 2 lbs (0.9 kg). Allow 2"
(51mm) in front of projector for installation. See back page for warranty.

IMPORTANT THEATER GUIDANCE

1. Projection screen should be
minimum 1.5" border.
2. Projector should be horizontally centered on the screen +/- 3 inches
with minimal horizontal lens shift. Projector
ideally be between -5" and +12" from the top of the screen for best
performance. Beyond these limits may prevent the beam from passing
through the lens at low throw ratios.
3. Throw ratio (throw distance divided by screen viewable width)
should be at least 1.4:1 .
US Patent 11635676
®
for JVC projector compatibility
flat , in the 2.4:1 aspect ratio and with a
vertical position should
