ELNA 202-040-015 Manual

BLIND STITCH FOOT FOR OVERLOCK MACHINES
PIED OURLET / POINT INVISIBLE POUR SURJETEUSES
PRENSATELAS PARA DOBLADILLO INVISIBLE

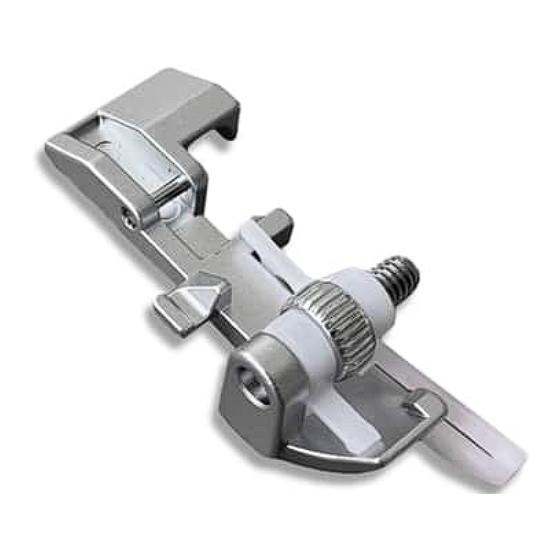

Blind stitch foot:
The task of making a blind hem for pants, skirts or other items is made much easier with this foot.
It secures raw edges and creates a hem in one operation ensuring a speedy finish to the job.
For your safety, turn off the power switch before changing any attachments.
Machine settings:
Set the machine for ordinary 1-needle 3-thread serging (using the right needle). (Refer to the machine instruction
book.)
Thread tensions:
Left needle
--
Stitch length:
Differential feed dial:
Upper Knife:
Needle plate setting knob:
Sewing
1. Replace the foot with the blind stitch foot.
2. Fold up the hem allowance and press. Fold down the hem to the right side of the fabric.
3. Position the fabric (wrong side up) so the folded edge is to the left side of the cloth guide.
4. Turn the adjusting screw until the needle catches only the very edge of the fold.
BLINDSAUMFUß
Right needle
0 – 2
3 - 5
1.0
Activated
S
Upper looper Lower looper
3 3
1/8
