attika RAIS bionic fire User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
B R U G E R M A N U A L
U S E R M A N U A L
B R U K E R V E I L E D N I N G
B R U K S A N V I S N I N G
K ÄY T T Ö O H J E
M A N U E L D ' U T I L I S AT E U R
G E B R U I K E R S H A N D L E I D I N G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAIS bionic fire and is the answer not in the manual?

Questions and answers

Related Manuals for attika RAIS bionic fire

Summary of Contents for attika RAIS bionic fire

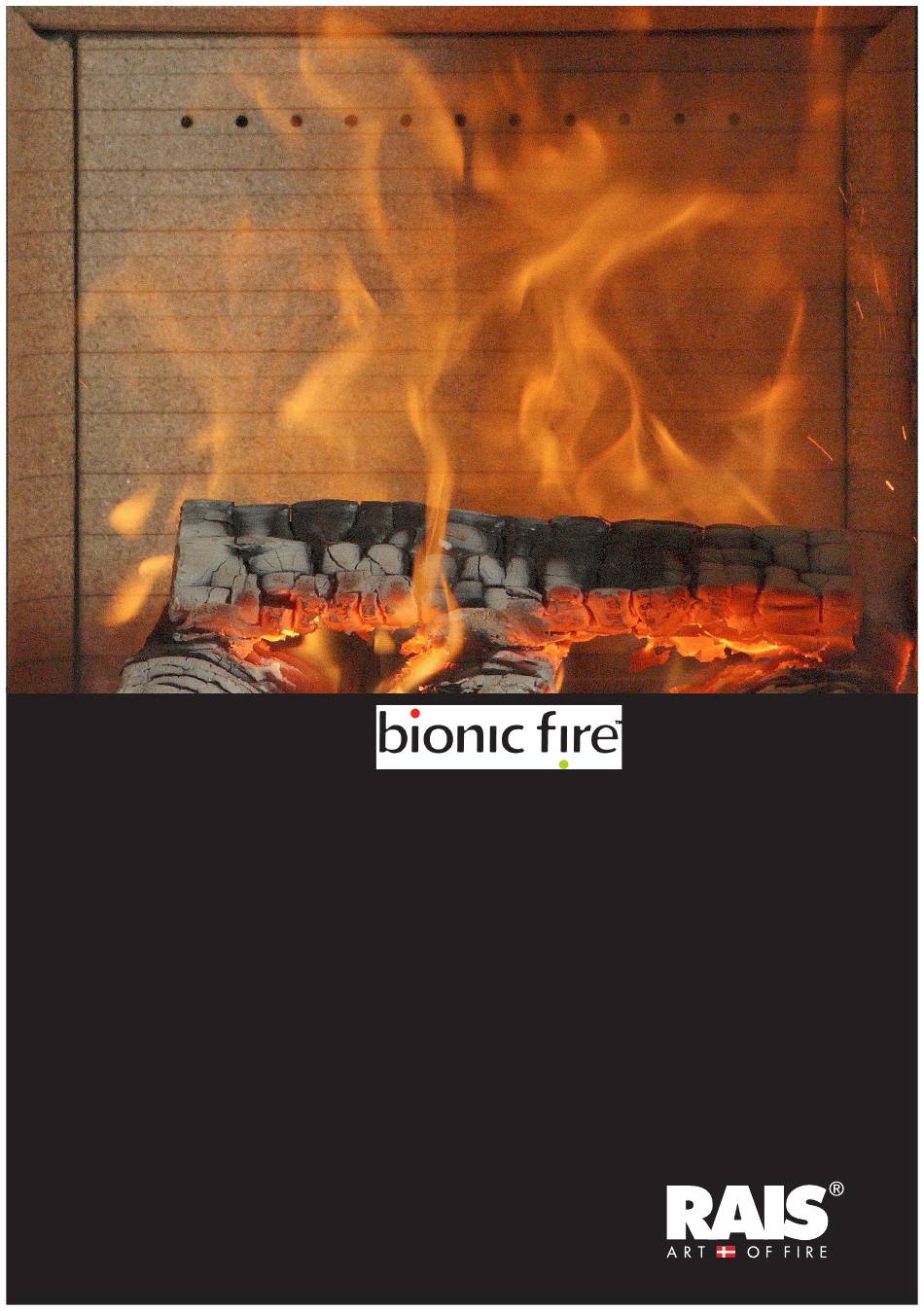

  • Page 1 B R U G E R M A N U A L U S E R M A N U A L B R U K E R V E I L E D N I N G B R U K S A N V I S N I N G K ÄY T T Ö...
  • Page 2 UK: WOOD FR: BOIS Raumheizer für feste Brennstoffe Appliance fired by wood Poêle pour combustibles solides Produced for: 15a B-VG ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / VKF-NR: xxxxx RAIS A/S, Industrivej 20, DK-9900 Frederikshavn Typ FCxxxFCxxx Label for: bionicfire...
  • Page 3 Reservedelstegning / Spare parts / Reservdelsritning / Varosapiitokset / Dessin des pièces de rechange / Tekeningen van reserveonderdelen...
  • Page 4 FIRE ENVIRONMENTALLY FRIENDLY! 3 Eco-friendly advices for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use dry brushwood, kindling and pos- sible a piece of newspaper. 2. Light the fire with only little wood at a time - this gives the best combustion.

  • Page 5: Table Of Contents

    English RAIS - manual for Revision Date 12-04-2023 INTRODUCTION ..........................25 WARRANTY ............................25 SPECIFICATIONS ..........................26 INSTALLATION INSTRUCTIONS..................... 27 CONVECTION ............................28 CHIMNEY ..............................28 INSTALLATION ............................30 CHANGE OF CHIMNEY CONNECTION ..................31 INSTALLATION DISTANCE IN CASE OF COMBUSTIBLE WALL ..........32 NORMAL SET-UP - CORNER SETTING ..................33 CORNER SETTING 45°........................

  • Page 6: Introduction

    English RAIS - manual for Introduction Thank you for purchasing a RAIS wood burning stove. A RAIS wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home. To make the most of your wood burning stove it is important that you read the manual thoroughly, before installing and using it.

  • Page 7: Specifications

    English RAIS - manual for Specifications...

  • Page 8: Installation Instructions

    English RAIS - manual for Installation instructions The following pages give instructions for the safe and proper installation of this heat- ing appliance in the UK. These instructions cover the basic principles of installation, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current UK Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installa- tion of the stove.

  • Page 9: Convection

    English RAIS - manual for Convection RAIS stoves are convection stoves. This means that the stove’s back and side panels are not over-heated. Convection means that there is a circulation of air, which en- sures that the heat is distributed more evenly throughout the entire room. The cold air is sucked in at the base of the stove up through the convection channel, which runs along the stove’s combustion chamber.
  • Page 10 English RAIS - manual for Combustible material should not be located where the heat dissipating through the walls of fireplaces or flues could ignite it. Therefore when installing the stove in the presence of combustible materials due account must be taken of the guidance on the separation of combustible material given in Building Regulations Approved Document J and also in these stove instructions.

  • Page 11: Installation

    English RAIS - manual for Installation is a free standing stove and can be placed on various types of sockets. When installing the wood burning stove, there are some rules which MUST be fol- lowed: The stove must be set up and installed in accordance with all current national and local rules and reulations.

  • Page 12: Change Of Chimney Connection

    English RAIS - manual for Change of chimney connection The stove is delivered ready for top outlet, but may be changed to back outlet in the following way: Strike out the knock out plate at the rear of stove. Remove the blanking plate and the packing, and po- sition them in the hovle at the top.

  • Page 13: Installation Distance In Case Of Combustible Wall

    English RAIS - manual for Installation distance in case of combustible wall To determine whether the wall next to where the stove is going to be installed is flammable, you should contact your building contractor or the local building authori- ties.

  • Page 14: Normal Set-Up - Corner Setting

    English RAIS - manual for Installation distance in case of combustible wall Normal set-up - corner setting Uninsulated flue A. Distance to furniture (min.) 500 mm Distance to flammable materials (min.) B. in front (floor) - if distances are not shown, national/local regulations are fol- lowed C.

  • Page 15: Corner Setting 45

    English RAIS - manual for Corner setting 45° Uninsulated flue A. Distance to furniture (min.) 500 mm Distance to flammable materials (min.): B. in front (floor) - if distances are not shown, national/local regulations are fol- lowed C. to the side (floor) - if distances are not shown, national/local regulations are fol- lowed D.

  • Page 16: Installation Distance In Case Of Non-Combustible Wall

    English RAIS - manual for Installation distance in case of non-combustible wall We recommend a minimum distance to non-combustible material of 50 mm (F) for cleaning considerations. It should always be possible to access the access door. At normal set-up - corner the distance F to back wall is 80mm due to the handle for the convection plate.

  • Page 17: For The Installer

    English RAIS - manual for For the Installer Finally before firing the stove for the first time a check should be made to ensure that the assembly and stove installation has been satisfactory and that there are no leaks in any seals in the appliance and appliance connections to the chimney. Ensure that the appliance and chimney flue are functioning correctly before finally handing over to the user.

  • Page 18: Drying And Storage

    English RAIS - manual for ONLY USE RECOMMENDED FUELS The following table shows the calorific value of different types of wood, which have been stored for 2 years, and which have a residual moisture of 15-17%. Wood Kg dry wood pr. m compared to beech/oak Hornbeam 110%...

  • Page 19: Stove Functioning

    English RAIS - manual for Stove functioning The stove has 2 combustion chambers: • the upper combustion chamber (UCC) is for kindling/refuelling • the lower combustion chamber (LCC) is for post-combustion and may not be used for kindling and refuelling Dome A post-combustion provides a good usage of the fuel energi and an almost complete combustion...

  • Page 20: First Usage

    English RAIS - manual for First usage IMPORTANT: Place wood only in the upper combustion chamber This applies for kin- dling and refuelling. A careful start pays off. Start with a small fire, so that the wood burning stove can accustomed to the high temperature.

  • Page 21: Lighting And Fuelling

    English RAIS - manual for IMPORTANT - Safety advice! When using the stove in situations where children, aged and/or infirm persons are present a fireguard must be used to prevent accidental contact with the stove. The fireguard should be manufactured in accordance with BS 8423:2002 (Replaces BS 6539).

  • Page 22: Control

    English RAIS - manual for • When the fire has caught the kindling (4) close the door completely (after ap- prox. 5 min.). • When the temperature reaches a certain value, the damper will divert the smoke. This causes a downward flame from the upper to the lower combustion chamber LCC (5-6).
  • Page 23 English RAIS - manual for Recommended amount of wood for stoking the fire STOKING TIME INTERVAL The recommended fuel quantity should be sto- To find the recommended amount of wood for ked within 45–60 minutes from the last stoking. stoking the fire, please refer to the table below. The exact interval for when to stoke the volume The recommended amount of wood to burn after of wood can be seen under ”Specifications”...
  • Page 24 English RAIS - manual for Do not overfire Do not overfire the stove. The maximum volume of wood that may be burned in your stove can be www.rais.com found in the table below. If you stoke more wood than the volume specified in the table, you will overfire your stove.
  • Page 25 English RAIS - manual for Warning!! If the firewood is only burning slowly without flames or is smoking, and too little air is added, unburned exhaust gasses are developed. Exhaust gasses can be ignited and explode, leading to damage to material and pos- sibly personal injury.

  • Page 26: Cleaning And Care

    English RAIS - manual for Cleaning and care Glass Most woodstoves use a ceramic glass product which is resistant to heat but requires cleaning to keep its appearance. Soot or opaque marks can easily cleaned if the marks are fresh, however If you leave the glass dirty for any length of time the acid from the wood can etch the surface of the glass permantley (wet unseasoned wood, soft wood such as used in the building industry, pallet wood should be avoided).

  • Page 27: Cleaning Of Flue Ways

    English RAIS - manual for Regarding the cleaning of the upper combustion chamber the ash pan can be used. The pan is placed underneath the UCC in 2 brackets. Ash pan Bracket The ashes are swept on to the ash pan and disposed of. Replace the ash pan in its position in the lower combus- tion chamber again.
  • Page 28 English RAIS - manual for Lower combustion chamber (LCC) One bracket for the ash pan under The bottom plate is gently lifted out neath the UCC is removed (use Allen of its position with f. ex. a wide slotted key 4mm). scruedriver.

  • Page 29: Interruption Of Operation

    English RAIS - manual for Interruption of operation Smoke spillage around door: could be due to too low draught in the chimney <12Pa • check whether the flue or chimney is blocked • check whether the extraction hood is switched on; if it is, switch it off and open a window/door in the proximity of the stove for a short while.

  • Page 30: Spare Parts

    English RAIS - manual for Spare parts If spare parts other than those recommended by RAIS are used, the warranty is voided. All replaceable parts can be bought as spare parts from your RAIS distributor. For reference see spare parts drawing (back of user manual). Pos.
  • Page 31 ATTIKA FEUER AG Brunnmatt 16 CH-6330 Cham Switzerland www.attika.ch RAIS A/S Industrivej 20 DK-9900 Frederik- shavn Denmark www.rais.dk...
  • Page 33 Dato Tekst 15-12-2022 Nye CE labels med UKCA tilføjet 12-04-2023 Anbefalet fyringsmængde og overfyring tilføjet...
