- Page 1 Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.03.2024, ID: 234704, 234705, 234706, 235603 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety instructions............................. 8 Features and scope of delivery......................11 3.1 Bodypack Transmitter TG 16 T....................12 3.2 Bodypack Receiver TG 16 R......................12 3.3 Charging station TG C2........................13 3.4 Charging station TG C18........................ - Page 4 Table of contents 6.4 Charging station TG C18........................ 23 Technical specifications........................24 7.1 Bodypack Transmitter TG 16 T....................24 7.2 Bodypack Receiver TG 16 R......................25 7.3 Charging station TG C2........................26 7.4 Charging station TG C18........................ 27 7.5 Frequency table..........................28 Plug and connection assignment....................
- Page 5 Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System...
-
Page 6: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for the wireless transmission of audio signals, particularly voice transmission during guided tours and events. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Safety instructions WARNING! Incorrect handling of lithium batteries can result in injury! In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Handle lithium bat‐ teries in a correct and professional manner. Store lithium batteries in a cool and dry place in their original packaging. Keep lithium batteries away from sources of heat.
- Page 10 Safety instructions NOTICE! Risk of fire due to incorrect polarity! Incorrectly inserted batteries may cause fires and destroy the device and the batteries. Observe the markings on the batteries and on the device. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage due to leaking batteries! Batteries can leak and cause permanent damage to the device.
-
Page 11: Features And Scope Of Delivery

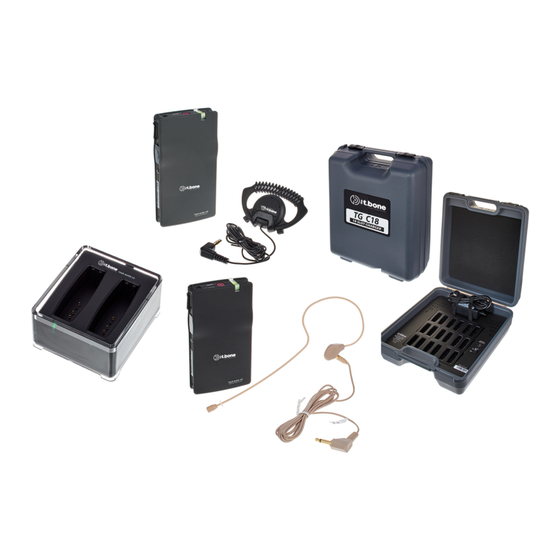

Features and scope of delivery Features and scope of delivery The wireless tour guide system TG 16 can be used as a tour guide system for visitors in many different areas where ideal voice quality and simple handling are essential. The system offers various compilation possibilities so it can be tailored easily to many different needs. -
Page 12: Bodypack Transmitter Tg 16 T
Features and scope of delivery 3.1 Bodypack Transmitter TG 16 T The TG 16 T bodypack transmitter is characterized by the following features: Displays for set channel and operating status Integrated rechargeable lithium battery Charging contacts for charging stations TG C2 and TG C18 Built-in microphone 3.5-mm connection for separate microphone Housing colour: Black... -
Page 13: Charging Station Tg C2
Features and scope of delivery 3.3 Charging station TG C2 The TG C2 charging station is characterized by the following features: Two charging slots for bodypack transmitter TG 16 T and bodypack receiver TG 16 R Separate indicator LED for each charging slot Power supply via supplied power adapter 3.4 Charging station TG C18 The TG C18 charging station is characterized by the following features:... -
Page 14: Installation And Starting Up
For more information, please visit: http://www.thomann.de. Make sure that transmitter and receiver are both tuned to the same channel. -
Page 15: Connections And Controls
Connections and controls Connections and controls 5.1 Bodypack Transmitter TG 16 T $ % & ö Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System... - Page 16 Connections and controls 1 [VOL] | Volume control 2 LED to indicate the operating status. The LED lights up green when the device is turned on. It lights up red when the charge of the built-in battery is too low. 3 [POWER] | Main switch.
-
Page 17: Bodypack Receiver Tg 16 R
Connections and controls 5.2 Bodypack Receiver TG 16 R $ % & ö Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System... - Page 18 Connections and controls 1 [VOL] | Volume control 2 LED to indicate the operating status. The LED lights up green when the device is turned on. It lights up red when the charge of the built-in battery is too low. 3 [POWER] | Main switch.
-
Page 19: Charging Station Tg C2
Connections and controls 5.3 Charging station TG C2 1 2 charging slots for bodypack transmitters or receivers, with separate indicator LED. ö ö The LED flashes when the charging slot is free. It lights up when charging begins and then goes out after about 10 to 15 seconds. 2 Connection for the supplied power supply Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System... -
Page 20: Charging Station Tg C18
Connections and controls 5.4 Charging station TG C18 1 18 charging slots for bodypack transmitters or receivers, with separate indicator LED. The LED flashes when the charging slot is free. It lights up when charging begins and then goes out after about 10 to 15 seconds. 2 [DC INPUT] | Connection for the supplied power supply adapter 3 [POWER] | Mains switch for turning the device on and off. -
Page 21: Operating
Operating Operating 6.1 Bodypack Transmitter TG 16 T Preparing the device Thread the supplied band through the corresponding holes on the upper right corner of the housing. If you do not want to use the built-in microphone, you can connect the supplied ear clip microphone or another suitable microphone to the corresponding socket. -
Page 22: Bodypack Receiver Tg 16 R
Operating 6.2 Bodypack Receiver TG 16 R Preparing the device Thread the supplied band through the corresponding holes on the upper right corner of the housing. Connect the supplied single earphone or other headphones to the corresponding socket. Make sure that the device is fully charged before using it. Switching on the device Press [POWER] until the indicator LED lights up green. -
Page 23: Charging Station Tg C2
Operating 6.3 Charging station TG C2 Preparing the device Connect the supplied power supply to the power supply input of the device and then plug the power adapter into a mains socket. Charging bodypack devices Turn off the bodypack transmitter or receiver that needs charging. Position the charging con‐ tacts of the bodypack device over the charging contacts of the charging slot, then insert the bodypack device into the charging slot so that it engages. -
Page 24: Technical Specifications
Technical specifications Technical specifications 7.1 Bodypack Transmitter TG 16 T Functional principle PLL synthesized control Input connections Microphone 1 × 3.5 mm jack socket Frequency range 863 MHz … 865 MHz Max. transmission power 10 mW Input impedance 2.2 kΩ Range in clear field of vision 50 m NF frequency response... -
Page 25: Bodypack Receiver Tg 16 R
Technical specifications Dimensions (W × H × D) 54 mm × 99 mm × 17 mm Weight 80 g Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) 7.2 Bodypack Receiver TG 16 R Functional principle PLL synthesized control Number of systems that can be oper‐... -
Page 26: Charging Station Tg C2
Technical specifications Operating time 14 h Charging time in the device approx. 8 h Dimensions (W × H × D) 54 mm × 99 mm × 17 mm Weight 80 g Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) 7.3 Charging station TG C2 Battery... -
Page 27: Charging Station Tg C18
Technical specifications Dimensions (W × H × D) 85 mm × 41 mm × 75 mm Weight 115 g Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) 7.4 Charging station TG C18 Battery Battery type Lithium-ion Voltage 3.7 V Charging time in the device approx. -
Page 28: Frequency Table
Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) 7.5 Frequency table Channel Display Frequency (MHz) Channel Display Frequency (MHz) 863.125 864.125 863.250 864.250 863.375 864.375 863.500 864.500 863.625 864.625 863.750 864.750 863.875 864.875 864.000 865.000 Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System... -
Page 29: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 30 Plug and connection assignment Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding Tour Guide TG 16 T, 16 R, C2, C18 Tour Guide System...
-
Page 31: Troubleshooting
Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy No sound 1. Check the power supply of the transmitter and receiver. 2. Make sure that transmitter and receiver are operating in the same frequency range. - Page 32 Change the volume setting of the transmitter and the receiver for test purposes. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Tour Guide TG 16 T, 16 R, C2, C18...
-
Page 33: Tour Guide Tg 16 T, 16 R
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 34 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
