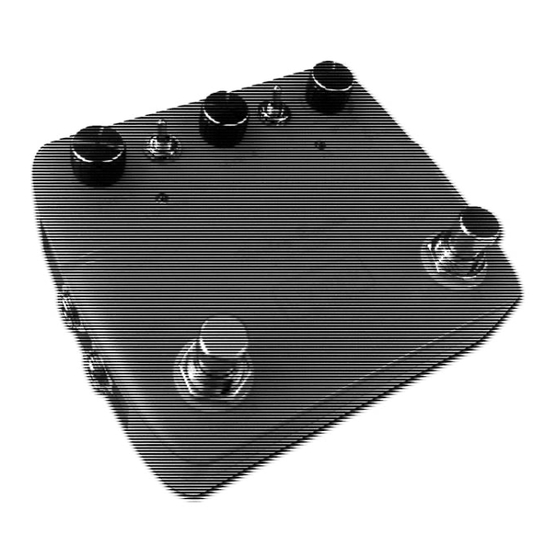

  • Page 1 Dual Looper looper user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.02.2017, ID: 402772...
  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 11 Notes on use............................... 12 Controls and functions......................... 13 Operating..............................18 Technical specifications........................22 Protecting the environment......................
  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.
  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided.
  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is used to record instrument signals and to play them back by means of suitable devices in an endless loop. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in per‐...
  • Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 10 Safety instructions NOTICE! External power supply The device is powered by an AC adaptor plug. Before connecting the AC adaptor plug, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly the user.
  • Page 11: Features

    Features Features Dual-channel looper Up to 10 minutes recording time Unlimited overdubbing Variable playback speed Reverse playback possible Windows software for data transmission available from our product website Recording format WAV audio with 48 kHz / 24 bit Operation via power supply (not supplied) Dual Looper...
  • Page 12: Notes On Use

    Notes on use Notes on use Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 13: Controls And Functions

    Controls and functions Controls and functions Ins / outs, controllers, LEDs Dual Looper...
  • Page 14 Controls and functions 1 [LEVEL L] Volume control for the left channel. 2 [CHANGE | FORWARD | REVERSE] When switch in CHANGE position: Recorded loop material is output in the other channel as it was recorded. When switch in FORWARD position: Recorded loop material is output forwards in the same channel as it was recorded.
  • Page 15 Controls and functions 4 [STOP | FX] Switch for function control of the right foot switch. [FX]: When switch in STOP position: The right foot switch [FX] stops loop recording and playback. When switch in FX position: The right foot switch [FX] turns the function to adjust the playback speed as well as - if activated - the loop playback backwards on and off.
  • Page 16 Controls and functions 9 [RIGHT IN] Input socket right channel: Use a shielded instrument cable with a 1/4" jack to connect the instrument whose signals are to be processed in the right channel. 10 [FX] If the [STOP | FX] switch is in the STOP position, pressing this switch quickly stops the recording or playback. Press and hold the switch for 2 seconds to irretrievably erase previous recordings.
  • Page 17 Controls and functions 14 [USB] USB port to connect a computer for copying the loop material. 15 [LOOPER] This LED flashes green on stopped playback. Then press the left foot switch [LOOPER] to start playback. The LED lights up green during playback. During playback, press the left foot switch [LOOPER] to start recording. The recording cannot start, if the [CHANGE | FORWARD | REVERSE] switch is in the [REVERSE] position.
  • Page 18: Operating

    Operating Operating Using the mains adapter Connect the device to the power supply via a suitable mains adapter (not supplied), which provides 9 V with the negative pole via the centre contact. The device is instantly opera‐ tional. Disconnect the unit from the power supply to switch it off. The recorded loop remains stored in the device after switching it off.
  • Page 19 Operating The [LOOPER] LED flashes green, the device is ready to play. Press the foot switch [LOOPER] to start playback. The [LOOPER] LED lights up green then. If there is not yet any loop material in the memory, press the foot switch [LOOPER] again to start recording. The [LOOPER] LED lights up red then.
  • Page 20 Operating The undo / redo function is still available after disconnection from the power supply. Playback / Effects If the [LOOPER] LED flashes green press the [LOOPER] foot switch to start playback. To change the channels when playing the loop material, set the [CHANGE | FORWARD | REVERSE] switch in the [CHANGE] position.
  • Page 21 Operating USB transfer To copy the loop material to a computer, connect the USB port of the active device to the com‐ puter using the included USB cable. The necessary driver is installed automatically. If a mes‐ sage appears on the screen to update the software, we recommend that you perform the update.
  • Page 22: Technical Specifications

    Technical specifications Technical specifications Operating supply voltage via external power supply (item no. 108096), not included Current consumption 90 mA Input impedance 470 kΩ Output impedance 100 Ω Audio format for file exchange via USB WAV audio, 48 kHz / 24 bit Dimensions (W ×...
  • Page 23: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 24 Notes looper...
  • Page 25 Notes Dual Looper...
  • Page 26 Notes looper...
